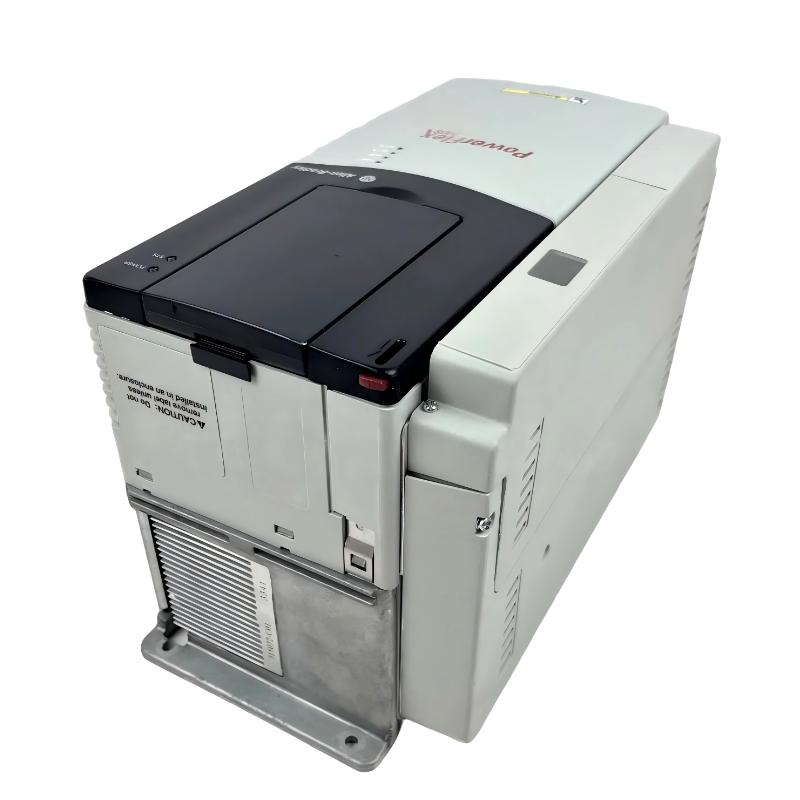

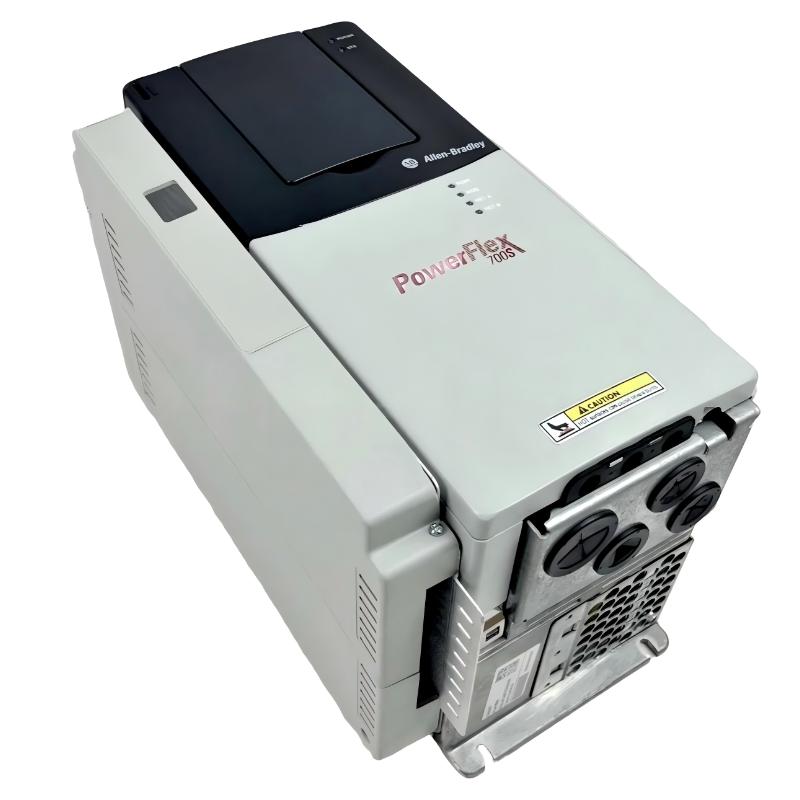

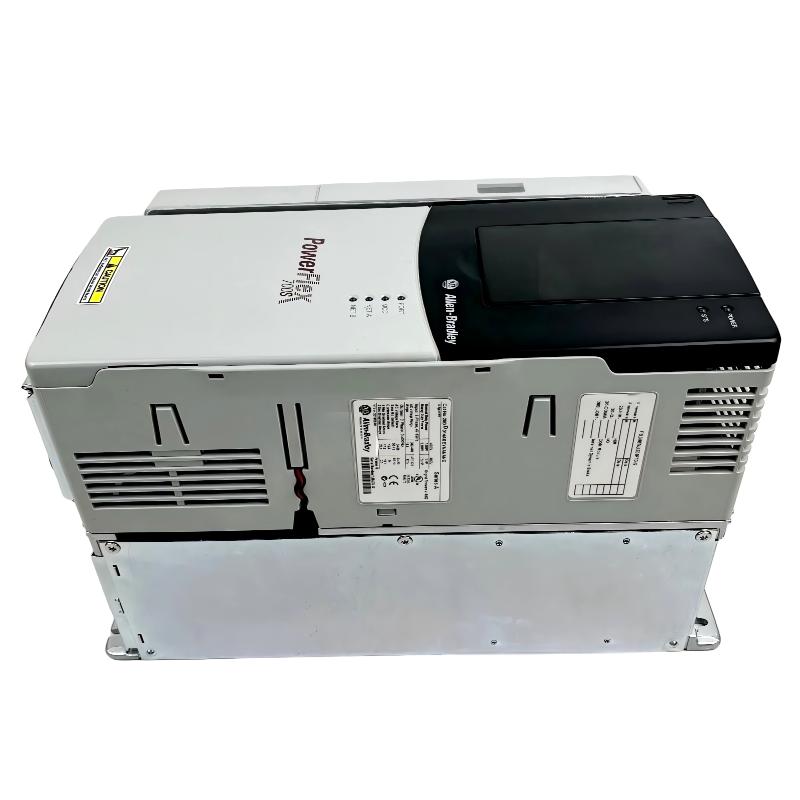

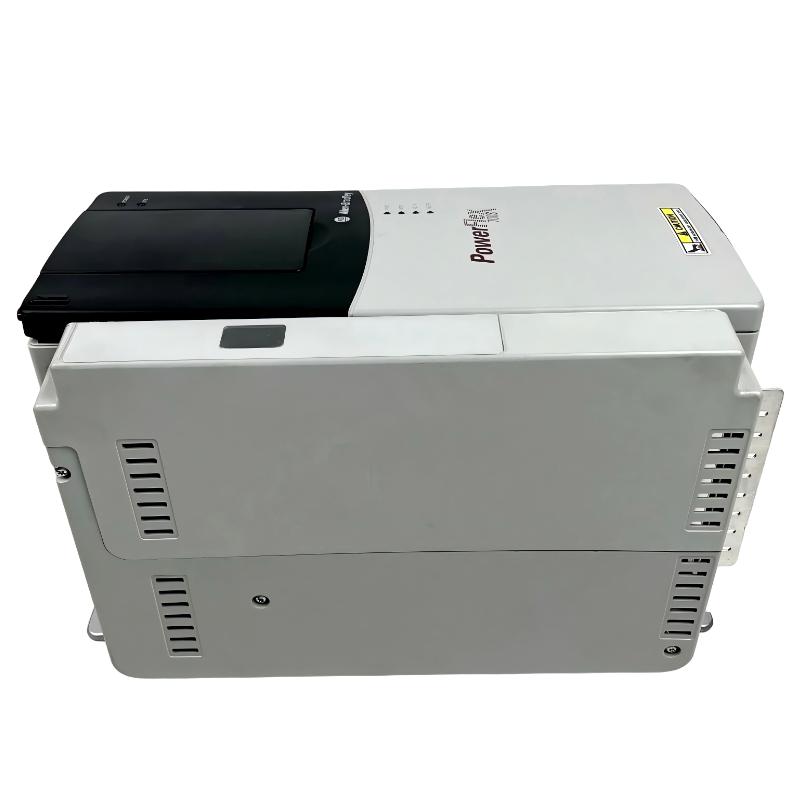

The Allen-Bradley 20DD014A0EYNANANE is a PowerFlex 700S AC drive module designed for high-performance industrial automation systems requiring precise motor control, advanced torque regulation, and reliable dynamic response. Engineered by Rockwell Automation, this drive sits in the upper-performance tier of the PowerFlex family, supporting both induction and servo-like control applications through advanced field-oriented control architecture.
With a 14A output current and 7.5 kW (10 HP) normal-duty rating, the drive is widely deployed in demanding motion control systems such as synchronized conveyors, packaging lines, and high-precision manufacturing processes. It is particularly valued for its Phase II control platform, which enhances responsiveness and system integration capability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | PowerFlex 700S |
| Drive Type | High-performance AC Variable Frequency Drive |
| Input Voltage | 380–480V AC, 3-Phase |
| Output Current | 14 A |
| Normal Duty Rating | 7.5 kW (10 HP) |
| Heavy Duty Rating | 5.5 kW (7.5 HP) |
| Control Platform | Phase II Control (Expanded Cassette) |
| Frame Size | Frame 1 |
| Enclosure Type | IP20 / NEMA Type 1 |
| Brake IGBT | Installed |
| Internal Brake Resistor | Not Included |
| Communication Module | Not Installed |
| Feedback Support | Incremental encoder ready |
| EMC Filtering | Integrated with common-mode choke |
| Output Frequency Range | 0–400 Hz |
| Switching Frequency | Up to 4–10 kHz selectable |
| Efficiency | ~97.5% |
| Operating Temperature | 0 to 50°C |
| Humidity Range | 5–95% non-condensing |
Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 336 × 166.9 × 200 mm |
| Weight | 7.03 kg (approx. 15.5 lbs) |
The compact Frame 1 design balances high-performance control hardware with efficient cabinet integration, making it suitable for dense industrial control panels where space optimization matters.
