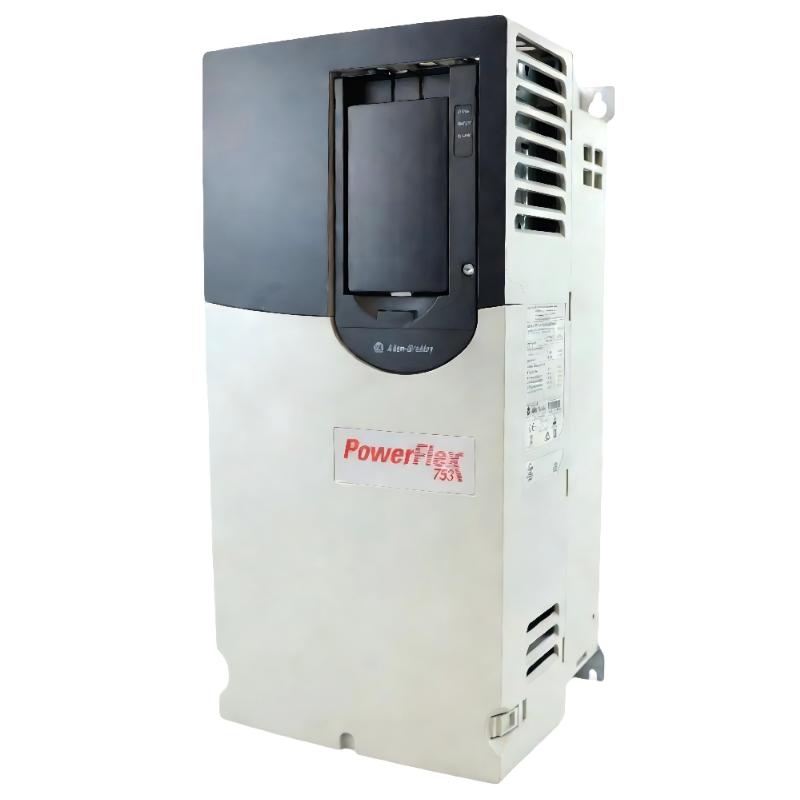

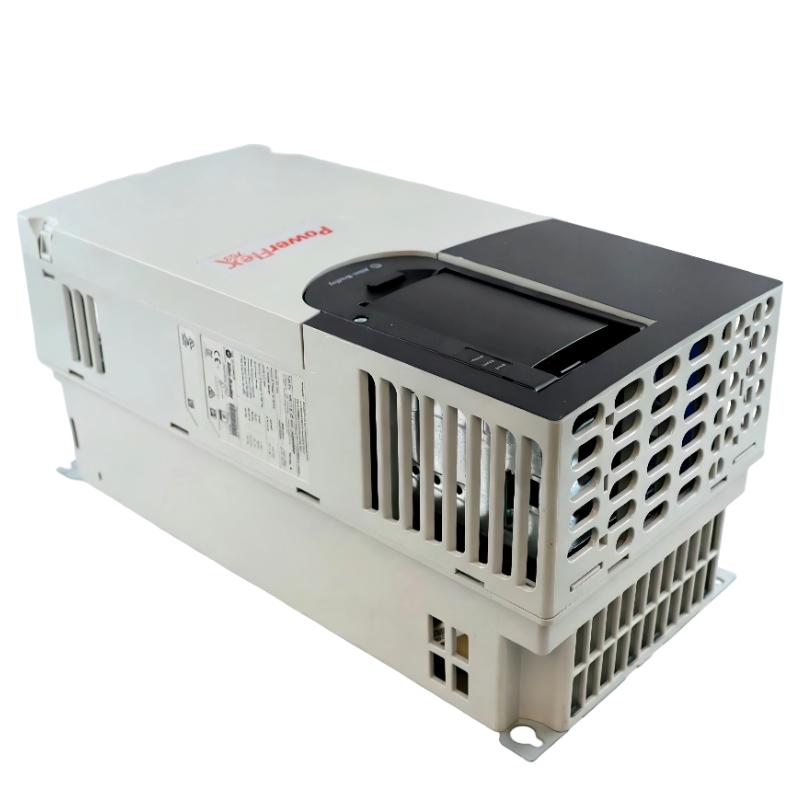

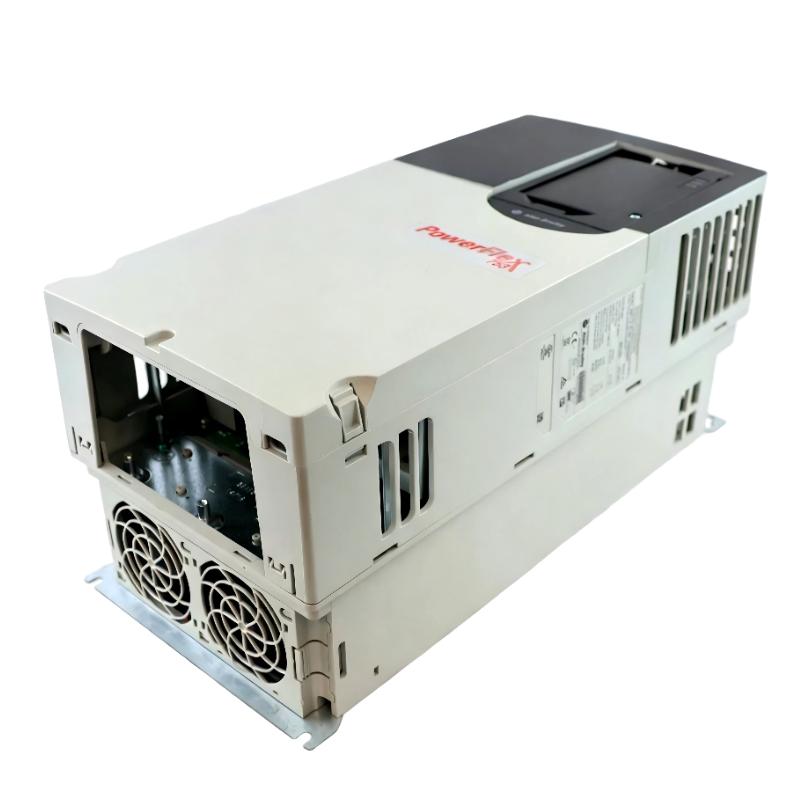

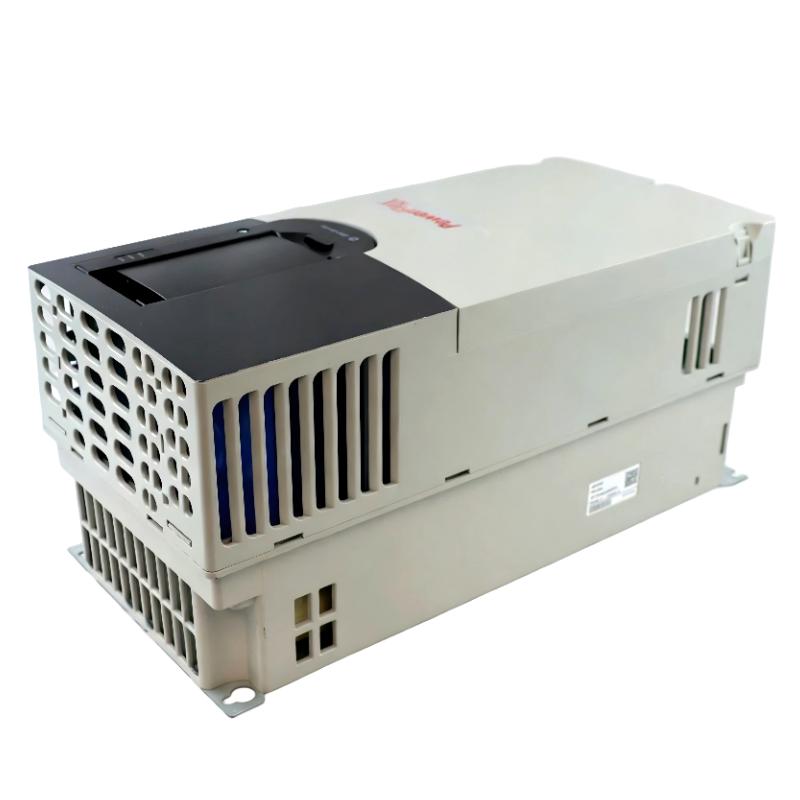

The Allen-Bradley 20F11NC060JA0NNNNN is a PowerFlex 753 air-cooled AC drive module designed for demanding industrial automation environments requiring precise motor control, high torque stability, and flexible system integration. As part of Rockwell Automation’s PowerFlex 750-series platform, it offers a modular architecture that supports scalable performance, advanced diagnostics, and seamless PLC integration.
With a 60A output current and 30 kW (40 HP) normal-duty rating, this drive is widely applied in heavy-duty conveyors, pumps, compressors, and process automation systems where reliability and consistent motor performance are critical.
It is an active lifecycle product, positioned as a modern evolution of earlier PowerFlex 753 variants, with ongoing support and replacement availability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | PowerFlex 753 |
| Drive Type | AC Variable Frequency Drive (Air Cooled) |
| Input Voltage | 380–480V AC, 3-Phase |
| Output Current | 60 A |
| Normal Duty Rating | 30 kW (40 HP) |
| Heavy Duty Rating | 22 kW (30 HP) |
| Frame Size | Frame 4 |
| Control Type | Sensorless Vector Control / VHz |
| Dynamic Braking | Built-in DB Transistor |
| EMC Filtering | Filtered, CM Jumper Installed |
| Communication | DPI-based modular communication support |
| I/O Capability | Embedded I/O with expansion options |
| Cooling Method | Forced Air Cooling |
| Enclosure Type | IP20 / Open Type |
| Output Frequency Range | 0–400 Hz |
| Efficiency | ~97–98% |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -40 to 70°C |
| Humidity | 5–95% non-condensing |
Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~330 × 325 × 552 mm |
| Weight | ~14.97 kg (≈33 lbs) |
The Frame 4 structure is designed for higher thermal capacity and stable operation under continuous industrial load, while maintaining modular serviceability.
Recommended Related Models
- 20F11NC037JA0NNNNN – 37A mid-range PowerFlex 753 drive
- 20F11NC075JA0NNNNN – Higher-capacity variant for heavy-duty systems
- 20BC060A0AYNANC0 – PowerFlex 700 legacy alternative platform
- PowerFlex 755 Series – Modernized successor with enhanced Ethernet/IP integration
- 20-HIM-A6 HIM Module – Local control and diagnostics interface
These options support scalable system design from mid-range machinery to full industrial production lines.
