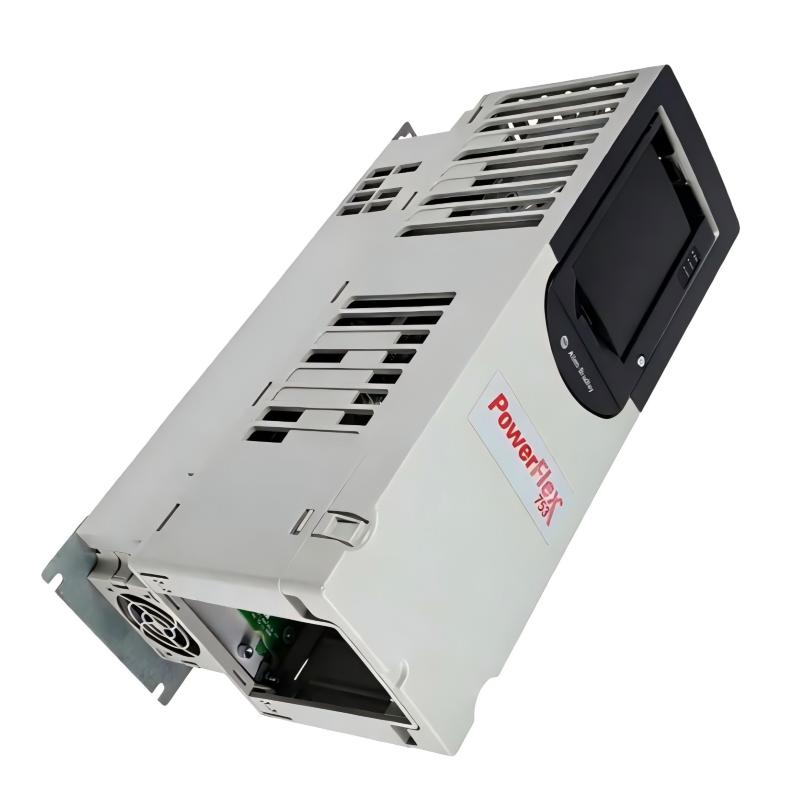

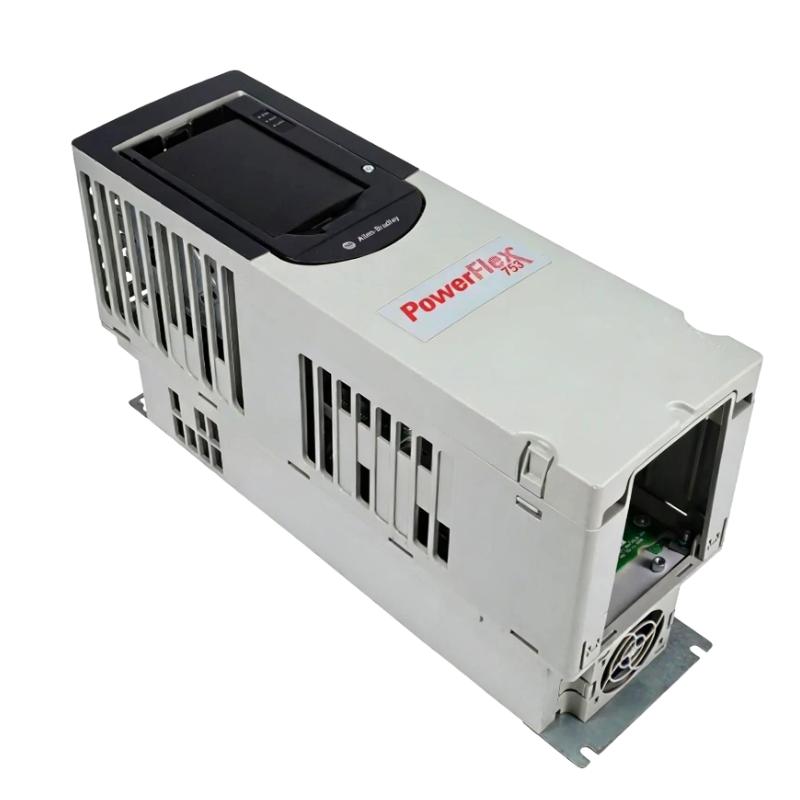

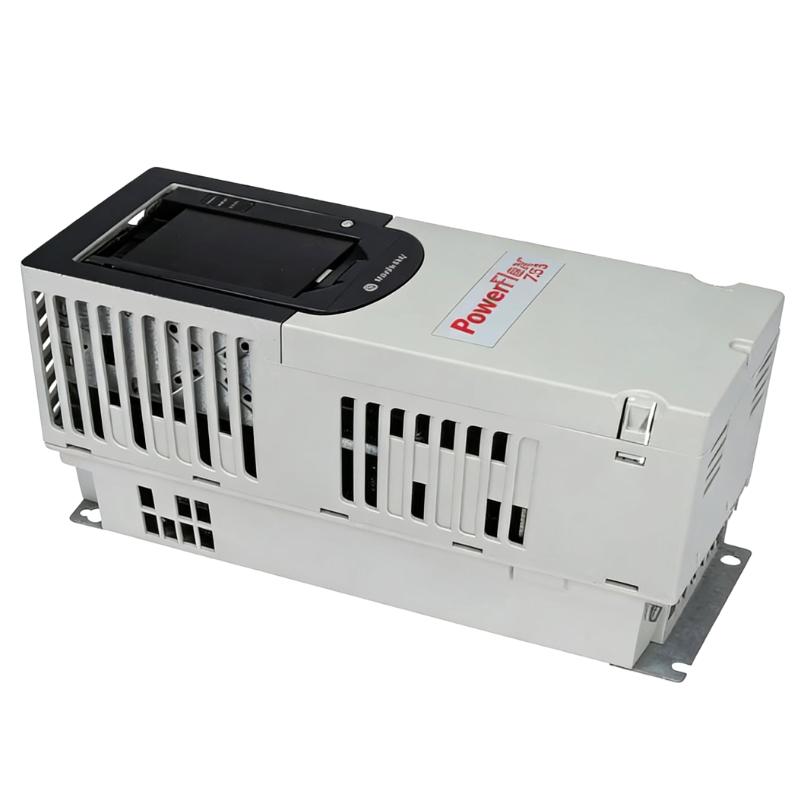

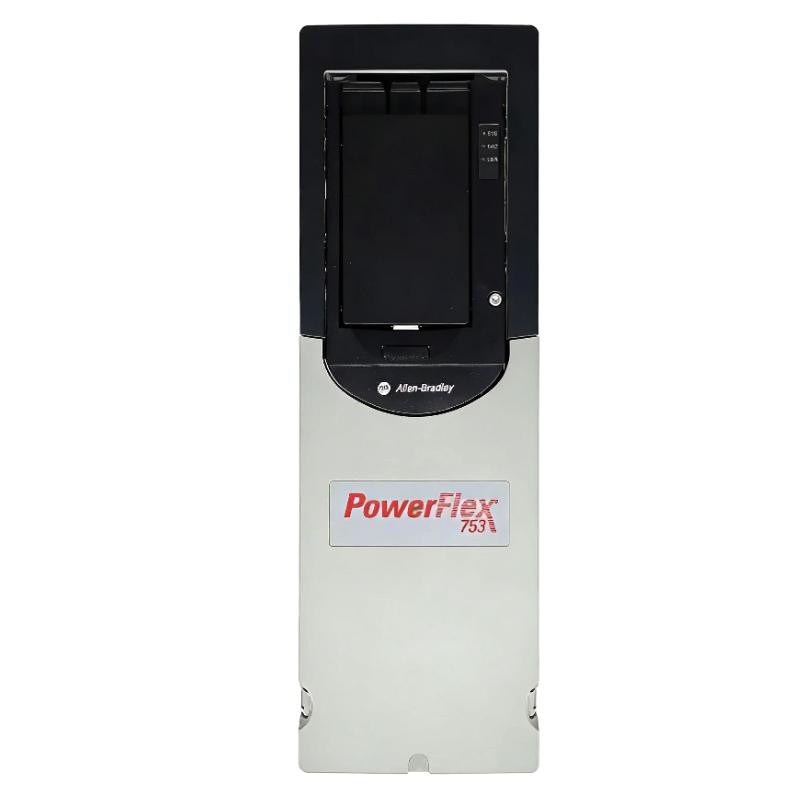

The Allen-Bradley 20F11NC5P0JA0NNNNN is a PowerFlex 753 AC drive module designed for modern industrial automation systems that require precise motor control, flexible configuration, and reliable performance in compact power ranges. As part of Rockwell Automation’s PowerFlex 750-series platform, it delivers scalable architecture, embedded control intelligence, and seamless integration with PLC-based systems.
With a 5A output current and 2.2 kW (3 HP) normal-duty rating, this drive is ideal for light industrial applications such as small conveyors, pumps, fans, and auxiliary machinery where energy efficiency and stable torque control are essential.
This model is an active lifecycle product and direct successor to earlier NC5P0AA variants, ensuring continued availability and support in industrial replacement and upgrade scenarios.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | PowerFlex 753 |
| Drive Type | AC Variable Frequency Drive (Air Cooled) |
| Input Voltage | 380–480V AC, 3-Phase |
| Output Current | 5 A |
| Normal Duty Rating | 2.2 kW (3 HP) |
| Heavy Duty Rating | 1.5 kW |
| Frame Size | Frame 2 |
| Control Type | Sensorless Vector Control / V/Hz |
| Enclosure Type | IP20 / Open Type |
| Dynamic Braking | Built-in DB Transistor |
| Internal Brake Resistor | Not Included |
| EMC Filtering | Filtered, CM Jumper Installed |
| Communication | DPI modular communication supported |
| I/O Configuration | Embedded I/O with expansion capability |
| Cooling Method | Forced Air Cooling |
| Output Frequency Range | 0–590 Hz |
| Efficiency | ~97–98% |
| Operating Temperature | 0 to 50°C |
| Humidity Range | 5–95% non-condensing |
Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~424 × 212 × 212 mm |
| Weight | ~10 kg (approx. 22 lbs) |
The compact Frame 2 architecture provides an efficient balance between power density and thermal performance, making it suitable for cabinet installations where space optimization is important.
Recommended Related Models
- 20F11NC3P5JA0NNNNN – Lower 1.5 kW class PowerFlex 753 drive
- 20F11NC037JA0NNNNN – Mid-range 18.5 kW variant for general automation
- 20F11NC060JA0NNNNN – Higher-capacity 30 kW industrial drive
- 20BC011A0AYNANC0 – PowerFlex 700 legacy alternative
- PowerFlex 755 Series – Modern upgrade platform with Ethernet/IP integration
These models allow scalable system design across light-duty to heavy-duty industrial automation environments.
