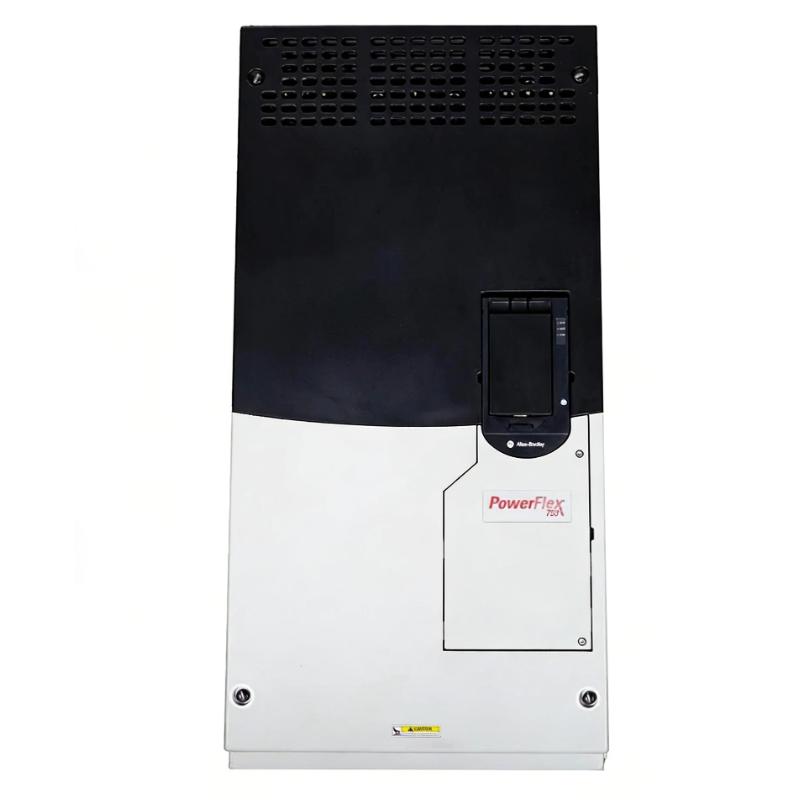

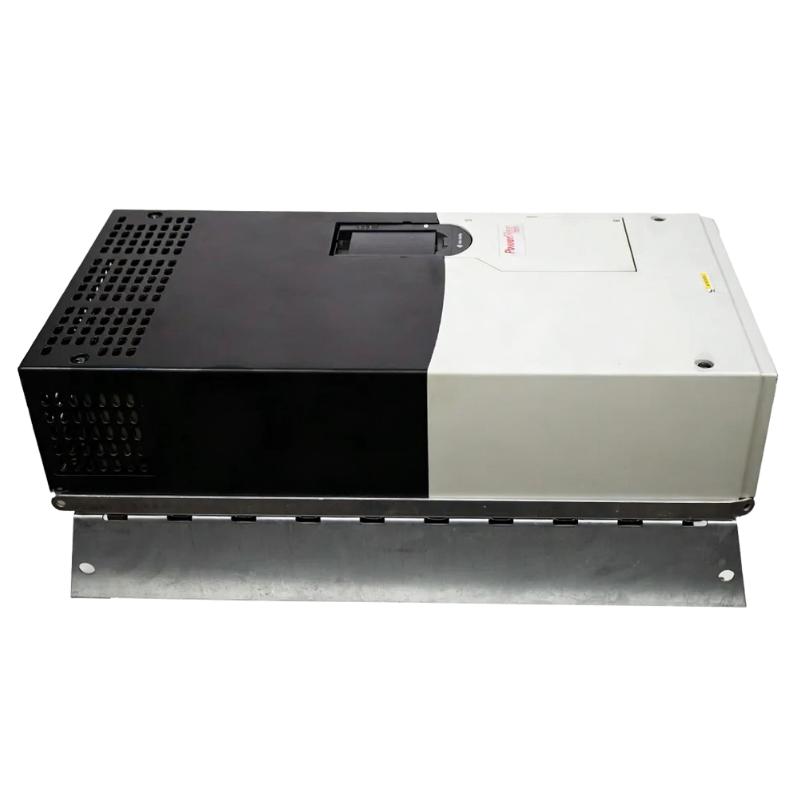

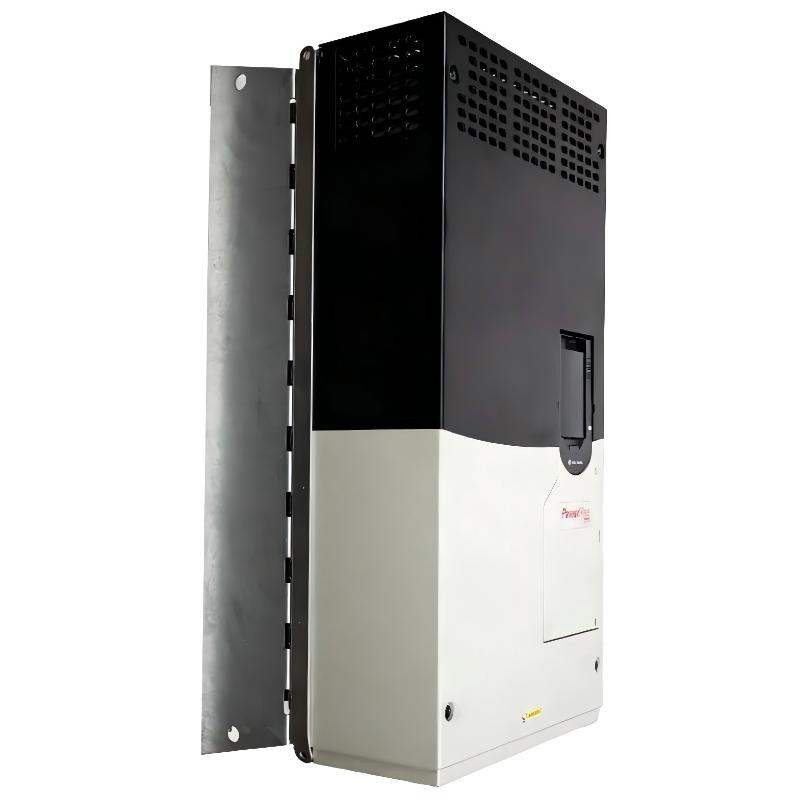

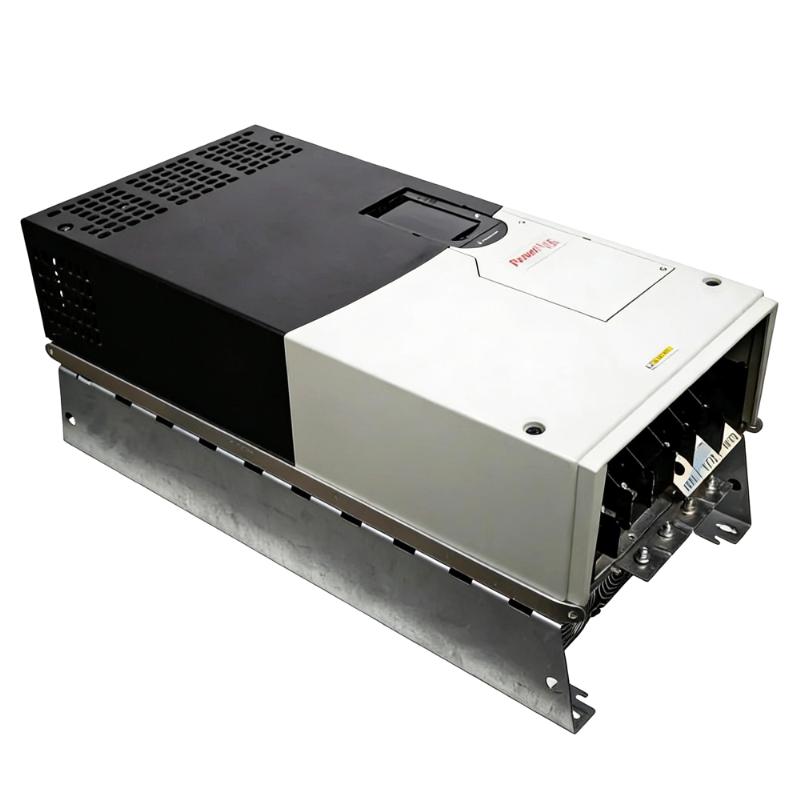

The Allen-Bradley 20F1AGC302JN0NNNNN is a PowerFlex 753 air-cooled AC drive module designed for large-scale industrial automation systems requiring high current capacity, robust motor control, and flexible system integration. As part of the PowerFlex 750-series architecture from Rockwell Automation, it delivers a modernized control platform with improved lifecycle support, modular expandability, and strong integration with EtherNet/IP-based industrial networks.
With a 302A output current and 160 kW (250 HP) normal-duty rating, this drive is built for heavy industrial applications such as large pumps, compressors, material handling systems, and process manufacturing lines where continuous high-load performance is essential.
It is also the current replacement model for earlier discontinued 20F1AGC302AN0NNNNN variants, ensuring long-term availability and upgrade continuity in installed systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | PowerFlex 753 |
| Drive Type | Air-Cooled AC Variable Frequency Drive |
| Input Voltage | 380–480V AC, 3-Phase |
| Output Current | 302 A |
| Normal Duty Rating | 160 kW (250 HP) |
| Heavy Duty Rating | 132 kW (200 HP) |
| Frame Size | Frame 7 |
| Enclosure Type | Type 12 / IP54 |
| Input Type | AC In with Precharge, no DC terminals |
| Control Type | Sensorless Vector Control / V/Hz |
| Dynamic Braking | None |
| EMC Filtering | Filtered, CM jumper installed |
| Communication | Modular DPI-based expansion |
| I/O System | Embedded I/O with expansion support |
| Cooling Method | Forced Air Cooling |
| Output Frequency Range | 0–400 Hz |
| Efficiency | ~97–98% |
| Operating Temperature | 0 to 50°C |
| Humidity Range | 5–95% non-condensing |
Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 1614 × 609 × 465 mm |
| Weight | ~260–302 kg (varies by configuration) |
The Frame 7 design is engineered for high thermal capacity, allowing stable operation in continuous-duty, high-power industrial environments with strong heat dissipation and robust mechanical structure.
Recommended Related Models
- 20F1AGD302JN0NNNNN – Same rating with updated configuration options
- 20F1AGC302AN0NNNNN – Earlier discontinued replacement baseline model
- 20F1NC260JN0NNNNN – Lower-rated high-power variant
- 20F1NC400JN0NNNNN – Higher-capacity industrial drive option
- PowerFlex 755 Series (Frame 7) – Advanced successor with enhanced diagnostics and Ethernet/IP integration
These models support scalable deployment across heavy industrial automation systems and upgrade paths.
