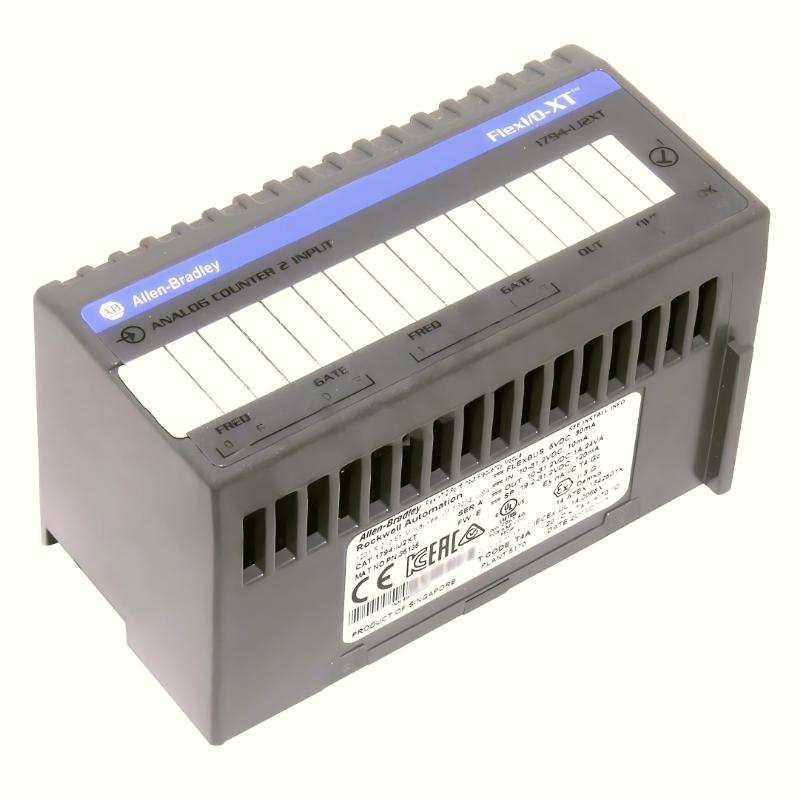

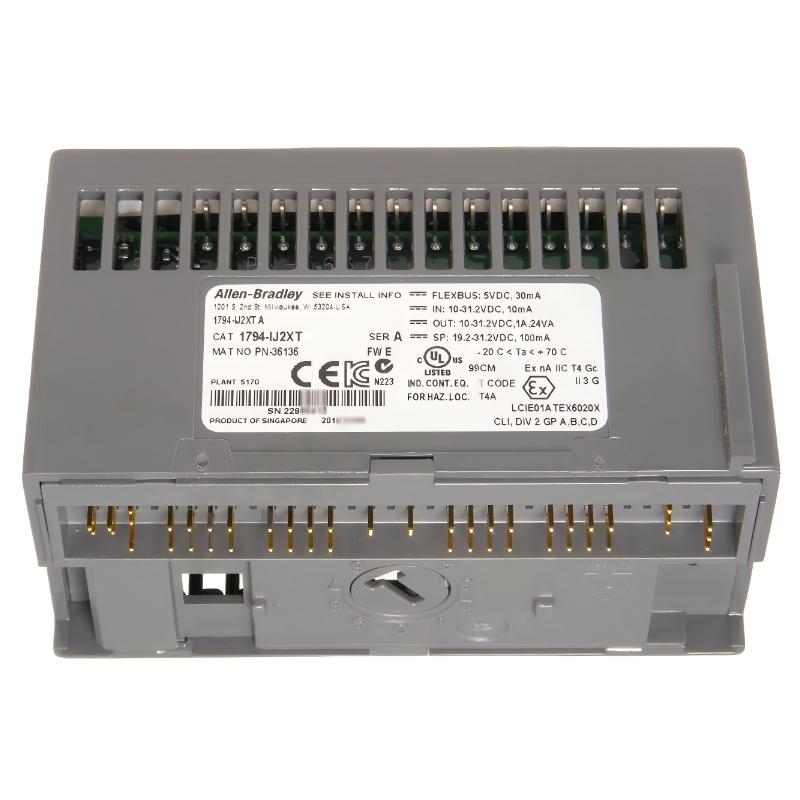

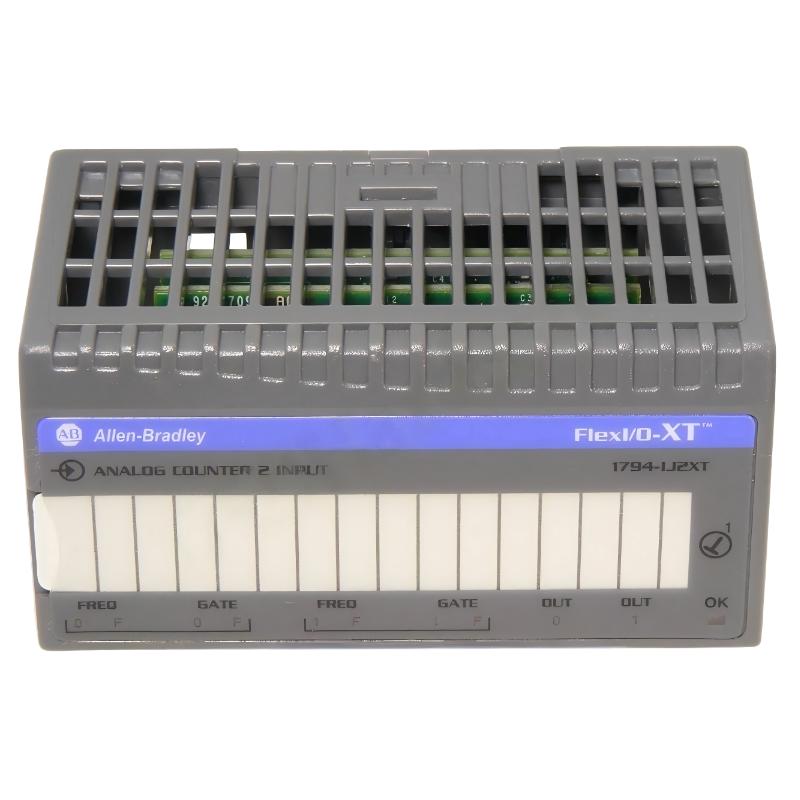

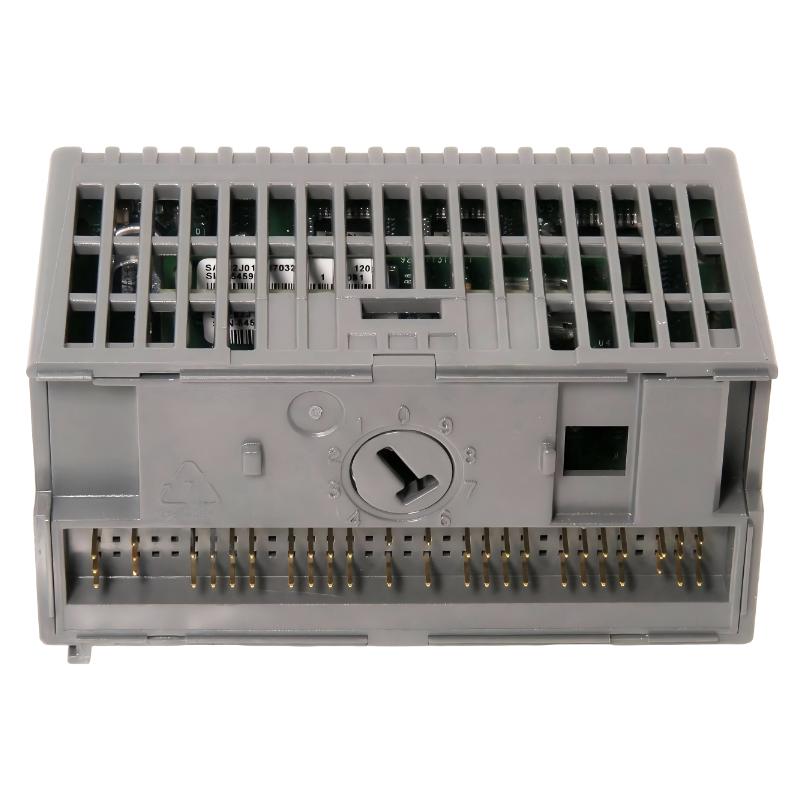

Allen Bradley 1794-IJ2XT Flex I/O-XT Input Frequency Module
Allen Bradley 1794-IJ2XT Flex I/O-XT Input Frequency Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1794-IJ2XT Product Origin:USA Product Dimensions:94 x 46 x 53 mm Product Weight:0.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 1794-IJ2XT Flex I/O-XT Input Frequency Module is a rugged industrial signal processing module engineered for accurate frequency and pulse measurement in extreme operating conditions. Built on the FLEX I/O platform, it enables distributed automation with reliable high-speed data acquisition.
Its XT designation indicates enhanced environmental tolerance, making it suitable for installations exposed to temperature extremes, vibration, or outdoor conditions. The module provides stable dual-channel frequency input processing for applications requiring precise real-time monitoring of speed and motion.
Widely used in industrial automation systems, the 1794-IJ2XT ensures consistent performance in mission-critical environments where standard modules may fail due to environmental stress.
Technical Specifications
Parameter
Specification
Product Model
1794-IJ2XT
Product Type
Flex I/O-XT Frequency Input Module
Manufacturer
Allen-Bradley
Input Channels
2
Signal Type
Frequency / Pulse Input
Max Input Frequency
Up to 32 kHz
Power Supply
24 V DC
Mounting Type
FLEX I/O Terminal Base
Dimensions (W × H × D)
94 × 46 × 53 mm
Weight
0.1 kg (0.22 lb)
Industrial Applications
The Allen-Bradley 1794-IJ2XT Flex I/O-XT Input Frequency Module is designed for high-speed frequency and pulse signal acquisition in distributed control systems operating in harsh industrial environments. As part of the FLEX I/O-XT platform, it provides reliable signal processing under extended temperature conditions, making it suitable for outdoor or extreme-duty installations.
Typical applications include:
Outdoor turbine monitoring systems
Compressor speed and vibration feedback
Remote pump station monitoring
Conveyor and material handling speed control
Wind and renewable energy equipment monitoring
High-speed encoder signal processing
Oil & gas field automation systems
Industrial process control in extreme environments
This module is widely used where standard I/O systems cannot withstand temperature stress or harsh operating conditions.
Key Advantages
Extended temperature design for harsh environments (XT series)
High-speed dual-channel frequency input processing
Compatible with FLEX I/O distributed architecture
Reliable pulse and encoder signal acquisition
Strong resistance to vibration and electrical noise
Modular and flexible DIN rail installation
Supports continuous industrial operation
Optimized for remote and outdoor automation systems
Technical FAQs
1. What is the main difference between IJ2 and IJ2XT?
The XT version is designed for extended temperature and harsh environmental conditions.
2. What does the module measure?
It measures frequency, pulse signals, and encoder-based speed data.
3. How many input channels does it have?
It supports 2 frequency input channels.
4. Can it be used with encoders?
Yes, it is commonly used with incremental encoders.
5. Is it suitable for outdoor installations?
Yes, the XT variant is designed for harsh and outdoor environments.
6. What systems is it compatible with?
It integrates with Allen-Bradley FLEX I/O architectures.
7. What is the maximum input frequency?
Typically up to 32 kHz depending on configuration.
8. Can it measure rotational speed?
Yes, it is widely used for RPM and speed monitoring applications.
9. Does it support industrial signal isolation?
Yes, it includes industrial-grade signal isolation.
10. What industries use this module?
Oil & gas, energy, manufacturing, and process automation industries.
