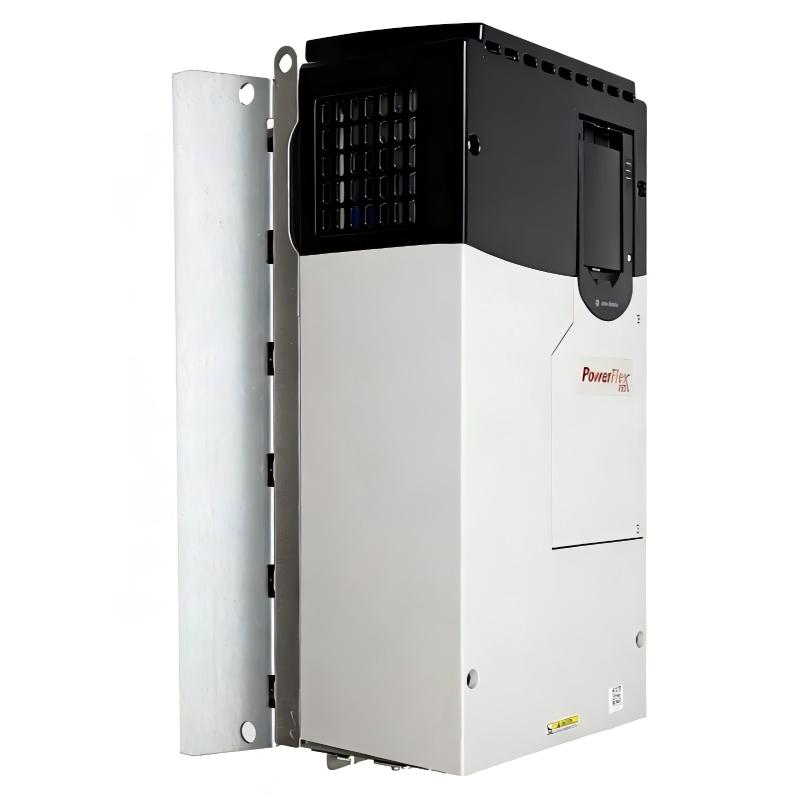

The Allen-Bradley 20F1ANC205AN0NNNNN is a PowerFlex 753 air-cooled AC drive module designed for demanding industrial automation environments requiring high current capacity, stable torque regulation, and reliable continuous operation. As part of Rockwell Automation’s PowerFlex 750-series platform, it provides modular architecture, advanced vector control, and strong integration with modern PLC-based industrial systems.
With a 205A output current and 110 kW (150 HP) normal-duty rating, this drive is widely used in large conveyors, pumps, compressors, HVAC systems, and process industries where consistent motor performance and long-term reliability are essential.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | PowerFlex 753 |
| Drive Type | AC Variable Frequency Drive (Air Cooled) |
| Input Voltage | 380–480V AC, 3-Phase |
| Output Current | 205 A |
| Normal Duty Rating | 110 kW (150 HP) |
| Heavy Duty Rating | 90 kW (125 HP) |
| Frame Size | Frame 6 |
| Enclosure Type | IP20 / Open Type |
| Control Type | Sensorless Vector Control / V/Hz |
| Dynamic Braking | None (no internal transistor) |
| EMC Filtering | Integrated (filtered configuration) |
| Communication | DPI modular communication support |
| I/O System | Embedded I/O with expansion capability |
| Cooling Method | Forced Air Cooling |
| Output Frequency Range | 0–400 Hz |
| Efficiency | ~97–98% |
| Operating Temperature | 0 to 50°C |
| Humidity Range | 5–95% non-condensing |
Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~508 × 432 × 787 mm |
| Weight | ~56.7 kg |
The Frame 6 structure is engineered for high thermal capacity and mechanical strength, ensuring stable performance under continuous heavy industrial loads.
Recommended Related Models
- 20F1ANC205JN0NNNNN – Direct replacement variant with updated lifecycle support
- 20F1ANC260JN0NNNNN – Higher-rated Frame 6 power option
- 20F1NC132JN0NNNNN – Lower mid-range PowerFlex 753 alternative
- 20BC085A0AYNANC0 – Legacy PowerFlex 700 series equivalent class
- PowerFlex 755 Series Frame 6 – Modern upgrade with Ethernet/IP and enhanced diagnostics
These models support scalable upgrades across medium-to-heavy industrial automation systems.
