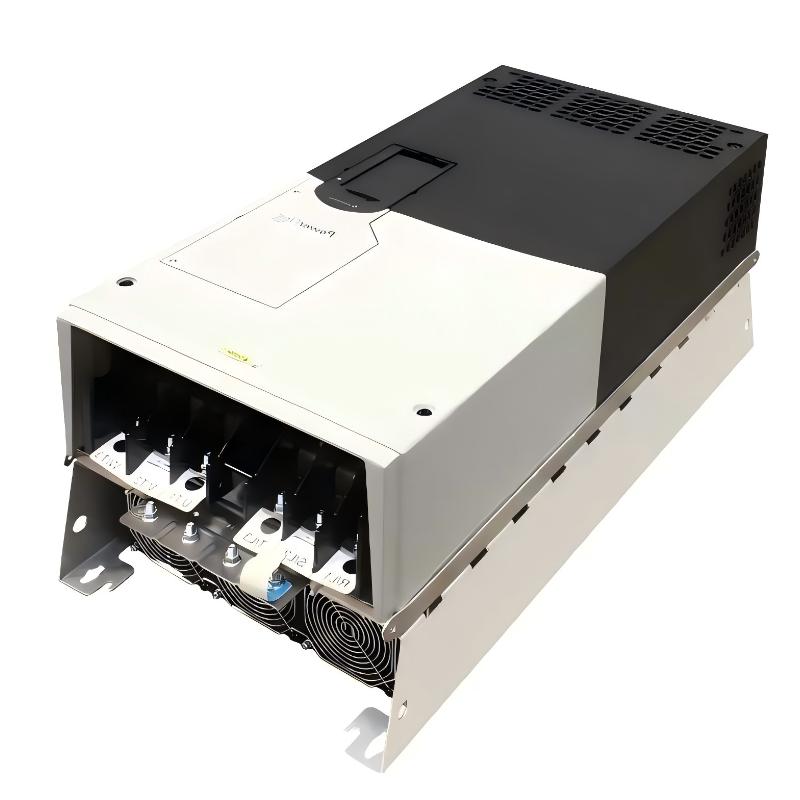

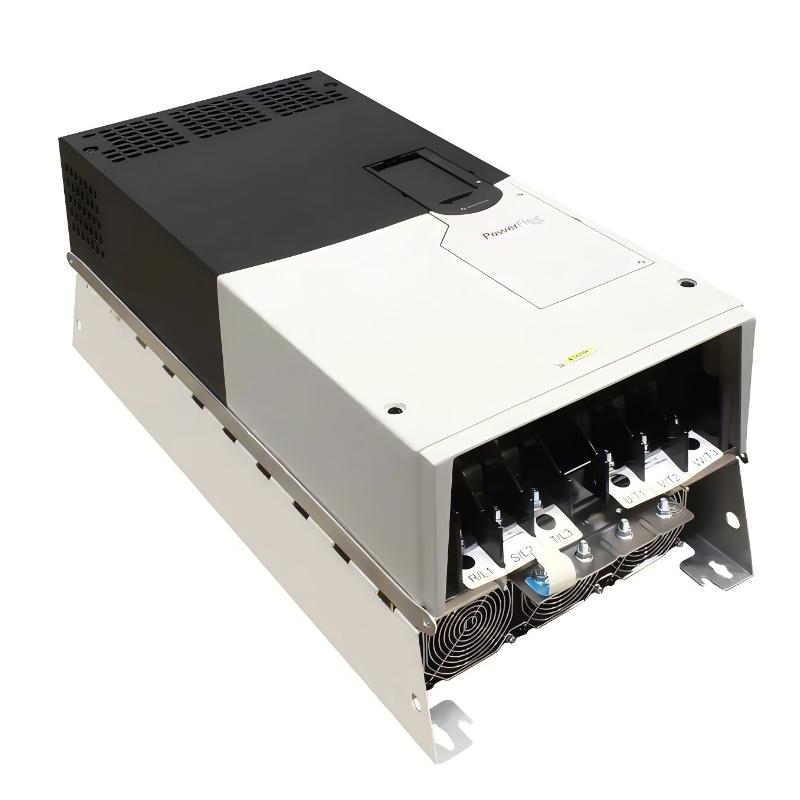

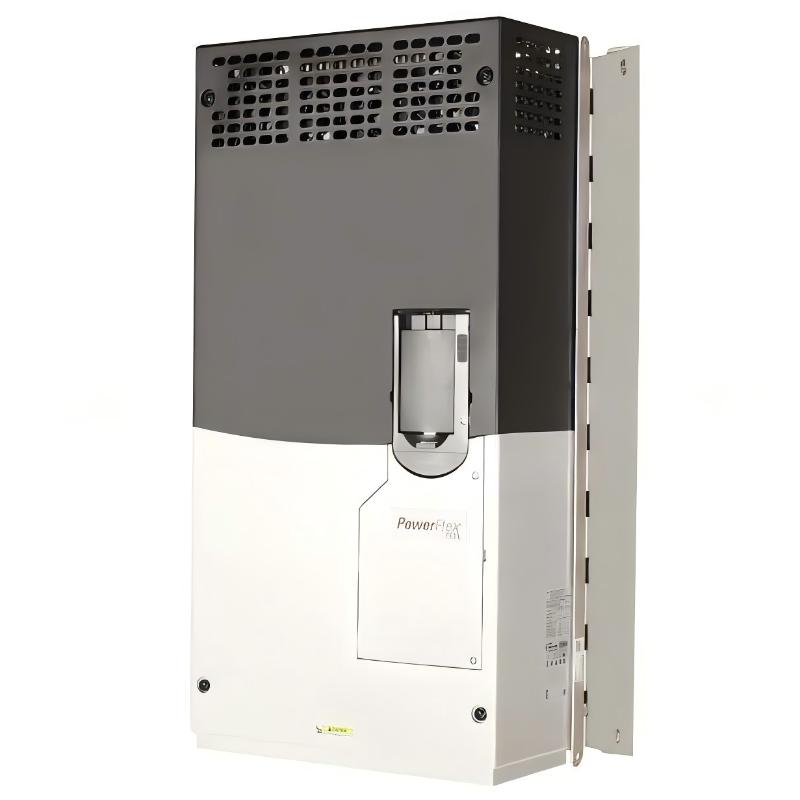

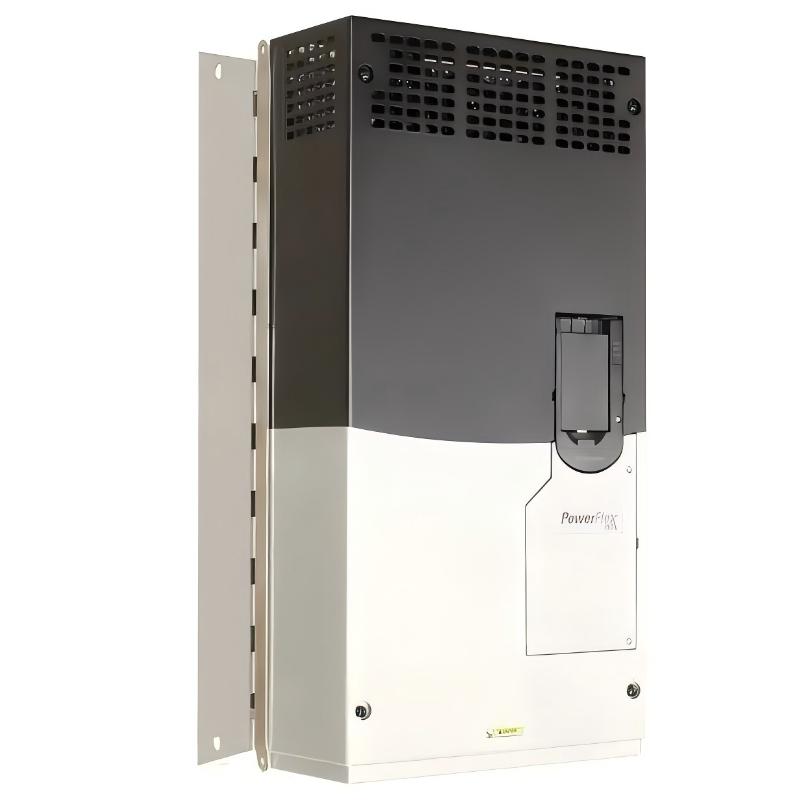

The Allen-Bradley 20F1ANC367AN0NNNNN is a PowerFlex 753 air-cooled AC drive module designed for large-scale industrial applications requiring extremely high current capacity, stable torque control, and reliable continuous-duty performance. As part of Rockwell Automation’s PowerFlex 750-series platform, it offers modular architecture, advanced sensorless vector control, and strong integration with PLC-based automation systems.
With a 367A output current and 200 kW (250 HP) normal-duty rating, this drive is widely used in heavy industrial systems such as large pumping stations, compressors, material handling systems, and process manufacturing lines where uninterrupted operation and precision motor control are critical.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | PowerFlex 753 |
| Drive Type | Air-Cooled AC Variable Frequency Drive |
| Input Voltage | 380–480V AC, 3-Phase |
| Output Current | 367 A |
| Normal Duty Rating | 200 kW (250 HP) |
| Heavy Duty Rating | 160 kW (200 HP) |
| Frame Size | Frame 7 |
| Enclosure Type | IP00 / Open Type (typical configuration) |
| Control Type | Sensorless Vector Control / V/Hz |
| Dynamic Braking | None (configuration-dependent) |
| Communication | Modular DPI-based system |
| I/O System | Embedded I/O with expansion capability |
| Cooling Method | Forced Air Cooling |
| Output Frequency Range | 0–400 Hz |
| Efficiency | ~97–98% |
| Operating Temperature | 0 to 50°C |
| Humidity Range | 5–95% non-condensing |
Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | ~881 × 430 × 350 mm |
| Weight | ~260–300 kg (configuration dependent) |
The Frame 7 structure is engineered for extreme thermal and electrical load handling, ensuring stable operation in continuous high-power industrial environments.
Recommended Related Models
- 20F1ANC367JN0NNNNN – Direct replacement (post-2024 lifecycle version)
- 20F1AGC367JN0NNNNN – Alternative configuration variant in same power class
- 20F1ANC260JN0NNNNN – Lower-rated Frame 7 drive for reduced load systems
- 20F1NC400JN0NNNNN – Higher-capacity industrial drive option
- PowerFlex 755 Frame 7 Series – Next-generation platform with enhanced diagnostics and EtherNet/IP integration
These models support upgrade paths across large-scale industrial automation systems requiring high uptime and scalable architecture.
Popular Allen-Bradley Models
- 20F1ANC367AN0NNNNN
- 20F1ANC367JN0NNNNN
- 20F1AGC367JN0NNNNN
- 20BC085A0AYNANC0
- 25B-D030N104 PowerFlex 525
The PowerFlex 750-series remains widely deployed in heavy industry due to its reliability, modular design, and long-term serviceability.
