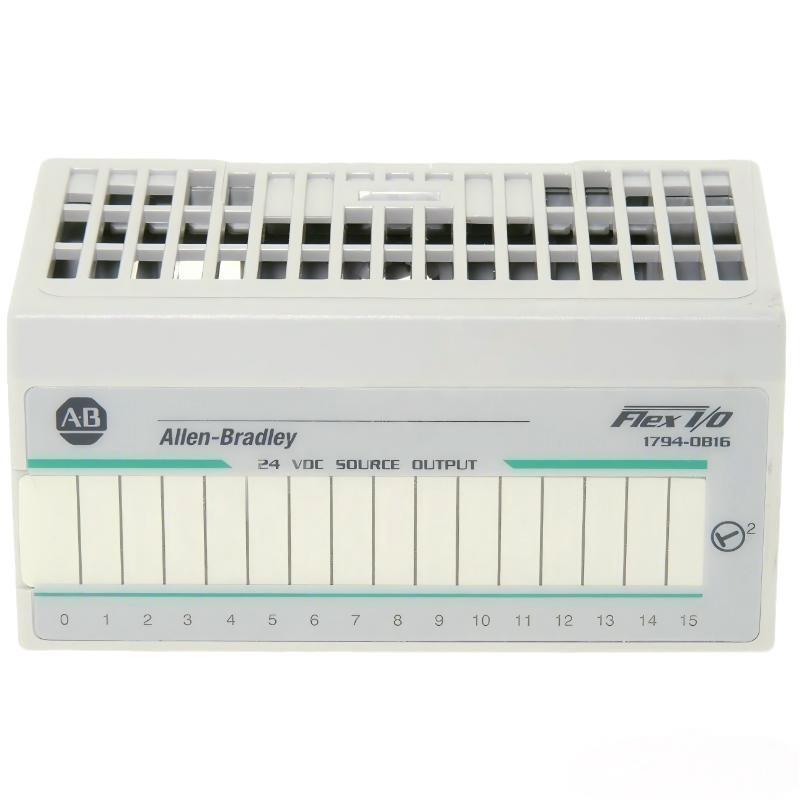

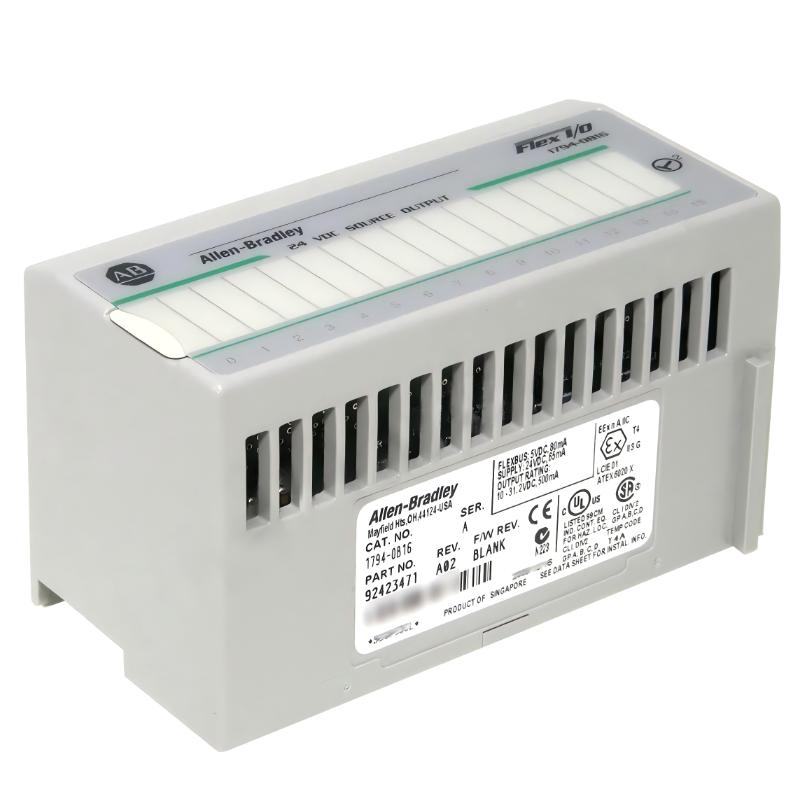

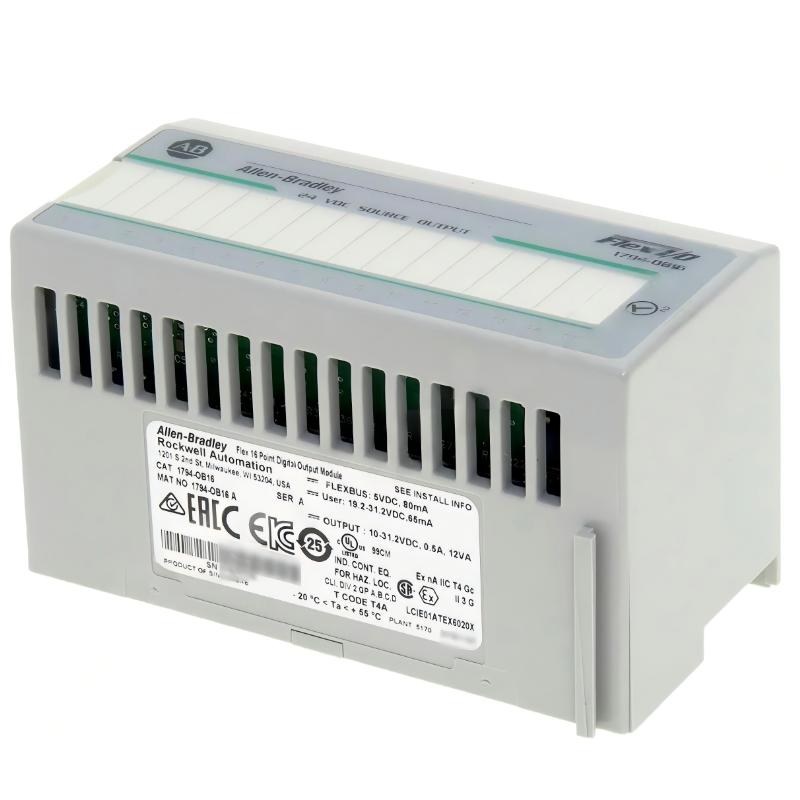

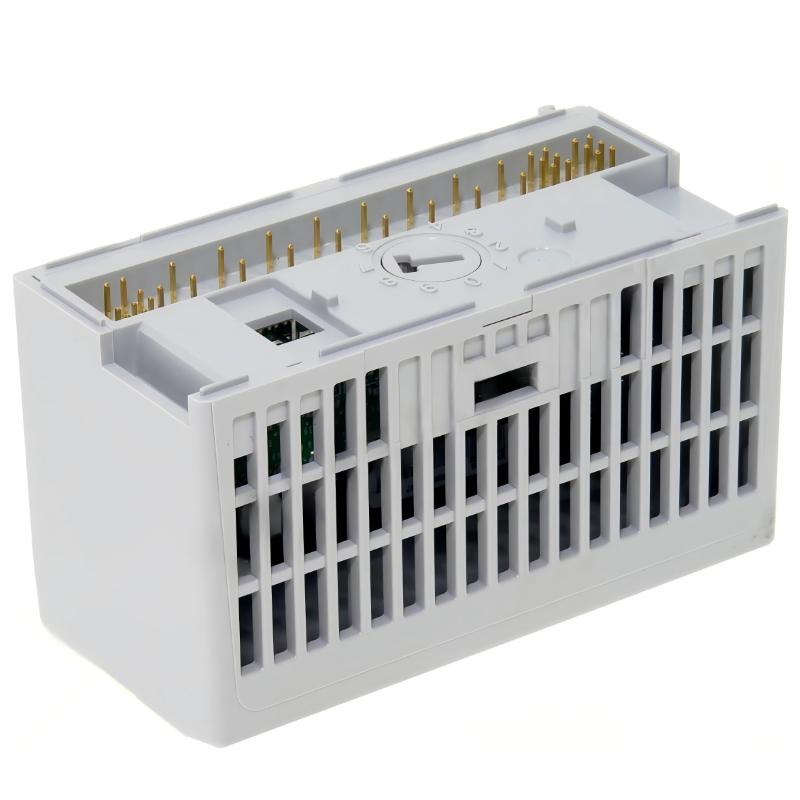

Allen Bradley 1794-OB16 Flex I/O Digital DC Output Module
Allen Bradley 1794-OB16 Flex I/O Digital DC Output Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1794-OB16 Product Origin:USA Product Dimensions:94 x 46 x 53 mm Product Weight:0.078 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 1794-OB16 Flex I/O Digital DC Output Module is a reliable industrial output solution developed for modern distributed automation systems. It provides efficient DC signal switching while supporting flexible system expansion within FLEX I/O architectures.
Designed for industrial durability, the module delivers stable output control under continuous-duty operation and electrically noisy conditions. Its compact modular structure reduces cabinet space requirements while simplifying installation and maintenance.
Widely deployed in PLC-based industrial control systems, the 1794-OB16 enhances operational reliability, improves system flexibility, and supports efficient machine and process automation.
Technical Specifications
Parameter
Specification
Product Model
1794-OB16
Product Type
Flex I/O Digital DC Output Module
Manufacturer
Allen-Bradley
Output Channels
16
Signal Type
DC Digital Output
Output Configuration
Sourcing Output
Mounting Type
FLEX I/O Terminal Base (DIN rail system)
Status Indicators
Individual Channel LEDs
Dimensions (W × H × D)
94 × 46 × 53 mm
Weight
0.078 kg (0.17 lb)
Industrial Applications
The Allen-Bradley 1794-OB16 Flex I/O Digital DC Output Module is engineered for reliable DC output control in distributed industrial automation systems. As part of the FLEX I/O platform, it provides efficient switching and control of DC-powered field devices in PLC-based architectures.
Typical applications include:
Conveyor and material handling automation
Industrial relay and solenoid control
Packaging and assembly machinery systems
Automated production line output control
Process automation actuator switching
Motor starter and valve control systems
OEM machine automation solutions
Distributed PLC I/O control architectures
This module is widely used in industrial facilities requiring dependable digital output performance with flexible system scalability.
Product Advantages
16-point DC digital output capability
Compact FLEX I/O modular architecture
Reliable high-speed output switching performance
Strong resistance to industrial electrical interference
Seamless integration with Allen-Bradley PLC systems
DIN rail mounting for simplified installation
LED output indicators for fast diagnostics
Designed for continuous industrial operation
Technical FAQs
1. What is the main function of the 1794-OB16 module?
It controls DC-powered field output devices through PLC automation systems.
2. How many output channels are available?
The module provides 16 DC digital output channels.
3. What types of devices can it control?
Solenoids, relays, contactors, indicators, and DC actuators.
4. Is it compatible with FLEX I/O systems?
Yes, it fully integrates into Allen-Bradley FLEX I/O architectures.
5. Does it support LED diagnostics?
Yes, each output channel includes LED status indicators.
6. Is the module suitable for industrial environments?
Yes, it is designed for stable operation in harsh industrial conditions.
7. What mounting method does it use?
It mounts on FLEX I/O terminal bases within DIN rail systems.
8. Can it be used in distributed automation systems?
Yes, it is optimized for distributed PLC-based architectures.
9. What industries commonly use this module?
Manufacturing, packaging, logistics, automotive, and process industries.
10. What is the advantage of FLEX I/O architecture?
It enables scalable, modular, and space-efficient automation system design.
