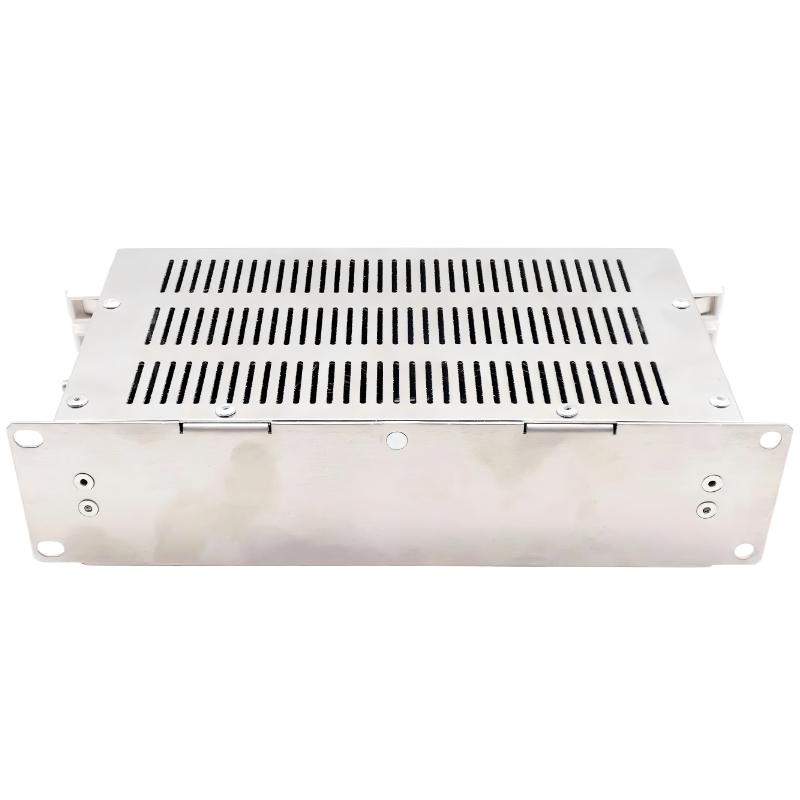

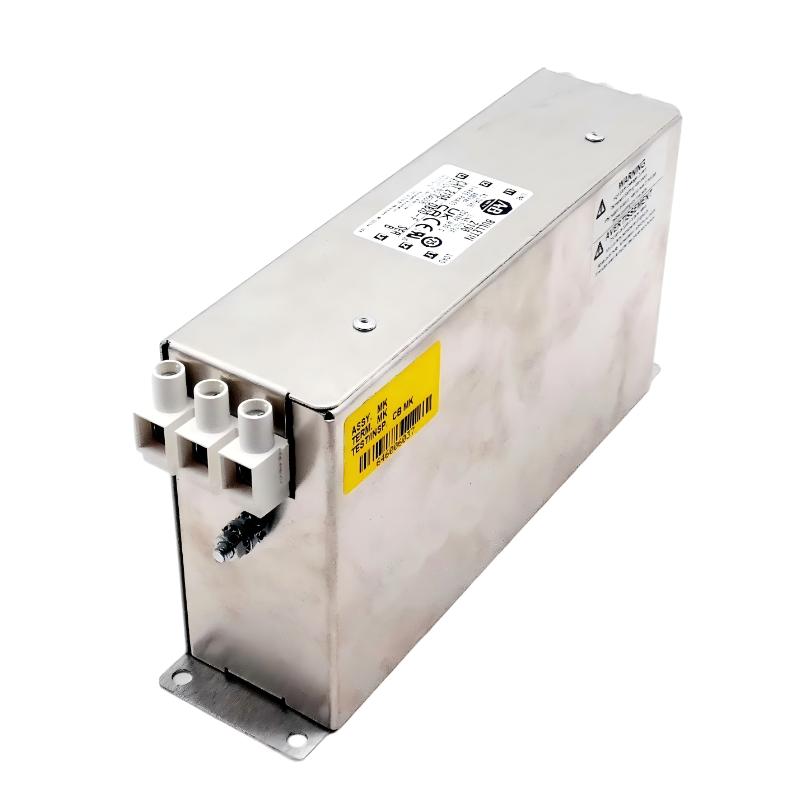

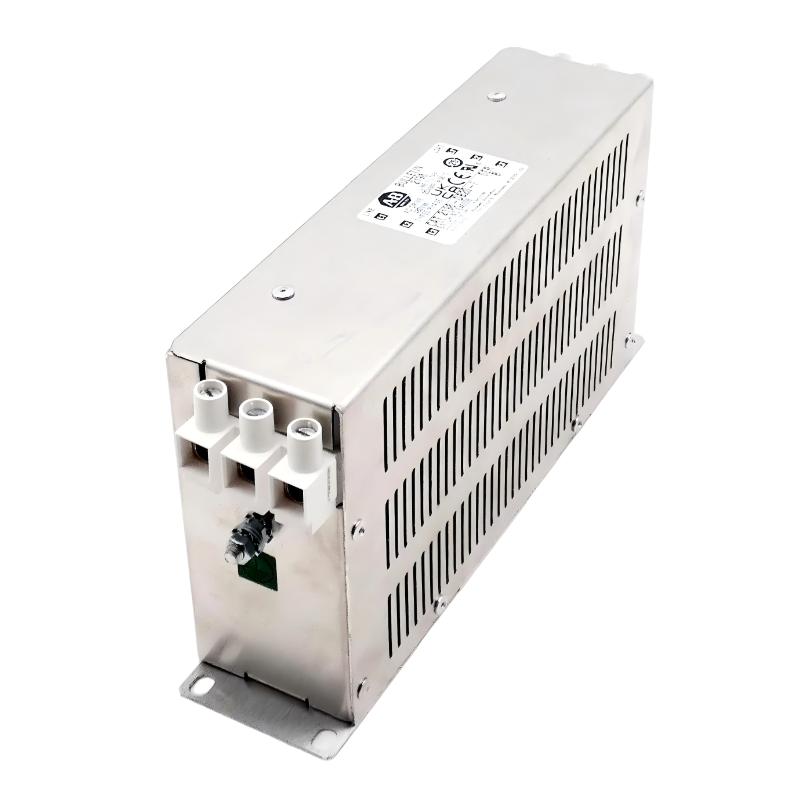

The Allen-Bradley 2198-DB20-F is a dynamic brake module specifically engineered for the Kinetix 5700 servo drive platform. Designed to safely dissipate regenerative energy generated during motor deceleration, this module helps maintain stable DC bus voltage and improves overall motion system reliability in high-speed industrial automation environments.
The 2198-DB20-F is commonly deployed in applications involving rapid stopping, high-inertia loads, and repetitive acceleration/deceleration cycles. By converting excess regenerative energy into heat through integrated braking resistors, it protects the servo system from overvoltage conditions while enhancing machine stopping performance.
Its compact industrial design allows seamless integration into multi-axis Kinetix motion systems with minimal cabinet impact.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Dynamic Brake Module |
| Product Series | Kinetix 5700 |
| Compatible Systems | 2198 Kinetix 5700 Servo Drives |
| DC Bus Voltage Range | 458–747V DC |
| Continuous Power Dissipation | 2000 W |
| Peak Braking Power | High-speed regenerative absorption |
| Cooling Method | Forced Air Cooling |
| Mounting Type | Panel Mount |
| Connection Type | Integrated DC Bus Connection |
| Enclosure Type | Open Type / IP20 |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Humidity Range | 5–95% non-condensing |
Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 355 × 55 × 219 mm |
| Weight | ~4.2 kg |
Its slim-profile mechanical structure allows easy installation alongside Kinetix servo drives in high-density control cabinets.
Recommended Related Models
- 2198-D020-ERS3 – Compatible dual-axis servo drive
- 2198-H040-ERS – High-power single-axis servo drive
- 2198-P208 Power Supply Module – Kinetix 5700 DC bus power module
- 2198-BARCON-85DC200 – DC bus connector module
- 2198-TBIO Motion Terminal Block – Motion control I/O accessory
These components are commonly combined in high-performance integrated motion systems.
Popular Allen-Bradley Models
- 2198-DB20-F
- 2198-D020-ERS3
- 2198-H040-ERS
- 2198-P208
- 20-HIM-C6S
The Kinetix 5700 family is widely used in advanced automation environments requiring precise synchronized motion and stable energy management.
