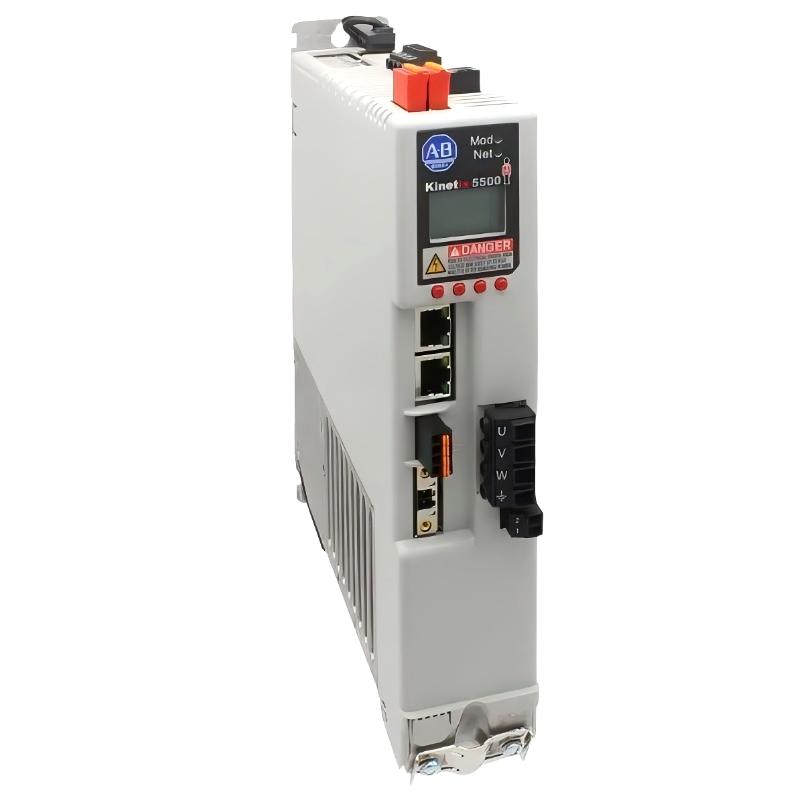

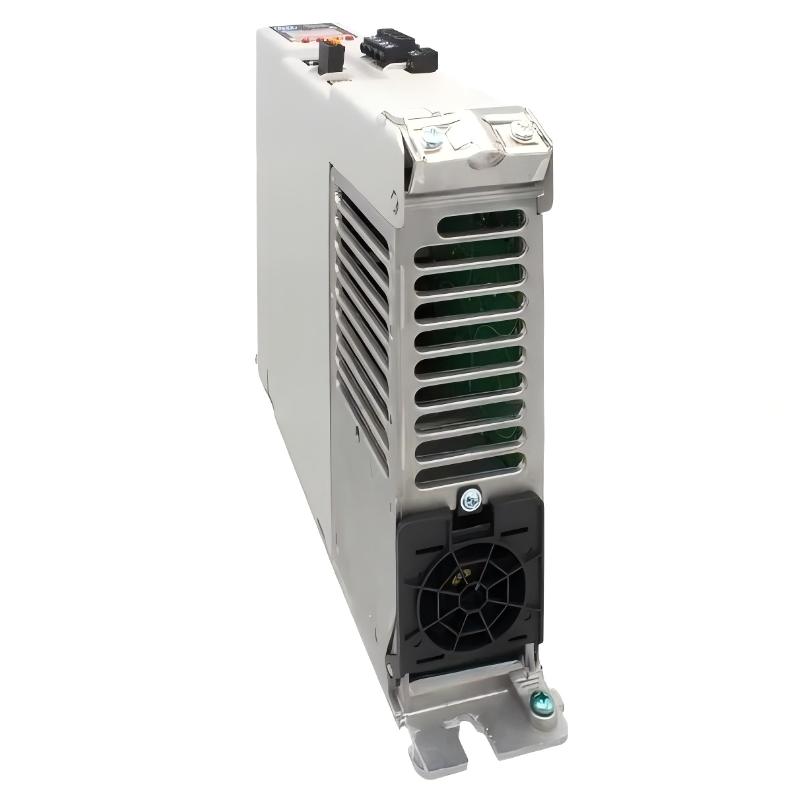

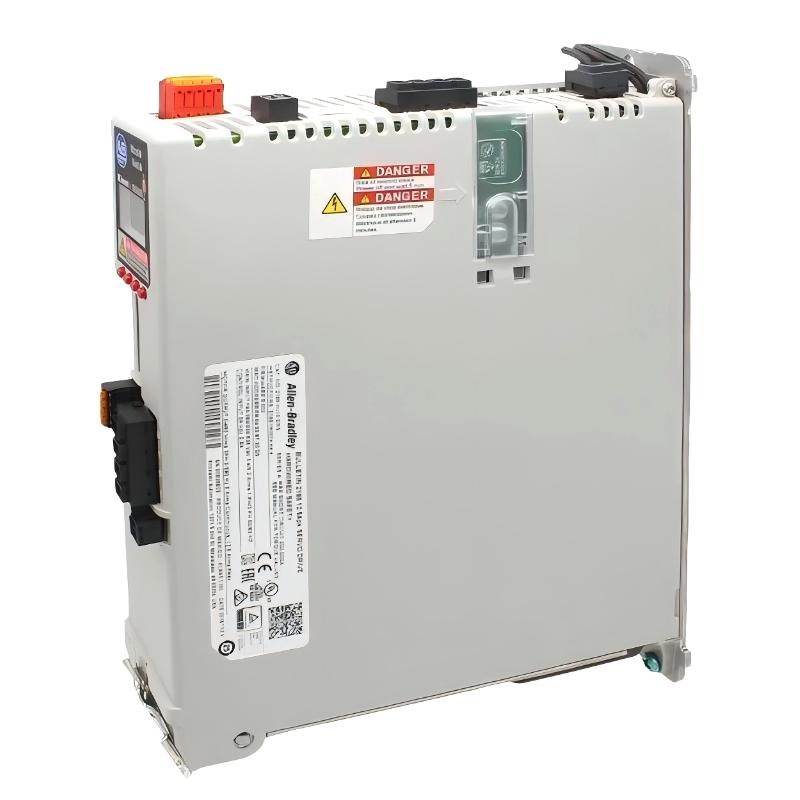

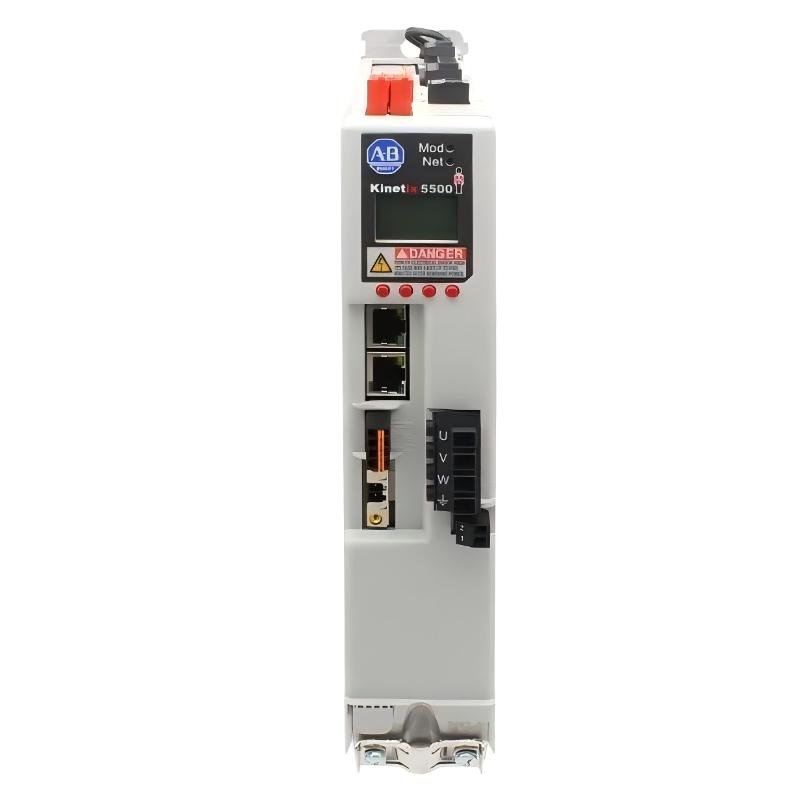

The Allen-Bradley 2198-H025-ERS is a Kinetix 5500 EtherNet/IP servo drive module designed for high-performance industrial motion applications requiring fast response, precision positioning, and seamless integration with Logix-based automation systems. Built as part of Rockwell Automation’s Integrated Architecture platform, this drive delivers advanced synchronized motion control while simplifying wiring, diagnostics, and commissioning.
With a 12A continuous output current and support for up to 5.6 kW output power, the 2198-H025-ERS is ideal for medium-to-large servo systems including robotics, packaging machinery, automated assembly equipment, and material handling systems. Its compact footprint and integrated safety functionality make it especially attractive for machine builders focused on maximizing cabinet efficiency without sacrificing motion performance.
The drive supports both single-axis precision applications and scalable multi-axis architectures across demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | Kinetix 5500 |
| Product Type | Servo Drive Module |
| Input Voltage | 190–528V AC |
| Input Phase | Single-Phase / Three-Phase |
| Input Frequency | 47–63 Hz |
| Continuous Output Current | 12 A |
| Peak Output Current | 25 A |
| Continuous Output Power | Up to 5.6 kW |
| Communication | Dual-Port EtherNet/IP |
| Safety Feature | Integrated Safe Torque-Off (STO) |
| Dynamic Brake Chopper | Integrated |
| Dynamic Brake Resistor | Built-in |
| Feedback Support | Single-turn and multi-turn encoder support |
| Control Modes | Position / Speed / Torque Control |
| Cooling Method | Air Cooled |
| Mounting Type | Panel Mount |
| Enclosure Type | IP20 / Open Type |
| Operating Temperature | 0°C to 50°C |
| Humidity Range | 5–95% non-condensing |
Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 230 × 85 × 196 mm |
| Weight | ~2.8 kg |
The widened thermal chassis enables stable heat dissipation under continuous high-load motion conditions while maintaining efficient cabinet organization.
Recommended Related Models
- 2198-H015-ERS – Mid-range Kinetix 5500 servo drive
- 2198-H008-ERS – Compact lower-power servo drive
- 2198-D020-ERS3 – Kinetix 5700 dual-axis servo drive
- 2198-DB20-F – Dynamic brake module for regenerative applications
- 2198-BARCON-85DC200 – Shared DC bus connector module
These components support flexible and scalable servo architectures across a wide range of industrial automation systems.
