Brand:Allen Bradley PLC Item No.:22D-D017N104 Product Origin:USA Product Dimensions:260 x 130 x 180 mm Product Weight:4.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

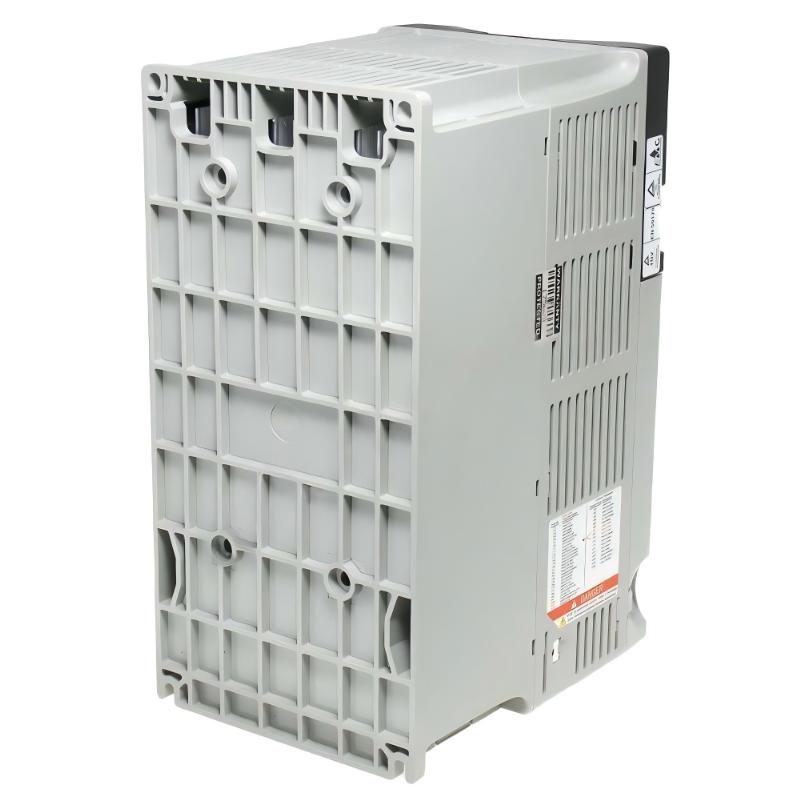

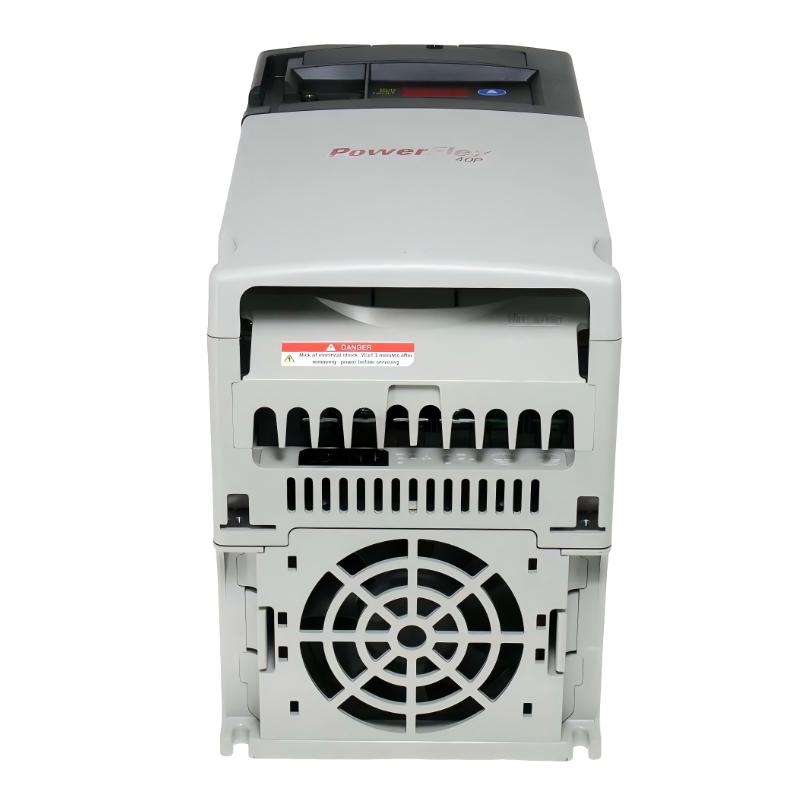

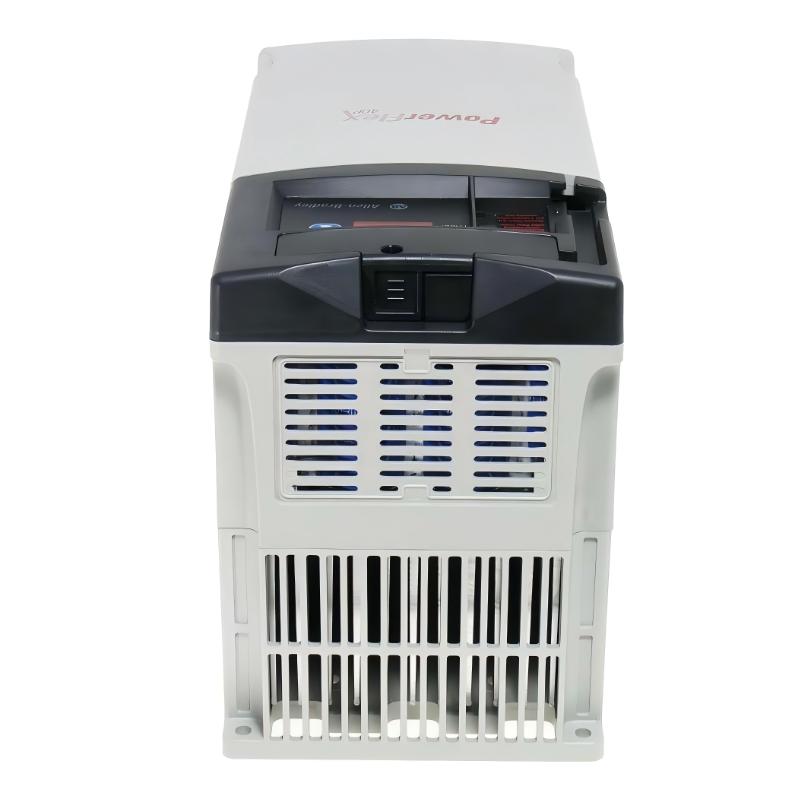

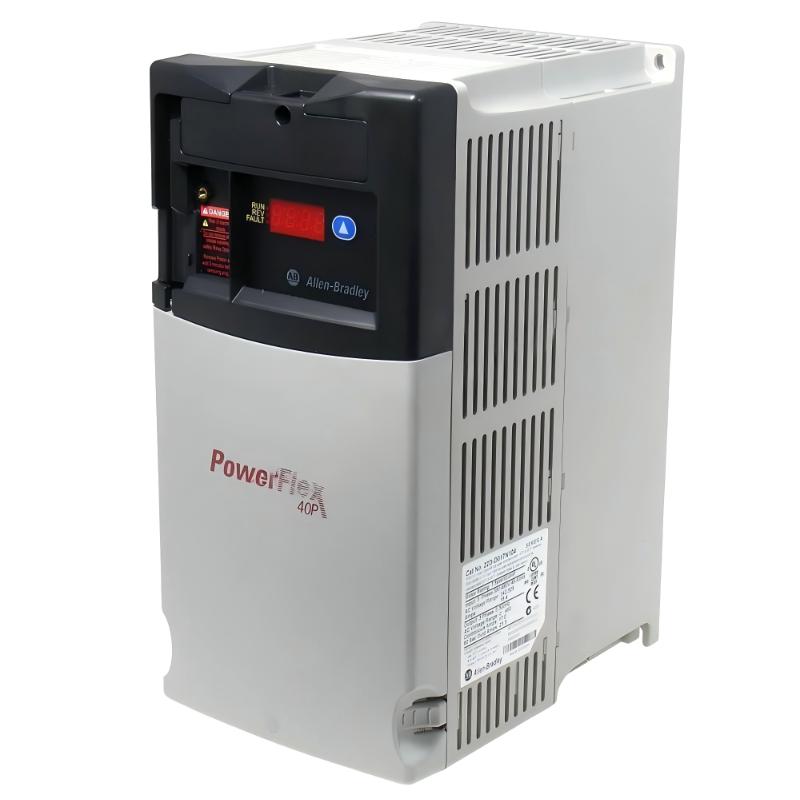

The Allen Bradley 22D-D017N104 PowerFlex 40P AC Drive is a widely used variable frequency drive designed for industrial motor speed control applications where reliability, simplicity, and cost-effective performance are essential.
Technical Specifications
Parameter
Specification
Series
PowerFlex 40P
Model
22D-D017N104
Input Voltage
480V AC, 3-phase
Output Current
17.5 A
Power Rating
7.5 kW (10 HP)
Control Methods
V/Hz, Sensorless Vector
Communication
RS485 (built-in), optional network modules
Enclosure Type
IP20, panel mount open type
Interface
Integrated keypad with LED display
Frequency Range
50–60 Hz
Dimensions
260 × 130 × 180 mm
Weight
4.3 kg
Recommended Related Models
Model
Product Name
25B-D017N104
PowerFlex 525 AC Drive 17A Replacement Series
22D-B017N104
PowerFlex 40P AC Drive 5 HP Variant
20F1AND186JN0NNNNN
PowerFlex 753 AC Drive Advanced Control Series
22F-D2P5N104
PowerFlex 40P AC Drive Lower Power Variant
Popular Related Models
Model
Product Name
25B-D010N104
PowerFlex 525 AC Drive 10A Compact Drive
22D-D012N104
PowerFlex 40P AC Drive 12A Version
20G11ND065JA0NNNNN
PowerFlex 755 AC Drive High Performance Series
22F-D022N104
PowerFlex 40P AC Drive 22A Higher Capacity Variant
Applications
• Conveyor and material handling systems requiring stable variable-speed motor control
Commonly used in production lines where consistent speed regulation improves throughput and reduces mechanical stress.
• Packaging machinery with moderate dynamic load variation
Supports smooth acceleration and deceleration for filling, sealing, and labeling equipment.
• Industrial pumping and fan systems needing energy-efficient speed adjustment
Helps optimize motor output based on real-time demand, reducing energy consumption.
• Textile and light manufacturing equipment requiring reliable motor speed control
Provides steady torque performance for continuous and repetitive processes.
Key Advantages
• Precise motor speed regulation with V/Hz control and sensorless vector capability
Delivers stable performance across varying load conditions in industrial applications.
• Compact and panel-friendly design with IP20 open enclosure
Simplifies installation in space-constrained control cabinets.
• Integrated keypad and LED interface for quick setup and monitoring
Enables easy configuration and real-time status visibility without external tools.
• Flexible communication options including RS485 and optional industrial networks
Supports integration into diverse automation architectures for improved system connectivity.
Technical FAQs
1. What is the rated output current of this drive?
It is rated at approximately 17 A to 17.5 A depending on configuration and region.
2. What voltage range does it support?
It is designed for 480V AC three-phase input systems.
3. Is this drive still in production?
It has been officially discontinued, with replacement models available.
4. What motor types can it control?
It is used with standard three-phase induction motors in industrial applications.
5. Does it support braking functionality?
Yes, it supports braking options depending on system configuration.
6. Can it operate without encoder feedback?
Yes, it supports sensorless control modes.
7. What communication interfaces are available?
It includes RS485 and supports optional industrial communication modules.
8. Is it suitable for continuous operation?
Yes, it is designed for industrial continuous-duty environments.
9. What kind of control methods does it support?
It supports V/Hz control and sensorless vector control.
10. Does it include built-in user interface?
Yes, it features an integrated keypad and LED display.
