Brand:Allen Bradley PLC Item No.:22F-D013N104 Product Origin:USA Product Dimensions:260 x 130 x 180 mm Product Weight:4.8 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

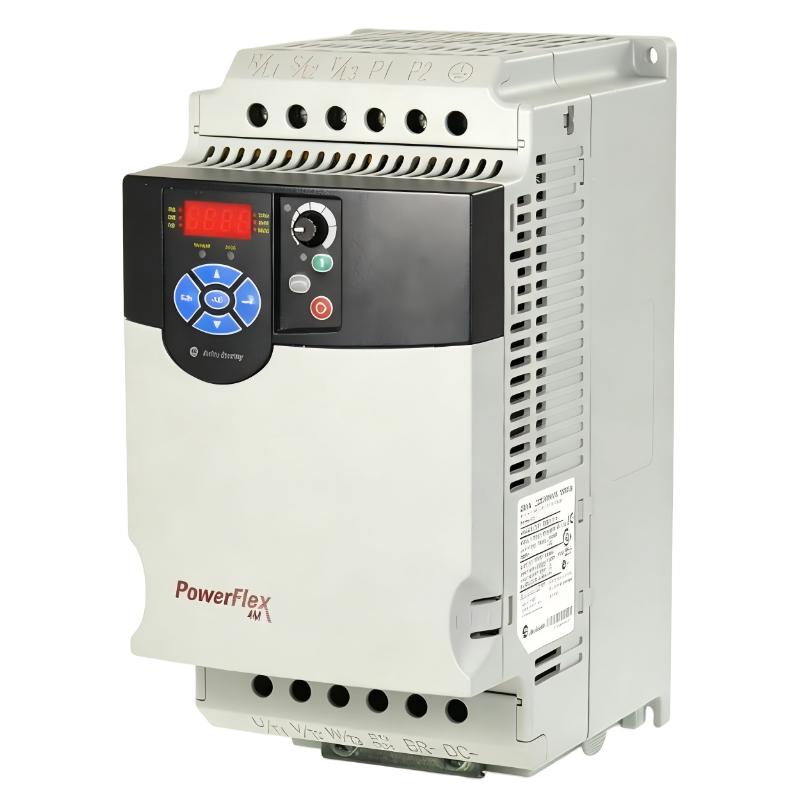

The Allen Bradley 22F-D013N104 PowerFlex 4M AC Drive is a compact and cost-effective variable frequency drive designed for general-purpose motor control applications. It is widely recognized for its simplicity, reliability, and ease of integration into standard industrial systems.
As part of the PowerFlex 4M family, this model is optimized for users who need dependable speed control without the complexity of advanced motion control features. It is especially common in OEM machinery and plant-level auxiliary systems where operational stability and straightforward setup are key priorities.
Technical Specifications
Parameter
Specification
Series
PowerFlex 4M
Model
22F-D013N104
Input Voltage
480V AC, 3-phase
Output Current
13 A
Power Rating
5.5 kW (7.5 HP)
Control Method
V/Hz Control
Communication
RS485
Enclosure Type
IP20, panel mount open type
Interface
Integrated keypad with LED display
Frequency Range
50–60 Hz
Dimensions
260 × 130 × 180 mm
Weight
4.8 kg
Recommended Related Models
Model
Product Name
22F-D010N104
PowerFlex 4M AC Drive 4 kW Variant
22F-D018N104
PowerFlex 4M AC Drive 7.5 kW Model
25B-D013N114
PowerFlex 525 AC Drive 13 A Modern Replacement
22D-D013N104
PowerFlex 40P AC Drive 13 A Enhanced Control Version
Popular Related Models
Model
Product Name
22F-D008N104
PowerFlex 4M AC Drive 2.2 kW Compact Version
22F-D024N104
PowerFlex 4M AC Drive 11 kW High Power Variant
22F-D006N104
PowerFlex 4M AC Drive 1.5 kW Entry Model
22F-D017N104
PowerFlex 4M AC Drive 7.5 HP Mid Range Model
Applications
• Small to medium industrial conveyor systems requiring simple and reliable speed control
Commonly used in material handling lines where consistent motor speed improves process stability and reduces downtime.
• Pumps and fan systems with basic variable speed regulation needs
Helps optimize energy usage by adjusting motor speed according to load demand.
• Light manufacturing and OEM machinery with compact control requirements
Ideal for equipment where space-saving design and straightforward configuration are important.
• Textile, packaging, and auxiliary production equipment
Provides stable motor operation for repetitive and continuous industrial processes.
Key Advantages
• Simple setup with integrated keypad and LED display interface
Reduces commissioning time and allows fast parameter adjustment without external tools.
• Reliable V/Hz control for stable motor performance
Ensures smooth operation under varying load conditions in general-purpose applications.
• Compact IP20 panel-mount design for flexible installation
Fits easily into standard control cabinets, supporting space-efficient system layouts.
• Built-in RS485 communication for basic industrial integration
Enables connection to PLC systems and simple automation networks.
Technical FAQs
1. What is the rated power of this drive?
It is rated at 5.5 kW (7.5 HP) for 480V applications.
2. What is the output current?
The drive provides a nominal output current of 13 A.
3. What type of control does it use?
It uses Volts per Hertz (V/Hz) control for motor speed regulation.
4. Does it support communication with PLC systems?
Yes, it includes RS485 communication capability.
5. Is it suitable for heavy-duty applications?
It is designed mainly for light to medium industrial loads.
6. Can it operate without a communication network?
Yes, it can run using standalone keypad control or terminal inputs.
7. Does it support braking functionality?
Yes, it includes a built-in brake transistor depending on configuration.
8. What motor type is compatible?
Standard three-phase induction motors.
9. Is parameter setup complicated?
No, it is designed for simple and fast commissioning.
10. Is this model still actively supported?
Yes, it remains an active product in the PowerFlex 4M series.
