Brand:Allen Bradley PLC Item No.:22F-D8P7N103 Product Origin:USA Product Dimensions:174 x 100 x 136 mm Product Weight:2.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

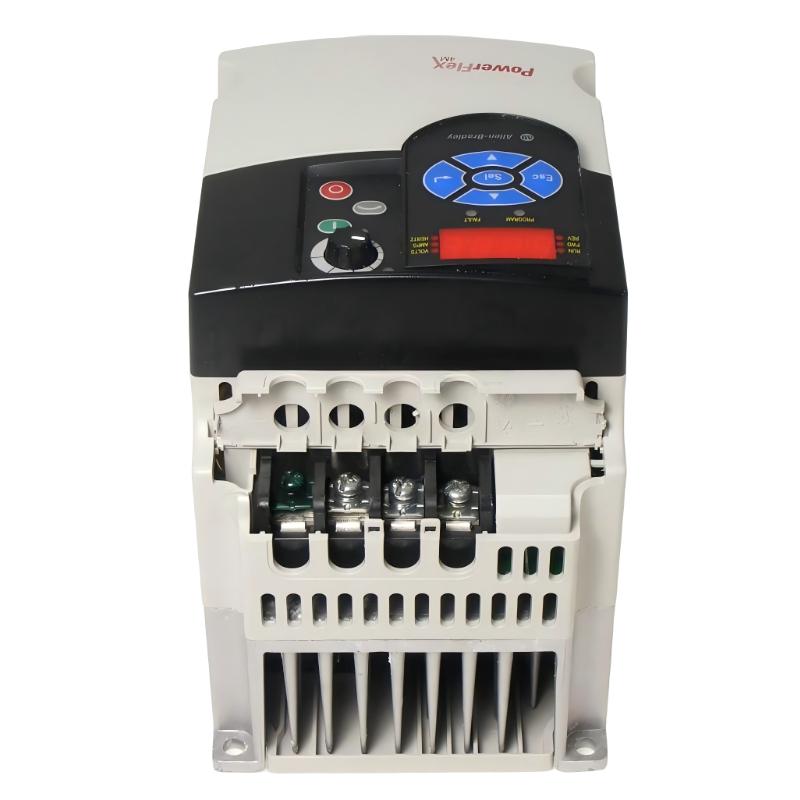

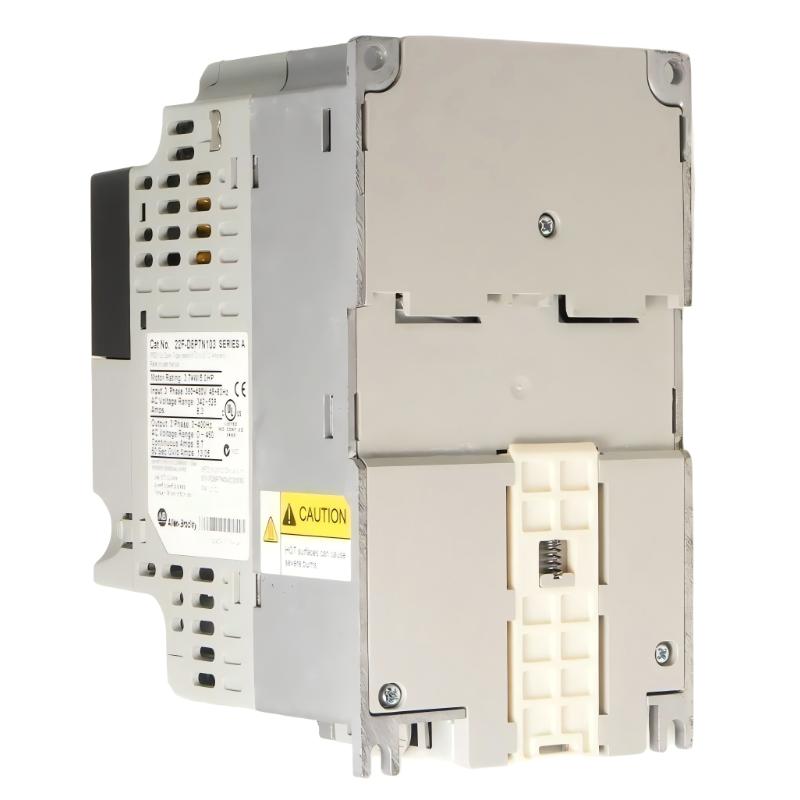

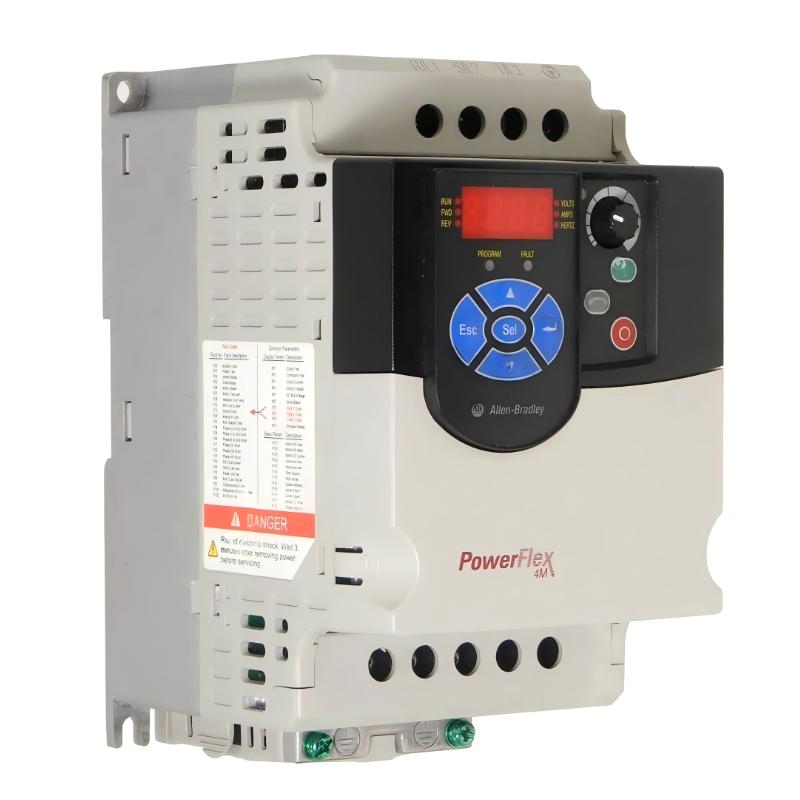

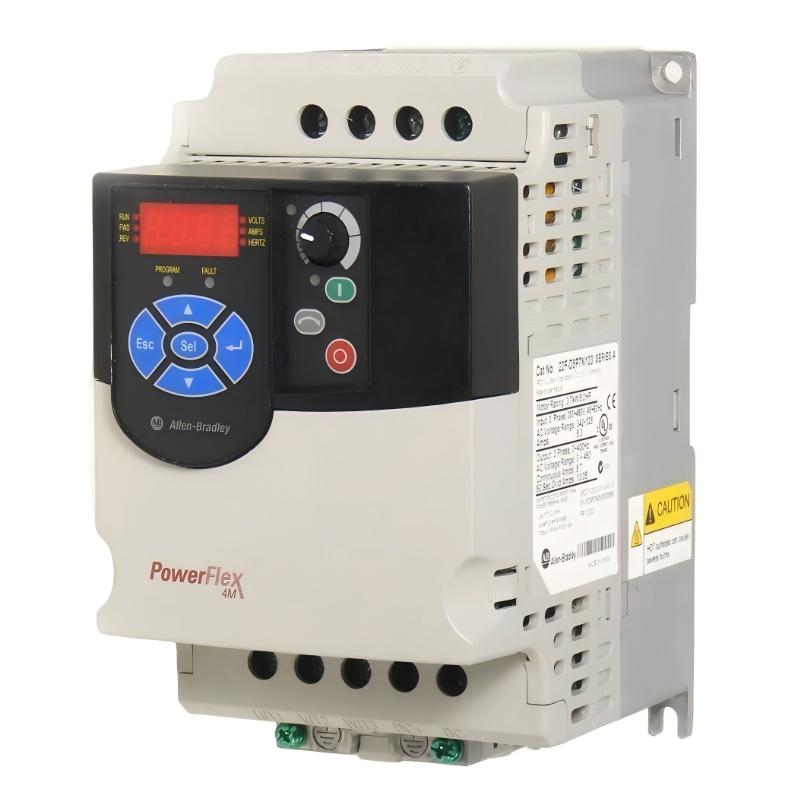

The Allen Bradley 22F-D8P7N103 PowerFlex 4M AC Drive is a compact variable frequency drive designed for straightforward motor speed control in industrial applications. It is widely used in systems where reliability and simplicity are more important than advanced motion functionality.
As part of the PowerFlex 4M family, this model focuses on delivering consistent performance in everyday automation environments. Its compact form factor and easy setup make it a practical choice for OEMs and plant operators who need dependable control without system complexity.
Technical Specifications
Parameter
Specification
Series
PowerFlex 4M
Model
22F-D8P7N103
Input Voltage
480V AC, 3-phase
Output Current
8.7 A
Power Rating
3.7 kW (5 HP)
Control Method
V/Hz Control
Communication
RS485
Enclosure Type
IP20, panel mount open type
Interface
LED display with fixed keypad
Frequency Range
50–60 Hz
Dimensions
174 × 100 × 136 mm
Weight
2.1 kg
Recommended Related Models
Model
Product Name
22F-D013N104
PowerFlex 4M AC Drive 13 A Variant
22F-D010N103
PowerFlex 4M AC Drive 4 kW Compact Model
22D-D008N104
PowerFlex 40P AC Drive 8 A Enhanced Control Version
25B-D8P7N104
PowerFlex 525 AC Drive 8.7 A Modern Replacement
Popular Related Models
Model
Product Name
22F-D006N103
PowerFlex 4M AC Drive 2.2 kW Entry Model
22F-D018N103
PowerFlex 4M AC Drive 7.5 kW High Range
22F-D004N103
PowerFlex 4M AC Drive Ultra-Compact Version
22F-D011N103
PowerFlex 4M AC Drive Mid Power Variant
Applications
• Small to medium conveyor systems requiring stable speed regulation
Ensures consistent material flow in packaging and light industrial production lines where smooth motor control is essential.
• Pump and fan control systems with variable load demand
Optimizes energy consumption by adjusting motor speed according to real-time process requirements.
• OEM machinery and compact automation equipment
Ideal for machine builders who need a cost-effective, space-saving drive with reliable performance.
• Light manufacturing and auxiliary production systems
Supports continuous operation in textile, food processing, and general industrial environments.
Key Advantages
• Simple configuration with integrated keypad and LED interface
Reduces commissioning time and allows fast parameter setup without additional software tools.
• Reliable V/Hz control for general-purpose motor applications
Provides stable torque and smooth operation under varying load conditions.
• Compact IP20 open-type design for easy panel integration
Saves cabinet space while maintaining flexible installation options in control systems.
• Built-in RS485 communication for basic industrial connectivity
Enables straightforward integration with PLC systems and existing automation networks.
Technical FAQs
1. What is the rated output current of this drive?
It is rated at approximately 8.7 A for 480V three-phase operation.
2. What is the motor power rating?
Typically supports around 3.7 kW (5 HP) applications.
3. What type of control method does it use?
It uses standard Volts per Hertz (V/Hz) control.
4. Does it support communication with PLC systems?
Yes, it includes RS485 communication capability.
5. Is this drive suitable for heavy-duty applications?
No, it is designed for light to medium industrial loads.
6. Can it operate without a network connection?
Yes, it can run via keypad or terminal control.
7. Does it include braking functionality?
It supports dynamic braking options depending on configuration.
8. What type of motor is compatible?
Standard three-phase induction motors.
9. Is it easy to commission?
Yes, it is designed for fast and simple setup.
10. Is this model still in production?
Yes, it remains an active model in the PowerFlex 4M series.
