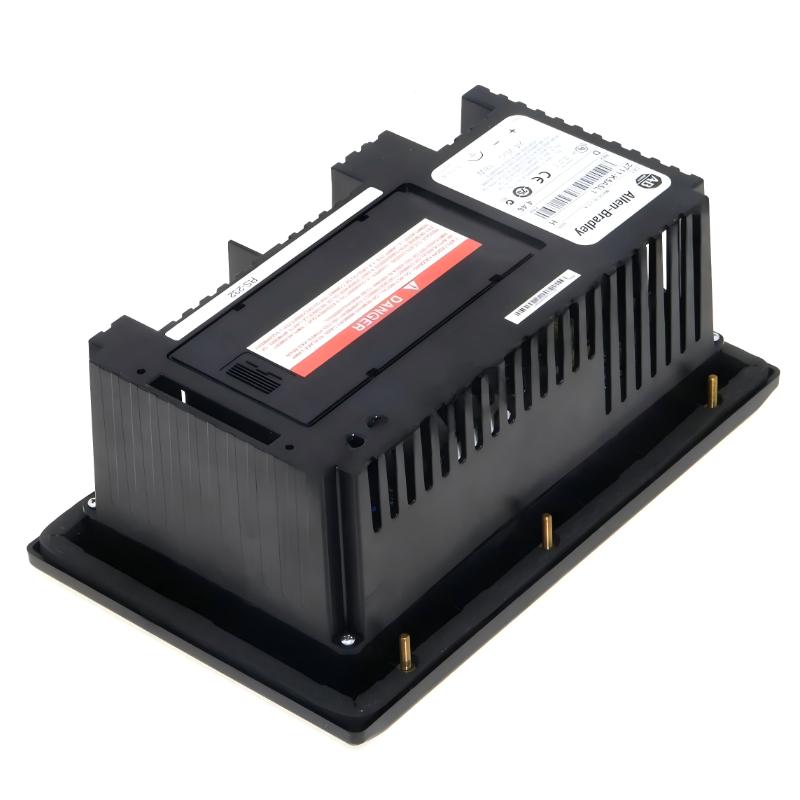

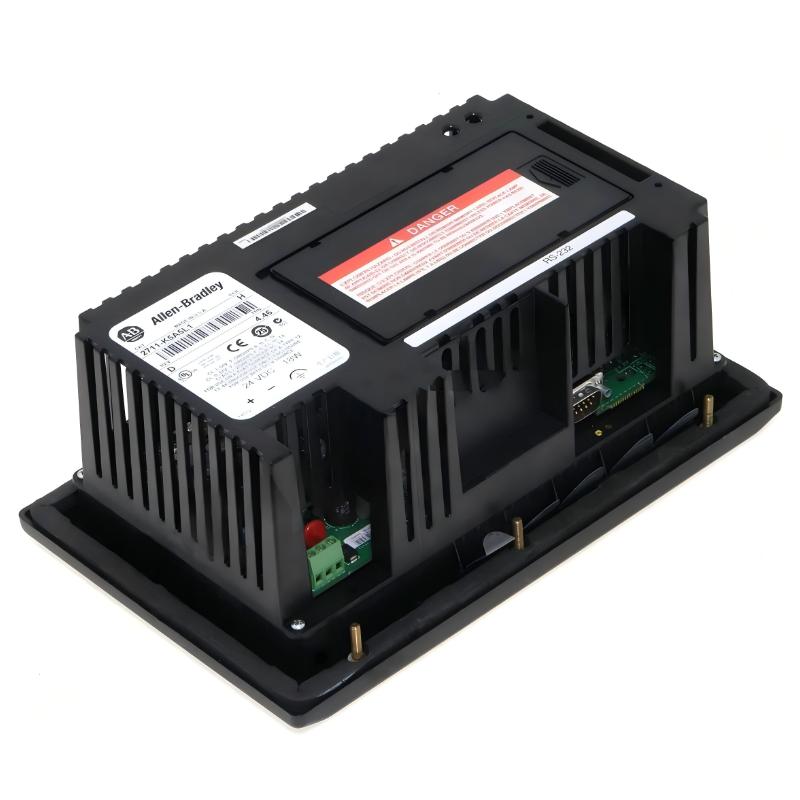

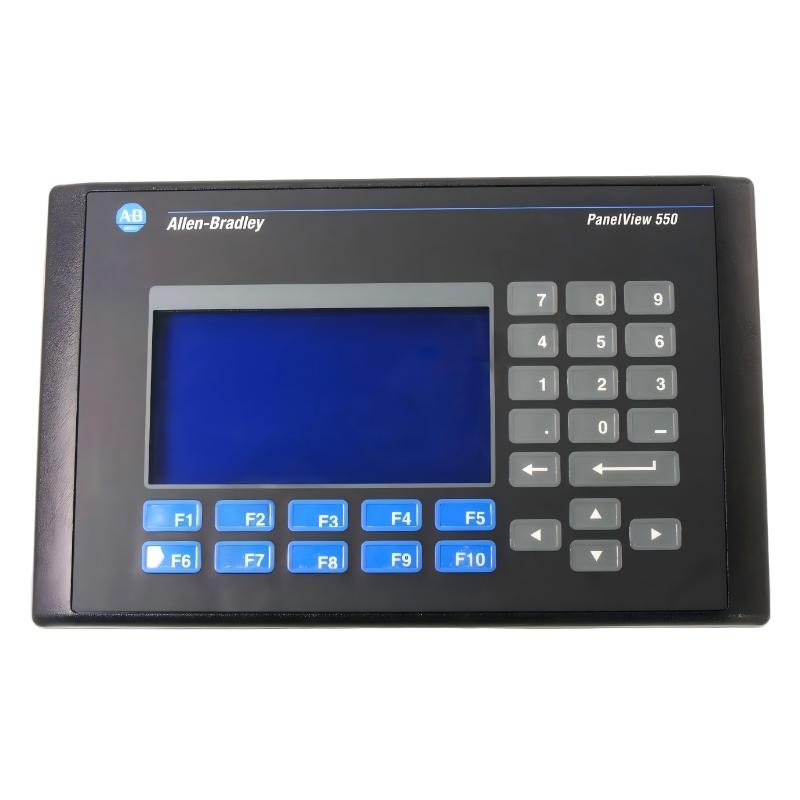

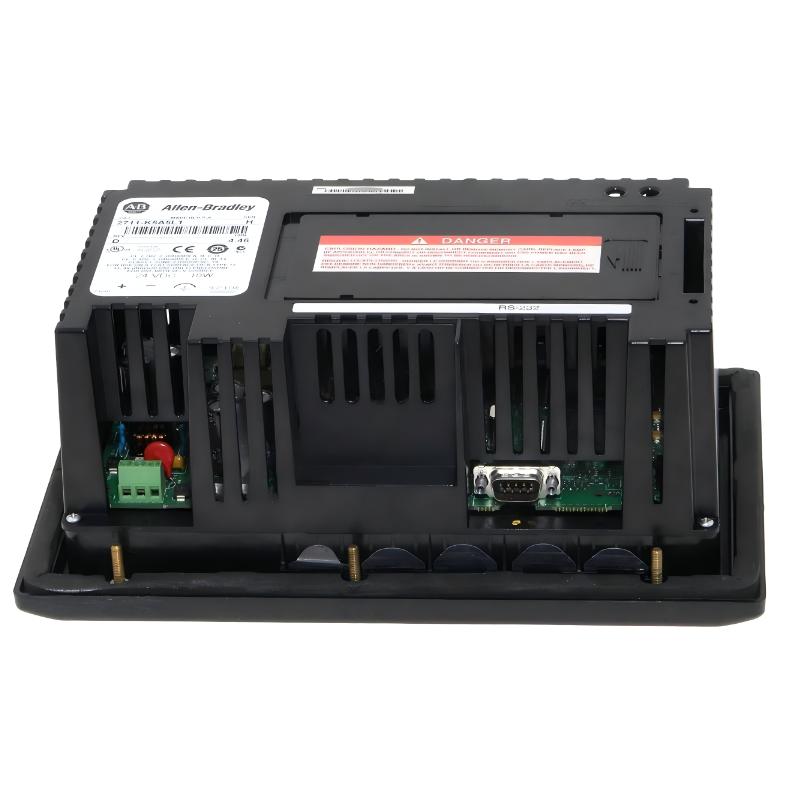

Allen Bradley 2711-K5A5L1 PanelView 550 Operator Interface
Allen Bradley 2711-K5A5L1 PanelView 550 Operator Interface
0.0
Points
Brand:Allen Bradley PLC Item No.:2711-K5A5L1 Product Origin:USA Product Dimensions:266 x 106 x 167 mm Product Weight:1.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 2711-K5A5L1 PanelView 550 Operator Interface is a compact human-machine interface designed for industrial environments that rely on simple, reliable, and proven control technology. Although it belongs to an older generation of PanelView products, it continues to be used in many installed automation systems worldwide.
Technical Specifications
Parameter
Specification
Series
PanelView 550
Model
2711-K5A5L1
Display Size
5.5-inch monochrome LCD
Resolution
256 × 128
Input Type
Keypad (F1–F10 function keys)
Communication
RS-232 (DH-485)
Power Supply
18–32V DC
Memory
170 KB runtime / 240 KB non-volatile
Backlight Life
Up to 100,000 hours
Enclosure Type
Panel mount, industrial grade
Dimensions
266 × 106 × 167 mm
Weight
1.2 kg
Recommended Related Models
Model
Product Name
2711-K5A5L2
PanelView 550 Keypad HMI Enhanced Variant
2711-T5A5L1
PanelView 550 Touch Keypad Hybrid Terminal
2711-B5A5L1
PanelView 550 Basic Operator Terminal Version
2711-K5A10L1
PanelView 550 Expanded Key Function HMI
Popular Related Models
Model
Product Name
2711-K6C20L1
PanelView 600 Series Operator Interface
2711-T6C8L1
PanelView 600 Touchscreen Terminal
2711P-T7C4D8
PanelView Plus 7 Standard HMI
2711P-T10C4D8
PanelView Plus 7 Larger Display HMI
Applications
• Legacy machine control and operator monitoring systems in industrial automation
Widely used in older production lines where basic HMI visualization and control functions are required.
• Packaging and material handling equipment with simple operator interaction needs
Provides essential status display and manual input functions for straightforward machine operation.
• Process equipment requiring real-time parameter adjustment and alarm monitoring
Enables operators to view system status and adjust key process variables directly on the panel.
• OEM machinery with DH-485 or RS-232 based control architecture
Integrates into legacy Allen-Bradley PLC environments using serial communication protocols.
Key Advantages
• Compact monochrome display with clear industrial readability
Designed for reliable visibility in harsh factory environments with long backlight life.
• Physical keypad interface with function keys for direct operation
Allows fast machine interaction without reliance on touchscreen input.
• Stable RS-232 (DH-485) communication for legacy PLC integration
Ensures compatibility with older Allen-Bradley control systems.
• Industrial-grade enclosure suitable for panel mounting environments
Built to withstand continuous operation in demanding production conditions.
Technical FAQs
1. What communication protocol does this PanelView 550 use?
It uses RS-232 communication with DH-485 protocol for PLC connectivity.
2. Is this an old or current-generation HMI?
It is a legacy (obsolete) PanelView 550 series HMI.
3. What type of display does it use?
It uses a 5.5-inch monochrome LCD display.
4. Does it support touchscreen operation?
No, this model uses a keypad-based interface.
5. What PLC systems is it commonly used with?
It is typically used with older Allen-Bradley SLC and MicroLogix systems.
6. Can it be networked with modern Ethernet systems?
Not directly; it relies on serial communication protocols.
7. Is programming still supported?
Yes, but it requires legacy PanelBuilder software tools.
8. Does it support alarm handling?
Yes, it supports basic alarm display and acknowledgment functions.
9. Is it suitable for new machine designs?
No, it is generally used for maintenance or replacement in existing systems.
10. What is the main limitation of this model?
Limited connectivity and outdated communication interface compared to modern HMIs.
