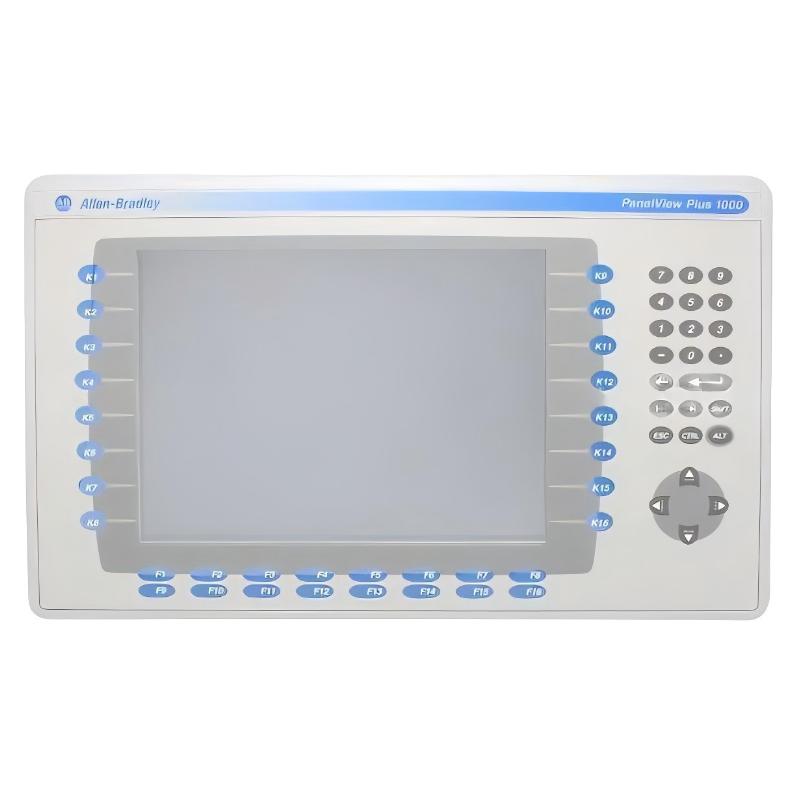

Allen Bradley 2711P-B10C15A1 PanelView Plus 1000 Operator Interface
Allen Bradley 2711P-B10C15A1 PanelView Plus 1000 Operator Interface
0.0
Points
Brand:Allen Bradley PLC Item No.:2711P-B10C15A1 Product Origin:USA Product Dimensions:399 x 55 x 248 mm Product Weight:2.9 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 2711P-B10C15A1 PanelView Plus 1000 Operator Interface is a robust industrial HMI designed for mid-to-large scale automation systems requiring reliable visualization and operator interaction.
It belongs to the PanelView Plus 1000 family and combines touchscreen and keypad input with multi-protocol communication capabilities. Although it is a legacy platform, it remains widely installed in industrial environments where system continuity and proven performance are more critical than modern interface features.
Technical Specifications
Parameter
Specification
Series
PanelView Plus 1000
Model
2711P-B10C15A1
Display Size
10.4-inch color TFT LCD
Resolution
640 × 400
Input Type
Keypad + resistive touchscreen
Communication
Ethernet, RS-232, ControlNet
Power Supply
85–264V AC
Memory
128 MB Flash / 128 MB RAM
Operating System
Windows CE embedded
USB Ports
1 × USB host
Enclosure Type
Panel mount industrial housing
Dimensions
399 × 55 × 248 mm
Weight
2.9 kg
Recommended Related Models
Model
Product Name
2711P-B10C4A1
PanelView Plus 1000 Ethernet Standard Version
2711P-T10C15A1
PanelView Plus 1000 Touchscreen Version
2711P-K10C15A2
PanelView Plus 1000 Keypad Heavy-Duty Variant
2711P-T12C6A2
PanelView Plus 1250 Advanced HMI Upgrade Model
Popular Related Models
Model
Product Name
2711P-T7C4D8
PanelView Plus 7 Standard 7-inch HMI
2711P-T10C4D8
PanelView Plus 7 10-inch Advanced HMI
2711R-T4T
PanelView 800 Compact Touch Terminal
2711-K6C2
PanelView 600 Operator Interface
Applications
• Mid-to-large scale machine control and operator visualization systems
Commonly used in complex industrial equipment where real-time process monitoring and multi-screen control are required.
• Packaging, automotive, and assembly automation lines
Supports operator interaction for high-throughput systems requiring consistent monitoring and control feedback.
• Process control systems requiring Ethernet-based PLC integration
Enables communication with modern and legacy Allen-Bradley controllers through industrial networking.
• Heavy-duty OEM machinery with multi-function HMI requirements
Ideal for equipment needing both touchscreen interaction and physical keypad input for flexible operation.
Key Advantages
• Large 10.4-inch color TFT display with high readability
Provides clear visualization of process data, alarms, and system diagnostics in industrial environments.
• Dual input design with keypad and resistive touchscreen
Allows flexible operator control in both precise and fast-paced operational scenarios.
• Multiple industrial communication ports including Ethernet and RS-232
Ensures broad compatibility with Allen-Bradley PLC architectures and legacy systems.
• Rugged industrial-grade construction for continuous operation
Designed for long service life in demanding manufacturing and process environments.
Technical FAQs
1. What communication protocols does this HMI support?
It supports Ethernet, RS-232, and ControlNet depending on configuration.
2. What is the display size?
It features a 10.4-inch color TFT LCD display.
3. Does it support touchscreen operation?
Yes, it supports analog resistive touchscreen plus keypad input.
4. What PLC systems is it compatible with?
It is commonly used with Allen-Bradley ControlLogix, CompactLogix, and legacy PLC systems.
5. Is this model still in production?
No, it is a discontinued PanelView Plus 1000 series model.
6. What operating system does it use?
It runs on an embedded Windows CE-based platform.
7. Can it run modern FactoryTalk applications?
Only versions compatible with its firmware and runtime environment.
8. Does it support USB devices?
Yes, it includes USB host connectivity.
9. Is it suitable for new machine design?
No, it is mainly used for replacement or legacy system maintenance.
10. What is the main limitation of this model?
Limited upgrade path and older architecture compared to PanelView Plus 7 series.
