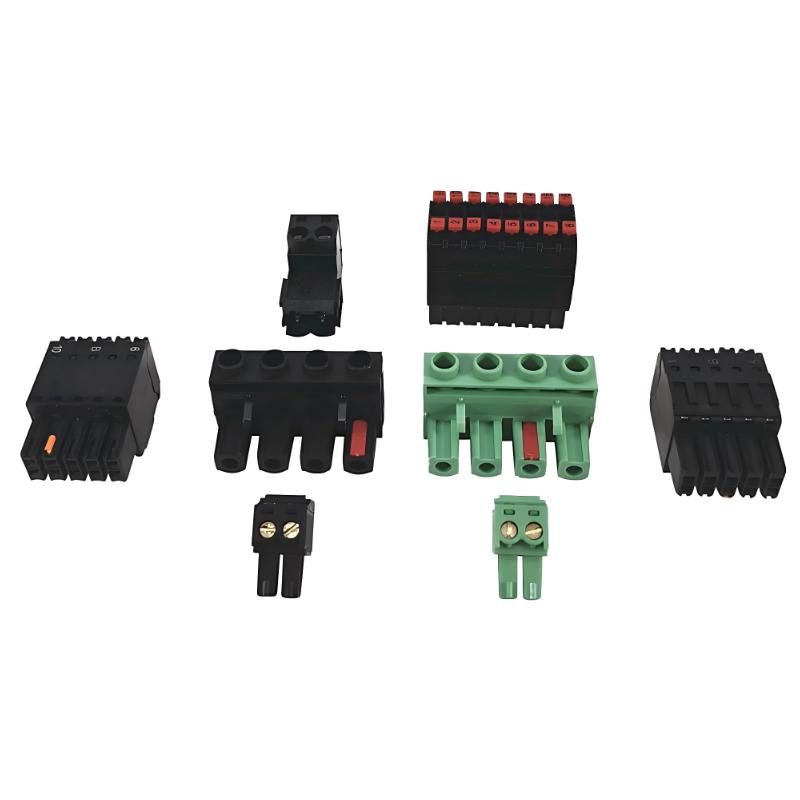

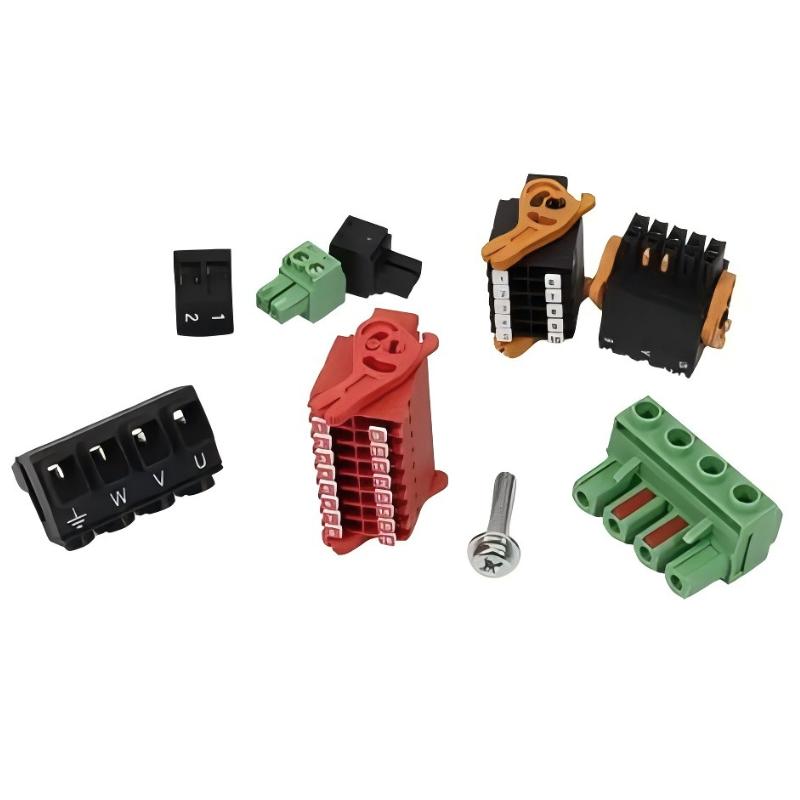

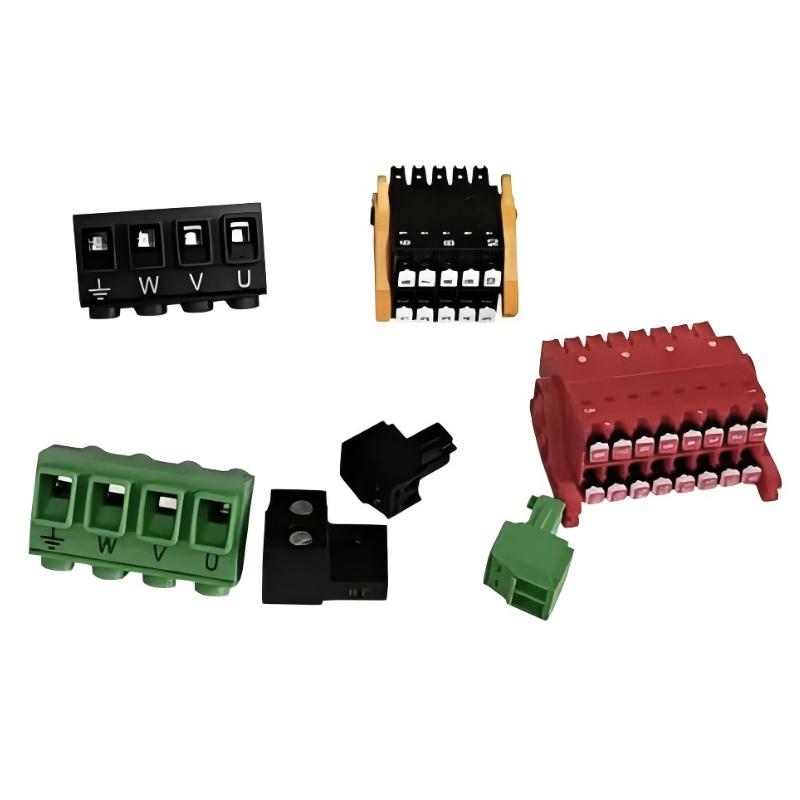

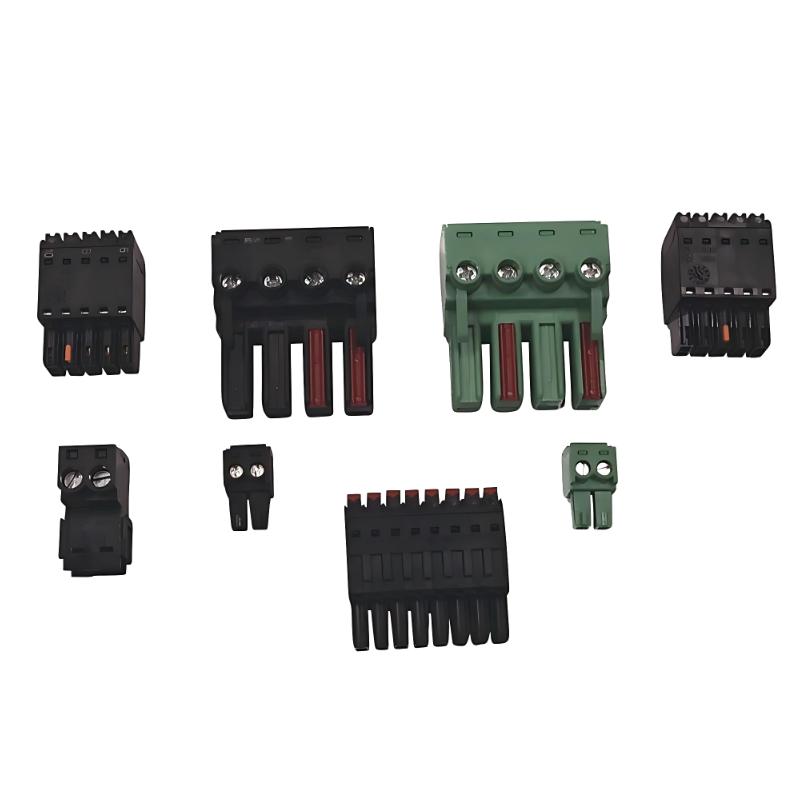

The Allen-Bradley 2198-KITCON-D032-L is a professional-grade connector kit module designed for use with Rockwell Automation Kinetix servo drive systems. This installation accessory kit simplifies drive wiring, accelerates commissioning, and helps maintain secure industrial connections in demanding automation environments.
Engineered specifically for compatible Kinetix 5700 and Kinetix 5500 servo drive platforms, the 2198-KITCON-D032-L provides factory-matched connection components for reliable power and feedback integration. It is widely used by OEM machine builders, panel integrators, and industrial maintenance teams seeking faster assembly, cleaner cabinet layouts, and dependable long-term performance.
Its industrial-grade construction supports stable signal transmission and reduces installation complexity in high-performance motion applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | Kinetix Accessories |
| Product Type | Connector Kit Module |
| Compatibility | Kinetix 5500 / Kinetix 5700 Servo Drives |
| Application | Power and signal connection support |
| Connector Type | Industrial servo drive connectors |
| Mounting Method | Direct drive interface installation |
| Material | Industrial-grade thermoplastic and metal contacts |
| Connection Style | Plug-in terminal configuration |
| Environmental Rating | Industrial indoor use |
| Wiring Support | Servo power and feedback integration |
| Installation Type | Panel and cabinet applications |
| Usage | Motion control system assembly and maintenance |
Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (L × W × H) | 210 × 140 × 45 mm |
| Weight | ~0.5 kg |
Its compact packaging and organized connector layout help reduce installation time while improving cabinet wiring efficiency.
Recommended Related Models
- 2198-H040-ERS2 – Kinetix 5500 servo drive
- 2198-D020-ERS3 – Kinetix 5700 dual-axis drive
- 2198-BARCON-85DC200 – DC bus connector module
- 2198-DB20-F – Dynamic brake module
- 2198-H070-ERS – High-power Kinetix servo drive
These products are commonly integrated into complete industrial motion control systems for scalable automation projects.
