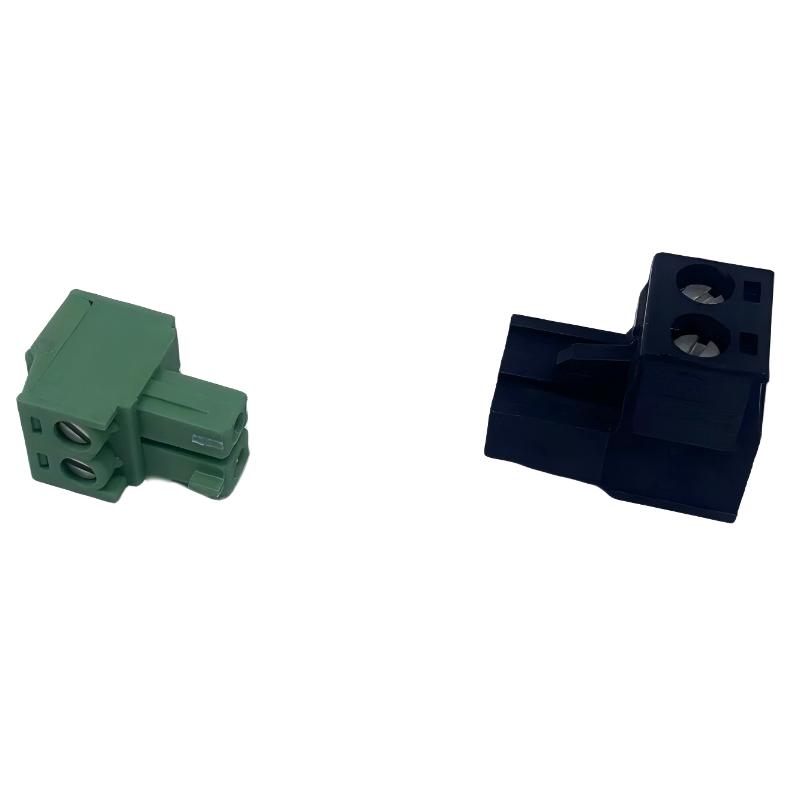

The Allen-Bradley 2198-KITCON-D057-L is an industrial-grade connector kit module developed for Kinetix 5700 dual-axis servo drive systems. Designed to support fast installation, reliable wiring, and simplified maintenance, this connector kit is widely used in high-performance motion control applications where clean cabinet integration and dependable connectivity are critical.

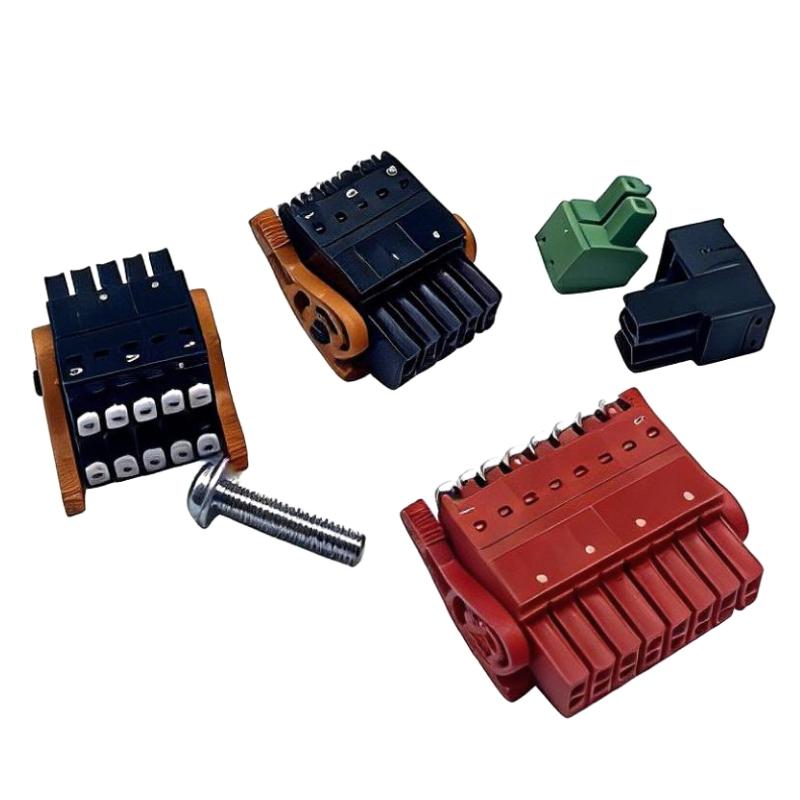

Optimized for 85 mm dual-axis inverter configurations, the 2198-KITCON-D057-L provides factory-matched connectors for servo power, I/O, STO, and motor interface integration. Its robust construction and organized layout help reduce installation time while improving long-term system reliability in demanding industrial environments.
This accessory is commonly selected by OEM machine builders, automation integrators, and industrial maintenance teams seeking efficient Kinetix 5700 deployment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | Kinetix 5700 Accessories |
| Product Type | Connector Kit Module |
| Catalog Number | 2198-KITCON-D057-L |
| Compatibility | Kinetix 5700 Dual-Axis Drives |
| Supported Drive Series | 2198-Dxxx-ERS3 Series B / ERS4 |
| Drive Width Compatibility | 85 mm Dual-Axis Inverters |
| Application | Servo drive power and signal connectivity |

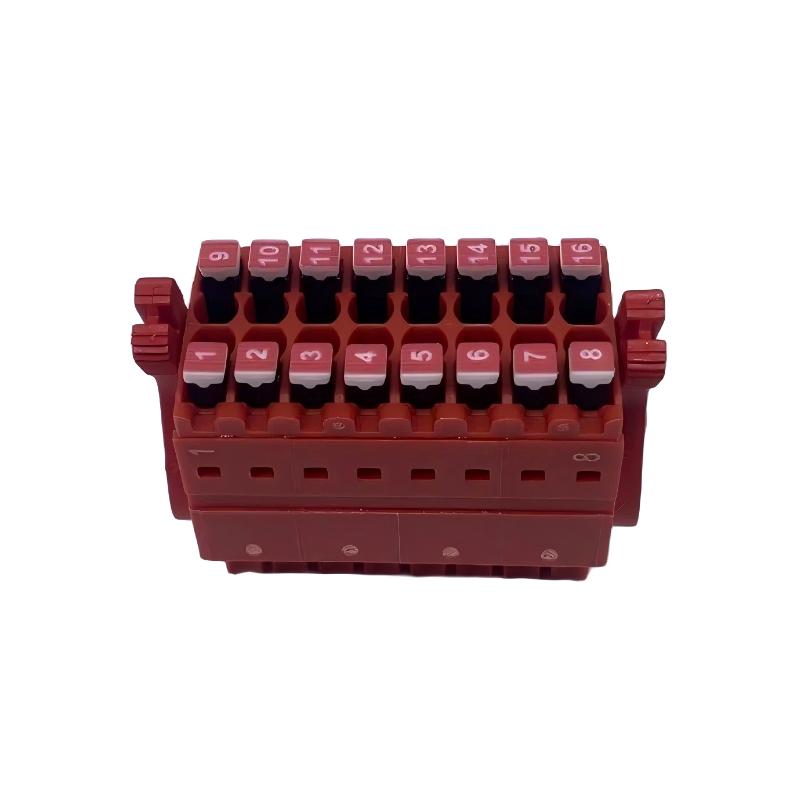

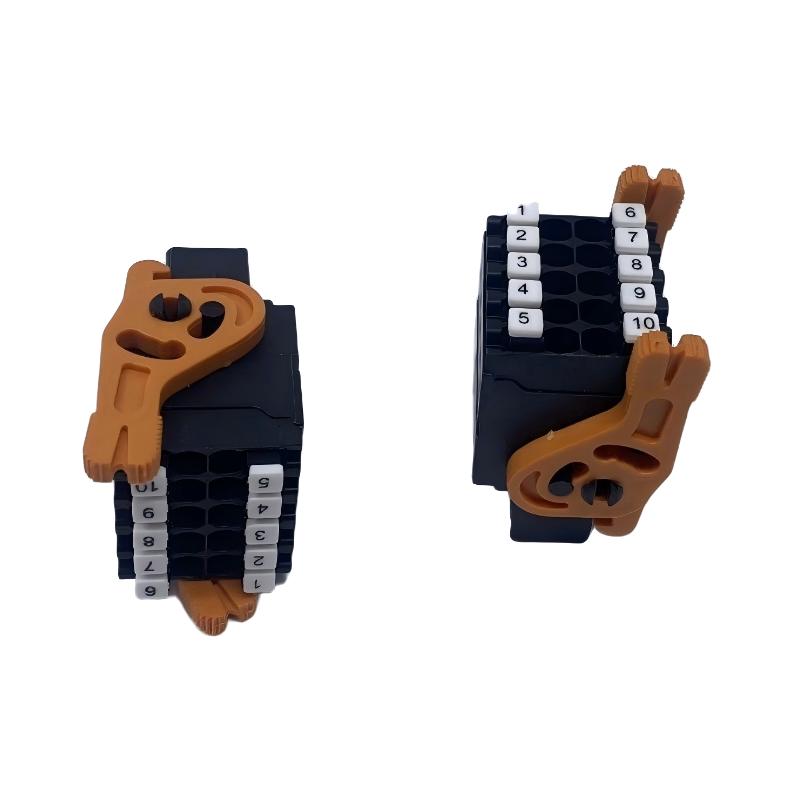

| Included Interfaces | CP, MP, BC, IOD, STO connectors |
| Connector Type | Industrial plug-in connectors |
| Installation Type | Drive-mounted connection kit |
| Mounting Environment | Industrial control cabinets |
| Material | Industrial thermoplastic with metal contacts |
| Usage | Motion control installation and maintenance |
| Lifecycle Status | Active |
The connector kit is specifically designed for reliable integration with Kinetix 5700 motion systems and supports organized high-density cabinet layouts.
Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (L × W × H) | 88 × 80 × 57 mm |
| Weight | ~0.08 kg |
Its compact design allows efficient installation while minimizing cabinet space requirements.
Recommended Related Models
- 2198-D057-ERS3 — Kinetix 5700 dual-axis servo drive
- 2198-D032-ERS3 — Medium-power dual-axis inverter
- 2198-KITCON-D032-L — 55 mm dual-axis connector kit
- 2198-BARCON-85DC200 — Shared DC bus connector module
- 2198-DB20-F — Dynamic brake accessory module
These products are commonly combined to create scalable integrated motion architectures for advanced industrial automation systems.
