The Allen-Bradley 2198-KITCON-P208 is a specialized connector kit module engineered for Kinetix 5700 DC-bus power supply systems. Designed to simplify installation and ensure reliable electrical connectivity, this industrial accessory provides essential replacement and spare connectors for high-power motion control architectures.

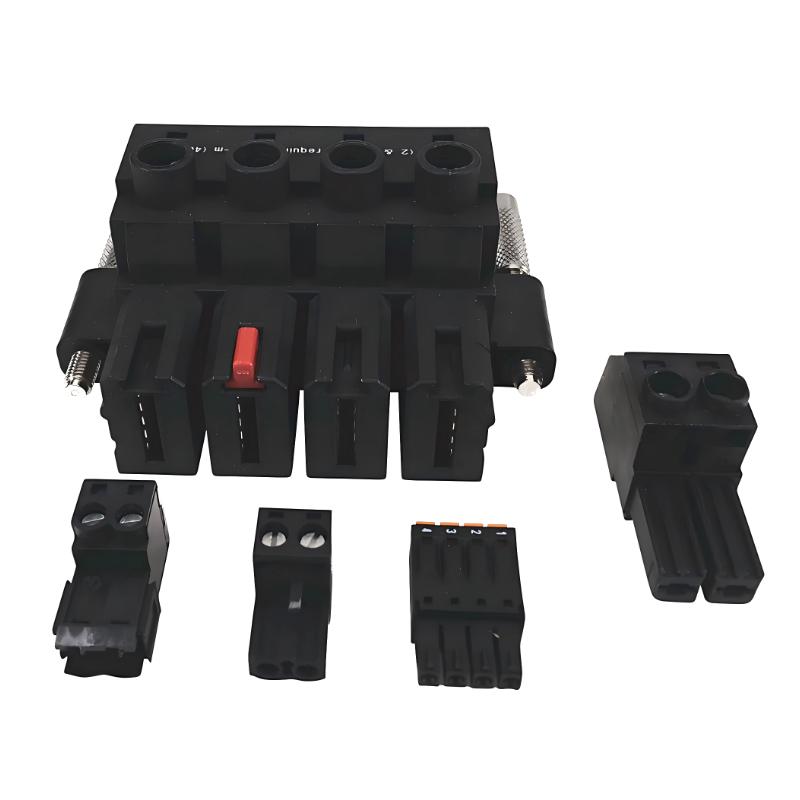

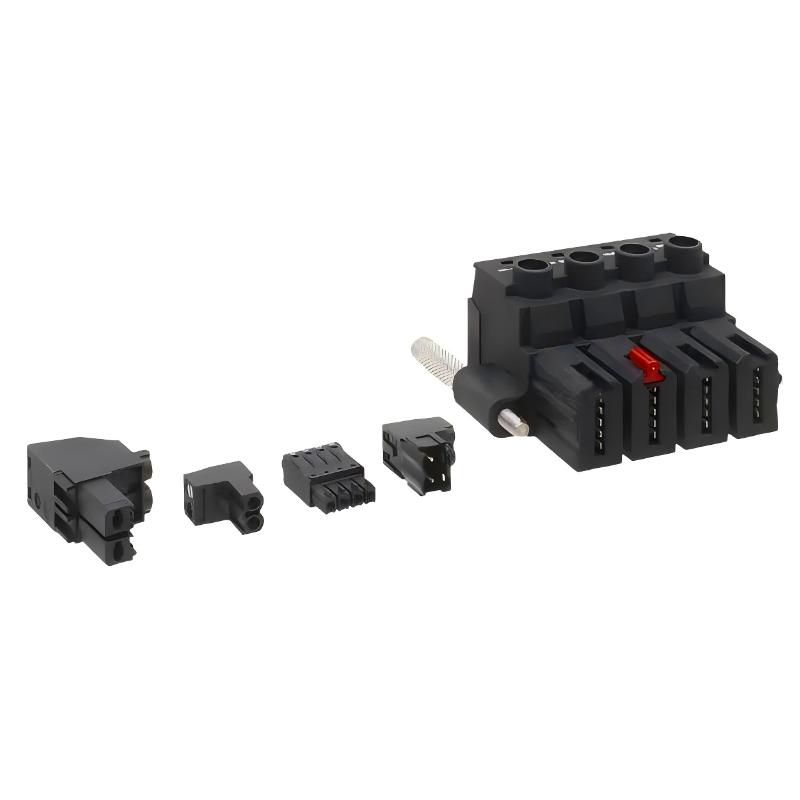

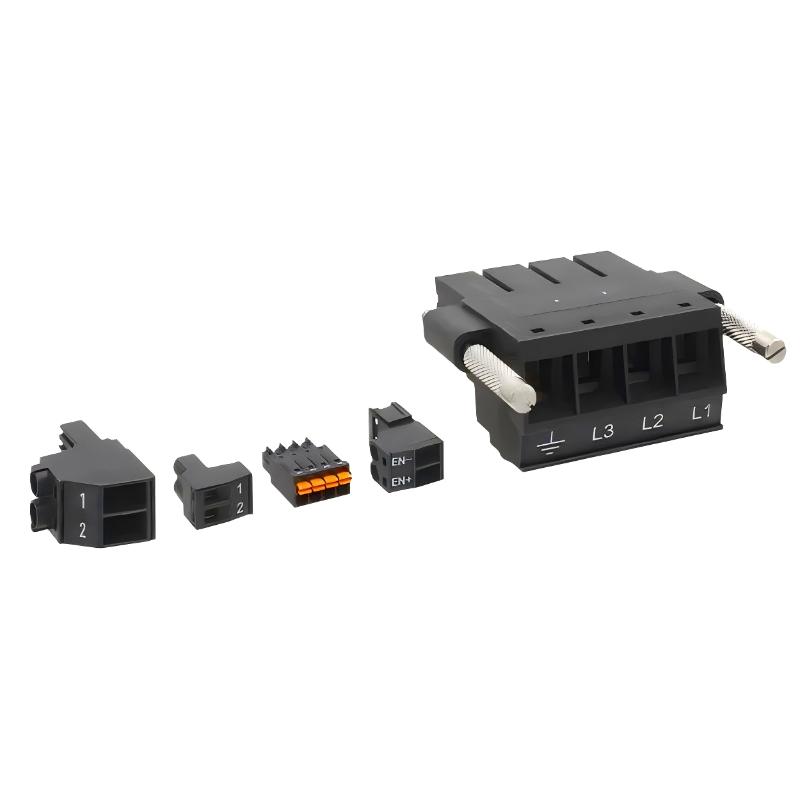

Optimized for use with 2198-P141 and 2198-P208 DC-bus power supplies, the 2198-KITCON-P208 supports organized cabinet wiring, faster commissioning, and dependable long-term operation in demanding industrial automation environments. The kit includes connectors for input power, I/O, enable circuits, 24V control power, shunt interfaces, and end caps, making it a practical solution for OEM machine builders and system integrators.
Its compact industrial design and factory-matched compatibility help reduce wiring complexity while improving maintenance accessibility in high-performance servo systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | Kinetix 5700 Accessories |
| Product Type | Connector Kit Module |
| Catalog Number | 2198-KITCON-P208 |
| Compatibility | Kinetix 5700 DC-Bus Power Supplies |
| Supported Power Supplies | 2198-P141 / 2198-P208 |
| Application | DC bus power supply connectivity |
| Included Components | Input power, I/O, enable, 24V, shunt connectors, end caps |
| Connector Type | Industrial plug-in connectors |
| Installation Type | Drive/power supply mounted |
| Mounting Environment | Industrial control cabinets |
| Material | Industrial thermoplastic with metal contacts |
| Wiring Support | Power and control signal interfaces |
| Product Category | Motion control accessory |
| Lifecycle Status | Active industrial product |
The connector kit is specifically designed for 85 mm Kinetix 5700 bus supply configurations and supports reliable high-power servo system integration.
Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (L × W × H) | 88 × 79 × 55 mm |
| Weight | ~0.19 kg |
Its compact structure helps optimize cabinet organization while simplifying installation and replacement procedures.
Recommended Related Models
- 2198-P208 — Kinetix 5700 DC-bus power supply
- 2198-P141 — Medium-power DC-bus supply module
- 2198-KITCON-D057-L — Dual-axis inverter connector kit
- 2198-BARCON-85DC200 — Shared DC bus connector module
- 2198-D020-ERS3 — Kinetix 5700 dual-axis servo drive
These components are commonly integrated into scalable EtherNet/IP motion control systems for advanced industrial automation applications.
