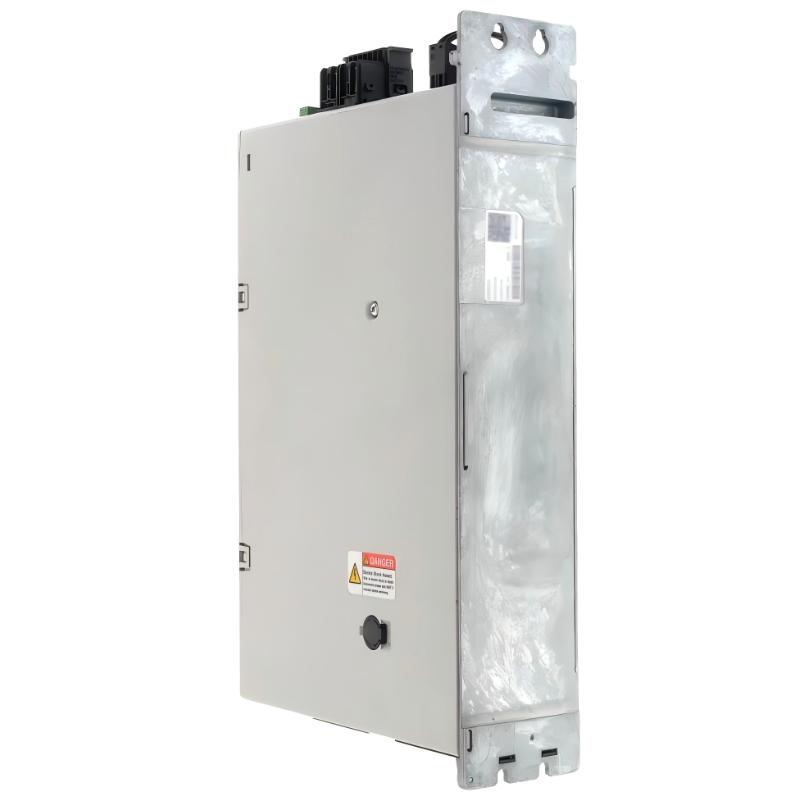

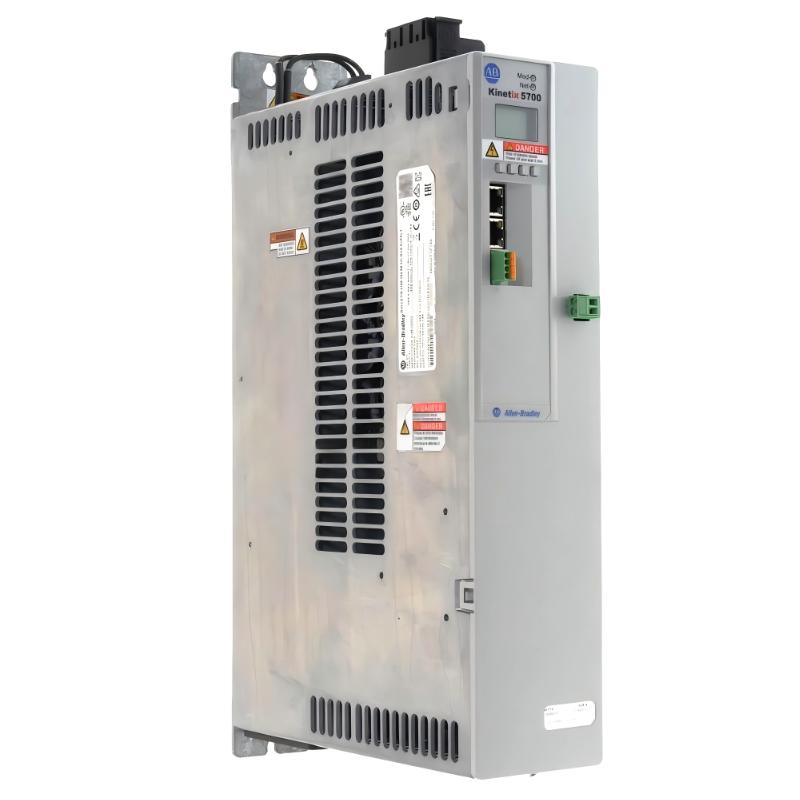

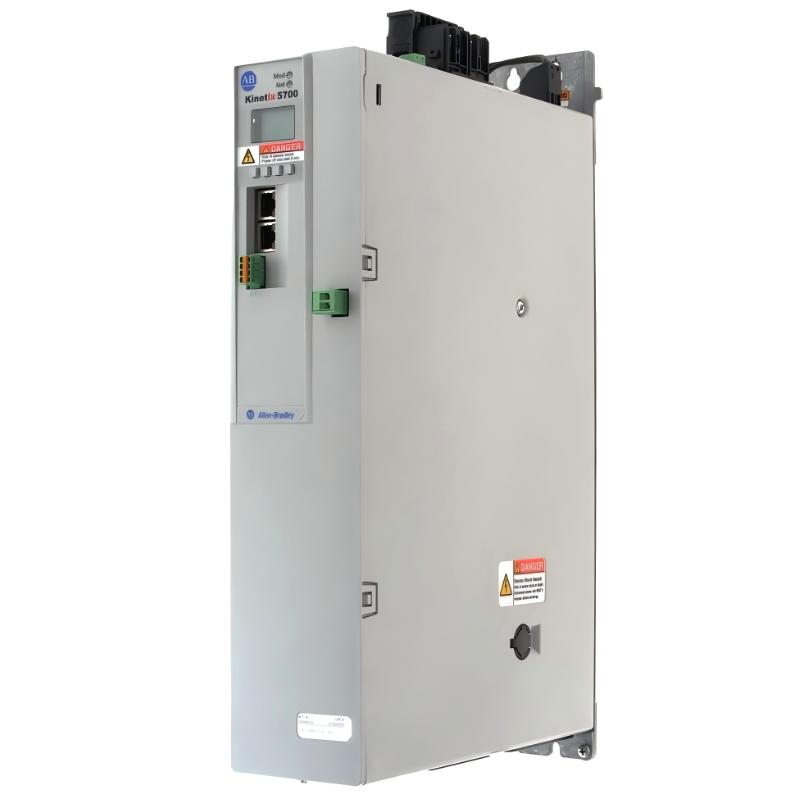

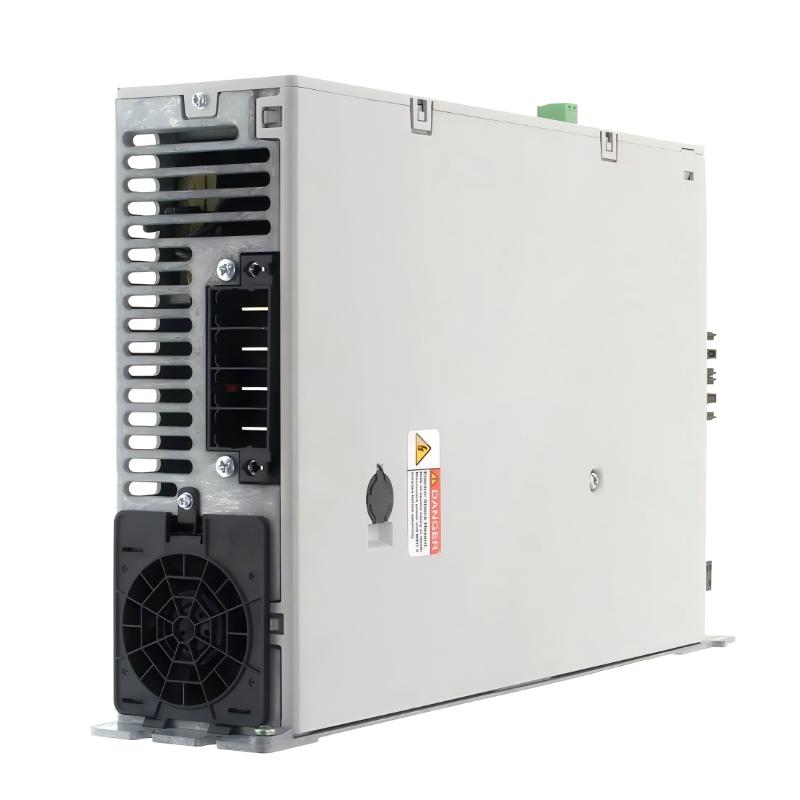

The Allen-Bradley 2198-P141 is a Kinetix 5700 DC bus supply module designed to provide stable, high-power DC link energy distribution for advanced multi-axis servo drive architectures. As part of Rockwell Automation’s Integrated Motion platform, it enables tightly synchronized EtherNet/IP motion control across multiple servo axes while simplifying cabinet wiring and improving system efficiency.
This module is engineered for medium-to-high power automation systems requiring robust energy sharing across drives. It is widely used in packaging lines, robotics, converting machines, and large-scale automated production systems where multiple servo drives operate on a common DC bus.
With its 85 mm frame design and 31 kW power handling capability, the 2198-P141 helps reduce energy losses, improve regenerative energy reuse, and streamline multi-drive system architecture.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | Kinetix 5700 |
| Product Type | DC Bus Power Supply Module |
| Catalog Number | 2198-P141 |
| Input Voltage | 324–528V AC, 3-Phase |
| Nominal System Voltage | 480V AC class |
| Input Frequency | 47–63 Hz |
| Nominal Output Current | 46.9 A DC |
| Peak Output Current | 104.8 A DC |
| Continuous Output Power | 31 kW |
| Peak Output Power | Up to 93 kW |
| Frame Width | 85 mm |
| DC Bus Architecture | Shared DC link system |
| Communication Integration | EtherNet/IP (system-level coordination) |
| Protection Features | Integrated DC bus regulation and protection functions |
| Installation Type | Panel mount, modular drive system |
| Cooling Method | Forced air (system-dependent airflow) |
| Enclosure Rating | IP20 |
The module is optimized for shared-bus architectures where multiple servo drives draw from and regenerate energy back into a centralized DC link, improving overall system efficiency.
Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 252 × 85 × 433 mm |
| Weight | ~6.9 kg |
Its vertical modular design allows high-density installation in Kinetix 5700 drive cabinets while maintaining efficient thermal management under continuous load conditions.
Recommended Related Models
- 2198-P208 – Higher-capacity Kinetix 5700 DC bus supply
- 2198-P070 – Lower-power DC bus supply module
- 2198-D020-ERS3 – Dual-axis servo inverter module
- 2198-H040-ERS2 – Integrated Kinetix 5500 servo drive
- 2198-KITCON-P208 – DC bus connector kit accessory
These components are typically used together to build scalable, high-performance multi-axis motion control systems.
