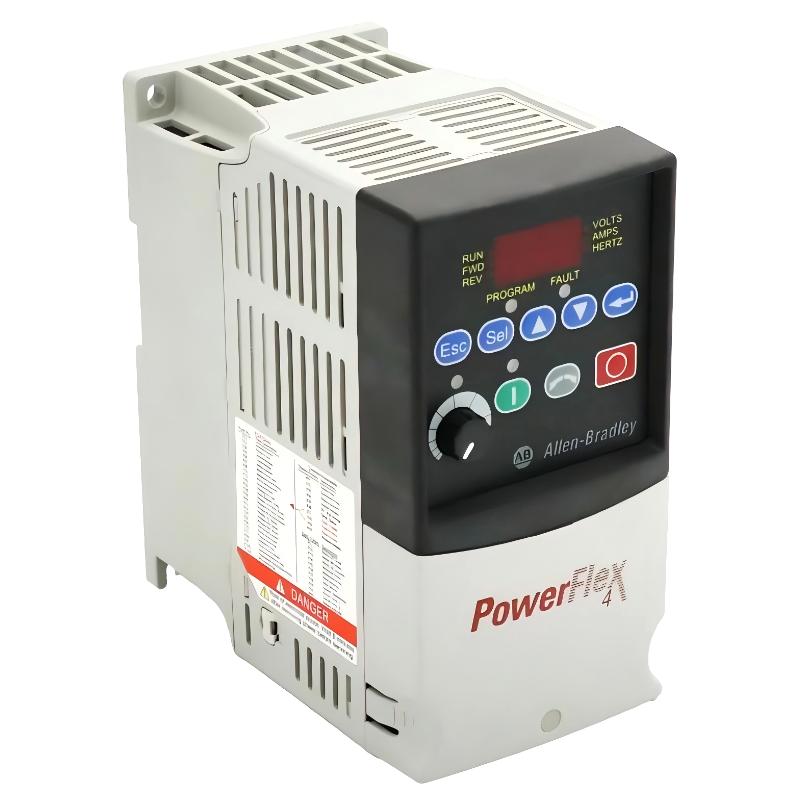

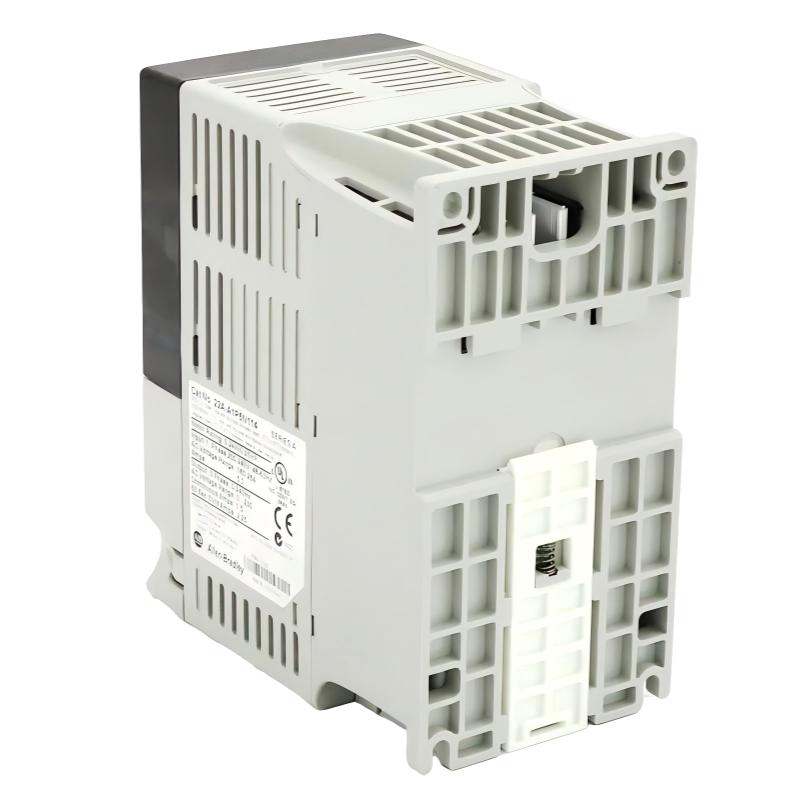

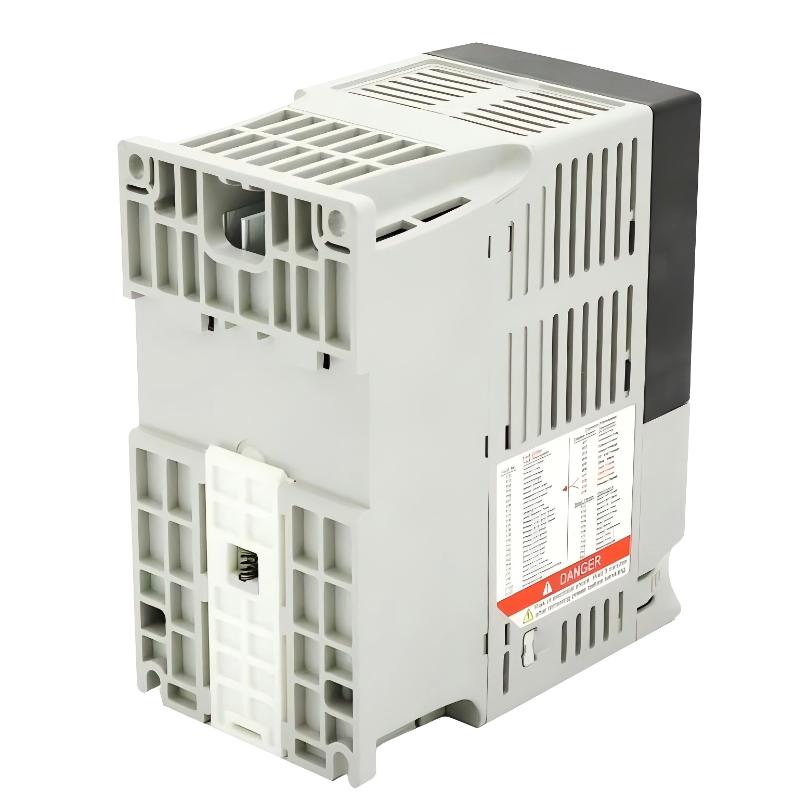

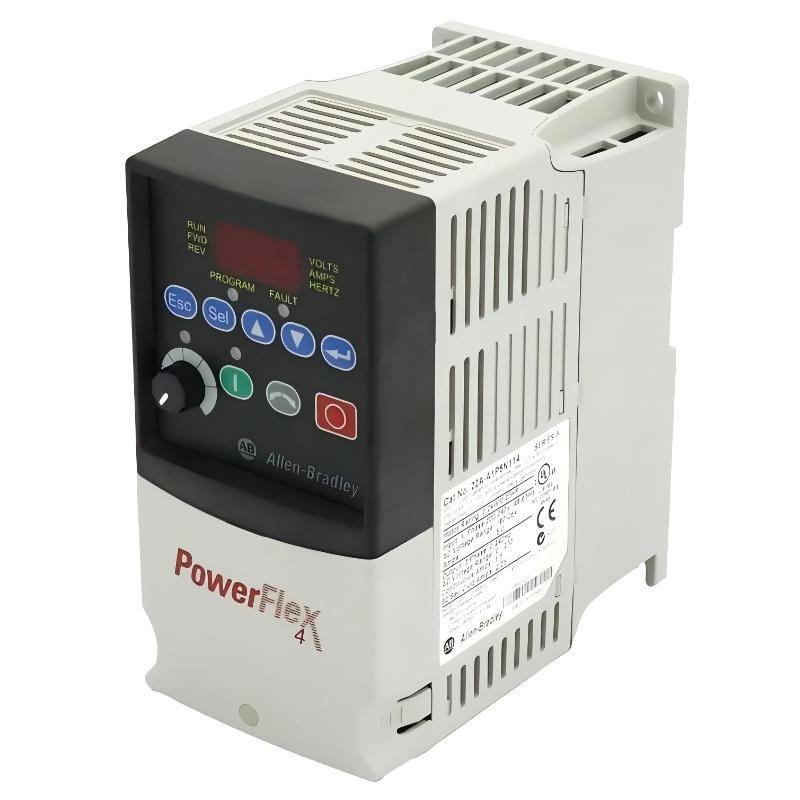

The Allen-Bradley 22A-A1P5N114 is a PowerFlex 4 series AC drive module designed for small-scale industrial motor speed control applications. Known for its simplicity, reliability, and cost efficiency, this drive is widely used in basic automation systems where stable variable-speed motor control is required without complex configuration.
It is commonly deployed in fans, pumps, conveyors, and light material handling systems. With a user-friendly keypad interface and straightforward parameter structure, the 22A-A1P5N114 is particularly suitable for OEMs and end users who need fast commissioning and minimal programming effort.
Although part of an earlier generation, it remains recognized for its robustness in compact industrial control environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | PowerFlex 4 |
| Product Type | AC Drive Module |
| Input Voltage | 200–240V AC |
| Input Phase | Single Phase |
| Input Frequency | 50–60 Hz |
| Output Current | 1.5 A |
| Output Power | 0.2 kW (0.25 HP) |
| Control Method | V/Hz control |
| Communication | RS485 |
| Brake Function | Integrated brake IGBT |
| EMC Filter | Built-in CE compliant filter |
| User Interface | LED display + fixed keypad |
| Protection | Overload and short-circuit protection |
| Mounting Type | Panel mount / DIN rail compatible |
| Enclosure Rating | IP20 (open type) |
| Efficiency | High efficiency compact drive design |
Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 152 × 135 × 80 mm |
| Weight | ~1.0 kg |
The compact Frame A design makes it suitable for space-constrained control cabinets and small machine panels.
Recommended Related Models
- 22A-A2P3N114 – 0.5 HP PowerFlex 4 AC drive
- 22A-A4P5N114 – 1 HP general-purpose drive
- 25A-A1P6N114 – New-generation replacement drive
- 22A-D series PowerFlex drives – Higher performance variants
- 2198-H025-ERS – Servo upgrade option for motion systems
These models provide scalable alternatives depending on power level and system complexity.
