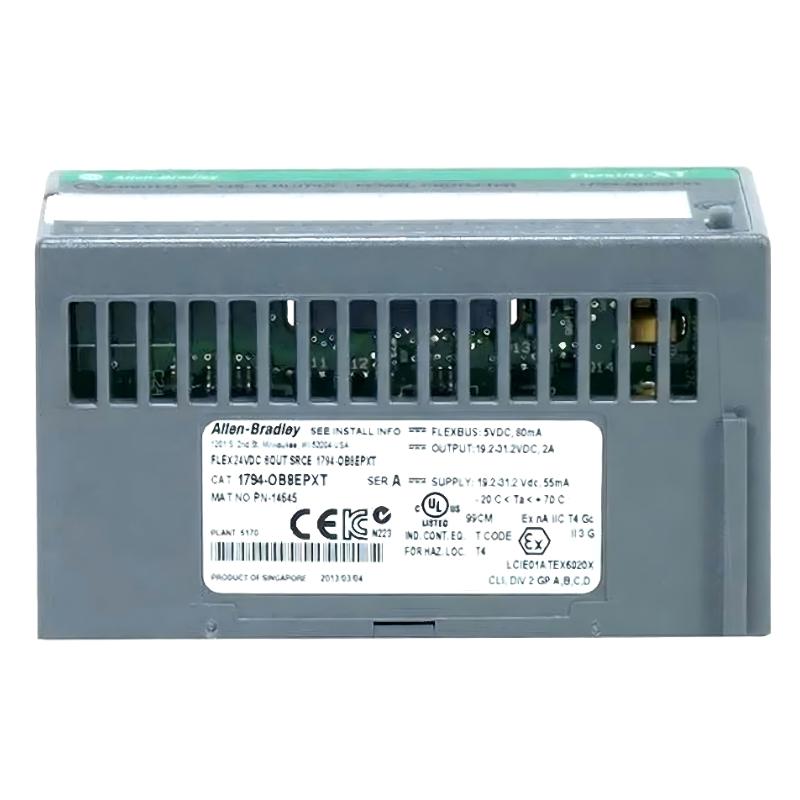

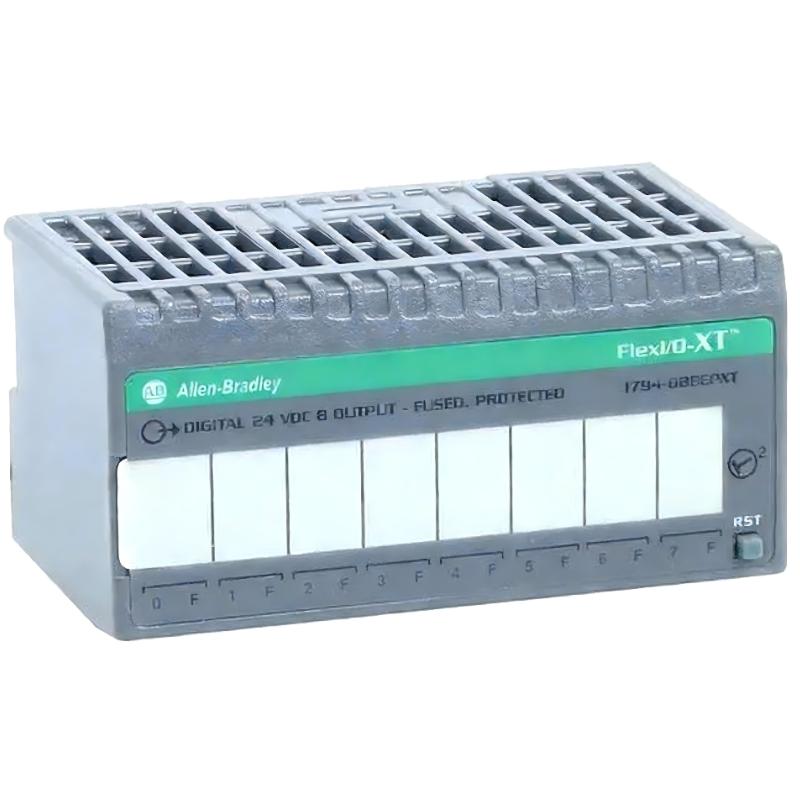

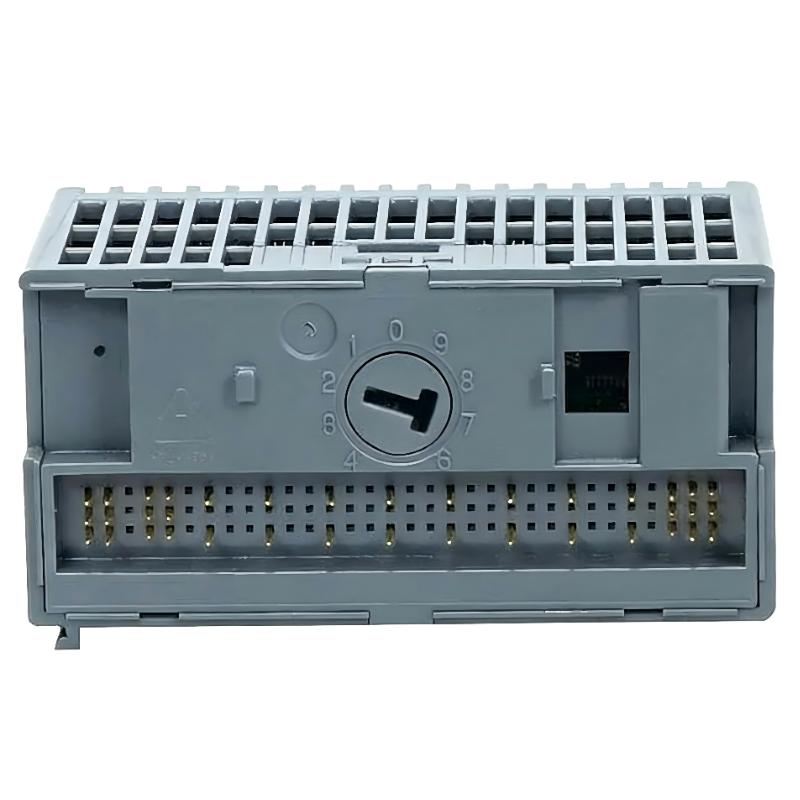

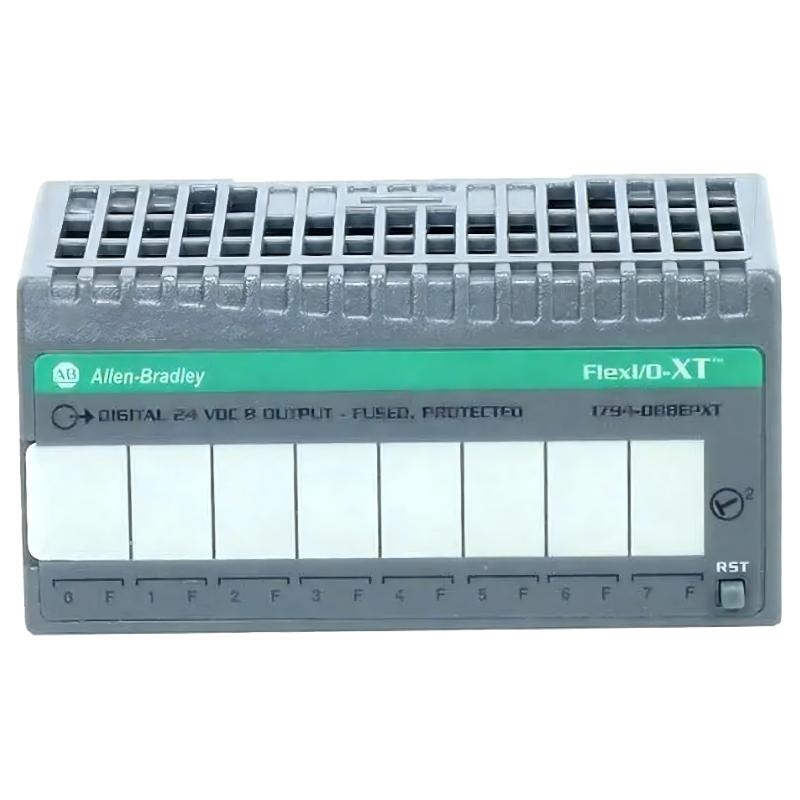

Allen Bradley 1794-OB8EPXT Flex I/O-XT Output Module

Industrial Applications

The Allen-Bradley 1794-OB8EPXT Flex I/O-XT Digital DC Output Module is designed for extreme-environment industrial automation systems where standard Flex I/O modules cannot reliably operate. It belongs to the FLEX I/O-XT series, which is engineered for harsh temperature and demanding field conditions.

Typical applications include:

• Oil & gas production automation systems
• Offshore platform control systems
• Petrochemical plant distributed I/O networks
• Outdoor industrial process control systems
• Heavy machinery and mining automation
• Remote skid-mounted control systems
• Power generation auxiliary control systems
• Harsh-environment OEM equipment

This module is used in distributed control architectures where environmental resistance and reliability are critical.

Product Advantages

• 8-channel 24V DC sourcing digital outputs
• Designed for FLEX I/O-XT extreme environment applications
• Suitable for extended temperature industrial operation
• Electronic output protection (model dependent configuration)
• Compact modular design for distributed control systems
• Strong resistance to vibration and industrial contamination
• Stable operation in harsh electrical environments
• Compatible with Flex I/O-XT system architecture

Technical FAQs

1. What is the main function of this module?

It provides 8 digital 24V DC sourcing outputs for industrial field device control.

2. What does “XT” mean in the model name?

XT stands for “Extreme Temperature,” indicating suitability for harsh environmental conditions.

3. How many output channels does it have?

It has 8 independent digital output channels.

4. What type of outputs does it use?

It uses sourcing (PNP) 24V DC outputs.

5. What industries typically use this module?

Oil & gas, petrochemical, marine, power generation, and heavy industry.

6. Can it be used outdoors?

Yes, it is designed for outdoor and exposed industrial environments when properly installed.

7. Is it compatible with standard Flex I/O systems?

It is compatible within the Flex I/O-XT ecosystem and related architectures.

8. Does it support diagnostics?

Yes, system-level diagnostics are supported depending on controller configuration.

9. What is the benefit of XT series modules?

They provide improved reliability in extreme temperature and harsh operating conditions.

10. What makes it different from standard OB8 modules?

It is ruggedized for extreme environments, while standard OB8 modules are for normal industrial conditions.
