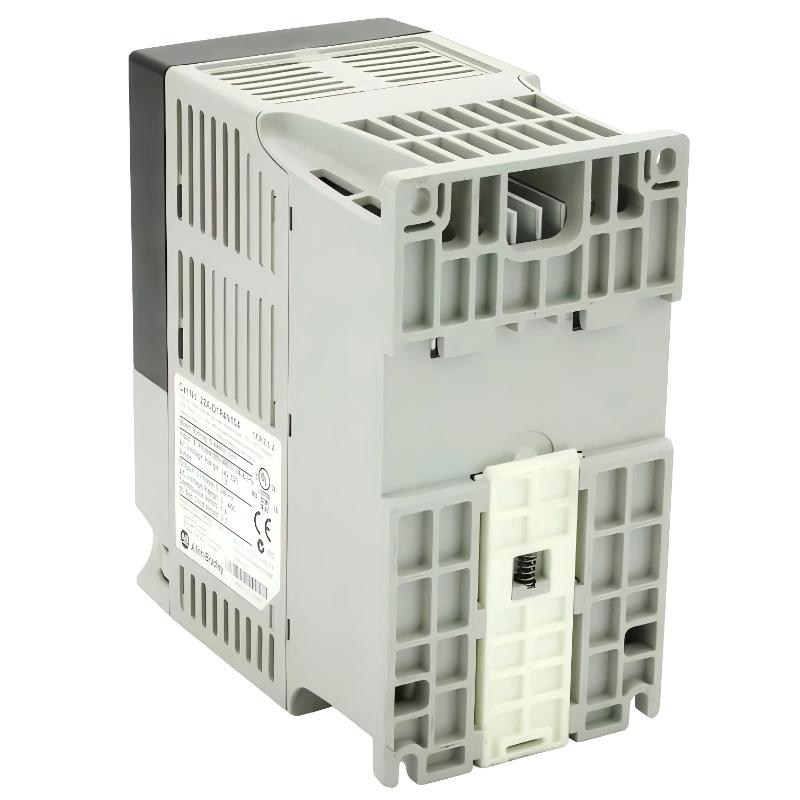

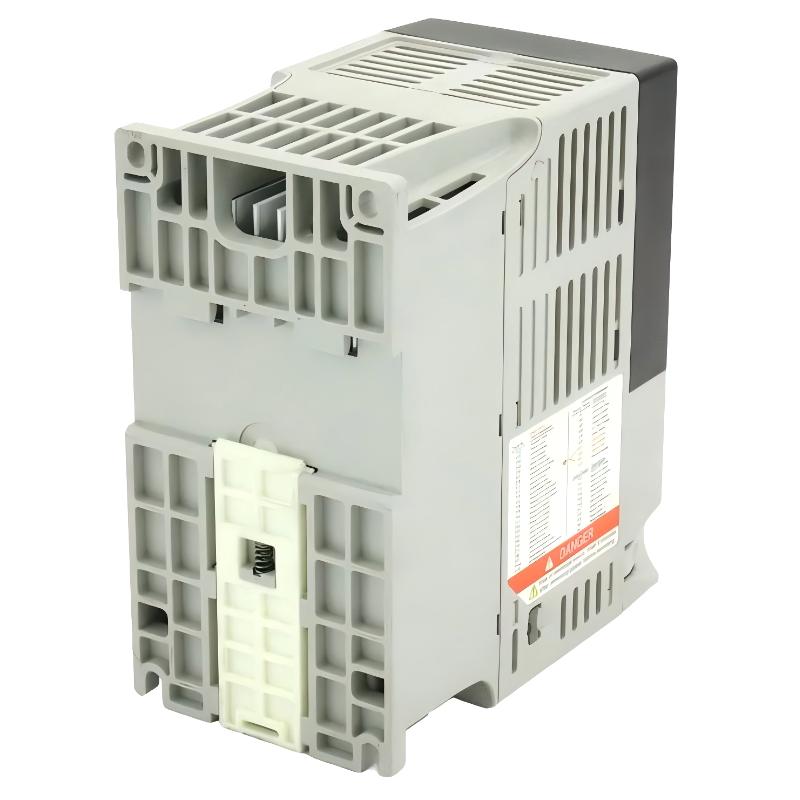

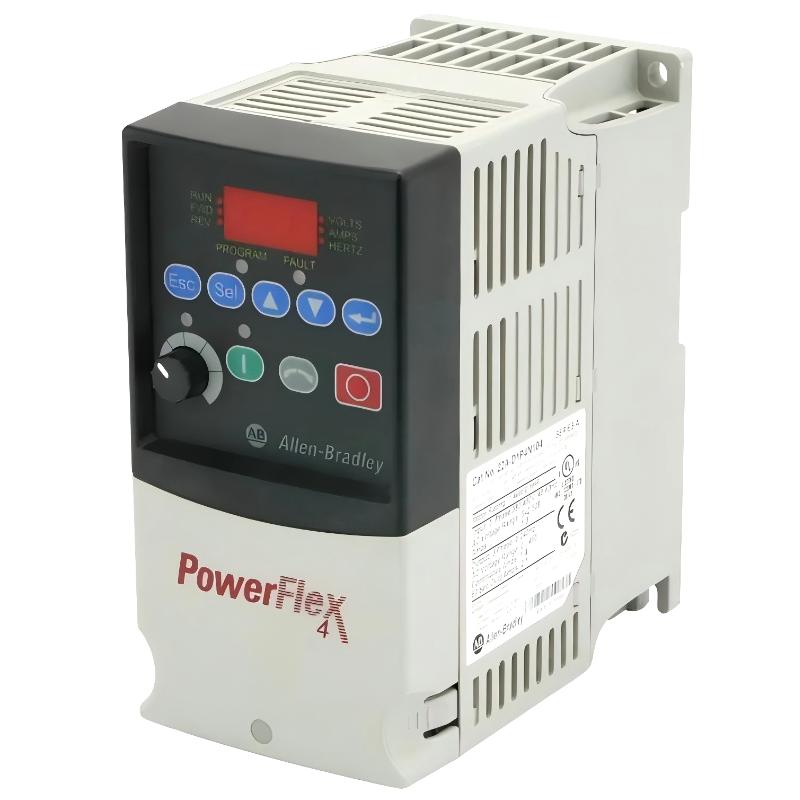

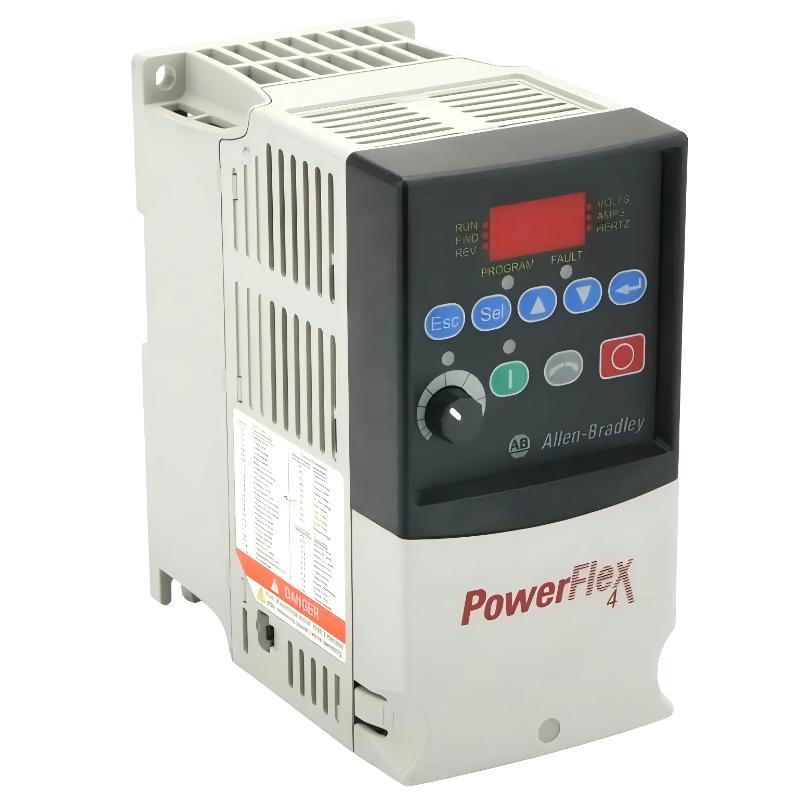

The Allen-Bradley 22A-D1P4N104 is a PowerFlex 4 series AC drive module designed for simple, cost-effective variable frequency control of small industrial motors. It provides stable V/Hz scalar motor control, making it suitable for basic automation tasks such as conveyors, fans, pumps, and OEM auxiliary equipment where reliability and ease of commissioning are more important than advanced motion performance.
This model belongs to the 480V class PowerFlex 4 platform, offering a compact footprint and straightforward parameter structure. It is widely used in legacy installations and retrofit applications due to its durability and long-term field stability in industrial environments.
Rockwell Automation has officially announced that this model is discontinued (effective June 30, 2025), with a recommended replacement under the PowerFlex 25A series (25A-D1P4N104) for new designs and upgrades.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | PowerFlex 4 |
| Product Type | AC Drive Module |
| Input Voltage | 480V AC |
| Input Phase | 3-phase |
| Output Voltage | 0–480V AC (3-phase output) |
| Output Current | 1.4 A |
| Output Power | 0.4 kW (0.5 HP) |
| Control Method | V/Hz scalar control |
| Communication | RS-485 |
| User Interface | Integrated keypad with LED display |
| Brake Function | Integrated brake IGBT |
| EMC Filtering | Variant-dependent |
| Protection | Overload, overvoltage, short-circuit protection |
| Mounting Type | Panel mount (Frame A) |
| Enclosure Rating | IP20 (open type) |
| Frequency Range | 50–60 Hz |
| Power Factor | ~0.98 |
The drive uses a simplified architecture focused on stable torque output rather than precision servo-level dynamics, making it ideal for general-purpose motor control.
Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 185 × 136 × 80 mm |
| Weight | ~2.0 kg |
Its compact Frame A design allows high-density mounting in control cabinets while maintaining adequate thermal performance under continuous industrial operation.
Recommended Related Models
- 25A-D1P4N104 – Direct next-generation replacement model
- 22A-D1P4F104 – Variant with different configuration options
- 22A-A2P3N114 – Lower power PowerFlex 4 alternative
- 22B series PowerFlex 40 drives – Enhanced performance upgrade path
- 2198-H025-ERS – Servo system alternative for high-precision motion control
