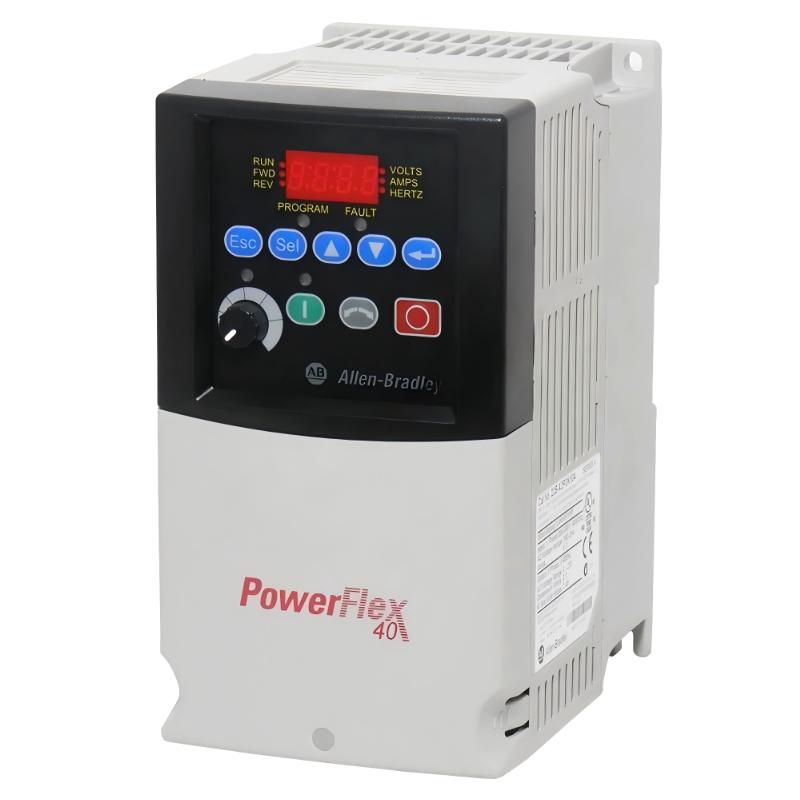

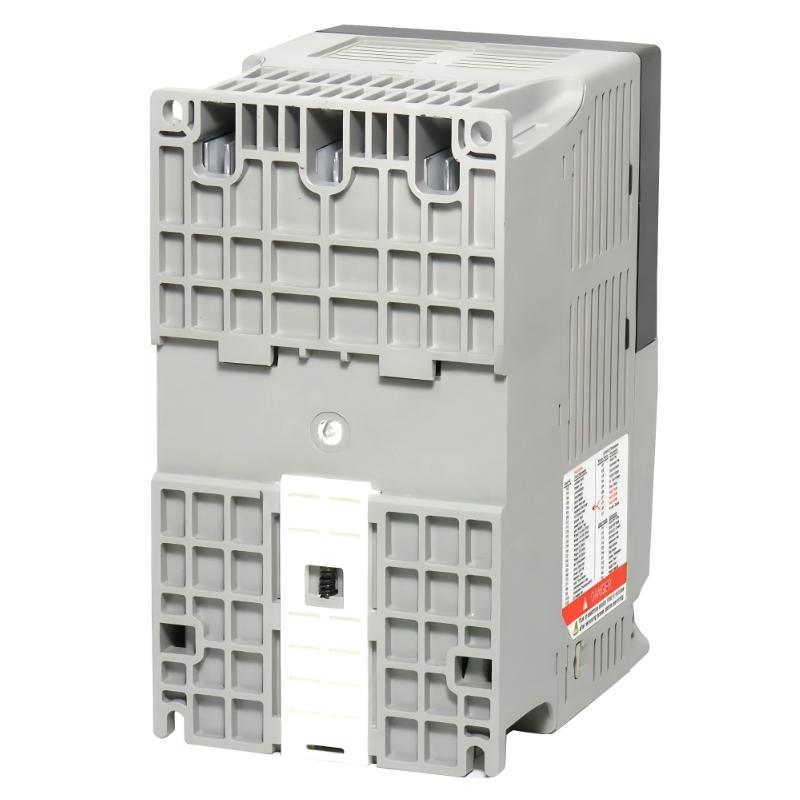

The Allen-Bradley 22B-A2P3N104 is a PowerFlex 40 series AC drive module designed for simple and reliable variable speed control of small industrial motors. Operating in the 0.4 kW (0.5 HP) class, it delivers stable V/Hz scalar control, making it ideal for conveyors, fans, pumps, and light OEM machinery where ease of use and cost efficiency are critical.
This drive is widely used in panel-mounted automation systems due to its compact footprint, straightforward keypad interface, and dependable performance in standard industrial environments. It supports both standalone operation and basic PLC integration via RS-485 communication.
Although now officially discontinued (as of June 30, 2025), it remains heavily used in maintenance and retrofit applications thanks to its large installed base and proven field reliability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | PowerFlex 40 |
| Product Type | AC Drive Module |
| Input Voltage | 200–240V AC |
| Input Phase | 1-phase input |
| Output Voltage | 0–230V AC (3-phase output) |
| Output Current | 2.3 A |
| Output Power | 0.4 kW (0.5 HP) |
| Control Method | V/Hz scalar control |
| Communication | RS-485 |
| Brake Function | Integrated brake IGBT |
| User Interface | Built-in keypad + LED display |
| Protection | Overload, overvoltage, short-circuit protection |
| Mounting Type | Panel mount (Frame A) |
| Enclosure Rating | IP20 (open type) |
| Frequency Range | 50–60 Hz |
The drive is optimized for consistent torque delivery in low-to-medium load conditions, prioritizing stability over advanced motion precision.
Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 180 × 100 × 136 mm |
| Weight | ~1.4–2.2 kg |
Its compact Frame A architecture allows high-density installation in industrial control panels while maintaining adequate thermal stability.
Recommended Related Models
- 25B-A2P3N104 – Next-generation replacement (PowerFlex 525 family)
- 22B-A4P5N104 – Higher power variant within PowerFlex 40 range
- 22B-D2P3N104 – 1 HP class upgrade option
- 22A-A2P3N114 – PowerFlex 4 alternative for simpler systems
- 2198-H025-ERS – Servo system alternative for precision motion control
Popular Allen-Bradley Models
- 22B-A2P3N104
- 22A-A8P0N114
- 22B-D series PowerFlex 40 drives
- 25B series PowerFlex 525 drives
- 2198-H040-ERS2
The PowerFlex ecosystem remains one of the most widely deployed industrial drive platforms globally, especially in OEM machinery and retrofit automation systems.
