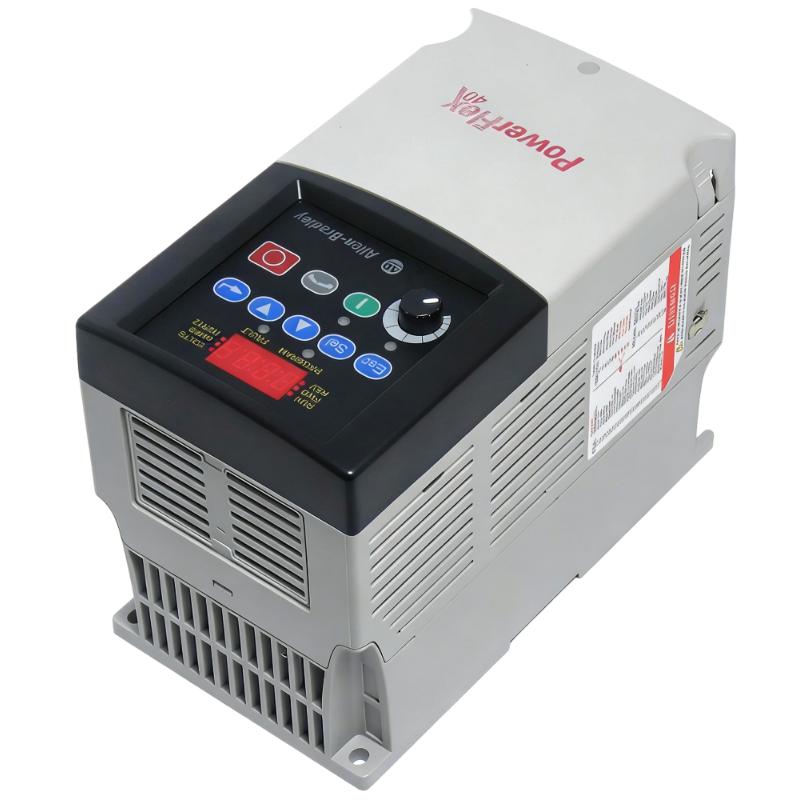

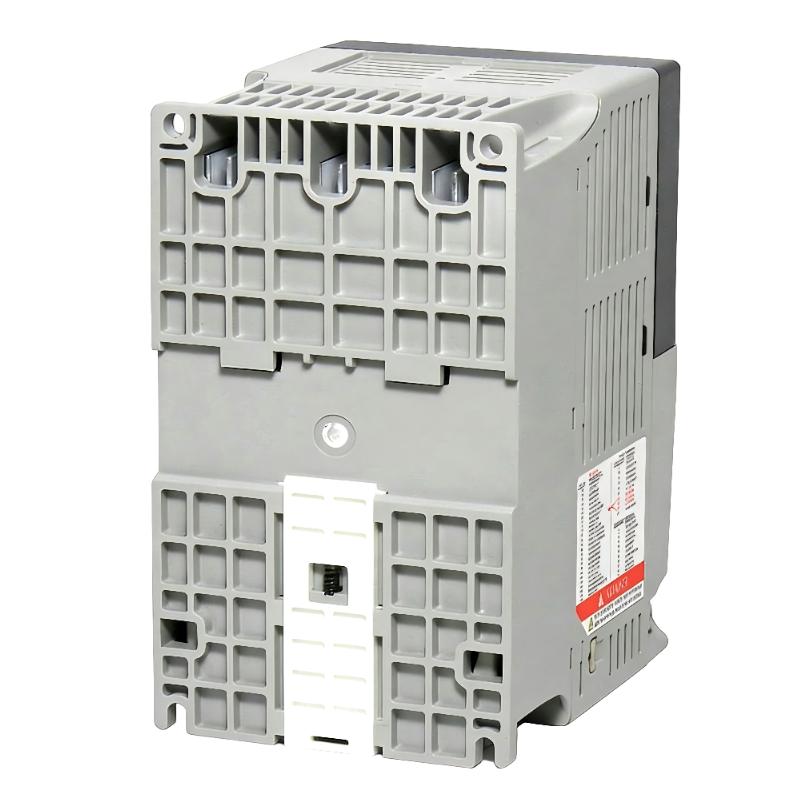

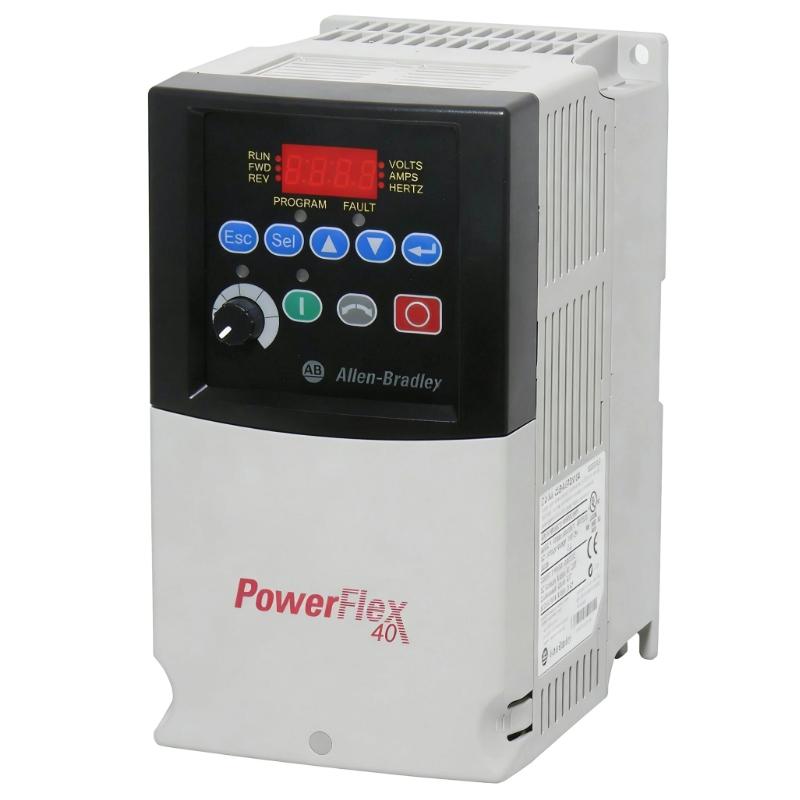

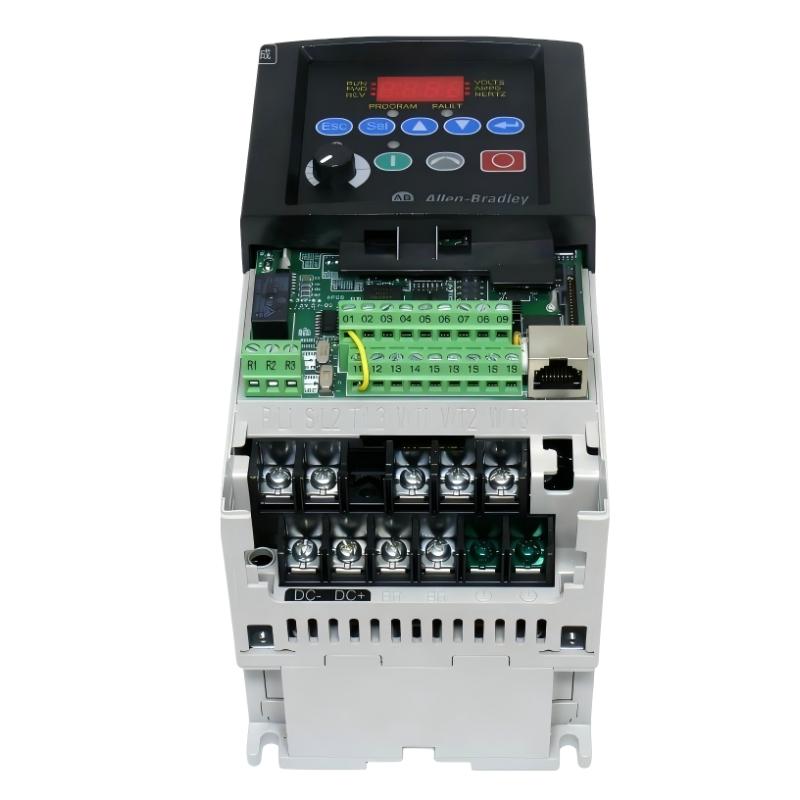

The Allen-Bradley 22B-A5P0N104 is a PowerFlex 40 series AC drive module designed for reliable variable speed control of small industrial motors in the 0.75 kW (1 HP) range. It delivers consistent V/Hz scalar control, making it well suited for conveyors, small pumps, fans, and general OEM machinery where simplicity, cost efficiency, and dependable operation are key priorities.
This model is commonly used in 240V single-phase input systems, converting it into a stable three-phase output for standard AC motors. It is valued in both OEM designs and retrofit environments due to its compact structure, easy commissioning, and long-term field reliability in industrial environments.
The model belongs to the widely deployed PowerFlex 40 family and is now typically used in maintenance scenarios and spare-part-driven applications, with newer PowerFlex 525-based equivalents recommended for new designs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | PowerFlex 40 |
| Product Type | AC Drive Module |
| Input Voltage | 200–240V AC |
| Input Phase | 1-phase |
| Output Voltage | 0–230V AC (3-phase output) |
| Output Current | ~5.0 A |
| Output Power | 0.75 kW (1 HP) |
| Control Method | V/Hz scalar control |
| Communication | RS-485 |
| Brake Function | Integrated brake IGBT |
| User Interface | LED display + fixed keypad |
| Protection Features | Overload, overvoltage, short-circuit protection |
| Mounting Type | Panel mount (Frame A) |
| Enclosure Rating | IP20 (open type) |
| Frequency Range | 0–400 Hz |
The drive is designed for stable torque output in low-to-medium inertia systems, ensuring smooth motor operation under standard industrial load conditions.
Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 180 × 135 × 100 mm |
| Weight | ~1.5–2.5 kg |
Its compact Frame A architecture allows high-density installation in control panels while maintaining adequate heat dissipation for continuous-duty operation.
Recommended Related Models
- 25B-A5P0N104 – Next-generation PowerFlex 525 replacement model
- 22B-A4P5N104 – Lower power variant within same family
- 22B-D series PowerFlex 40 drives – Higher performance vector control models
- 22A-A8P0N114 – Alternative PowerFlex 4 series drive
- 2198-H025-ERS – Servo-based upgrade for precision motion control
Popular Allen-Bradley Models
- 22B-A5P0N104
- 22B-A2P3N104
- 22A-A8P0N114
- 22B-D series PowerFlex 40
- 25B series PowerFlex 525
The PowerFlex platform remains widely deployed globally due to its balance of simplicity, reliability, and compatibility across OEM and industrial systems.
