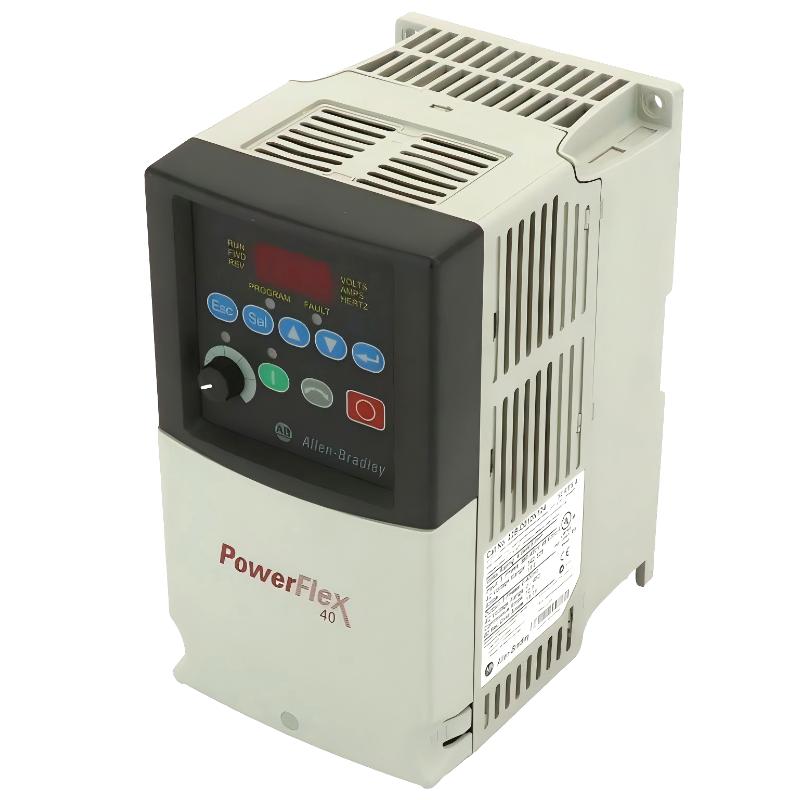

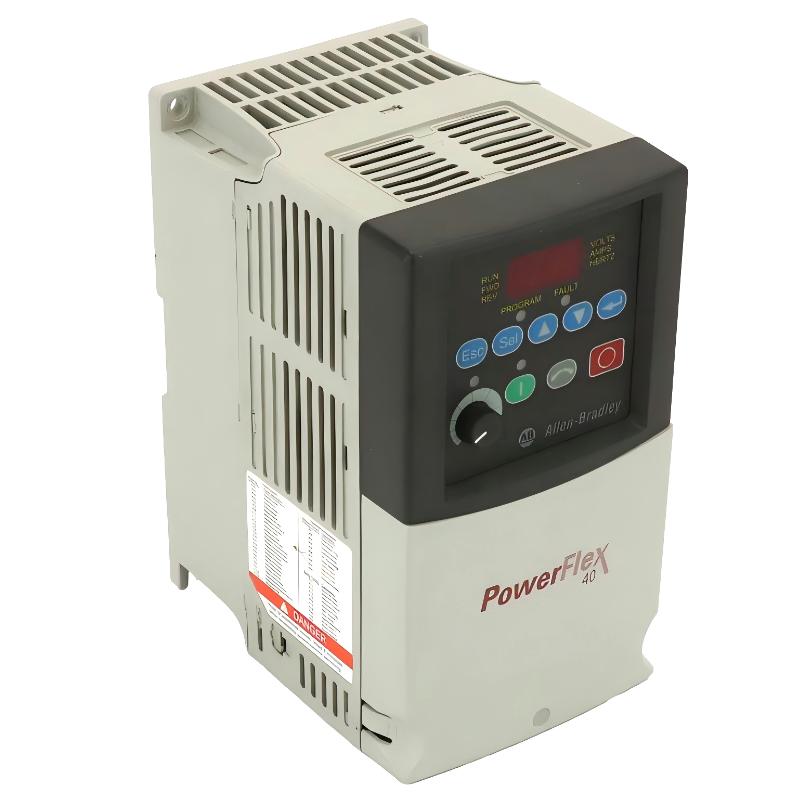

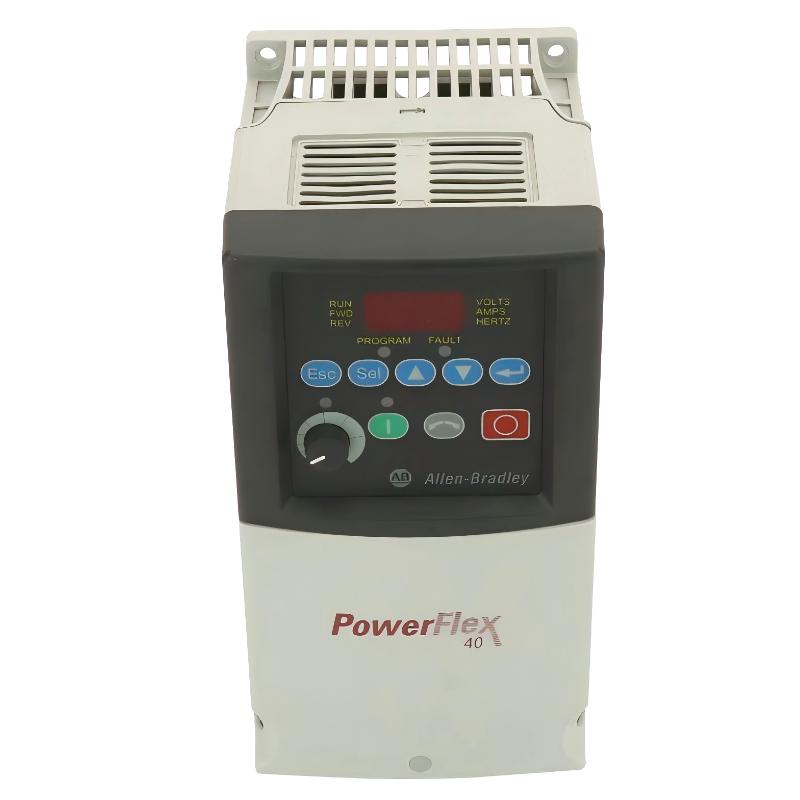

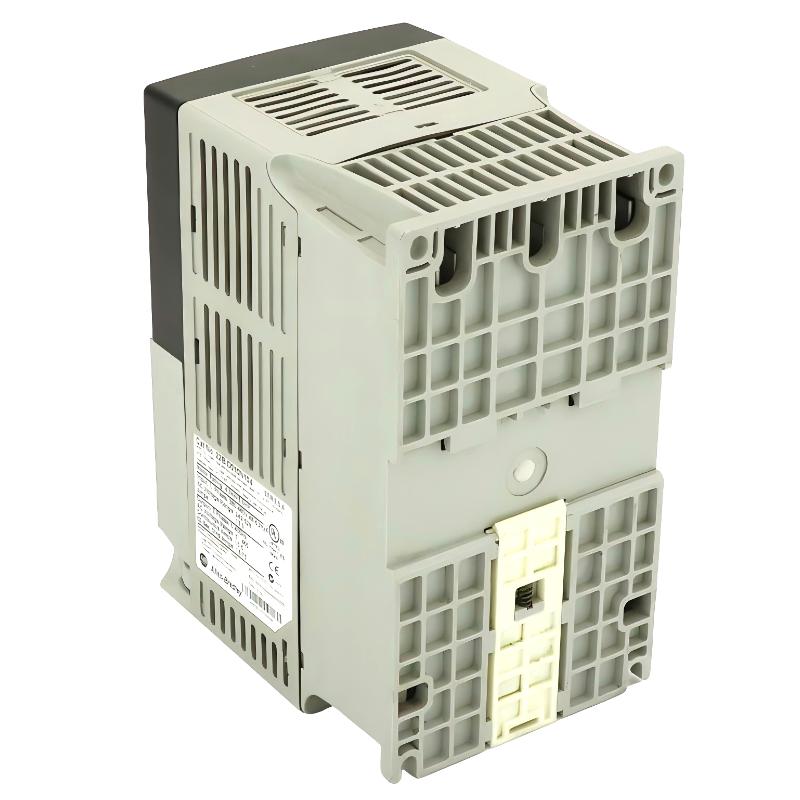

The Allen-Bradley 22B-D010N104 is a PowerFlex 40 series AC drive module designed for stable and efficient variable speed control of 3-phase motors up to 5 HP (4 kW). Built for industrial-grade performance, it delivers dependable V/Hz scalar control with optional sensorless vector performance, making it suitable for conveyors, pumps, fans, compressors, and general-purpose OEM machinery.
This model operates in the 480V AC industrial class, providing strong torque stability across a wide speed range. It is widely used in factory automation systems where reliability, straightforward configuration, and rugged electrical performance are required. The integrated keypad interface and RS-485 communication simplify commissioning and system integration in both standalone and PLC-controlled environments.
Although officially classified as End of Life (discontinued as of June 30, 2025), it remains widely deployed in maintenance and retrofit systems due to its strong installed base and proven durability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | PowerFlex 40 |
| Product Type | AC Drive Module |
| Input Voltage | 380–480V AC |
| Input Phase | 3-phase |
| Output Voltage | 0–460V AC (3-phase output) |
| Output Current | ~10.0–10.5 A |
| Output Power | 4 kW (5 HP) |
| Control Method | V/Hz scalar control |
| Communication | RS-485 |
| User Interface | Integrated keypad + LED display |
| Brake Function | Integrated brake IGBT |
| Protection Features | Overload, overvoltage, short-circuit protection |
| Mounting Type | Panel mount (Frame B) |
| Enclosure Rating | IP20 (open type) |
| Frequency Range | 0–400 Hz |
| Efficiency | ~97% |
The drive is engineered for stable torque output even under varying load conditions, making it suitable for continuous-duty industrial environments.
Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 180 × 136 × 100 mm |
| Weight | ~1.9–2.1 kg |
Its compact Frame B design provides a strong balance between power density and thermal management, allowing efficient installation in standard industrial control cabinets.
Recommended Related Models
- 25B-D010N104 – Next-generation PowerFlex 525 replacement
- 22B-D8P7N104 – Slightly lower power 5 HP variant
- 22B-D010F104 – Variant with updated lifecycle configuration
- 22A-A8P0N114 – PowerFlex 4 series alternative platform
- 2198-H070-ERS – Servo system upgrade for precision motion control
Popular Allen-Bradley Models
- 22B-D010N104
- 22B-D8P7N104
- 22B-A8P0N104
- 22B-D series PowerFlex 40 drives
- 25B series PowerFlex 525 drives
The PowerFlex ecosystem remains one of the most widely installed industrial drive platforms globally, especially in OEM machinery and retrofit automation systems.
