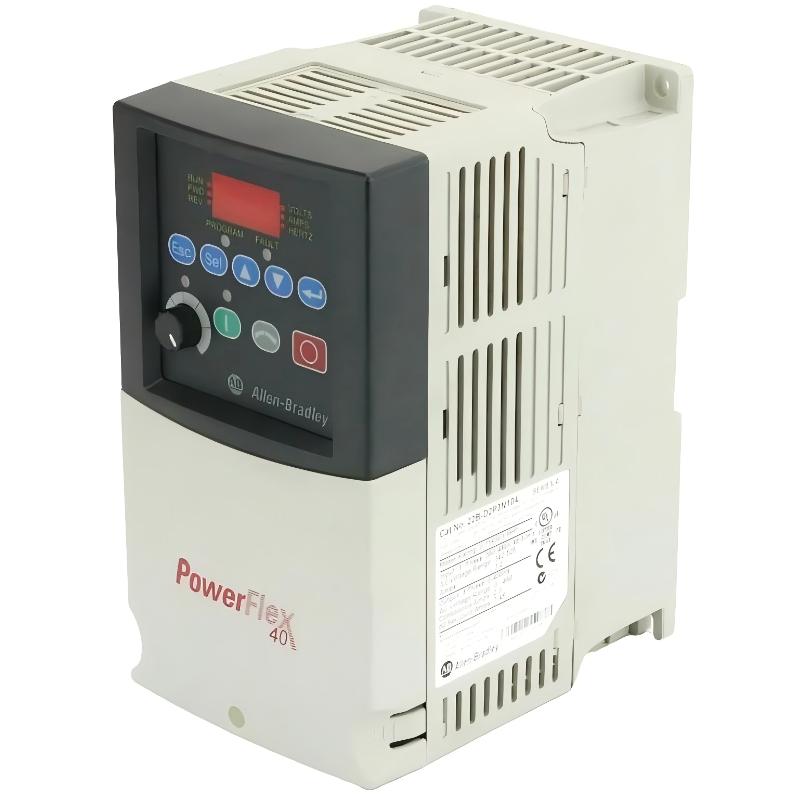

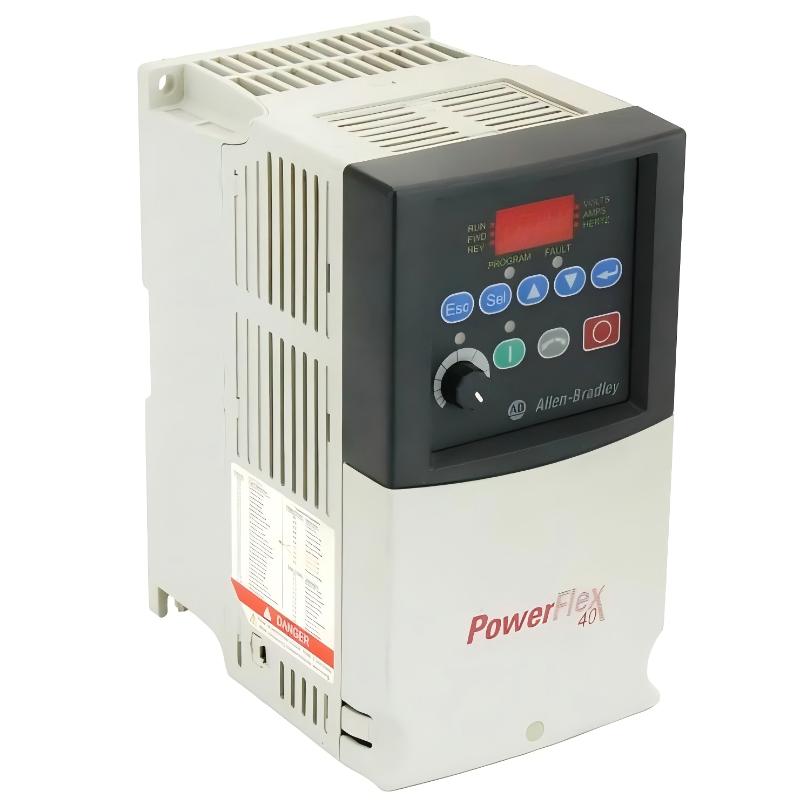

The Allen-Bradley 22B-D2P3N104 is a PowerFlex 40 series AC drive module engineered for reliable variable speed control of small industrial motors in the 0.75 kW (1 HP) range. It uses V/Hz scalar control with optional sensorless vector capability, making it a strong fit for conveyors, pumps, fans, packaging machines, and general OEM equipment where stable performance and simple commissioning are essential.
Operating in the 480V AC three-phase class, this drive converts supply power into a controlled variable-frequency output for standard induction motors. Its compact Frame B design, built-in keypad, and RS-485 communication interface make it suitable for both standalone machines and PLC-integrated automation systems.
This model is officially discontinued (End of Life as of June 30, 2025), with the recommended upgrade path being the PowerFlex 525 series (25B-D2P3N104) for new installations and modernization projects.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | PowerFlex 40 |
| Product Type | AC Drive Module |
| Input Voltage | 380–480V AC |
| Input Phase | 3-phase |
| Output Voltage | 0–460V AC (3-phase output) |
| Output Current | 2.3 A |
| Output Power | 0.75 kW (1 HP) |
| Control Method | V/Hz scalar (sensorless vector optional) |
| Communication | RS-485 |
| User Interface | Built-in LED keypad |
| Brake Function | Integrated brake IGBT |
| Protection Features | Overload, overvoltage, short-circuit protection |
| Mounting Type | Panel mount (Frame B) |
| Enclosure Rating | IP20 (open type) |
| Frequency Range | 0–400 Hz |
| Efficiency | ~97% |
The drive is optimized for smooth torque delivery and predictable motor response in light industrial loads, ensuring consistent operation across varying process conditions.
Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 190 × 160 × 279 mm |
| Weight | ~1.97 kg |

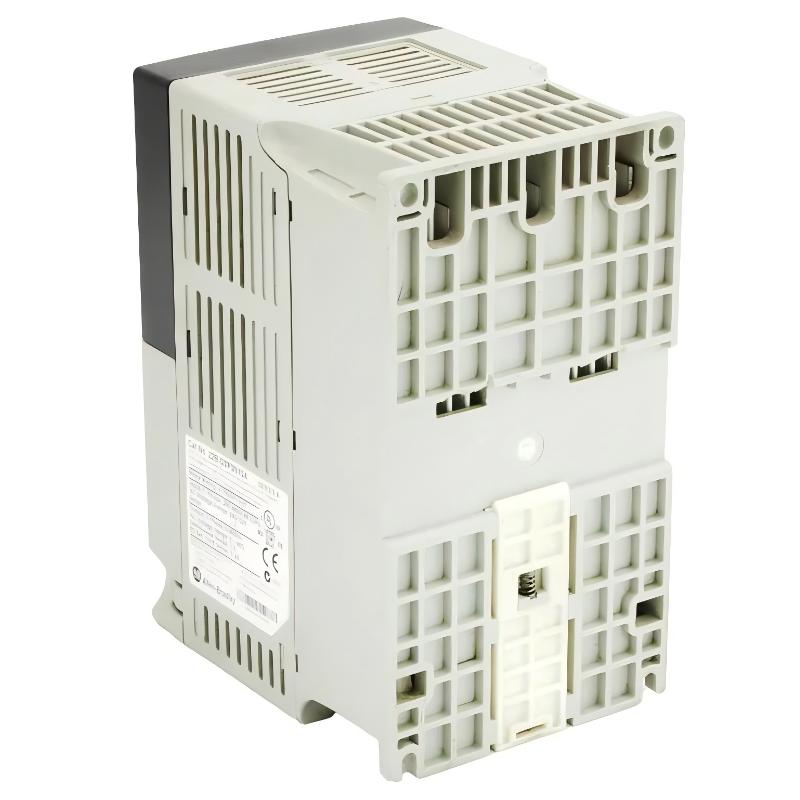

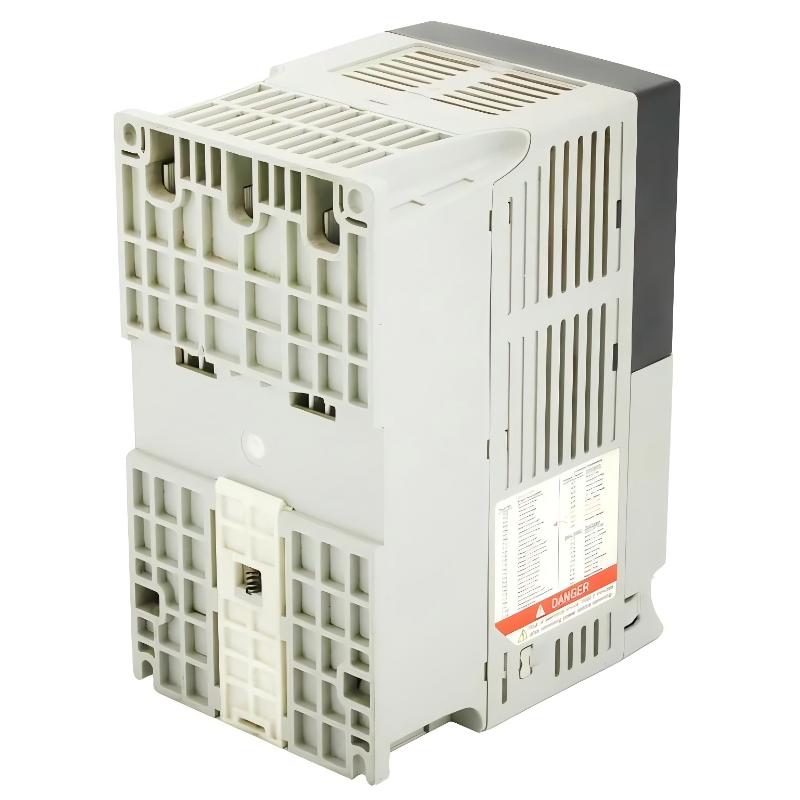

Its compact Frame B construction allows efficient cabinet installation while maintaining adequate thermal stability for continuous-duty operation.
