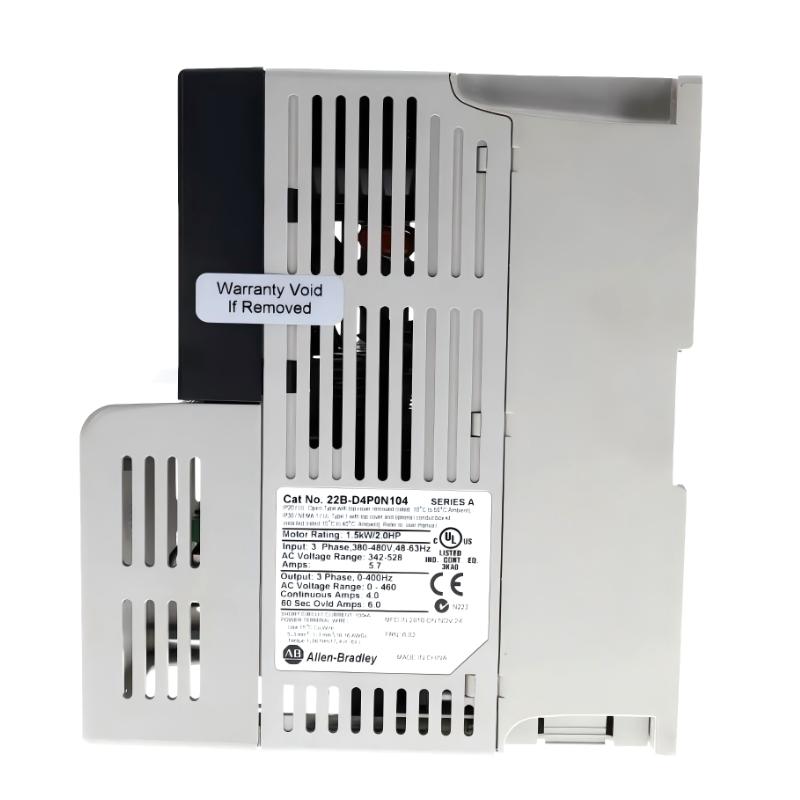

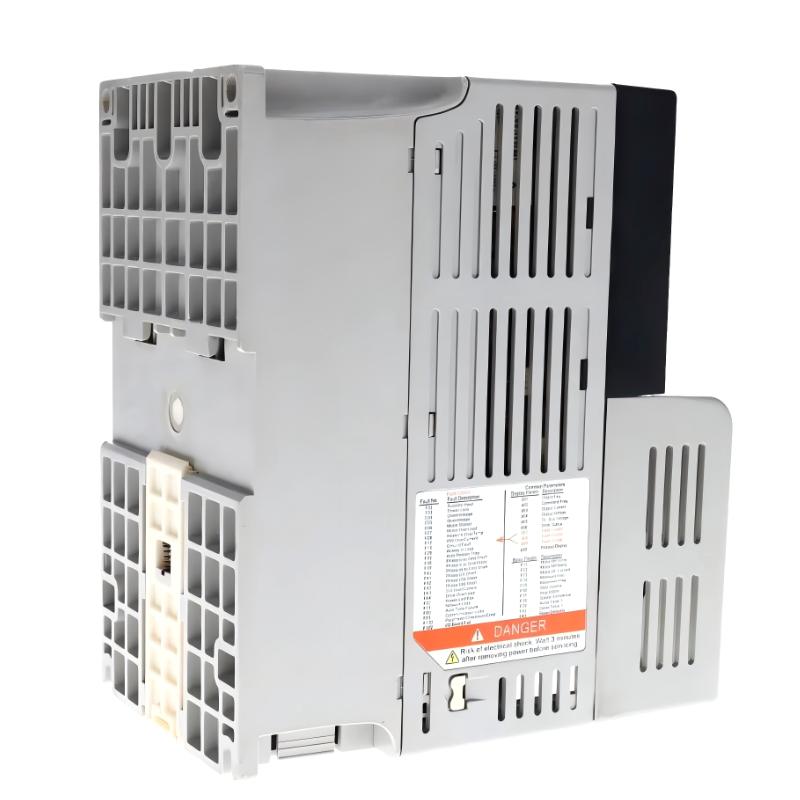

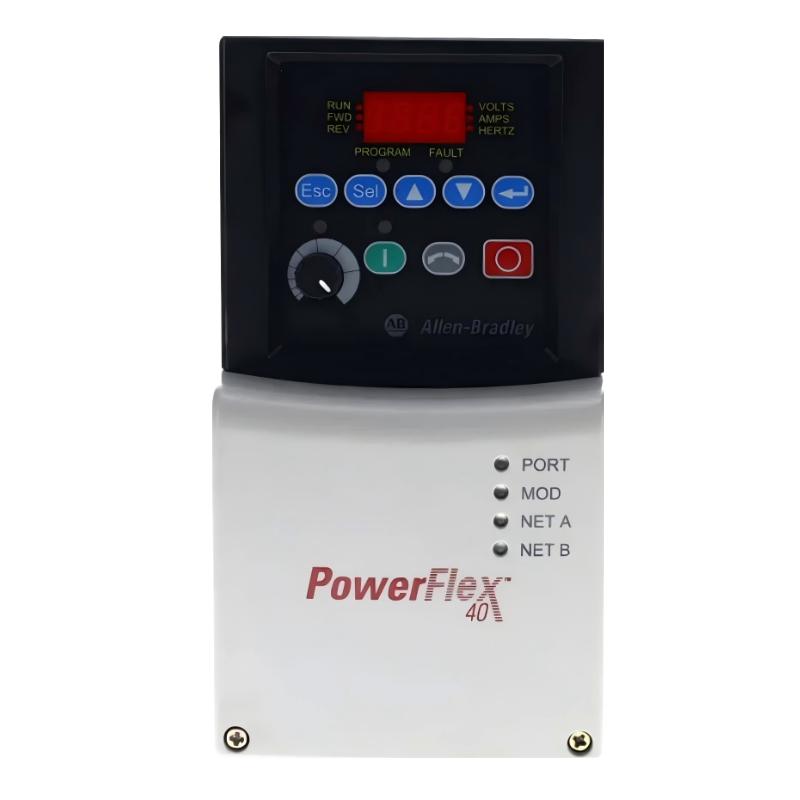

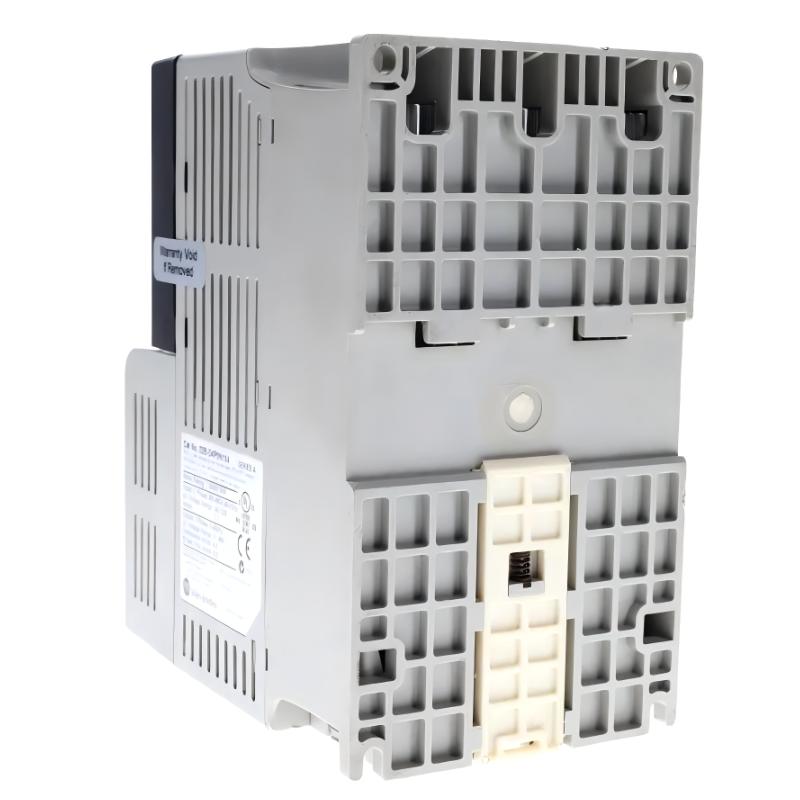

The Allen-Bradley 22B-D4P0N104 is a PowerFlex 40 series AC drive module designed for efficient and stable speed control of 3-phase motors up to 1.5 kW (2 HP). It provides dependable V/Hz scalar control, making it ideal for standard industrial applications such as conveyors, pumps, fans, packaging machines, and OEM equipment where simplicity, reliability, and fast commissioning are essential.
Operating in the 480V AC three-phase class, this drive delivers smooth motor control with consistent torque characteristics across a wide speed range. Its compact Frame B design, built-in keypad, and RS-485 communication interface make it suitable for both standalone machines and PLC-integrated automation systems.
According to Rockwell Automation, this model is End of Life (discontinued as of June 30, 2025), with a recommended migration path to the PowerFlex 525 series (25B-D4P0N104) for new installations and upgrades.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | PowerFlex 40 |
| Product Type | AC Drive Module |
| Input Voltage | 380–480V AC |
| Input Phase | 3-phase |
| Output Voltage | 0–460V AC (3-phase output) |
| Output Current | 4.0 A |
| Output Power | 1.5 kW (2 HP) |
| Control Method | V/Hz scalar control (optional sensorless vector) |
| Communication | RS-485 |
| Brake Function | Integrated brake IGBT |
| User Interface | Built-in LED keypad |
| Protection Features | Overload, overvoltage, short-circuit protection |
| Mounting Type | Panel mount (Frame B) |
| Enclosure Rating | IP20 (open type) |
| Frequency Range | 0–400 Hz |
| Efficiency | ~97% |
The drive is designed for stable torque delivery in light-to-medium industrial load conditions, ensuring predictable performance even in continuous-duty environments.
Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 190 × 160 × 279 mm |
| Weight | ~1.8–2.1 kg |
Its Frame B structure improves thermal handling compared to smaller PowerFlex 40 models, allowing reliable operation inside densely packed control cabinets.
Recommended Related Models
- 25B-D4P0N104 – PowerFlex 525 next-generation replacement
- 22B-D2P3N104 – 1 HP lower-power variant
- 22B-D8P7N104 – 5 HP higher-power alternative
- 22A-A8P0N114 – PowerFlex 4 series equivalent option
- 2198-H040-ERS2 – Servo system upgrade for precision motion control
Popular Allen-Bradley Models
- 22B-D4P0N104
- 22B-D2P3N104
- 22B-D010N104
- 22B-A8P0N104
- 25B series PowerFlex 525 drives
The PowerFlex family remains one of the most widely deployed industrial drive platforms due to its reliability, simple integration, and strong OEM ecosystem support.
