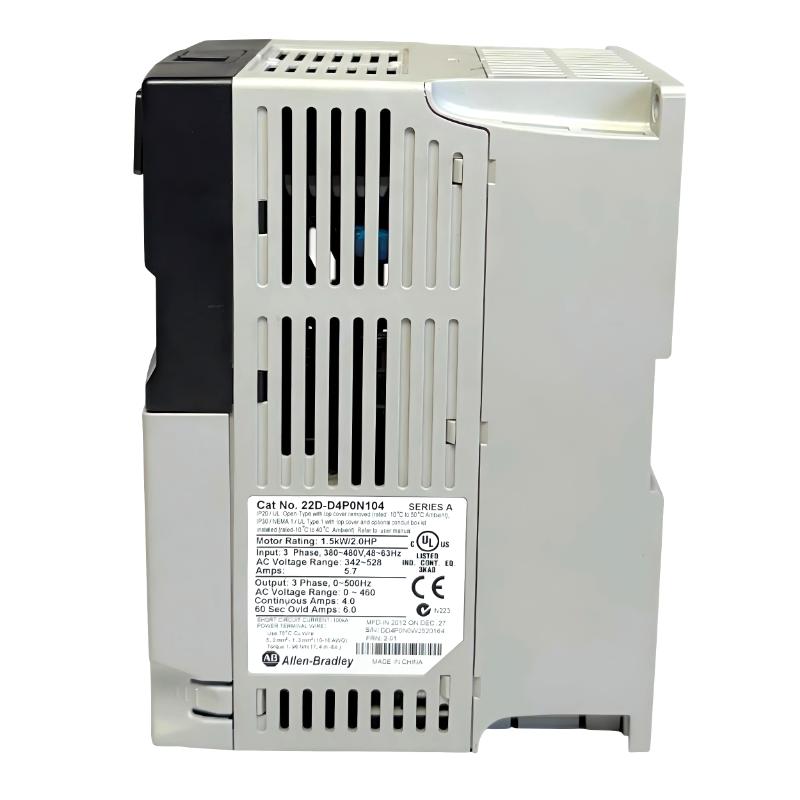

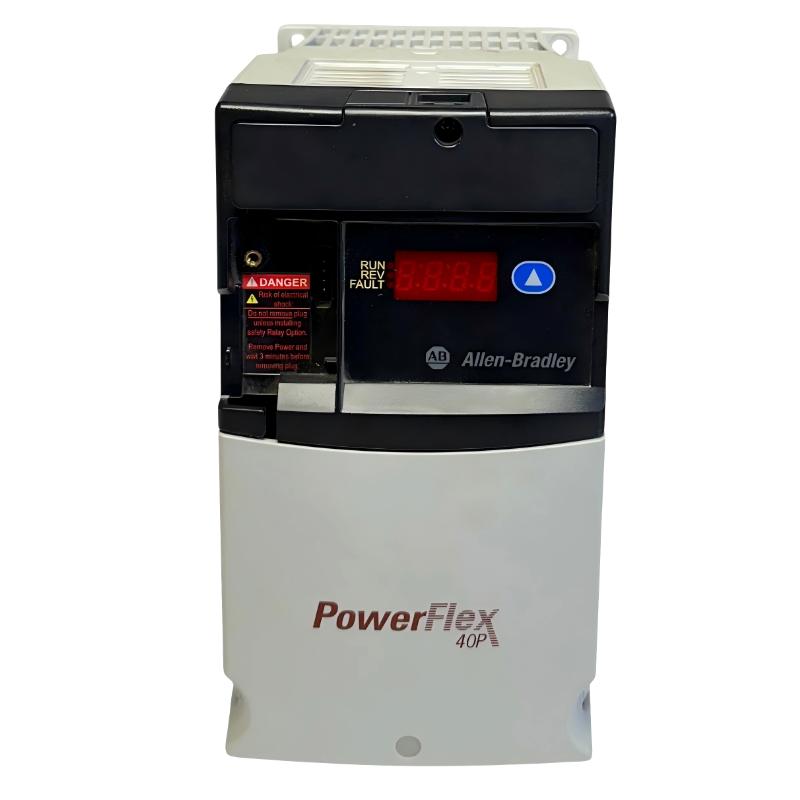

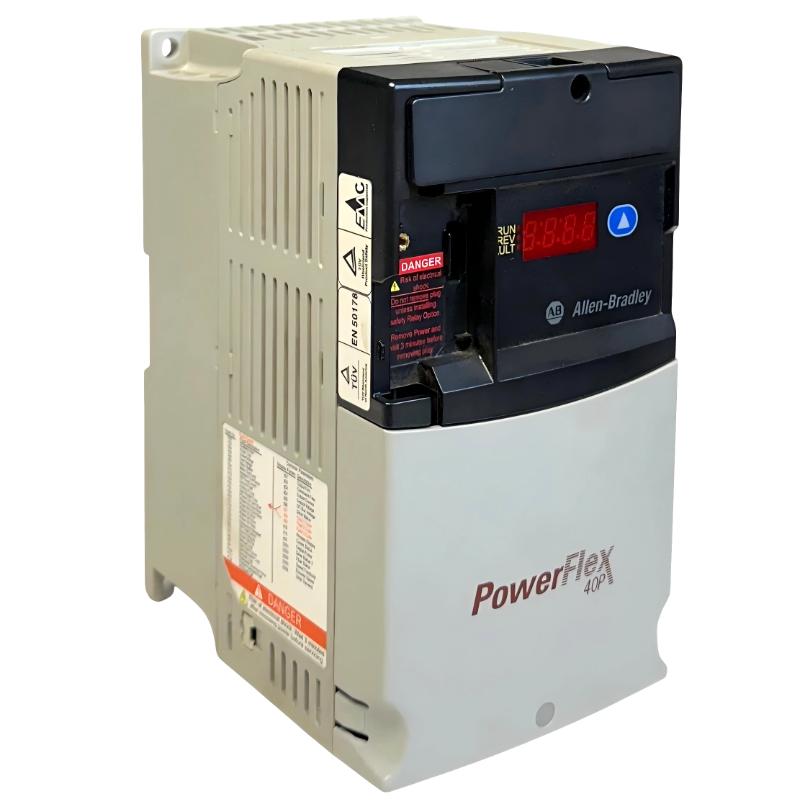

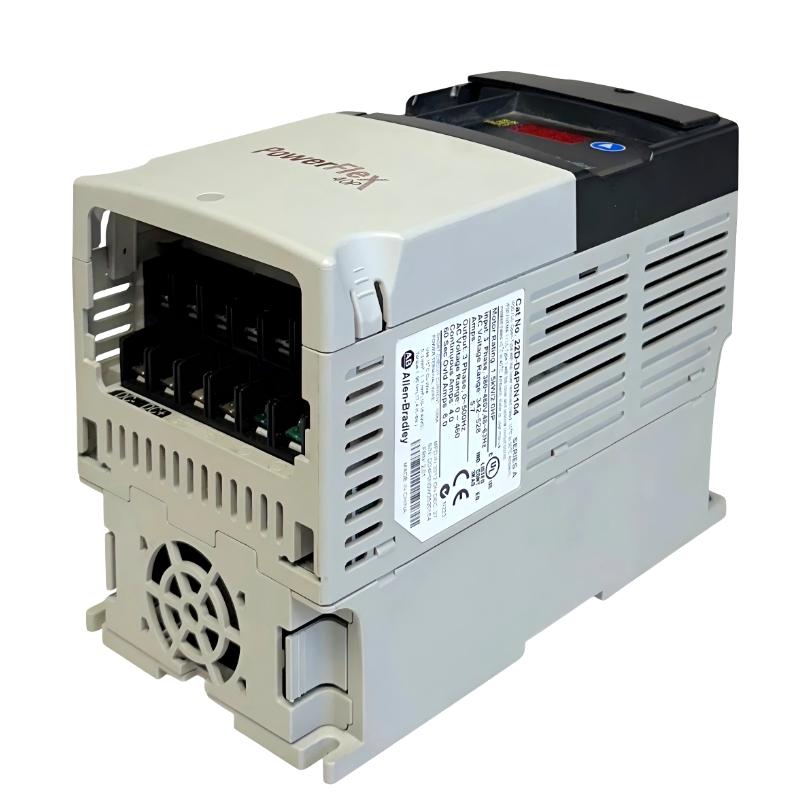

Allen-Bradley 22D-D4P0N104 PowerFlex 40P AC Drive Module
Allen-Bradley 22D-D4P0N104 PowerFlex 40P AC Drive Module
0.0
Points
Brand:Allen Bradley PLC Item No.:Allen-Bradley 22D-D4P0N104 Product Origin:USA Product Dimensions:136 × 100 × 152 mm Product Weight:1.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 22D-D4P0N104 PowerFlex 40P AC Drive delivers stable motor control, flexible integration capability, and dependable operational efficiency for modern automation systems. Designed for compact panel installations, this variable frequency drive combines precise speed regulation with advanced communication functionality, making it a preferred solution for OEM machinery builders, manufacturing plants, and process automation applications.
Engineered for consistent performance under continuous industrial workloads, the PowerFlex 40P series provides excellent torque control, simplified commissioning, and strong network adaptability. Its compact Frame B construction allows easy integration into crowded control cabinets while maintaining reliable thermal performance and operational stability.
Technical Specifications
Parameter
Specification
Manufacturer
Allen Bradley
Product Series
PowerFlex 40P
Model Number
22D-D4P0N104
Module Type
AC Drive Module
Input Voltage
380–480V AC
Input Phase
Three-Phase
Output Current
4.0 A
Output Power
1.5 kW / 2 HP
Frequency Range
50/60 Hz
Control Method
V/Hz & Sensorless Vector Control
Communication Port
Integrated RS-485
Optional Protocols
EtherNet/IP, DeviceNet, PROFIBUS, BACnet
Mounting Type
Panel Mount
Enclosure Rating
IP20 / NEMA Type Open
Frame Size
B
Analog Inputs
1
Analog Outputs
1
Digital Inputs
7
Relay Outputs
1 Programmable Relay
Operating Temperature
-10°C to +50°C
User Interface
Integrated LED Display & Keypad
Dimensions
Approx. 152 × 100 × 136 mm
Weight
Approx. 1.5–2.0 kg
Related Models Frequently Purchased Together
Model
Description
22B-D4P0N104
PowerFlex 40 AC Drive
25B-D4P0N104
PowerFlex 525 Replacement Drive
22A-D4P0N104
PowerFlex 4 AC Drive
22-COMM-E
EtherNet/IP Communication Adapter
22-HIM-A3
Human Interface Module
1769-L33ER
CompactLogix Controller
1734-AENTR
POINT I/O Ethernet Adapter
1606-XLE240E
Industrial Power Supply
High-Demand Allen Bradley Automation Products
Popular Model
Product Category
1756-L81E
ControlLogix CPU
1769-L24ER-QB1B
CompactLogix Controller
5069-IB16
Digital Input Module
20G11NC072JA0NNNNN
PowerFlex 755 Drive
2711P-T10C4D8
PanelView Plus HMI
1734-OB8S
Safety Output Module
1794-IE8
FLEX I/O Analog Module
25B-E2P5N104
PowerFlex 525 Drive
Typical Applications
Industrial conveyor systems
HVAC fan and blower control
Water and fluid pumping systems
Packaging machinery
OEM industrial equipment
Material handling systems
Key Advantages
Compact Yet Powerful Design
The compact housing minimizes panel space requirements without sacrificing performance, making it ideal for high-density control cabinets.
Reliable Motor Performance
Sensorless vector control technology delivers smooth acceleration, stable torque output, and consistent motor operation even during variable load conditions.
Simplified Integration
Built-in RS-485 communication and optional industrial network support enable seamless integration into existing Rockwell Automation architectures.
Reduced Downtime
The PowerFlex 40P series is recognized for dependable long-term operation, helping facilities maintain productivity and reduce unexpected maintenance interruptions.
Flexible Configuration
The drive supports multiple control methods and programmable I/O options, allowing engineers to adapt it to diverse industrial processes.
Energy Efficiency
Optimized motor speed regulation helps reduce energy consumption, especially in pump, fan, and conveyor applications operating under variable demand.
Technical FAQs
1. What type of drive is the 22D-D4P0N104?
It is a PowerFlex 40P variable frequency AC drive designed for industrial motor speed control applications.
2. What is the power rating of this module?
The drive supports 1.5 kW (2 HP) motor applications.
3. Which input voltage does this drive require?
The module operates with 380–480V AC three-phase input power.
4. Does the drive support industrial communication networks?
Yes. It includes integrated RS-485 communication and supports optional industrial protocols such as EtherNet/IP and DeviceNet.
5. Is the 22D-D4P0N104 suitable for conveyor systems?
Yes. It is commonly used for conveyors, packaging lines, pumps, and fan applications requiring controlled motor speed.
6. What enclosure rating does the module have?
The drive features an IP20 / NEMA Type Open enclosure intended for panel-mounted installations.
7. Can the drive provide sensorless vector control?
Yes. The module supports both V/Hz control and sensorless vector control for improved torque performance.
8. What is the mounting method for this drive?
The 22D-D4P0N104 is designed for panel mounting inside industrial control cabinets.
9. Does this model include a keypad interface?
Yes. It comes with an integrated LED display and keypad for local configuration and monitoring.
10. Is this model still widely used in industrial automation?
Absolutely. Despite lifecycle transition updates, the PowerFlex 40P platform remains widely utilized in existing automation infrastructures worldwide for reliable motor control applications.
