Brand:Allen Bradley PLC Item No.:Allen Bradley 25A-D4P0N104 Product Origin:USA Product Dimensions:152 × 72 × 172 mm Product Weight:1.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

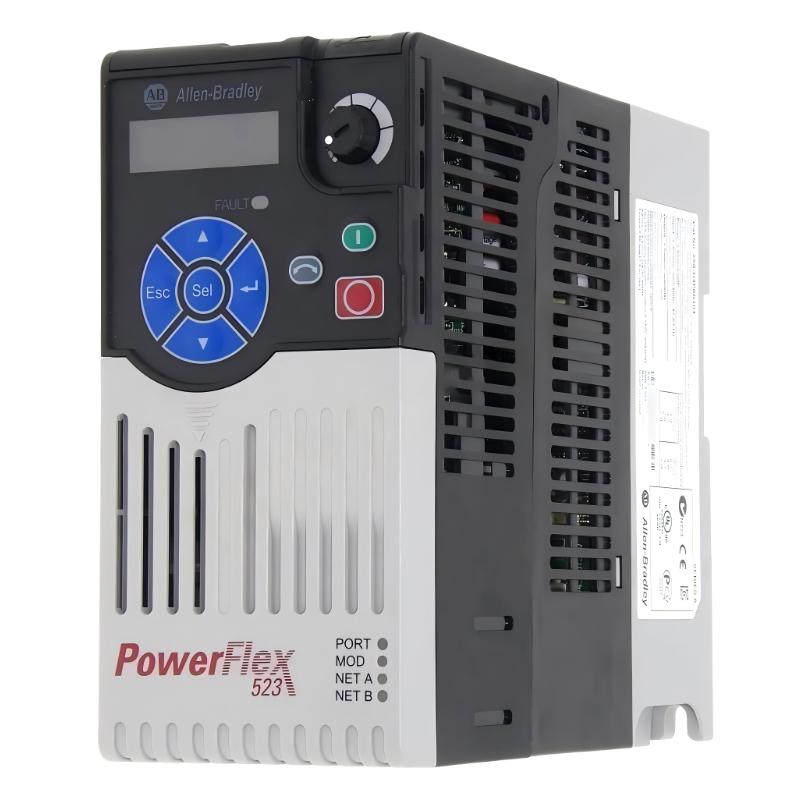

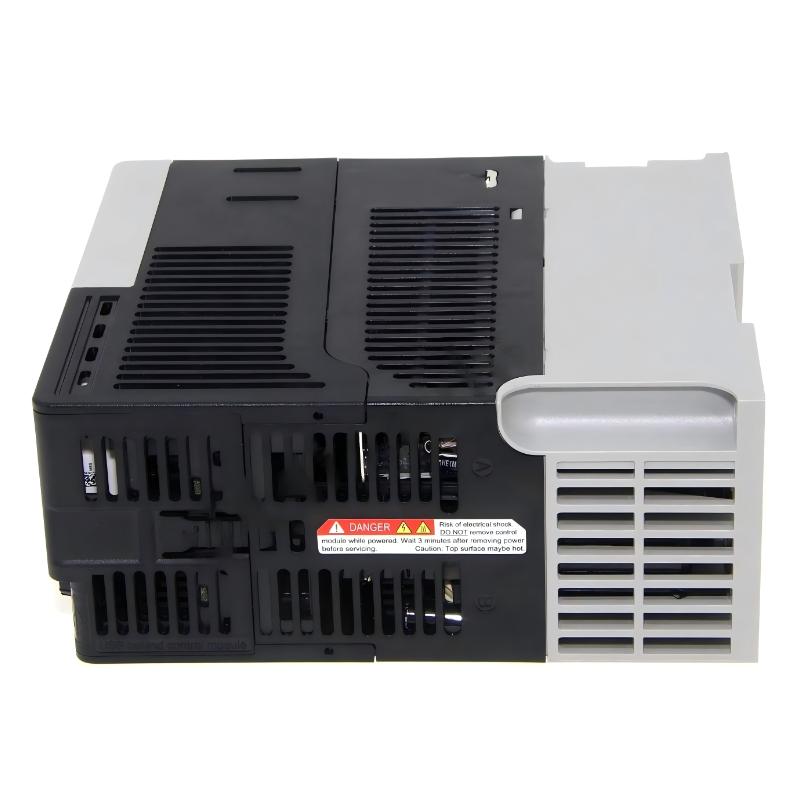

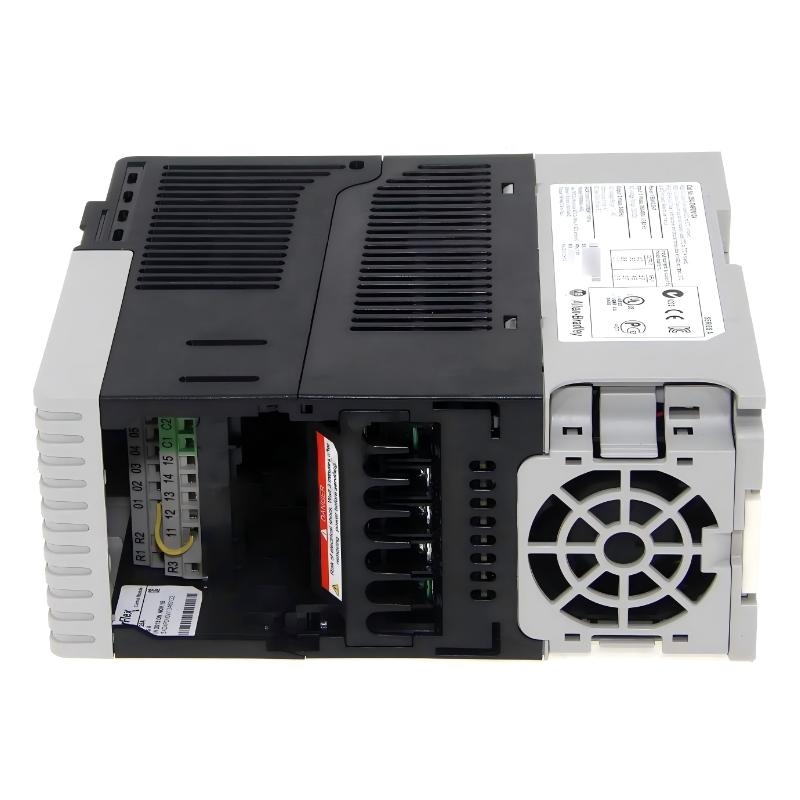

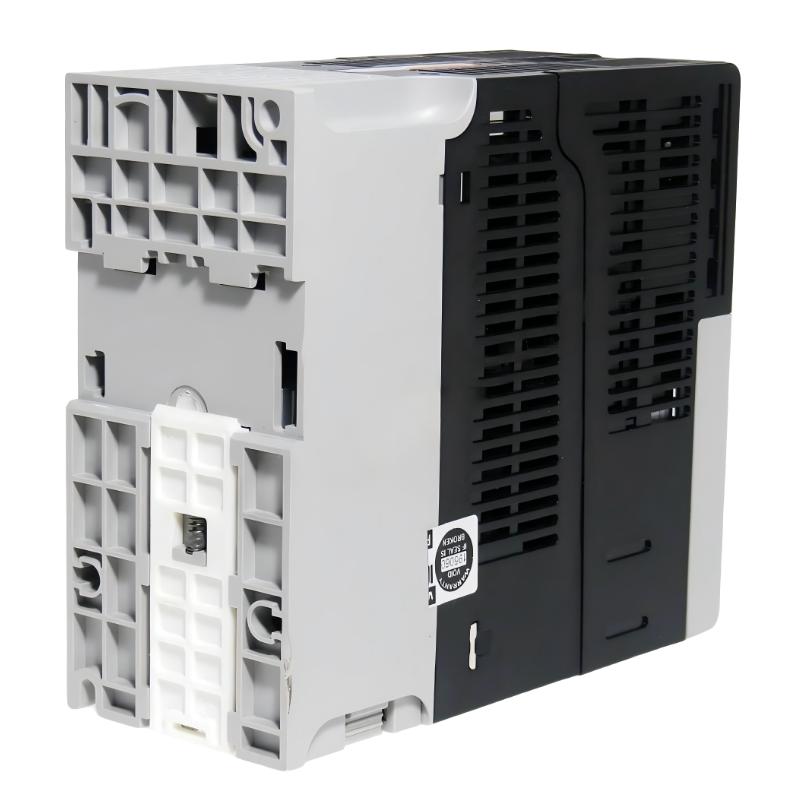

The Allen Bradley 25A-D4P0N104 PowerFlex 523 AC Drive is designed to deliver efficient motor control, dependable operational stability, and flexible machine integration for industrial automation systems. Built with advanced drive technology and a compact hardware structure, this model provides an ideal balance between performance, energy efficiency, and installation simplicity.
As part of the highly regarded PowerFlex 520-Series, the 25A-D4P0N104 supports precise speed regulation and responsive torque control across a wide range of industrial applications. Its integrated communication capability, compact Frame A footprint, and flexible mounting options make it especially attractive for OEM equipment manufacturers and high-density control cabinet environments.
The drive is engineered to improve productivity while reducing maintenance complexity, making it a reliable solution for modern factories focused on operational efficiency and long-term equipment reliability.
Technical Specifications Overview
Specification
Details
Manufacturer
Allen Bradley
Product Family
PowerFlex 523
Catalog Number
25A-D4P0N104
Module Type
AC Drive Module
Rated Power Output
1.5 kW / 2 HP
Input Voltage
380–480V AC
Input Phase
Three-Phase
Rated Output Current
4.0 A
Output Voltage
0–460V AC
Frequency Range
0–500 Hz
Motor Control Methods
V/Hz, Sensorless Vector Control
Communication Interface
Integrated RS485 / DSI
Safety Feature
Safe Torque Off (STO)
Enclosure Type
IP20 / NEMA Open Type
Mounting Style
Panel Mount / DIN Rail
Frame Size
A
Cooling Method
Forced Air Cooling
Digital Inputs
5
Digital Outputs
2
Analog Inputs
1
Analog Outputs
1
USB Interface
Included
EMC Filter
No Internal Filter
Operating Temperature
-20°C to +50°C
Dimensions
Approx. 152 × 72 × 172 mm
Weight
Approx. 1.1 kg
Recommended Related Models
Related Model
Description
25B-D4P0N104
PowerFlex 525 AC Drive
25A-A2P5N104
PowerFlex 523 240V Drive
22F-D1P5N113
PowerFlex 4M Drive
22D-D4P0N104
PowerFlex 40P AC Drive
22-COMM-E
EtherNet/IP Communication Adapter
1769-L24ER-QB1B
CompactLogix PLC Controller
2711P-T7C4D8
PanelView Plus HMI
1734-AENTR
POINT I/O Ethernet Adapter
Popular Allen Bradley Industrial Models
Model Number
Product Category
1756-L81E
ControlLogix CPU Module
5069-IB16
Digital Input Module
1769-OF4
Analog Output Module
20G11NC072JA0NNNNN
PowerFlex 755 Drive
2711R-T4T
Industrial Operator Terminal
1734-OB8S
Safety Output Module
1794-IE8
FLEX I/O Analog Module
1606-XLE240E
Industrial Power Supply
Typical Industrial Applications
The Allen Bradley 25A-D4P0N104 is widely deployed in industrial systems requiring reliable speed control, compact installation, and efficient machine operation.
Common applications include:
Conveyor automation systems
Packaging machinery
Pump and fan control
HVAC equipment
Material handling systems
Automated production lines
Textile manufacturing equipment
Food and beverage processing
Industrial mixers and agitators
OEM compact machinery
Its flexible communication architecture and advanced motor control capability help simplify integration into both new automation projects and retrofit systems.
Performance Advantages
Compact Cabinet Optimization
The slim Frame A structure enables installation in space-limited industrial panels without compromising cooling performance or accessibility.
Advanced Motor Control Technology
Support for V/Hz and Sensorless Vector Control provides smooth acceleration, stable torque delivery, and improved process consistency.
Simplified Network Integration
Integrated RS485/DSI communication allows efficient connectivity with PLCs, HMIs, and distributed automation systems.
Enhanced Machine Safety
Built-in Safe Torque Off (STO) functionality helps improve operator safety while supporting industrial safety compliance requirements.
Energy-Efficient Operation
Dynamic motor speed regulation minimizes unnecessary energy consumption and supports lower long-term operating costs.
Reliable Industrial Durability
Designed for continuous-duty industrial environments, the drive delivers dependable long-term operation with reduced maintenance demands.
Technical FAQs
1. What is the primary function of the 25A-D4P0N104?
It is a variable frequency AC drive used for industrial motor speed and torque control applications.
2. What motor capacity does this drive support?
The drive supports motors rated up to 1.5 kW or 2 HP.
3. Which input voltage is required for operation?
The module operates on 380–480V AC three-phase power.
4. Does the drive support vector control?
Yes. The PowerFlex 523 supports both V/Hz and Sensorless Vector Control operation.
5. Is the 25A-D4P0N104 suitable for conveyor systems?
Yes. It is widely used in conveyors, packaging equipment, fan systems, and material handling applications.
6. What communication interface is built into the drive?
The module includes integrated RS485 / DSI communication capability for industrial automation networking.
7. Does this drive include built-in safety functionality?
Yes. The drive includes Safe Torque Off (STO) functionality to enhance machine safety.
8. What installation methods are supported?
The drive supports both panel mounting and DIN rail installation.
9. What enclosure protection rating does the drive provide?
The module features an IP20 / NEMA Open Type enclosure for protected industrial cabinet installations.
10. Why is the PowerFlex 523 series popular in industrial automation?
The series is recognized for compact design, flexible motor control, integrated communication, energy efficiency, and dependable long-term industrial performance.
