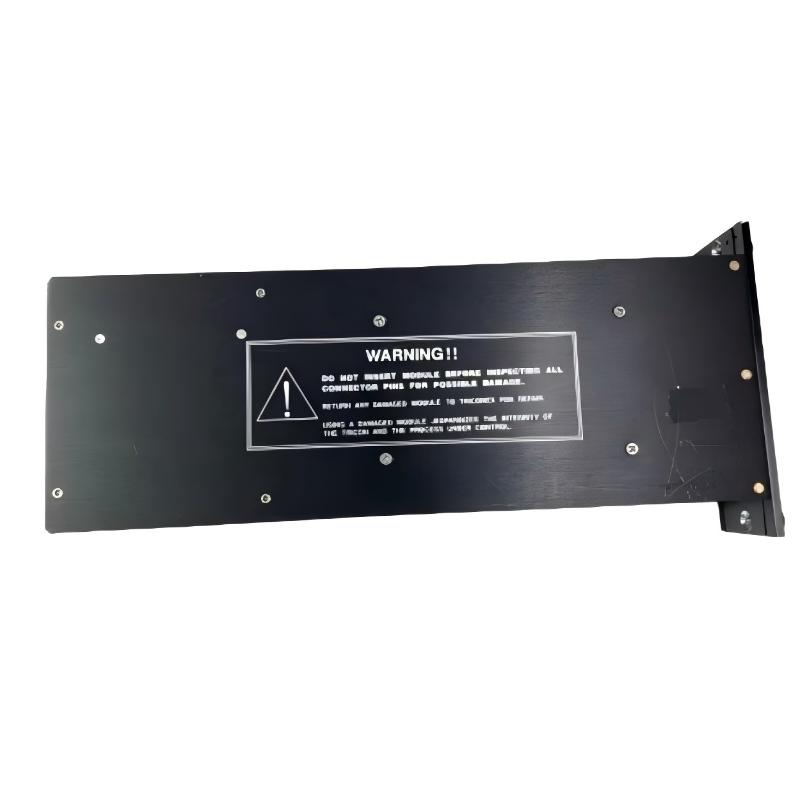

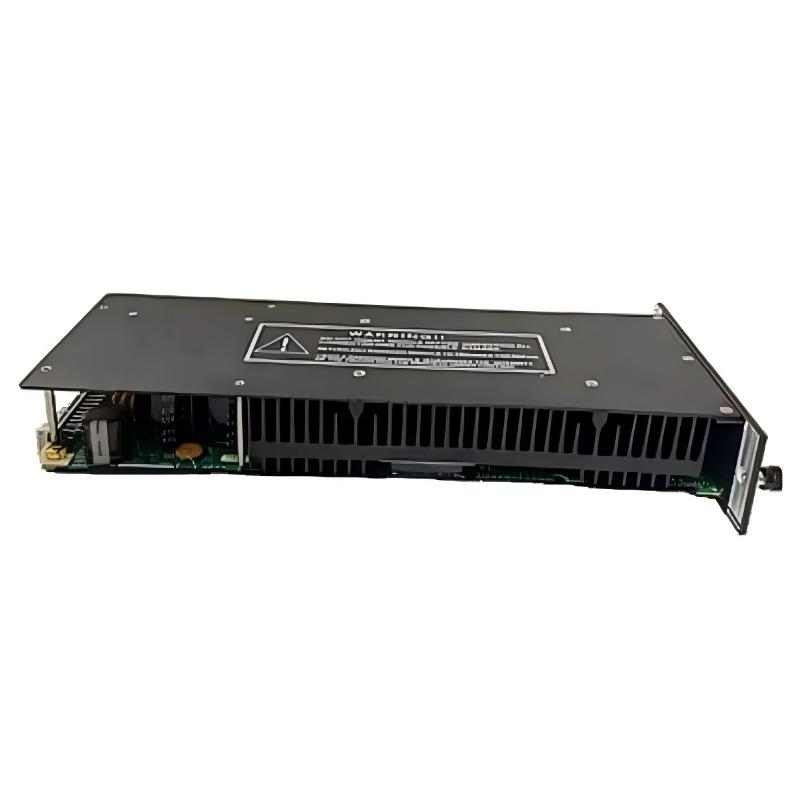

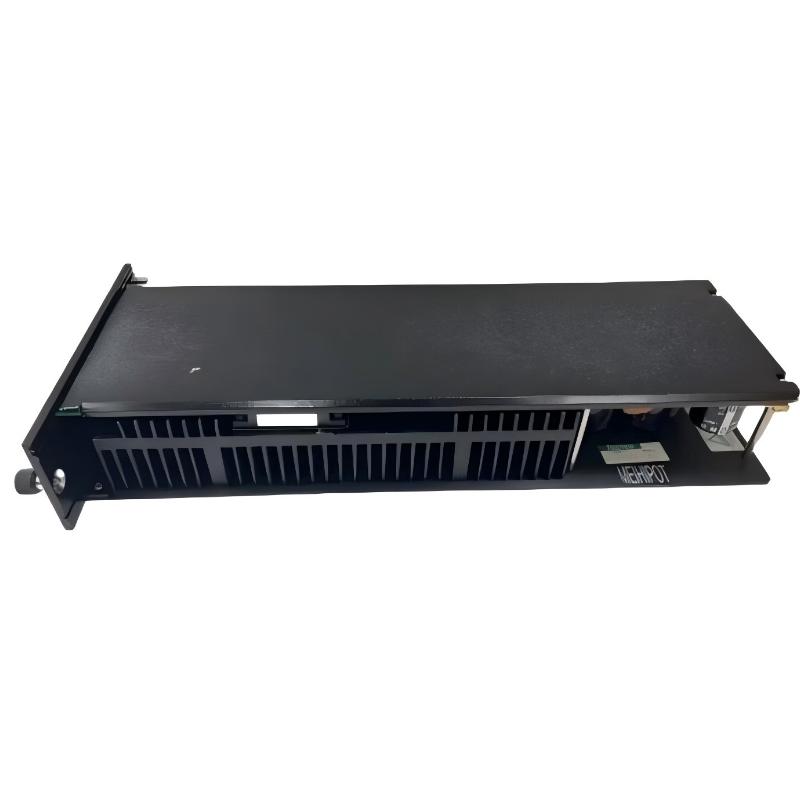

Name: Invensys Triconex 8312 Power Module
Brand: Invensys Triconex
SKU: 113
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

The Invensys Triconex 8312 Power Module is a high-performance, industrial-grade solution that guarantees reliable power delivery to Triconex controllers. Its design emphasizes fault tolerance, redundancy, and compliance with international safety standards, making it ideal for industries where uptime is critical. The 8312 module ensures your control systems remain operational, even in demanding industrial environments, protecting both personnel and assets.

Technical Specifications

Specification	Details
Input Voltage	120–240V AC
Output Voltage	24V DC nominal
Maximum Output Current	10A DC
Redundancy	Supports dual-redundant configuration
Operating Temperature	-25°C to 70°C (-13°F to 158°F)
Weight	2.7 kg
Dimensions	43 x 27 x 32 mm
Certifications	IEC 61508 SIL 3, CE

Recommended Related Models

Triconex 3303 Controller
Triconex 4312 I/O Module
Triconex 3502 Power Supply

Popular Related Models

Invensys Triconex 8311 Power Module
Triconex 8322 Redundant Power Module
Triconex 3305 Safety Monitor

Applications

The Triconex 8312 Power Module is specifically designed for high-availability safety and control systems. Typical applications include:

Petrochemical and chemical plants where continuous safety control is critical
Oil & gas production facilities with harsh environmental conditions
Power generation plants requiring uninterrupted control system power
Industrial automation systems with dual-redundant Triconex architectures
Any mission-critical infrastructure that demands fault-tolerant power delivery

Advantages

Robust Redundancy: Seamlessly integrates into dual-redundant systems for continuous operation.
Industrial Durability: Built to withstand extreme temperatures, vibration, and electrical disturbances.
Plug-and-Play Installation: Simple integration into existing Triconex racks without additional configuration.
Real-Time Monitoring: Equipped with LED indicators for immediate power and fault status feedback.
Compliance Assured: Meets IEC 61508 SIL 3 safety standards, ensuring reliable SIS performance.

Technical FAQs

What input voltage does the 8312 support?
- Operates on 120–240V AC with industrial voltage tolerance.
Is it compatible with 8311 modules?
- Yes, fully compatible in the same Triconex rack system.
What is the module’s maximum output current?
- Provides up to 10A DC output for connected controllers.
Can it operate in extreme temperatures?
- Yes, rated for -25°C to 70°C (-13°F to 158°F).
Does it support hot-swapping?
- Yes, modules can be replaced without shutting down the system.
Are there built-in protections?
- Includes surge, overcurrent, and short-circuit protection.
What is the typical lifespan?
- Over 10 years of continuous operation under normal conditions.
Is there visual status feedback?
- Yes, LEDs indicate power availability and fault status.
What certifications does it have?
- IEC 61508 SIL 3 and CE certified.
Does it require regular maintenance?
- Minimal; periodic inspection and clean power connections are sufficient.
