Brand:Allen Bradley PLC Item No.:Allen Bradley 25B-D017N104 Product Origin:USA Product Dimensions:220 × 110 × 184 mm Product Weight:2.6 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

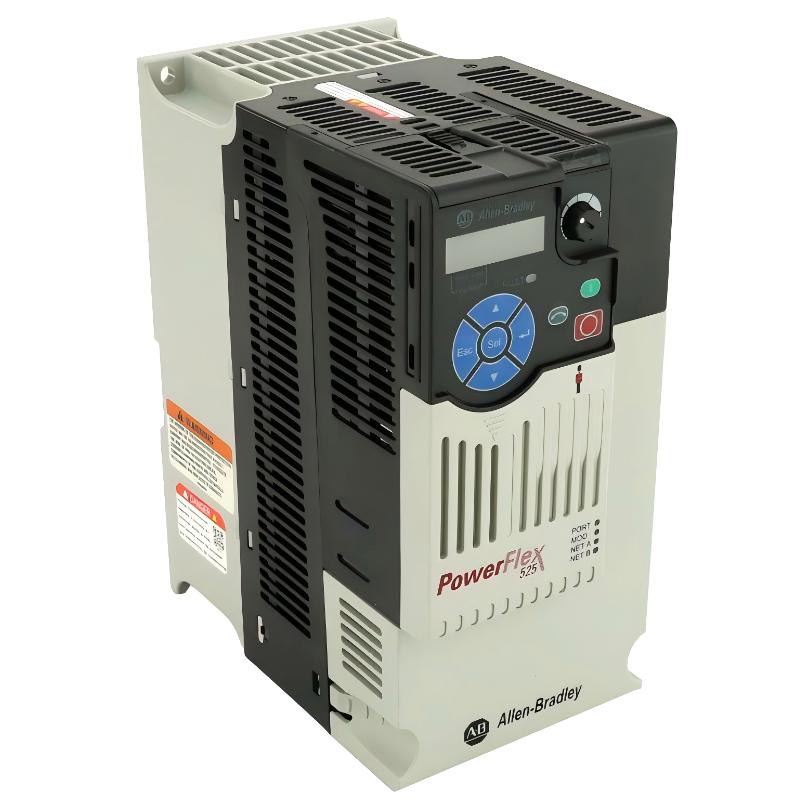

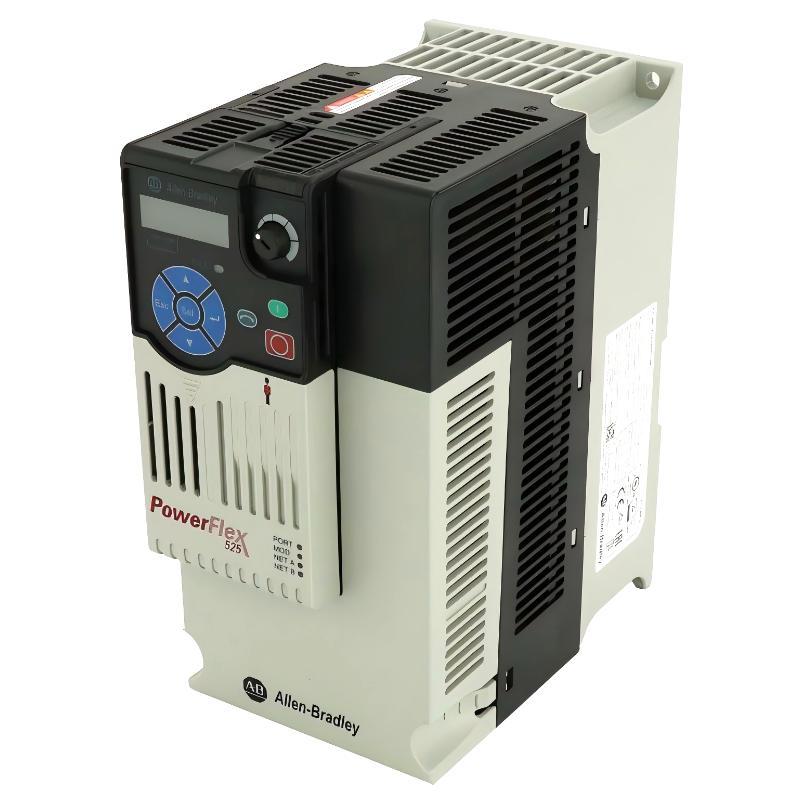

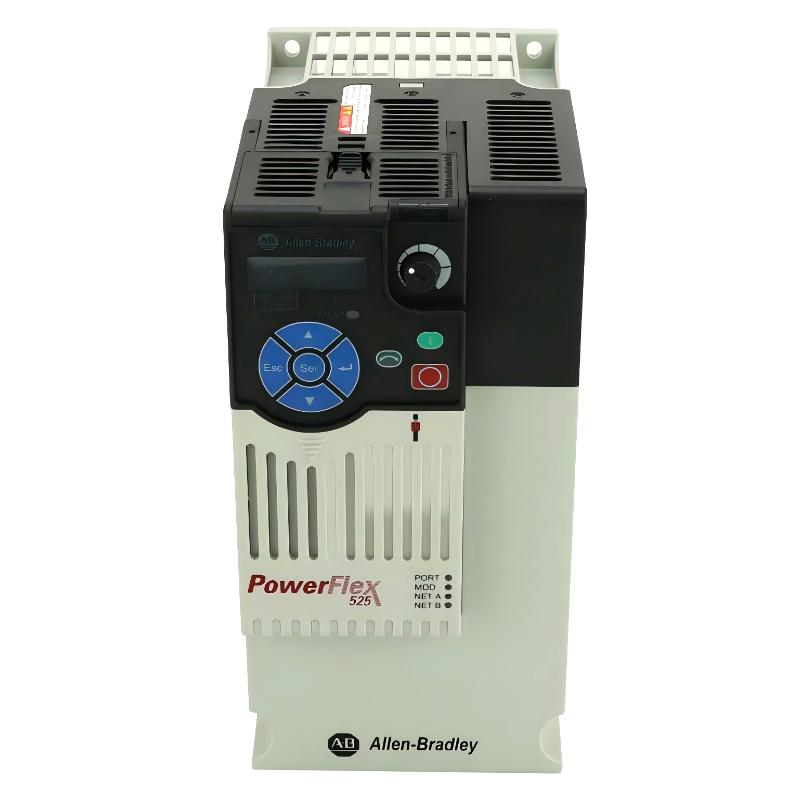

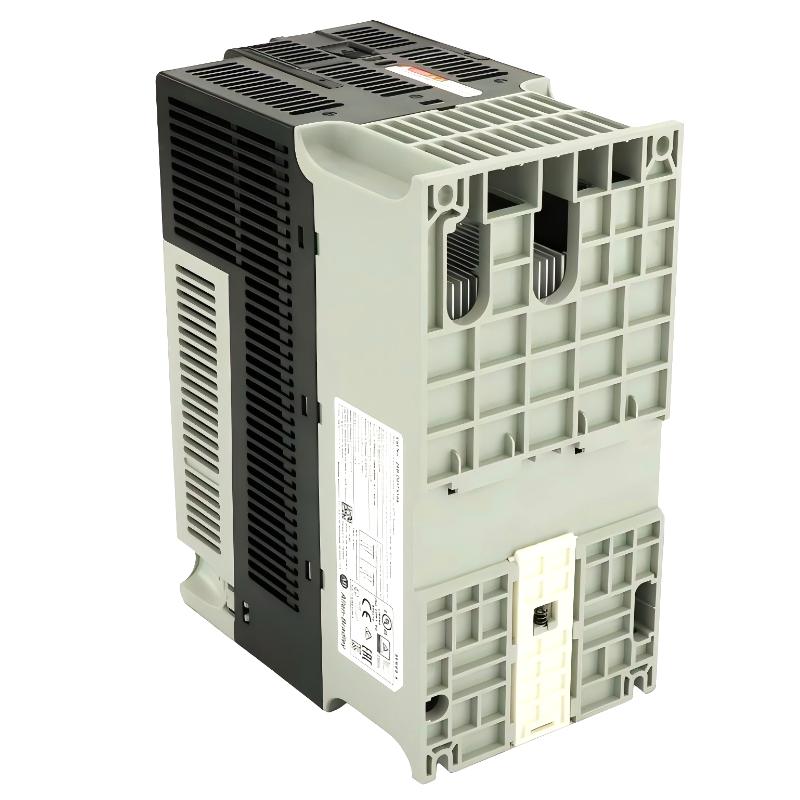

The Allen Bradley 25B-D017N104 PowerFlex 525 AC Drive is engineered for high-performance industrial automation environments that demand precision motor control, flexible communication capability, and dependable long-term operation. Designed for modern manufacturing systems, this advanced variable frequency drive delivers intelligent speed regulation while helping facilities improve productivity, machine responsiveness, and energy efficiency.
As a member of the highly versatile PowerFlex 520-Series, the 25B-D017N104 combines embedded EtherNet/IP networking, integrated safety functions, and multiple motor control technologies into a compact industrial platform. Its robust Frame C architecture allows the drive to support demanding workloads while maintaining excellent operational stability across continuous-duty applications.
The PowerFlex 525 platform remains a preferred solution for OEM machine builders, system integrators, and industrial facilities seeking scalable automation performance with simplified integration.
Technical Specifications
Technical Parameter
Specification
Manufacturer
Allen Bradley
Product Family
PowerFlex 525
Catalog Number
25B-D017N104
Module Type
AC Drive Module
Rated Output Power
7.5 kW / 10 HP
Input Voltage
380–480V AC
Input Phase
Three-Phase
Rated Output Current
17.5 A
Output Voltage
0–460V AC
Frequency Range
0–500 Hz
Frequency Rating
50/60 Hz
Control Modes
V/Hz, Sensorless Vector, Closed Loop Vector, PM Motor Control
Communication Interfaces
Embedded EtherNet/IP & RS485/DSI
Safety Features
Safe Torque Off (STO), SIL2 Cat 3
Brake IGBT
Included
EMC Filter
No Internal Filter
Enclosure Rating
IP20 / NEMA Open Type
Frame Size
Frame C
Mounting Method
Panel Mount / DIN Rail
User Interface
Integral Keypad with Potentiometer & LED Display
Cooling Method
Forced Air Cooling
Digital Inputs
7
Relay Outputs
2
Analog Inputs
2
Analog Outputs
1
Operating Temperature
-20°C to +50°C
Dimensions
Approx. 220 × 110 × 184 mm
Weight
Approx. 2.6 kg
Recommended Related Models
Model Number
Product Description
25B-D013N104
PowerFlex 525 AC Drive 7.5 HP
25B-D010N114
PowerFlex 525 AC Drive 5 HP
25A-D4P0N104
PowerFlex 523 AC Drive
22D-D017N104
PowerFlex 40P AC Drive
20G11NC072JA0NNNNN
PowerFlex 755 Drive
22-COMM-E
EtherNet/IP Communication Adapter
1769-L33ER
CompactLogix PLC Controller
2711P-T10C4D8
PanelView Plus HMI
Popular Allen Bradley Industrial Automation Models
Popular Model
Product Category
1756-L81E
ControlLogix CPU Module
5069-IB16
Digital Input Module
1734-AENTR
POINT I/O Ethernet Adapter
1769-IF8
Analog Input Module
2711R-T7T
Industrial Operator Terminal
1606-XLE240E
Industrial Power Supply
1794-IE8
FLEX I/O Analog Module
5069-OB16
Digital Output Module
Industrial Applications
The Allen Bradley 25B-D017N104 is widely implemented in industrial environments requiring accurate motor control, advanced communication integration, and dependable operational reliability.
Common applications include:
Conveyor automation systems
Industrial pump and fan control
Packaging machinery
Material handling systems
Food and beverage processing
HVAC automation
Textile manufacturing equipment
Automated assembly lines
Industrial mixing systems
OEM machinery production
Its embedded EtherNet/IP capability simplifies communication with PLCs, HMIs, and supervisory systems, helping reduce engineering time while improving real-time operational visibility.
Key Operational Advantages
Advanced Embedded Networking
Integrated EtherNet/IP communication allows seamless integration into Rockwell Automation architectures without requiring additional communication modules.
Flexible Motor Control Technologies
The drive supports multiple control methods including V/Hz, Sensorless Vector, Closed Loop Vector, and permanent magnet motor control for highly adaptable application performance.
Compact High-Power Architecture
Despite supporting 10 HP operation, the Frame C design maintains efficient panel utilization for space-conscious industrial installations.
Integrated Safety Features
Built-in Safe Torque Off (STO) functionality enhances machine safety while helping simplify compliance with industrial safety requirements.
Reliable Continuous-Duty Performance
Designed for demanding industrial environments, the PowerFlex 525 platform delivers stable long-term operation with reduced downtime risks.
Energy-Efficient Operation
Dynamic motor speed regulation helps optimize energy consumption and improve overall production efficiency across variable-load applications.
Technical FAQs
1. What is the primary function of the 25B-D017N104?
It is a variable frequency AC drive designed for industrial motor speed, torque, and process control applications.
2. What motor capacity does this drive support?
The drive supports motors rated up to 7.5 kW or 10 HP.
3. Which input voltage is required for operation?
The module operates with 380–480V AC three-phase input power.
4. Does the drive include embedded EtherNet/IP communication?
Yes. The PowerFlex 525 includes integrated EtherNet/IP networking for streamlined industrial automation connectivity.
5. Is Safe Torque Off functionality included?
Yes. The drive includes integrated Safe Torque Off (STO) functionality with SIL2 Cat 3 safety support.
6. What enclosure protection rating does the drive provide?
The drive features an IP20 / NEMA Open Type enclosure intended for industrial control cabinet installation.
7. Which motor control methods are supported?
The drive supports V/Hz, Sensorless Vector Control, Closed Loop Vector Control, and permanent magnet motor control technologies.
8. Is this model suitable for conveyor and packaging systems?
Yes. It is widely used in conveyors, packaging equipment, pumps, fans, and automated material handling systems.
9. Does the drive include an integrated braking transistor?
Yes. This model includes a built-in Brake IGBT for dynamic braking applications.
10. Why is the PowerFlex 525 series widely used in industrial automation?
The series is highly regarded for its advanced networking capability, compact design, flexible motor control technologies, integrated safety functions, and dependable industrial durability.
