Brand:Allen Bradley PLC Item No.:Allen Bradley 25B-D1P4N114 Product Origin:USA Product Dimensions:152 × 72 × 172 mm Product Weight:1.6 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

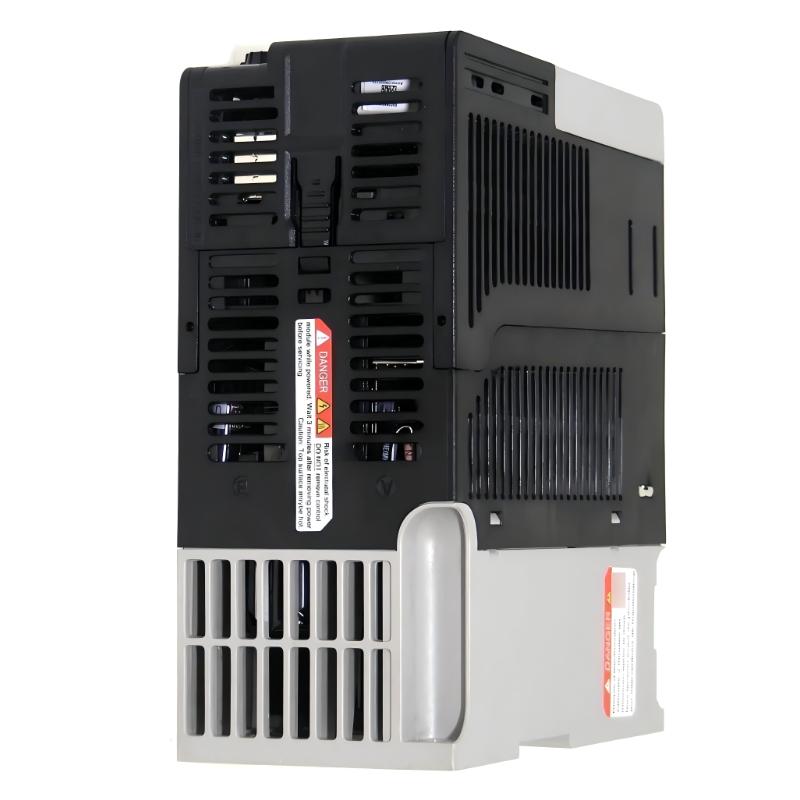

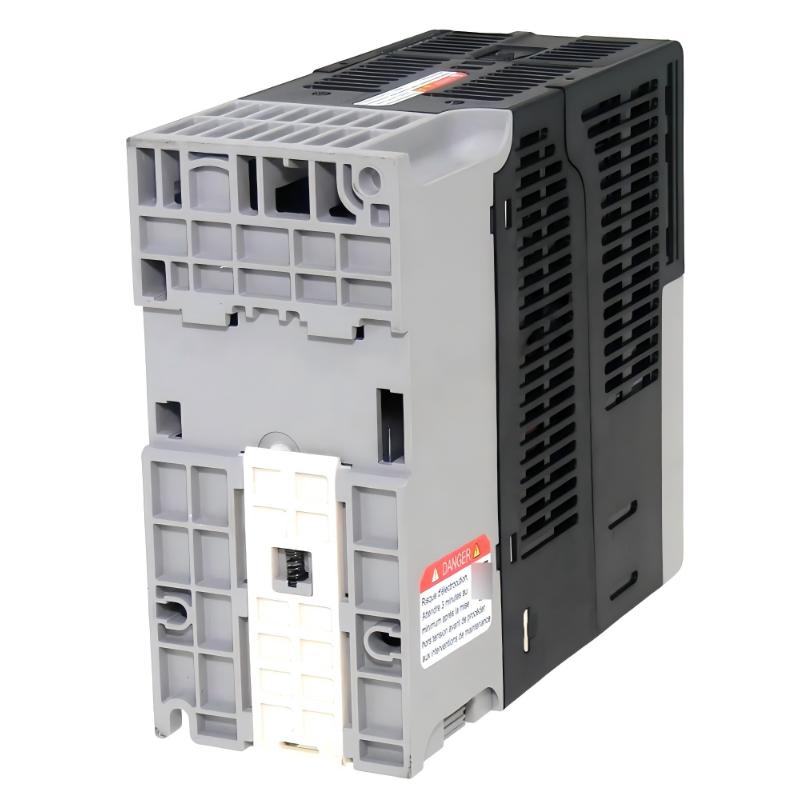

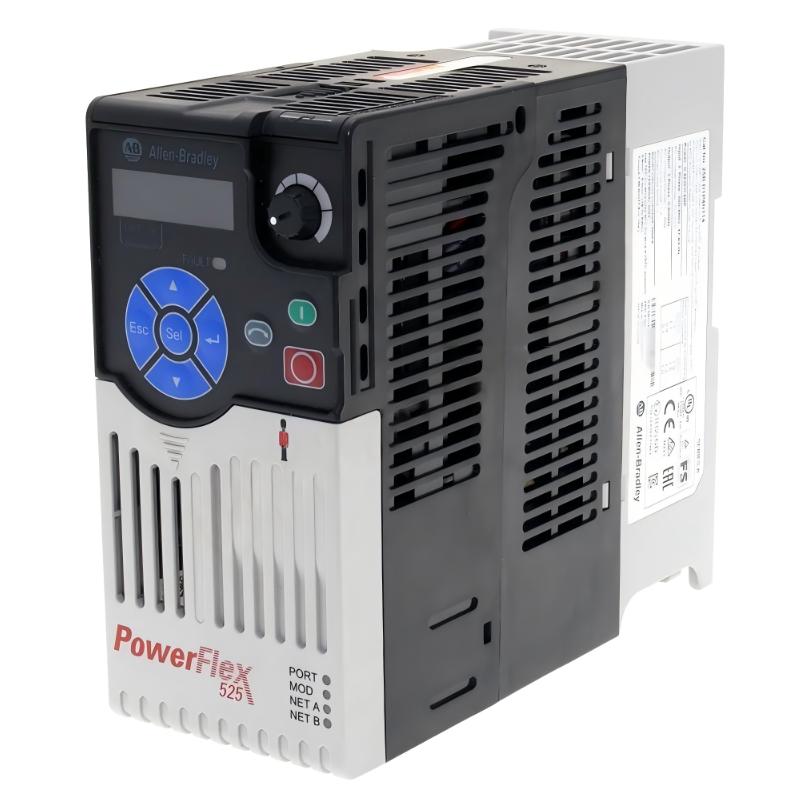

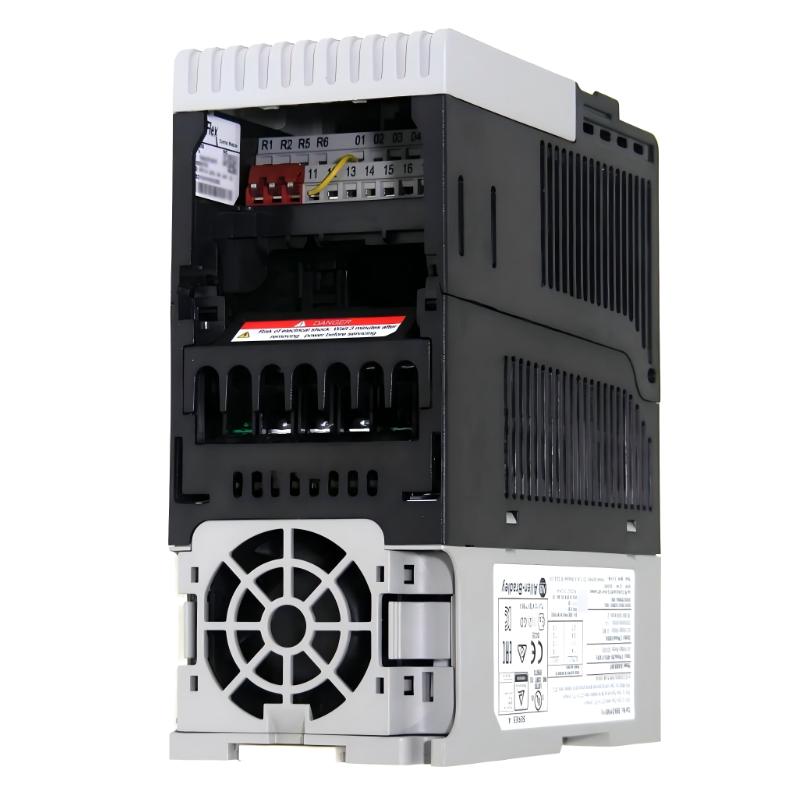

The Allen Bradley 25B-D1P4N114 PowerFlex 525 AC Drive combines advanced motor control performance with embedded industrial networking in a highly compact design. Engineered for machine builders and industrial automation environments, this drive delivers stable speed regulation, simplified integration, and efficient energy management for demanding production systems.
As part of the industry-proven PowerFlex 520-Series, the 25B-D1P4N114 offers embedded EtherNet/IP communication, integrated safety functionality, and flexible motor control technologies that support modern automation architectures. Its compact Frame A structure makes it an excellent solution for installations where cabinet space optimization and operational reliability are equally important.
Built to support continuous-duty industrial operation, this PowerFlex 525 drive provides dependable performance while helping reduce engineering complexity and maintenance requirements.
Electrical and Mechanical Specifications
Technical Item
Specification
Manufacturer
Allen Bradley
Product Series
PowerFlex 525
Catalog Number
25B-D1P4N114
Module Type
AC Drive Module
Rated Output Power
0.4 kW / 0.5 HP
Input Voltage
380–480V AC
Input Phase
Three-Phase
Rated Output Current
1.4 A
Output Frequency Range
0–500 Hz
Frequency Rating
50/60 Hz
Motor Control Methods
V/Hz, Sensorless Vector, Closed Loop Vector
Communication Interfaces
Embedded EtherNet/IP, RS485/DSI, USB
Safety Function
Safe Torque Off (STO) SIL2 Cat 3
Brake IGBT
Included
EMC Filter
Integrated
Enclosure Type
IP20 / NEMA Open Type
Mounting Type
Panel Mount
Frame Size
Frame A
User Interface
Integral Keypad with Potentiometer & LED Display
Cooling Method
Forced Air Cooling
Analog Inputs
2
Analog Outputs
1
Digital Inputs
7
Digital Outputs
4
Operating Temperature
Up to 70°C with derating
Dimensions
Approx. 152 × 72 × 172 mm
Weight
Approx. 1.5–1.6 kg
Recommended Related Models
Related Model
Description
25B-D2P3N104
PowerFlex 525 AC Drive 1 HP
25B-D010N114
PowerFlex 525 AC Drive 5 HP
25A-D4P0N104
PowerFlex 523 AC Drive
22F-D1P5N113
PowerFlex 4M Drive
20G11NC072JA0NNNNN
PowerFlex 755 AC Drive
1769-L24ER-QB1B
CompactLogix PLC Controller
2711P-T7C4D8
PanelView Plus HMI
1734-AENTR
POINT I/O Ethernet Adapter
Frequently Used Allen Bradley Automation Products
Popular Model
Product Category
1756-L81E
ControlLogix CPU Module
5069-IB16
Digital Input Module
1769-IF8
Analog Input Module
1606-XLE240E
Industrial Power Supply
1794-IE8
FLEX I/O Analog Module
2711R-T4T
Industrial Operator Terminal
1734-OB8S
Safety Output Module
5069-OB16
Digital Output Module
Typical Industrial Applications
The Allen Bradley 25B-D1P4N114 is designed for industrial systems requiring compact installation, precise motor speed control, and seamless network communication.
Common application areas include:
Conveyor automation systems
Pump and fan control
Packaging machinery
Material handling equipment
HVAC systems
Small automated production lines
Textile machinery
Food processing equipment
Industrial mixing applications
OEM machine manufacturing
Its embedded EtherNet/IP connectivity allows direct integration into Rockwell Automation architectures, helping improve real-time communication and reducing installation complexity.
Key Product Advantages
Embedded EtherNet/IP Networking
Integrated EtherNet/IP communication eliminates the need for additional communication cards while simplifying PLC and HMI integration.
Advanced Motor Control Flexibility
The drive supports multiple motor control technologies including V/Hz, Sensorless Vector, and Closed Loop Vector control for enhanced operational adaptability.
Compact Industrial Footprint
The slim Frame A construction enables installation in high-density control cabinets without compromising performance.
Built-In Safety Functionality
Safe Torque Off (STO) capability enhances machine safety while supporting compliance with industrial safety standards.
Energy-Efficient Operation
Optimized motor speed regulation helps reduce unnecessary energy consumption and improve overall production efficiency.
Reliable Long-Term Performance
The PowerFlex 525 platform is recognized for stable operation in continuous-duty industrial environments with reduced maintenance demands.
Technical FAQs
1. What is the main purpose of the 25B-D1P4N114?
It is a variable frequency AC drive designed for industrial motor speed and torque control applications.
2. What motor size does this drive support?
The drive supports motors rated up to 0.4 kW or 0.5 HP.
3. Which input voltage is required?
The module operates with 380–480V AC three-phase input power.
4. Does the drive include EtherNet/IP communication?
Yes. The PowerFlex 525 includes embedded EtherNet/IP networking capability.
5. Is Safe Torque Off functionality included?
Yes. The drive includes integrated Safe Torque Off (STO) functionality certified to SIL2 Cat 3 standards.
6. What enclosure protection rating does the drive provide?
The module features an IP20 / NEMA Open Type enclosure intended for protected industrial cabinet installation.
7. Which communication interfaces are supported?
The drive supports EtherNet/IP, RS485/DSI, Modbus, and USB programming connectivity.
8. Can this drive be used for conveyors and pumps?
Yes. It is widely used in conveyors, fans, pumps, mixers, and packaging equipment.
9. Does the drive include an EMC filter?
Yes. This model includes an integrated EMC filter for improved electromagnetic compatibility.
10. Why is the PowerFlex 525 series popular in industrial automation?
The series is highly regarded for compact design, advanced networking capability, integrated safety features, flexible motor control technologies, and dependable industrial durability.
