Brand:Allen Bradley PLC Item No.:Allen Bradley 25B-E012N104 Product Origin:USA Product Dimensions:220 × 110 × 184 mm Product Weight:3.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

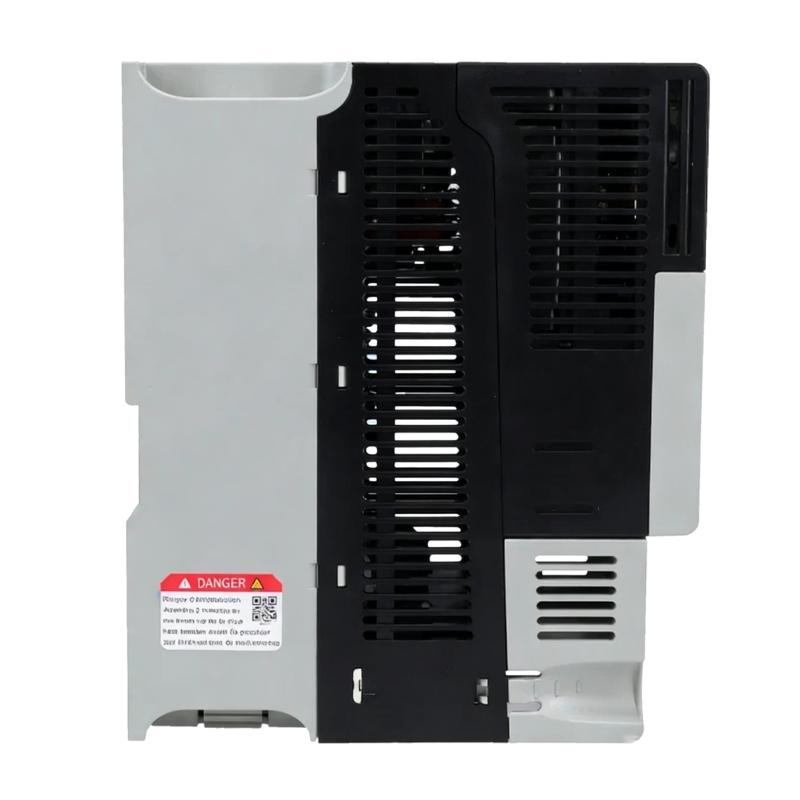

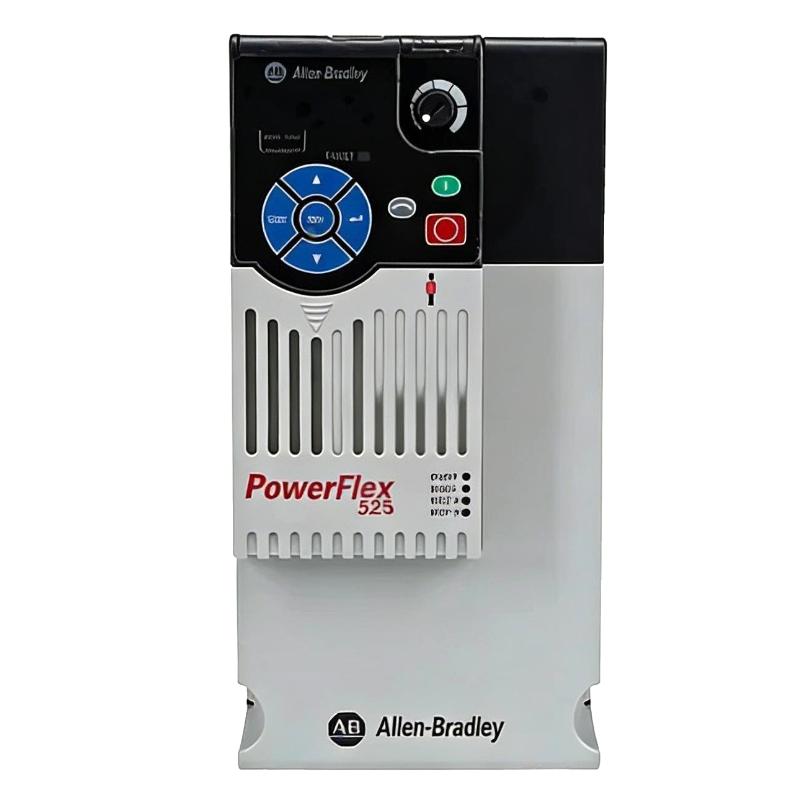

The Allen Bradley 25B-E012N104 PowerFlex 525 AC Drive is engineered for industrial operations that require intelligent motor control, responsive network communication, and reliable long-term automation performance. Designed to support modern manufacturing environments, this compact variable frequency drive combines advanced control technology with simplified system integration.
As part of the widely adopted PowerFlex 520-Series, the 25B-E012N104 provides embedded EtherNet/IP communication, flexible programming capability, and enhanced motor control functionality in a space-saving industrial design. Its robust architecture supports demanding production workloads while helping facilities improve operational efficiency, energy management, and machine reliability.
The PowerFlex 525 platform is especially valued by OEM machine builders and industrial system integrators seeking scalable performance with reduced engineering complexity.
Technical Specifications
Specification Item
Details
Manufacturer
Allen Bradley
Product Family
PowerFlex 525
Catalog Number
25B-E012N104
Module Type
AC Drive Module
Rated Output Power
5.5 kW / 7.5 HP
Input Voltage
500–600V AC
Input Phase
Three-Phase
Rated Output Current
12 A
Output Voltage
0–600V AC
Output Frequency Range
0–500 Hz
Input Frequency
50/60 Hz
Motor Control Methods
V/Hz, Sensorless Vector, Closed Loop Vector
Communication Interfaces
Embedded EtherNet/IP, RS485/DSI, USB
Safety Function
Safe Torque Off (STO)
Brake IGBT
Included
EMC Filter
No Internal Filter
Enclosure Rating
IP20 / NEMA Open Type
Frame Size
Frame C
Cooling Method
Forced Air Cooling
Mounting Type
Panel Mount
Analog Inputs
2
Analog Outputs
1
Digital Inputs
7
Relay Outputs
2
User Interface
Integral LCD Keypad
Operating Temperature
-20°C to +50°C
Dimensions
Approx. 220 × 110 × 184 mm
Weight
Approx. 2.8–3.2 kg
Recommended Related Models
Related Model
Product Description
25B-D017N104
PowerFlex 525 AC Drive 10 HP
25B-D010N114
PowerFlex 525 AC Drive 5 HP
25A-D4P0N104
PowerFlex 523 Drive
20G11NC072JA0NNNNN
PowerFlex 755 Drive
22D-D4P0N104
PowerFlex 40P AC Drive
1769-L33ER
CompactLogix Controller
2711P-T10C4D8
PanelView Plus HMI
1734-AENTR
POINT I/O Ethernet Adapter
Popular Allen Bradley Automation Models
Model Number
Product Category
1756-L81E
ControlLogix CPU Module
5069-IB16
Digital Input Module
1769-IF8
Analog Input Module
1794-IE8
FLEX I/O Analog Module
1606-XLE240E
Industrial Power Supply
5069-OB16
Digital Output Module
2711R-T7T
Industrial Operator Terminal
1734-OB8S
Safety Output Module
Industrial Applications
The Allen Bradley 25B-E012N104 is widely implemented in industrial environments that require precise motor speed control, advanced communication capability, and stable production performance.
Typical applications include:
Conveyor automation systems
Heavy-duty pump control
Industrial ventilation systems
Packaging machinery
Material handling equipment
Textile manufacturing lines
HVAC automation systems
Food and beverage processing
Industrial mixing equipment
OEM machinery integration
Its embedded EtherNet/IP communication simplifies integration with PLCs, HMIs, and distributed I/O systems, improving system responsiveness and reducing installation time.
Performance Advantages
Advanced Embedded Networking
Integrated EtherNet/IP communication enables seamless connectivity with Rockwell Automation systems while reducing additional hardware requirements.
Flexible Motor Control Technology
Support for V/Hz, Sensorless Vector, and Closed Loop Vector control provides stable speed regulation and improved torque performance across diverse applications.
Compact High-Power Construction
The Frame C design delivers strong industrial performance while maintaining efficient control cabinet utilization.
Integrated Safety Features
Built-in Safe Torque Off (STO) functionality improves operational safety and supports compliance with industrial safety standards.
Energy-Efficient Drive Operation
Dynamic speed adjustment helps minimize energy consumption while optimizing machine productivity and motor performance.
Reliable Industrial Durability
Designed for continuous industrial workloads, the PowerFlex 525 platform provides dependable long-term operation with reduced maintenance interruptions.
Technical FAQs
1. What is the primary function of the 25B-E012N104?
It is a variable frequency AC drive used for industrial motor speed and torque control applications.
2. What motor capacity does this drive support?
The drive supports motors rated up to 5.5 kW or 7.5 HP.
3. Which input voltage does the drive require?
The module operates with 500–600V AC three-phase input power.
4. Does the drive include embedded EtherNet/IP communication?
Yes. The PowerFlex 525 includes integrated EtherNet/IP communication capability for industrial automation networking.
5. Is Safe Torque Off functionality included?
Yes. The drive includes integrated Safe Torque Off (STO) functionality for enhanced machine safety.
6. What enclosure protection rating does the drive provide?
The module features an IP20 / NEMA Open Type enclosure designed for industrial control cabinet installation.
7. Which motor control technologies are supported?
The drive supports V/Hz control, Sensorless Vector Control, and Closed Loop Vector Control.
8. Is the drive suitable for heavy-duty industrial applications?
Yes. It is commonly used in pumps, conveyors, ventilation systems, and high-demand automated production environments.
9. Does the drive include a braking transistor?
Yes. This model includes an integrated Brake IGBT for dynamic braking applications.
10. Why is the PowerFlex 525 series widely used in industrial automation?
The series is highly regarded for its compact design, advanced communication capability, flexible motor control technologies, integrated safety functionality, and dependable industrial performance.
