Brand:Allen Bradley PLC Item No.:Allen Bradley 25B-E4P2N104 Product Origin:USA Product Dimensions:152 × 72 × 172 mm Product Weight:1.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

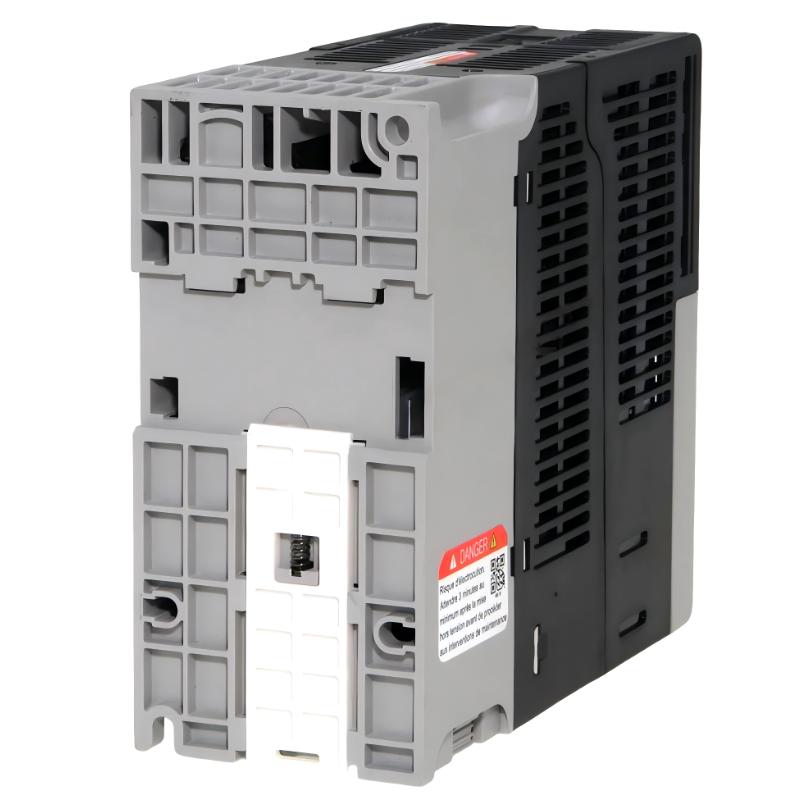

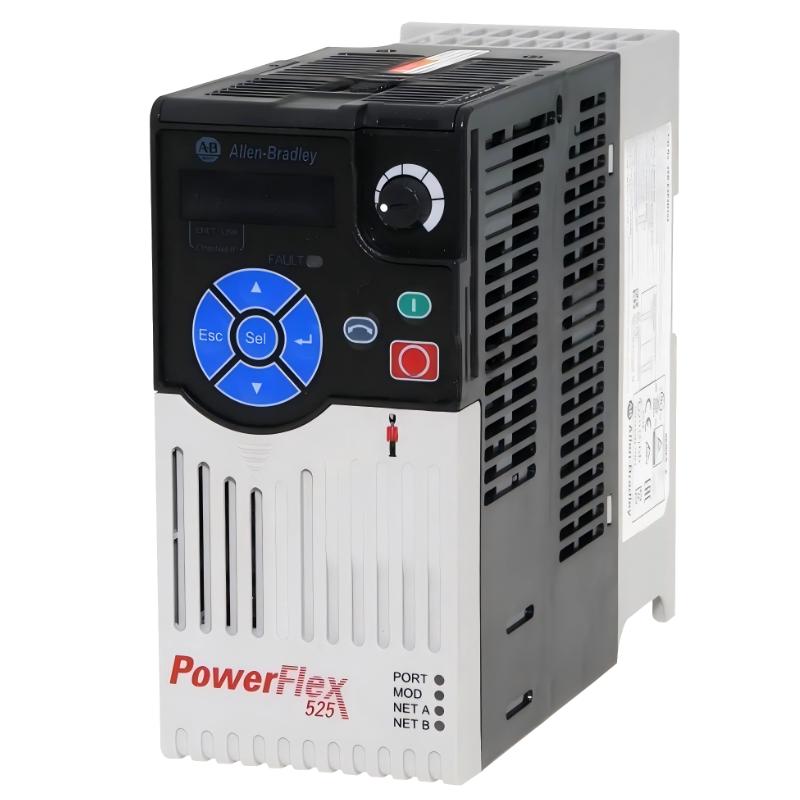

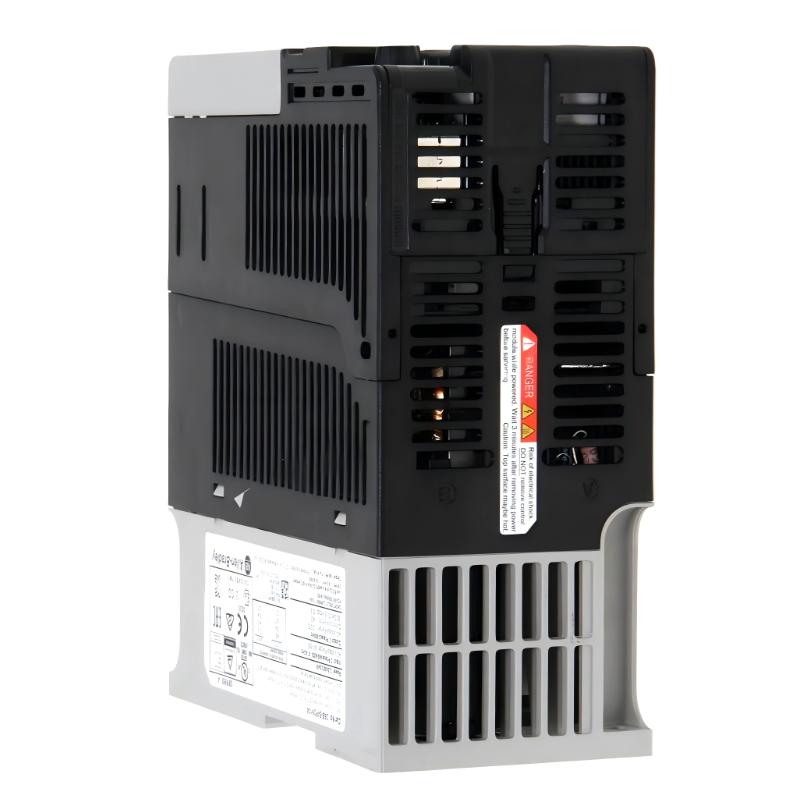

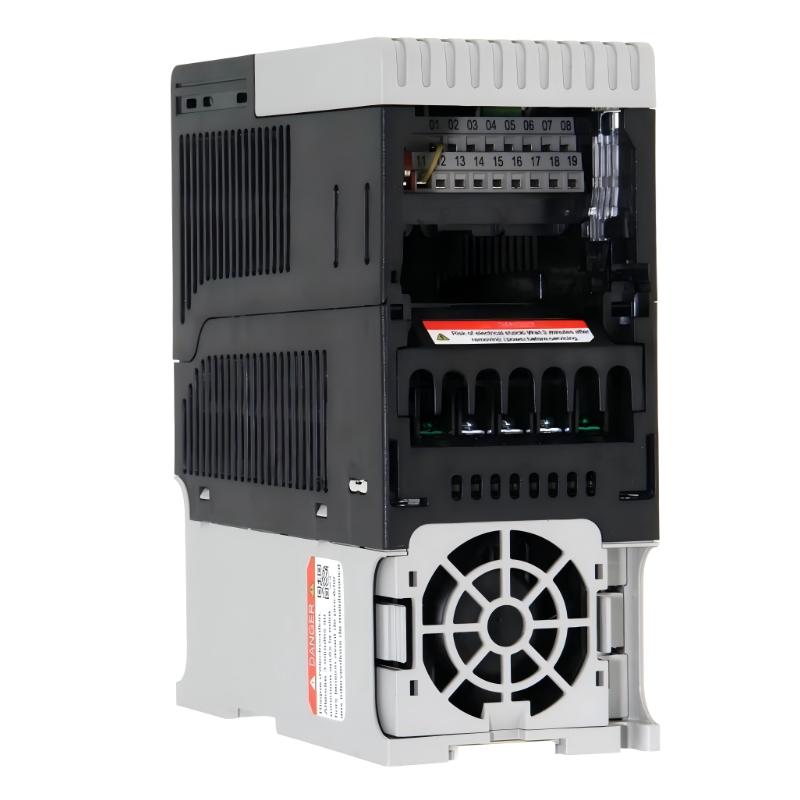

The Allen Bradley 25B-E4P2N104 PowerFlex 525 AC Drive is a robust industrial-grade motor control solution designed for applications requiring stable speed regulation, advanced communication integration, and consistent high-efficiency performance. Engineered for modern automation systems, this drive delivers precise motor control while maintaining a compact footprint suitable for high-density control cabinets.
As part of the advanced PowerFlex 520-Series, the 25B-E4P2N104 integrates embedded EtherNet/IP communication, Safe Torque Off (STO) functionality, and multiple motor control methods into a single intelligent platform. It is widely used in OEM machinery and industrial production systems where reliability, energy efficiency, and seamless PLC integration are essential.
Designed for demanding 3-phase industrial environments, this drive ensures stable operation under variable load conditions while simplifying installation and maintenance processes.
Technical Specifications
Specification
Details
Manufacturer
Allen Bradley
Product Series
PowerFlex 525
Catalog Number
25B-E4P2N104
Module Type
AC Drive Module
Rated Output Power
2.2 kW / 3 HP
Input Voltage
600V AC
Input Phase
Three-Phase
Output Current
4.2 A
Output Voltage
0–600V AC
Frequency Range
0–500 Hz
Control Methods
V/Hz, Sensorless Vector, Closed Loop Vector
Communication
Embedded EtherNet/IP + RS485 (DSI)
Safety Function
Safe Torque Off (STO), SIL2 / PLd
Brake IGBT
Included
Enclosure Rating
IP20 / NEMA Open Type
Frame Size
Frame A
Mounting Type
Panel Mount
Cooling Method
Forced Air Cooling
Digital Inputs
7
Analog Inputs
2
Analog Outputs
1
Relay Outputs
2
User Interface
Integrated keypad with potentiometer & LED display
Operating Temperature
-20°C to +50°C
Dimensions
152 × 72 × 172 mm
Weight
~1.1 kg
Recommended Related Models
Model
Description
25B-D010N114
PowerFlex 525 5 HP Drive
25B-D017N104
PowerFlex 525 10 HP Drive
25A-D4P0N104
PowerFlex 523 Drive
22D-E4P2N104
PowerFlex 40P (legacy replacement)
20G11NC072JA0NNNNN
PowerFlex 755 High Performance Drive
1769-L33ER
CompactLogix Controller
1734-AENTR
POINT I/O Ethernet Adapter
2711P-T10C4D8
PanelView Plus HMI
Popular Allen Bradley Automation Portfolio
Model
Category
1756-L81E
ControlLogix CPU
5069-IB16
Digital Input Module
1769-IF8
Analog Input Module
1734-OB8S
Safety Output Module
5069-OB16
Digital Output Module
1794-IE8
FLEX I/O Analog Module
1606-XLE240E
Industrial Power Supply
2711R-T7T
Operator Interface Terminal
Industrial Applications
The Allen Bradley 25B-E4P2N104 is widely deployed across industrial environments requiring precise motor control, stable torque delivery, and efficient automation integration.
Typical applications include:
Conveyor and material transport systems
Industrial pumps and fluid control systems
HVAC fan and compressor control
Packaging and labeling machinery
Food and beverage production lines
Textile processing equipment
Automated assembly systems
Industrial mixers and agitators
OEM machine manufacturing platforms
Its embedded EtherNet/IP communication enables direct integration into Rockwell Automation ecosystems, improving system responsiveness and reducing engineering overhead.
Key Advantages
Embedded Industrial Networking
Integrated EtherNet/IP enables seamless PLC communication without external modules, reducing wiring complexity and setup time.
Flexible Motor Control Performance
Supports multiple control modes including V/Hz and vector control for stable torque and precise speed regulation under varying loads.
Compact Yet Powerful Design
The Frame A architecture delivers 3HP performance in a space-efficient footprint ideal for modern control panels.
Integrated Safety Functionality
Safe Torque Off (STO) ensures safe machine operation and supports compliance with industrial safety standards.
Energy Efficiency Optimization
Dynamic motor speed control reduces unnecessary energy consumption and improves overall system efficiency.
Proven Industrial Durability
Built for continuous operation, the PowerFlex 525 platform is trusted in demanding industrial environments worldwide.
Technical FAQs
1. What is the main function of the 25B-E4P2N104?
It is a variable frequency AC drive used to control motor speed, torque, and acceleration in industrial automation systems.
2. What motor power does this model support?
It supports up to 2.2 kW / 3 HP motors.
3. What is the input voltage requirement?
It operates on 600V AC three-phase industrial power systems.
4. Does it include EtherNet/IP communication?
Yes, embedded EtherNet/IP is standard for integration with PLC systems.
5. Is Safe Torque Off available?
Yes, STO safety functionality is included for safe machine operation.
6. What enclosure type does it use?
It is IP20 / NEMA open-type for panel-mounted installation environments.
7. Can it be used for pumps and fans?
Yes, it is commonly used for pumps, fans, conveyors, and packaging equipment.
8. Does it support vector control?
Yes, it supports sensorless and closed-loop vector control modes.
9. What is the mounting style?
It is designed for panel mounting in industrial control cabinets.
10. Why is the PowerFlex 525 series widely used?
Because it combines compact design, embedded networking, safety functions, and flexible motor control in a highly reliable industrial platform.
