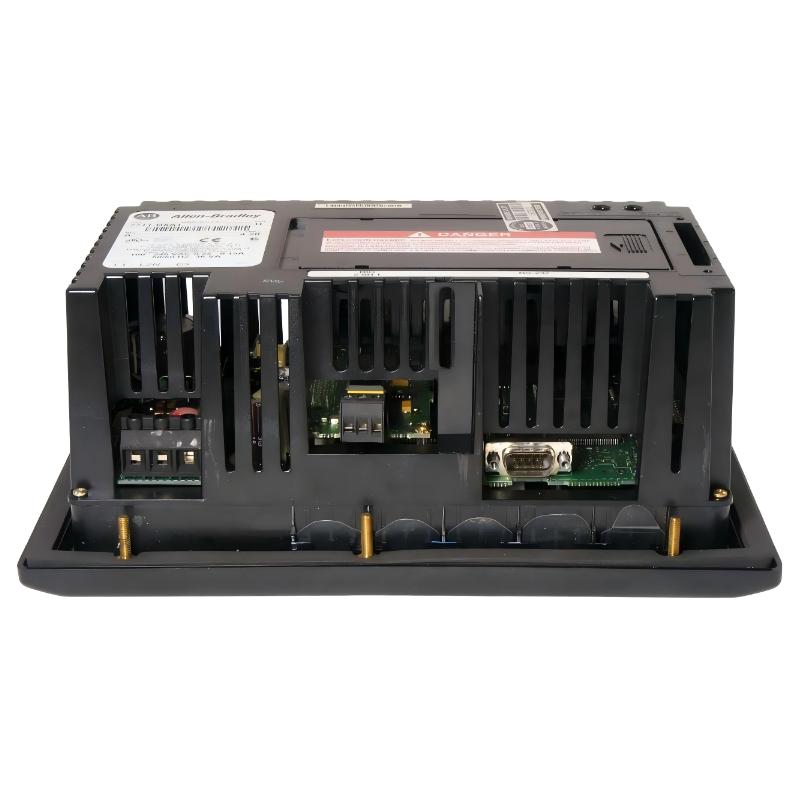

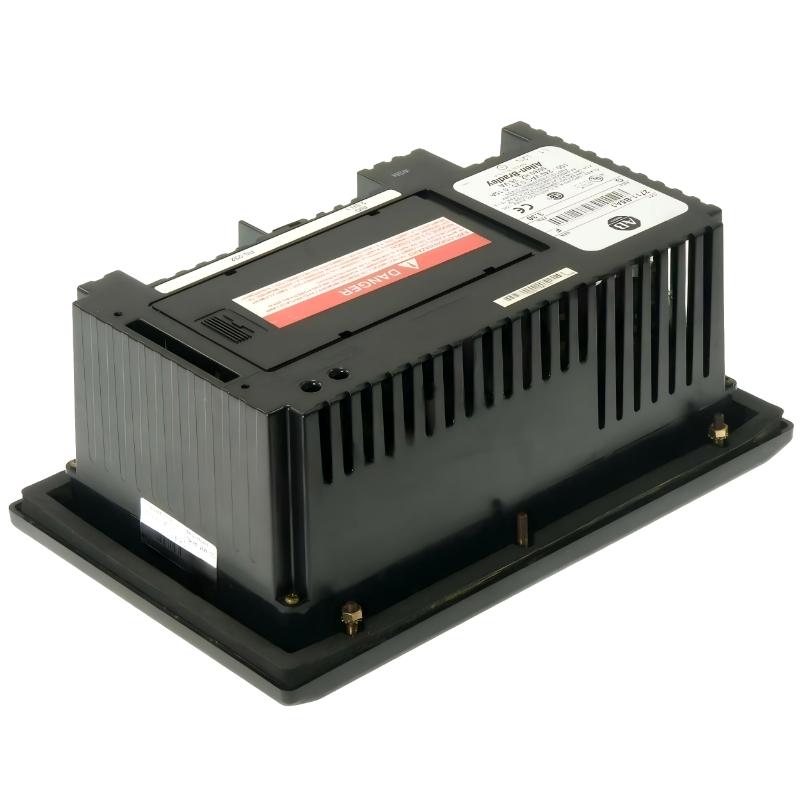

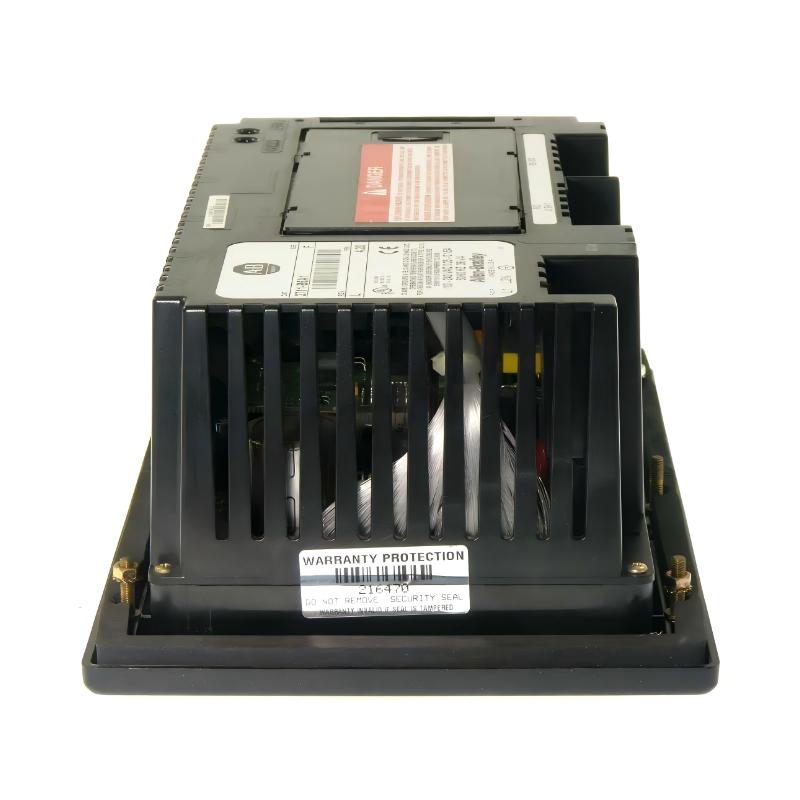

Allen Bradley 2711-B5A1 PanelView 550 HMI Terminal
Allen Bradley 2711-B5A1 PanelView 550 HMI Terminal
0.0
Points
Brand:Allen Bradley PLC Item No.:Allen Bradley 2711-B5A1 Product Origin:USA Product Dimensions:152 × 210 × 105 mm Product Weight:2.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 2711-B5A1 PanelView 550 is a compact Human Machine Interface (HMI) terminal designed to provide operators with reliable monitoring, control, and visualization capabilities in industrial automation environments. As part of the PanelView Standard series, this model is widely used in legacy Rockwell Automation systems where stable, simple, and proven operator interaction is required.

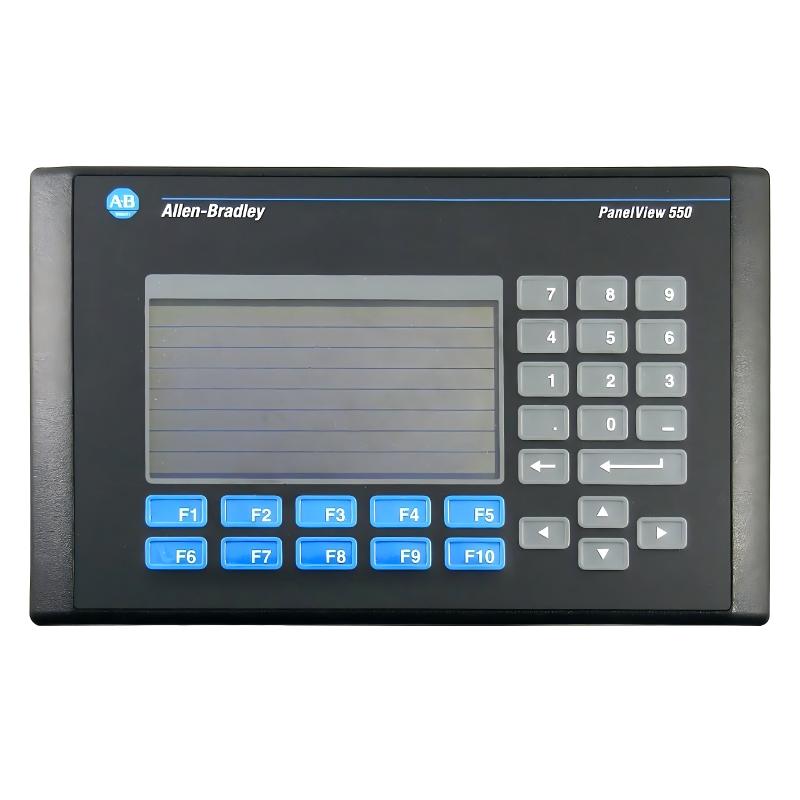

Built for small to mid-scale automation applications, the 2711-B5A1 combines a 5.5-inch monochrome display with keypad and touchscreen input, offering an efficient balance between usability and durability. It is especially suited for systems where rugged performance and long service life are more critical than high-resolution graphics.
Despite being an older-generation HMI, the PanelView 550 series remains in service across manufacturing plants worldwide due to its reliability, straightforward configuration, and strong compatibility with Remote I/O-based control architectures.
Technical Specifications
Specification
Details
Manufacturer
Allen Bradley (Rockwell Automation)
Product Series
PanelView 550 Standard
Catalog Number
2711-B5A1
Device Type
HMI / Operator Terminal
Display Size
5.5-inch Monochrome LCD (Blue Mode)
Resolution
256 × 128 pixels
Input Type
Touchscreen + Function Keypad
Function Keys
10 programmable keys (F1–F10)
Communication Ports
Remote I/O (RIO), RS-232 (printer/DF1)
Input Voltage
85–264V AC, 47–63 Hz
Power Consumption
~45 VA
Application Memory
~170 KB runtime
Nonvolatile Memory
~240 KB
Backlight Life
~100,000 hours LED
Operating Temperature
0°C to 55°C
Storage Temperature
-20°C to 70°C
Enclosure Type
Panel-mount industrial HMI
Dimensions
Approx. 152 × 210 × 105 mm
Weight
Approx. 2.0–2.5 kg
Recommended Related Models
Model
Description
2711-B5A2
PanelView 550 upgraded keypad variant
2711-T5A1
Touch-only PanelView 550 terminal
2711-NC13
RS-232 programming cable
2711-NL1
Replacement backlight module
2711P-T6C20D8
PanelView Plus 600 (modern upgrade)
2711P-T10C4D8
PanelView Plus 1000 HMI
1756-L55M12
ControlLogix PLC CPU
1747-L532
SLC 5/03 Controller
Popular Allen Bradley HMI & Control Systems
Model
Product Category
2711P-T7C4D8
PanelView Plus 700
2711P-T10C4D8
PanelView Plus 1000
2711R-T4T
PanelView 800 HMI
1756-L81E
ControlLogix Controller
1769-L24ER-QB1B
CompactLogix PLC
1734-AENTR
POINT I/O Ethernet Adapter
5069-IB16
Compact I/O Module
20G11NC072JA0NNNNN
PowerFlex 755 Drive
Industrial Applications
The Allen Bradley 2711-B5A1 is typically used in legacy automation systems where stable operator interaction and simple process visualization are required.
Common applications include:
Small manufacturing machines
Conveyor control panels
Packaging equipment
Pump and motor control systems
HVAC control panels
Water treatment systems
Food production machinery
Basic process automation lines
Industrial retrofit projects
Remote I/O-based PLC systems
Its Remote I/O communication capability makes it especially suitable for older Allen Bradley PLC architectures still operating in long-life industrial environments.
Key Advantages
Proven Legacy Reliability
The PanelView 550 series has a long-standing track record in industrial environments, valued for its stability and minimal downtime over decades of use.
Simple Operator Interface
The combination of function keys and touchscreen input provides intuitive machine control without complex navigation layers.
Strong Compatibility with Legacy PLC Systems
Designed for Remote I/O and RS-232 communication, it integrates easily with older Allen Bradley control systems.
Rugged Industrial Design
Built for harsh environments, it withstands vibration, electrical noise, and continuous operation.
Low Maintenance Requirement
With long backlight life and durable keypad construction, it requires minimal servicing compared to modern touchscreen-heavy HMIs.
Cost-Effective Retrofit Option
Ideal for maintaining or extending the life of legacy automation systems without full system replacement.
Technical FAQs
1. What is the Allen Bradley 2711-B5A1 used for?
It is an HMI terminal used for operator control, monitoring, and interaction with industrial automation systems.
2. What type of display does it use?
It uses a 5.5-inch monochrome blue-mode LCD display.
3. Does it support Ethernet communication?
No. It supports Remote I/O and RS-232 communication only.
4. Can it connect to modern PLC systems?
Not directly. It is mainly used with legacy Allen Bradley PLC systems or via gateway converters.
5. What is the input voltage range?
It operates on 85–264V AC, 47–63 Hz.
6. How many function keys does it have?
It includes 10 programmable function keys (F1–F10).
7. Is it touchscreen or keypad-based?
It is a hybrid device with both touchscreen and physical function keys.
8. What software is used to program it?
It is typically programmed using PanelBuilder 32 software.
9. Is the 2711-B5A1 still in production?
No. It is considered a legacy or discontinued product but still widely used in existing installations.
10. What is a modern replacement for this model?
Common upgrades include PanelView Plus series HMIs such as the 2711P-T6C20D8 or newer PanelView 800/Plus 7 models.
