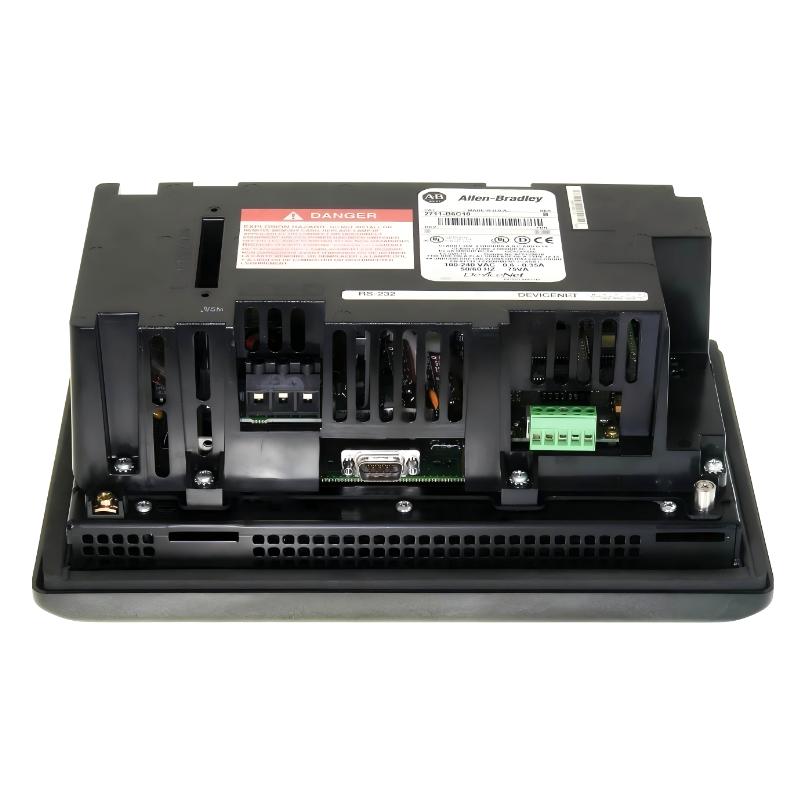

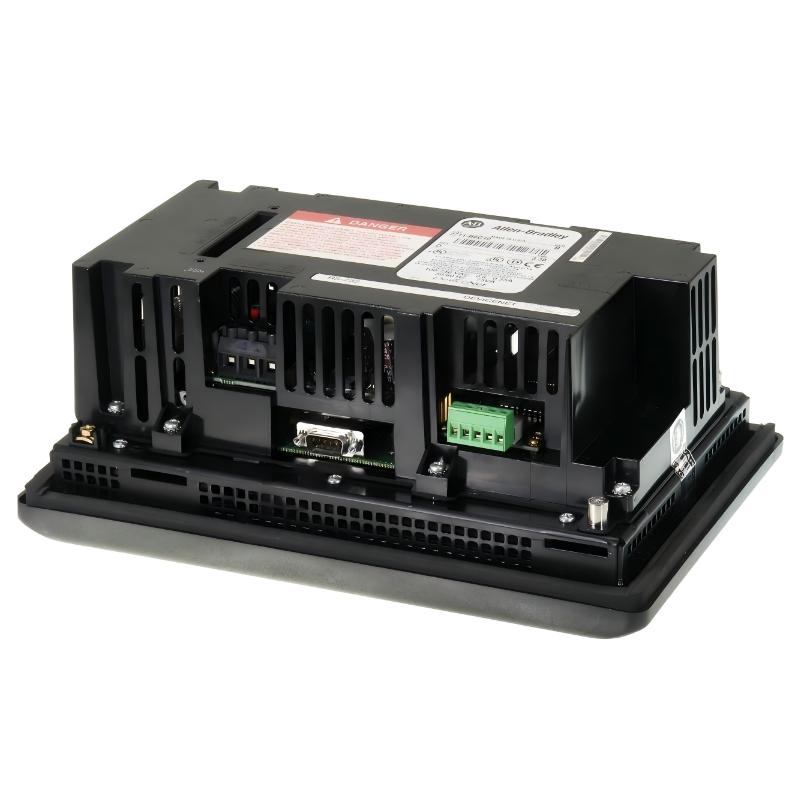

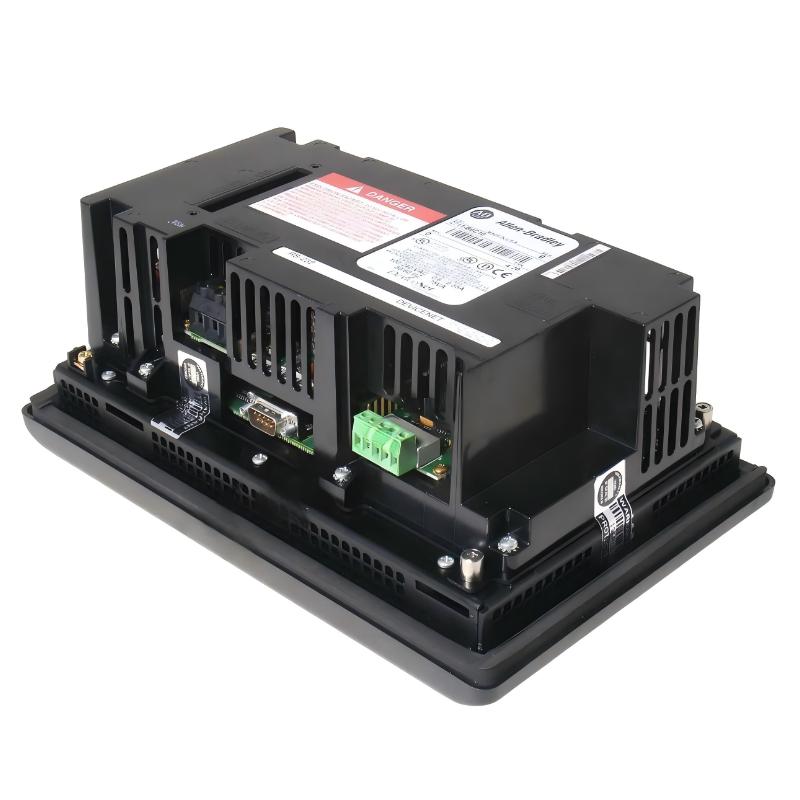

Allen Bradley 2711-B6C10 PanelView 600 HMI Terminal
Allen Bradley 2711-B6C10 PanelView 600 HMI Terminal
0.0
Points
Brand:Allen Bradley PLC Item No.:Allen Bradley 2711-B6C10 Product Origin:USA Product Dimensions:282 × 423 × 112 mm Product Weight:3.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 2711-B6C10 PanelView 600 is a compact industrial Human Machine Interface (HMI) designed to provide operators with clear visualization, machine control, and real-time monitoring in automation environments. As part of the PanelView Standard series, this model is widely deployed in legacy Allen-Bradley PLC systems where stable communication and durable operator interaction are essential.
Built for industrial reliability, the 2711-B6C10 combines a 5-inch color display with a hybrid keypad and touchscreen interface, enabling flexible operation in both manual and automated production systems. It supports DeviceNet communication, making it suitable for distributed control architectures commonly found in manufacturing, packaging, and process industries.
Although classified as a legacy product, the PanelView 600 series remains in active use globally due to its durability, straightforward programming environment, and long lifecycle performance in industrial applications.
Technical Specifications
Specification
Details
Manufacturer
Allen Bradley (Rockwell Automation)
Product Series
PanelView 600 Standard
Catalog Number
2711-B6C10
Device Type
HMI / Operator Terminal
Display Size
5-inch Color LCD
Resolution
320 × 234 pixels
Input Interface
Touchscreen + Keypad
Function Keys

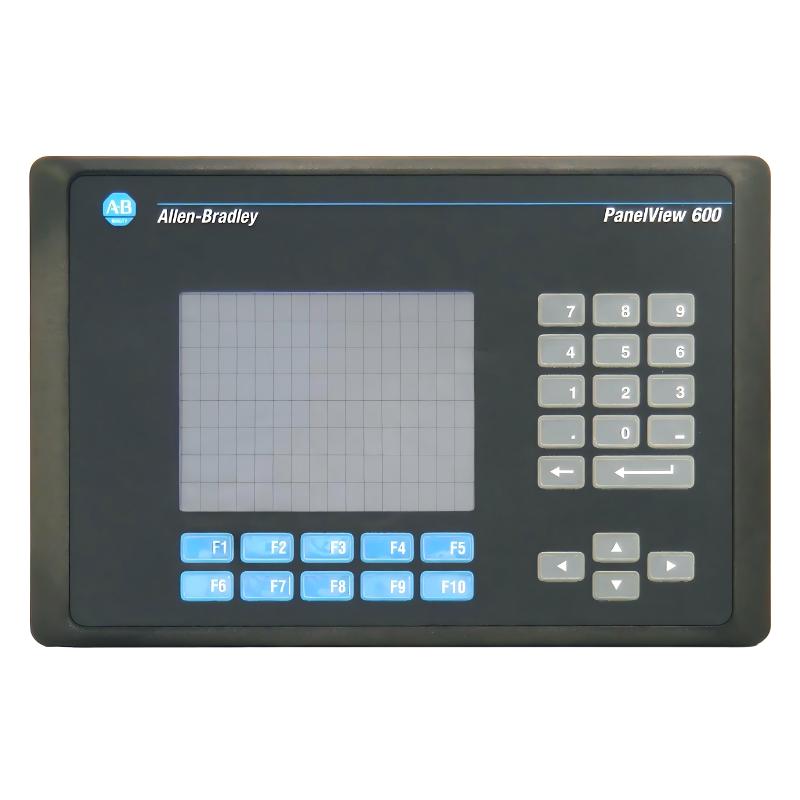

10 programmable function keys (F1–F10)
Communication Ports
DeviceNet, RS-232
Input Voltage
85–264V AC, 47–63 Hz
Power Consumption
~60 VA
Application Memory
~190 KB runtime
Nonvolatile Memory
~240 KB Flash
Memory Expansion
ATA card supported
Backlight
Field-replaceable
Operating Temperature
0°C to 55°C
Storage Temperature
-20°C to 70°C
Mounting Type
Panel mount
Dimensions
Approx. 282 × 423 × 112 mm
Weight
Approx. 3.0–3.5 kg
Recommended Related Models
Model
Description
2711-B6C1
PanelView 600 color variant
2711-B5A1
PanelView 550 compact HMI
2711-T6C10
Touch-only PanelView variant
2711-NL5
Replacement backlight module
2711-NC13
RS-232 programming cable
2711P-T6C20D8
PanelView Plus 600 (modern upgrade)
2711P-T10C4D8
PanelView Plus 1000 HMI
1769-L24ER-QB1B
CompactLogix PLC Controller
Popular Allen Bradley HMI & Control Portfolio
Model
Product Category
2711P-T7C4D8
PanelView Plus 700
2711P-T10C4D8
PanelView Plus 1000
2711R-T4T
PanelView 800 HMI
1756-L81E
ControlLogix CPU
1769-IF8
Analog Input Module
5069-OB16
Digital Output Module
1734-AENTR
POINT I/O Ethernet Adapter
20G11NC072JA0NNNNN
PowerFlex 755 Drive
Industrial Applications
The Allen Bradley 2711-B6C10 is typically used in legacy industrial systems where stable operator interaction and simple process visualization are required.
Common applications include:
Conveyor and material handling systems
Packaging machinery
Pump and motor control panels
HVAC systems
Water treatment facilities
Food and beverage production lines
Textile machines
Small process automation systems
OEM equipment panels
Retrofit industrial control systems
Its DeviceNet communication capability allows integration with Allen-Bradley PLC architectures and distributed I/O systems in established industrial networks.
Key Advantages
Proven Industrial Reliability
The PanelView 600 series is known for long-term stability in harsh industrial environments, with many units still operating after decades of service.
Dual Input Interface Flexibility
Combining touchscreen and keypad control allows operators to work efficiently even in gloves or high-noise environments.
Strong Legacy PLC Compatibility
DeviceNet and RS-232 support make it compatible with widely deployed Allen-Bradley PLC systems such as SLC and early ControlLogix platforms.
Rugged Industrial Construction
Designed for continuous-duty operation, it withstands vibration, electrical noise, and demanding factory conditions.
Low Maintenance Lifecycle
Field-replaceable backlight and robust hardware design reduce maintenance frequency and downtime risk.
Cost-Effective Retrofit Solution
Ideal for maintaining or extending the lifecycle of existing automation systems without full HMI modernization.
Technical FAQs
1. What is the Allen Bradley 2711-B6C10 used for?
It is an HMI terminal used for operator control and monitoring in industrial automation systems.
2. What display does it use?
It uses a 5-inch color LCD with 320 × 234 resolution.
3. What communication protocols are supported?
It supports DeviceNet and RS-232 communication interfaces.
4. Is it still in production?
No. It is a discontinued legacy model but still widely used in existing installations.
5. What software is used for programming?
It is typically programmed using PanelBuilder32 software.
6. Does it support Ethernet communication?
No. It relies on DeviceNet and serial communication rather than Ethernet.
7. What is the input voltage range?
It operates on 85–264V AC power supply.
8. Can it be upgraded easily?
Yes. Common upgrades include PanelView Plus 600 or PanelView Plus 1000 series HMIs.
9. Is it suitable for modern Industry 4.0 systems?
Not directly. It is mainly used in legacy systems unless integrated via gateways.
10. Why is it still widely used today?
Because of its durability, simplicity, and long-term compatibility with installed industrial control systems.
