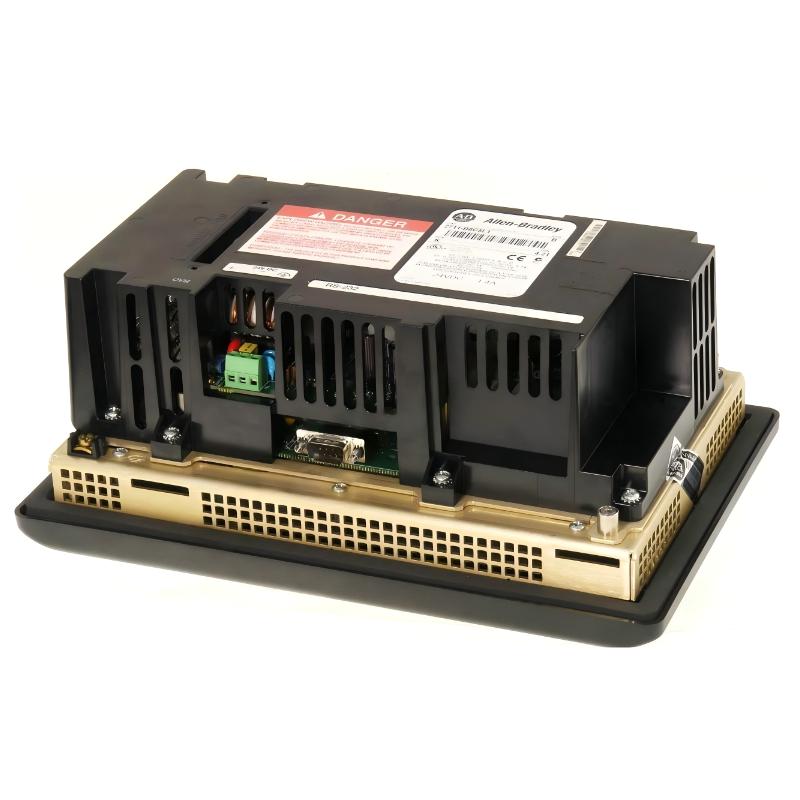

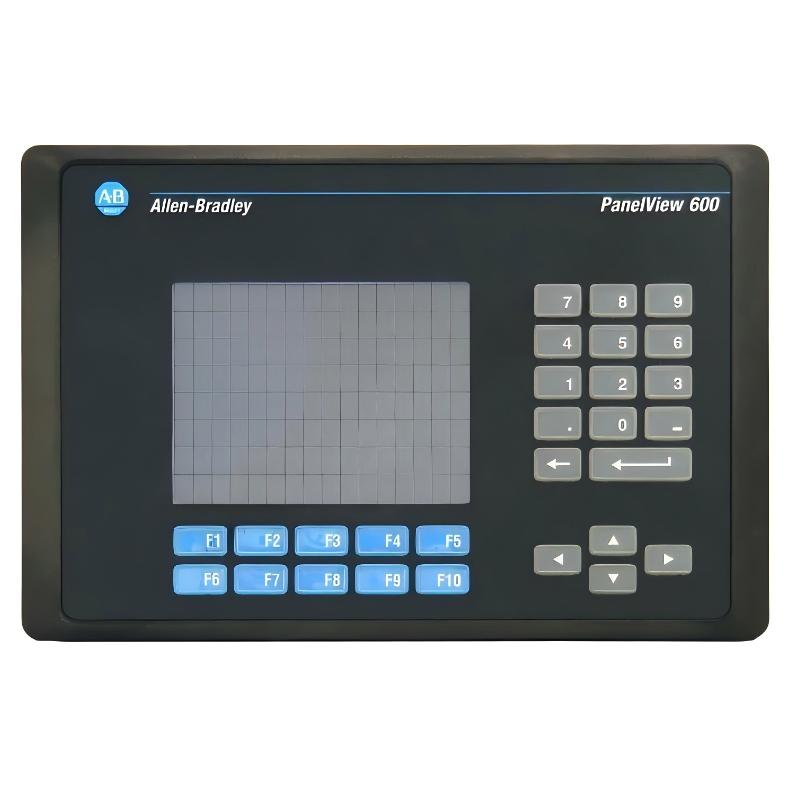

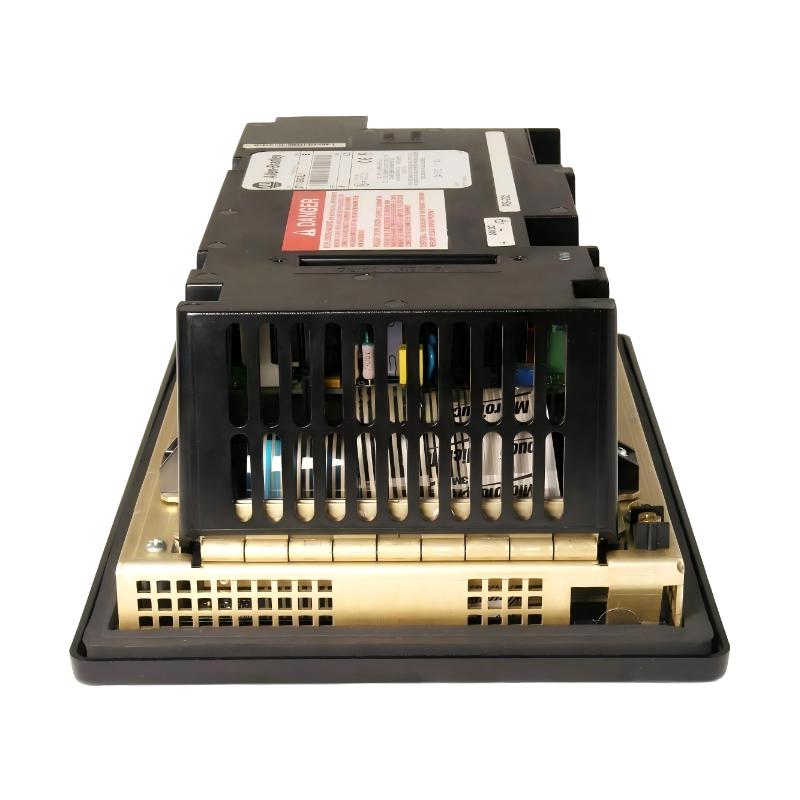

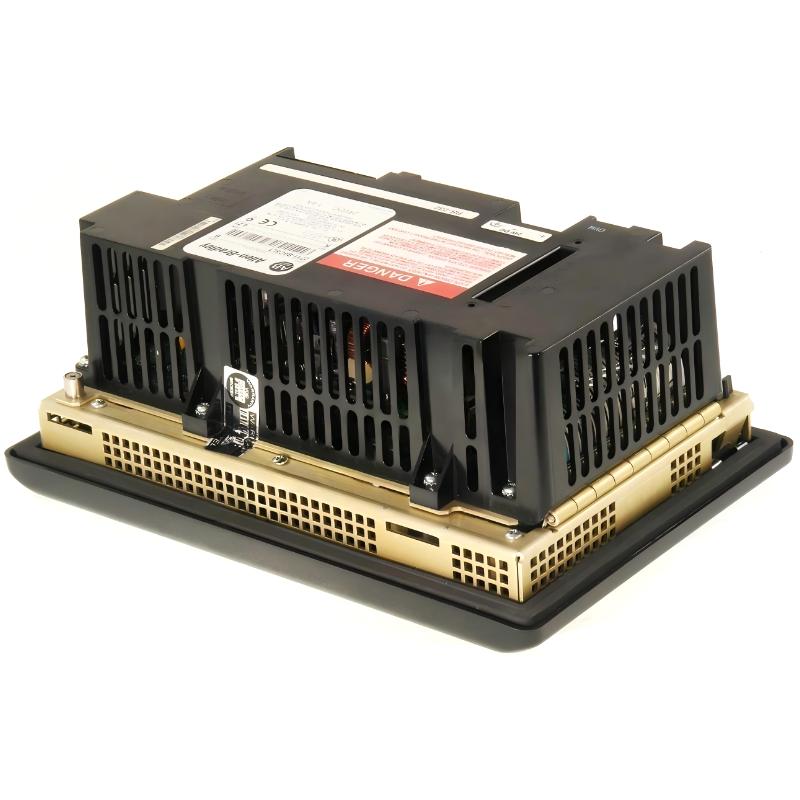

Allen Bradley 2711-B6C5L1 PanelView 600 HMI Terminal
Allen Bradley 2711-B6C5L1 PanelView 600 HMI Terminal
0.0
Points
Brand:Allen Bradley PLC Item No.:Allen Bradley 2711-B6C5L1 Product Origin:USA Product Dimensions:290 × 192 × 116 mm Product Weight:2.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 2711-B6C5L1 PanelView 600 is a rugged industrial Human Machine Interface (HMI) designed for operator-level control, monitoring, and visualization in legacy automation systems. As part of the PanelView Standard 600 series, it is widely used in established Allen-Bradley PLC environments where dependable communication, simple operation, and long service life are essential.
This model combines a color TFT display with keypad and touchscreen input, offering flexible operator interaction for both routine machine control and troubleshooting tasks. With support for serial-based industrial communication (DH-485 via RS-232), it remains a trusted interface in long-running manufacturing and process systems that prioritize stability over modernization.
Even as a discontinued product, the 2711-B6C5L1 continues to be heavily deployed in retrofit projects and installed-base support environments due to its robustness and proven industrial reliability.
Technical Specifications
Specification
Details
Manufacturer
Allen Bradley (Rockwell Automation)
Product Series
PanelView 600 Standard
Catalog Number
2711-B6C5L1
Device Type
HMI / Operator Terminal
Display Type
5–5.7 inch Color TFT LCD
Resolution
320 × 234 pixels
Input Interface
Touchscreen + 10 Function Keypad (F1–F10)
Communication Ports
RS-232 (DH-485 protocol)
Input Power
18–32 VDC (24V nominal)
Application Memory
~190 KB runtime
Nonvolatile Memory
~240 KB
Enclosure Rating
Industrial panel mount (NEMA/IP rated depending on installation)
Programming Software
PanelBuilder32
Backlight
LED / replaceable module
Operating Temperature
0°C to 55°C
Storage Temperature
-20°C to 70°C
Dimensions
Approx. 290 × 192 × 116 mm
Weight
Approx. 2.0–2.3 kg
Recommended Related Models
Model
Description
2711-B6C16
PanelView 600 color variant
2711-B6C10
PanelView 600 standard keypad model
2711-B5A1
PanelView 550 compact HMI
2711-T6C5
Touch-only PanelView 600 version
2711-NC13
RS-232 communication cable
2711-NL1
Replacement backlight module
2711P-T6C20D8
PanelView Plus 600 (modern replacement)
2711P-T10C4D8
PanelView Plus 1000 HMI
Popular Allen Bradley Automation Products
Model
Product Category
1756-L81E
ControlLogix CPU Module
1769-IF8
Analog Input Module
5069-OB16
Digital Output Module
1734-AENTR
POINT I/O Ethernet Adapter
2711P-T7C4D8
PanelView Plus 700 HMI
20G11NC072JA0NNNNN
PowerFlex 755 Drive
1606-XLE240E
Industrial Power Supply
1794-IE8
FLEX I/O Analog Module
Industrial Applications
The Allen Bradley 2711-B6C5L1 is commonly used in legacy automation systems where stable HMI operation and simple machine-level interaction are required.
Typical applications include:
Conveyor systems
Packaging machinery
Pump and motor control panels
HVAC automation systems
Water treatment plants
Food and beverage production lines
Textile machinery
Small process automation systems
OEM machine interfaces
Industrial retrofit and maintenance projects
Its RS-232 DH-485 communication makes it especially suitable for integration with older Allen-Bradley PLC families such as SLC 500 and MicroLogix systems.
Key Advantages
Proven Industrial Stability
Built on a widely deployed platform, the PanelView 600 series is known for consistent long-term operation in demanding industrial environments.
Flexible Operator Interaction
The combination of touchscreen and physical function keys allows fast, reliable control even in high-speed production environments.
Strong Legacy PLC Compatibility
Designed to integrate seamlessly with DH-485 and RS-232-based Allen-Bradley PLC systems.
Rugged Industrial Design
Engineered for vibration resistance, electrical noise immunity, and continuous-duty operation in factory environments.
Low Maintenance Requirements
Durable hardware and replaceable components help reduce downtime and lifecycle maintenance costs.
Cost-Effective System Longevity
Ideal for extending the operational life of existing automation systems without full system replacement.
Technical FAQs
1. What is the Allen Bradley 2711-B6C5L1 used for?
It is an industrial HMI used for machine monitoring, control, and operator interaction.
2. What type of display does it use?
It uses a 5–5.7 inch color TFT LCD with 320 × 234 resolution.
3. Does it support Ethernet communication?
No, it uses RS-232 with DH-485 protocol and does not support Ethernet.
4. What PLC systems is it compatible with?
It is commonly used with SLC 500, MicroLogix, and PLC-5 systems.
5. What software is used for configuration?
It is programmed using PanelBuilder32 software.
6. Is the 2711-B6C5L1 still manufactured?
No, it is a discontinued legacy model but still widely used in existing installations.
7. What is its power requirement?
It operates on 18–32 VDC (24V nominal supply).
8. Can it be upgraded to a modern HMI?
Yes, typical upgrades include PanelView Plus 600 or newer PanelView Plus 7 series HMIs.
9. Is it suitable for Industry 4.0 systems?
Not directly; it is primarily used in legacy automation architectures.
10. Why is it still widely used today?
Because of its durability, simplicity, and strong compatibility with long-life industrial PLC systems.
