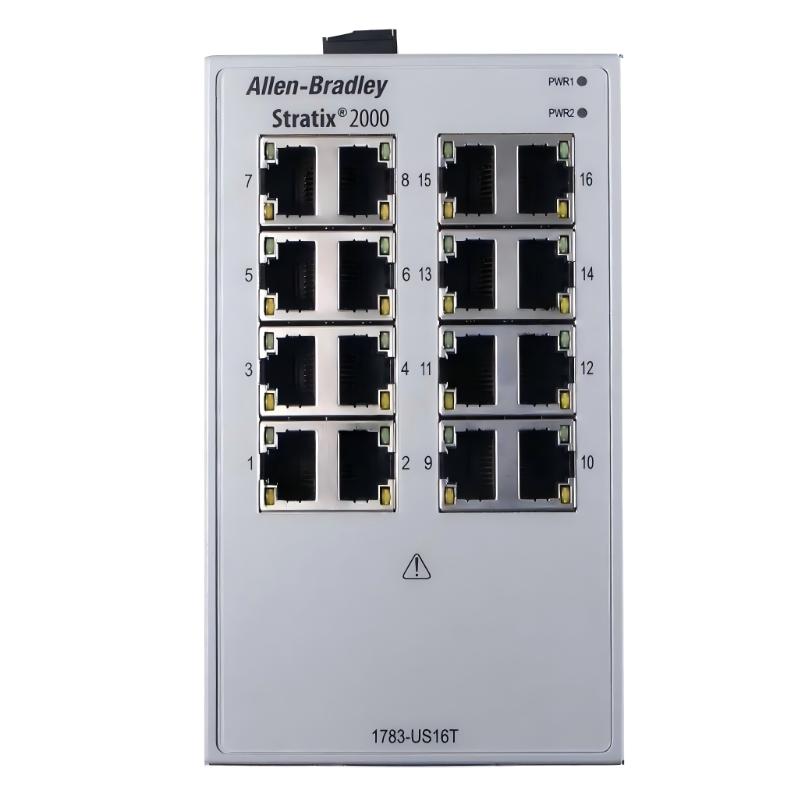

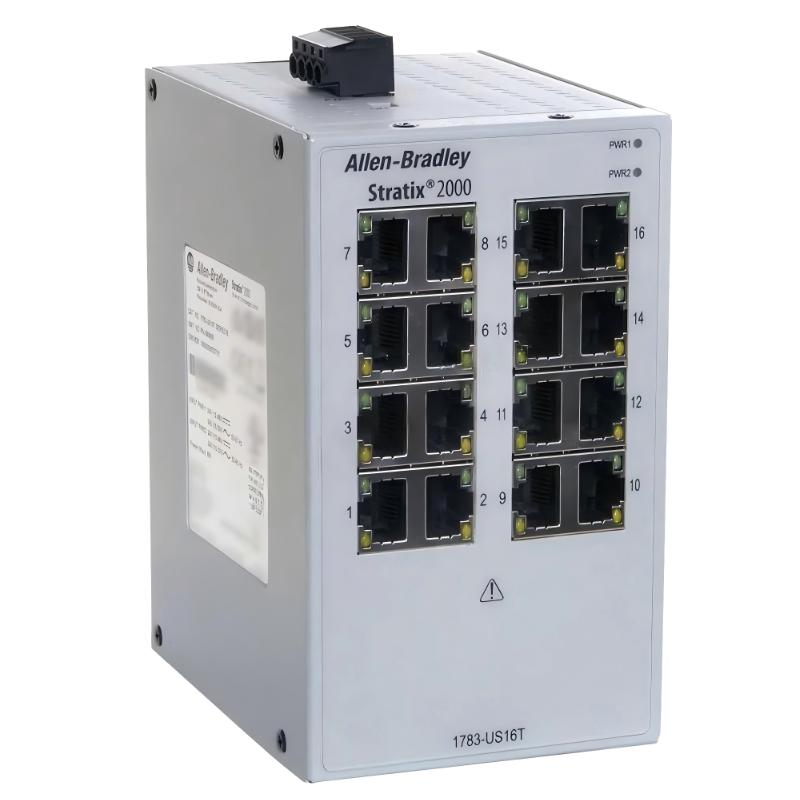

Allen Bradley 1783-US16T Stratix 2000 Unmanaged Ethernet Switch
Allen Bradley 1783-US16T Stratix 2000 Unmanaged Ethernet Switch
0.0
Points
Brand:Allen Bradley PLC Item No.:1783-US16T Product Origin:USA Product Dimensions:146.3 × 88 × 135 mm Product Weight:0.98 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1783-US16T Stratix 2000 is an unmanaged industrial Ethernet switch designed to provide simple and reliable network connectivity in automation environments. It is commonly used in PLC-based systems where multiple devices need to communicate over standard Ethernet without requiring advanced configuration.
Technical Specifications
Parameter
Specification
Product Type
Unmanaged Ethernet Switch
Series
Stratix 2000
Model
1783-US16T
Ports
16 × 10/100 Mbps RJ45
Switching Layer
Layer 2 (unmanaged)
Network Type
Industrial Ethernet
Mounting Type
DIN rail
Power Input
12–48 V DC (typical industrial range)
Operating Temperature
-40°C to 70°C
Dimensions
146.3 × 88 × 135 mm
Weight
0.98 kg
Recommended Related Models
Model
Product Name
1783-US8T
Allen Bradley Stratix 2000 8-Port Unmanaged Switch
1783-US12T
Allen Bradley Stratix 2000 12-Port Unmanaged Switch
1783-US6T2F
Allen Bradley Stratix 2000 Fiber Unmanaged Switch
1783-US16B
Allen Bradley Stratix 2000 Compact Unmanaged Switch Variant
Popular Related Models
Model
Product Name
1783-BMS06SL
Allen Bradley Stratix 5700 Managed Ethernet Switch
1783-BMS10CGP
Allen Bradley Stratix 5700 10-Port Managed Switch
1783-ETAP1F
Allen Bradley EtherNet/IP Fiber Tap
1783-SFP1GSX
Allen Bradley Gigabit SFP Module
Applications
• Industrial Ethernet distribution for PLC-based automation networks
• Connecting PLCs, HMIs, drives, and remote I/O devices in machine-level systems
• Simple star-topology networking in packaging and material handling lines
• Factory-floor communication backbone where unmanaged switching is sufficient
• Retrofit replacement for legacy unmanaged Ethernet switches in control cabinets
• Local device interconnection in small-to-medium industrial automation cells
• Cost-effective network expansion in deterministic control environments
Advantages
• Plug-and-play unmanaged design enables fast deployment without configuration
• 16-port architecture supports dense device connectivity in compact cabinets
• Industrial-grade construction ensures reliable operation in harsh environments
• Stable Ethernet performance for 10/100 Mbps industrial communication
• DIN-rail mounting simplifies installation in standard control panels
• Proven Stratix 2000 reliability for legacy industrial networking systems
Technical FAQs
Q1: What is the main function of the 1783-US16T?
It is an unmanaged industrial Ethernet switch used to connect multiple automation devices in a network.
Q2: Does it require configuration or software setup?
No, it is a plug-and-play unmanaged switch with no configuration required.
Q3: How many ports does it provide?
It provides 16 Fast Ethernet (10/100 Mbps) copper ports.
Q4: Can it be used in managed network environments?
Yes, but it does not support VLANs, routing, or advanced network management features.
Q5: Is it suitable for industrial environments?
Yes, it is designed for vibration, electrical noise, and temperature variations typical in factories.
Q6: Does it support fiber connections?
No, this model is copper-only and does not include SFP ports.

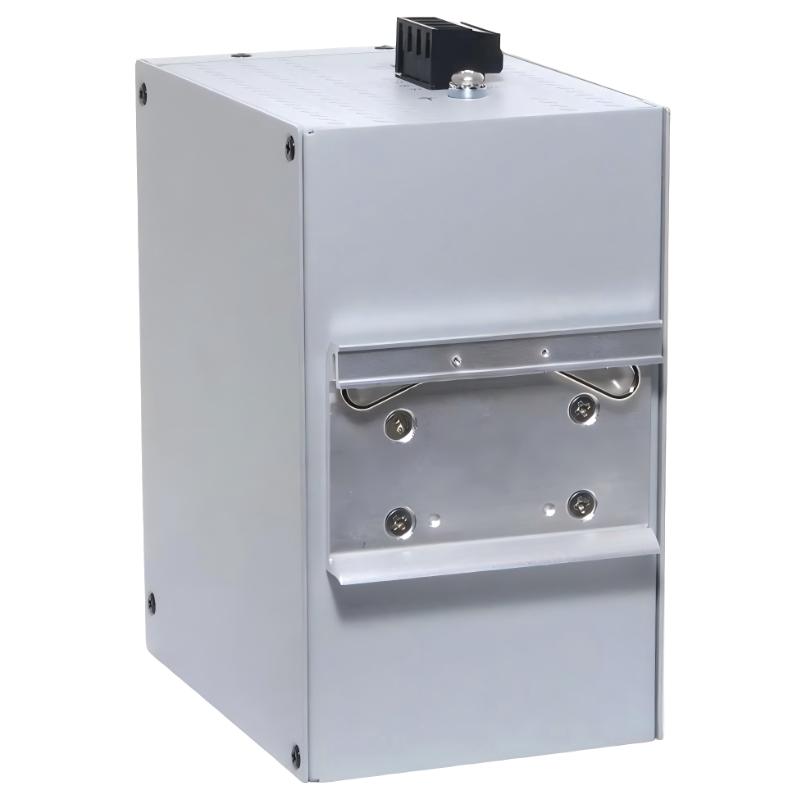

Q7: What type of mounting does it use?
It is designed for DIN rail installation inside control cabinets.
Q8: Is it still in production?
No, it has been discontinued and replaced by newer Stratix 2000 variants.
Q9: What happens if one port fails?
Only the connected device is affected; other ports continue operating normally.
Q10: Can it handle high-speed gigabit traffic?
No, it is limited to 10/100 Mbps Ethernet speeds.
