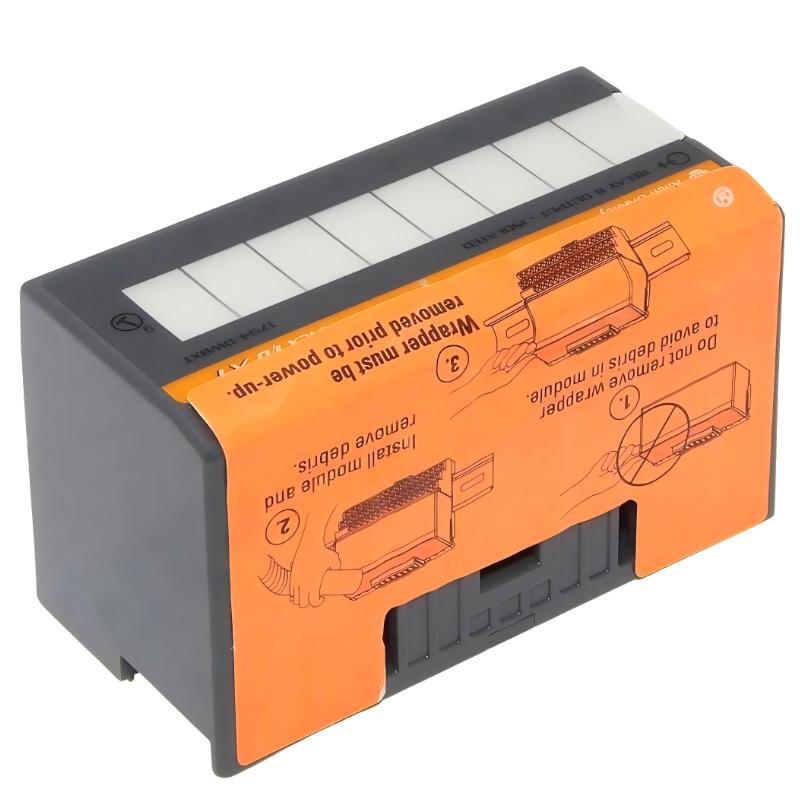

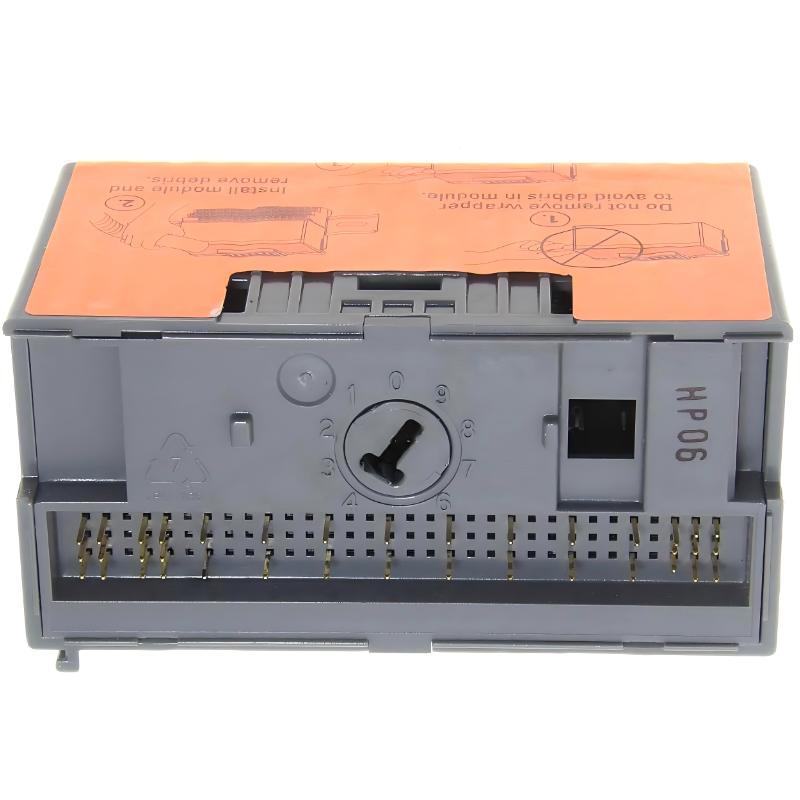

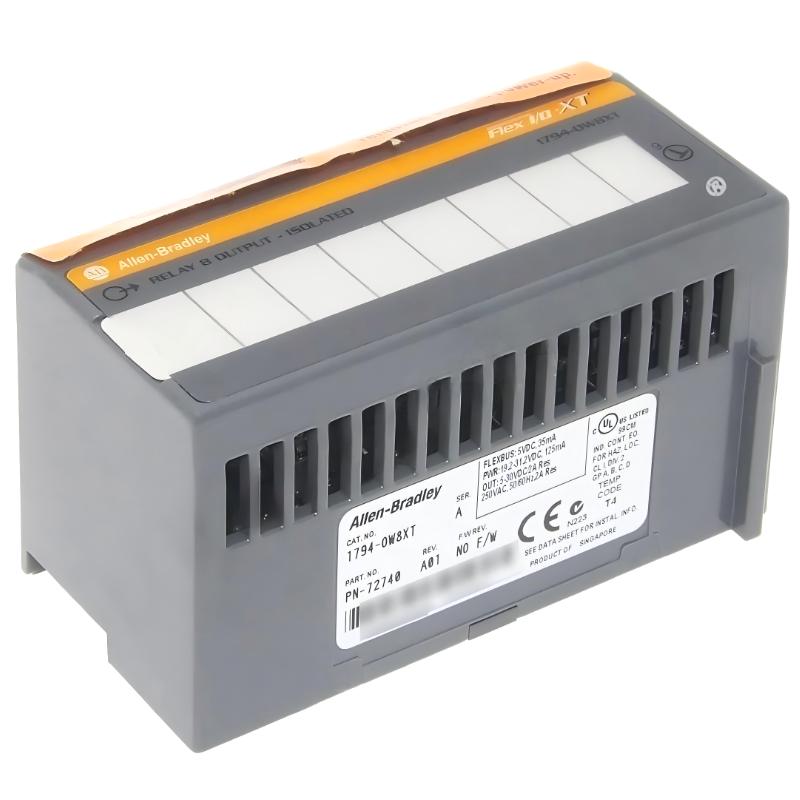

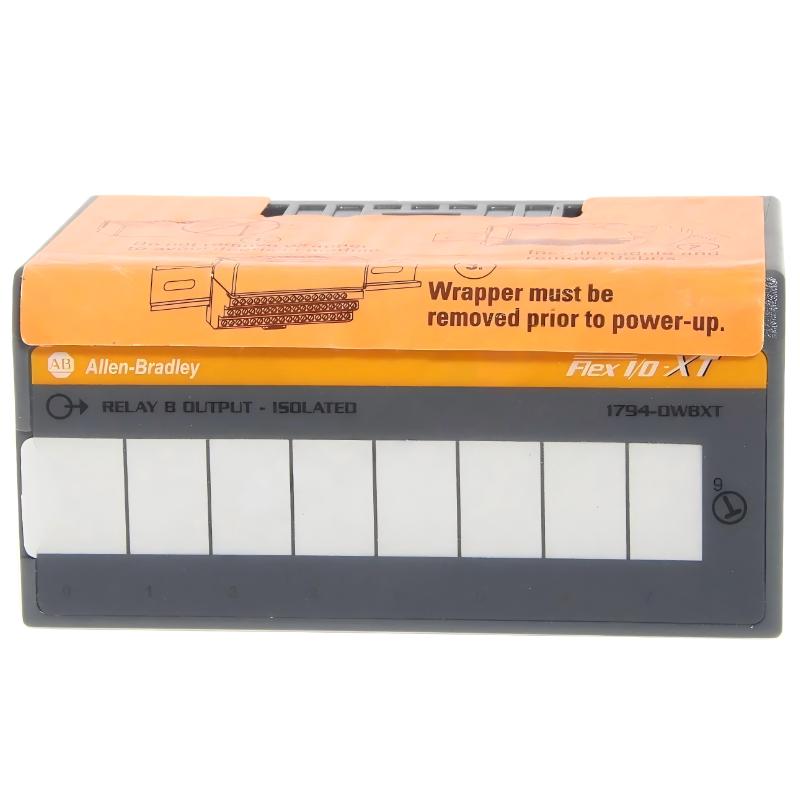

Allen Bradley 1794-OW8XT Flex I/O-XT Output Module
Allen Bradley 1794-OW8XT Flex I/O-XT Output Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1794-OW8XT Product Origin:USA Product Dimensions:97 x 46 x 53 mm Product Weight:0.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 1794-OW8XT Flex I/O-XT Output Module is a compact industrial relay output module engineered for distributed automation systems operating in demanding environments. It provides 8 relay outputs for reliable switching of industrial field devices in both AC and DC applications.
As part of the Flex I/O-XT family, the module is specifically designed to withstand harsh environmental conditions while maintaining dependable performance. Its modular architecture allows installation close to field equipment, reducing wiring complexity and improving overall system flexibility.
The 1794-OW8XT is widely used in oil and gas facilities, power plants, heavy manufacturing, and process automation systems where rugged and reliable distributed I/O solutions are required.
Technical Specifications
Parameter
Specification
Product Model
1794-OW8XT
Product Type
Flex I/O-XT Relay Output Module
Brand
Allen-Bradley
Output Type
Relay outputs
Number of Outputs
8 channels
Load Compatibility
AC/DC loads
System Platform
Flex I/O-XT
Mounting Type
DIN rail / terminal base
Application
Distributed industrial I/O control
Dimensions
97 × 46 × 53 mm
Weight
0.1 kg (0.22 lb)
Industrial Applications
The Allen-Bradley 1794-OW8XT is a rugged Flex I/O-XT relay output module designed for industrial automation systems operating in harsh environments. It provides reliable relay-based switching control for distributed I/O applications where extreme temperatures and demanding operating conditions are present.
Typical applications include:
Oil and gas automation systems
Power generation control systems
Petrochemical plant automation
Remote industrial I/O installations
Heavy-duty manufacturing systems
Conveyor and material handling equipment
Motor starter and relay control circuits
Process automation systems in harsh environments
Product Advantages
8-channel relay output configuration
Designed for harsh industrial environments
Supports both AC and DC load switching
Extended temperature Flex I/O-XT design
Compact modular distributed I/O architecture
Strong electrical isolation between field and control systems
Reliable operation under demanding conditions
Compatible with Allen-Bradley Flex I/O-XT platforms
Technical FAQs
1. What is the main function of this module?
It provides relay-based output switching for industrial control systems.
2. How many outputs does it have?
It features 8 relay output channels.
3. What makes the XT version different?
The XT version is designed for extended temperature and harsh environment applications.
4. What types of loads can it control?
It can switch AC and DC industrial loads such as relays, solenoids, and contactors.
5. What industries commonly use this module?
Oil & gas, power generation, petrochemical, mining, and heavy manufacturing industries.
6. What automation platform uses this module?
It belongs to the Allen-Bradley Flex I/O-XT distributed I/O platform.
7. Is it suitable for remote I/O systems?
Yes, it is designed for distributed and remote industrial control architectures.
8. Why are relay outputs important?
Relay outputs provide electrical isolation and support multiple voltage types.
9. How is the module installed?
It mounts onto a Flex I/O terminal base with DIN rail installation.
10. What is the benefit of Flex I/O-XT architecture?
It provides modular expansion and reliable operation in extreme industrial environments.
