Allen Bradley 1794SC-IF8IU 8-Channel General-Purpose Isolated Analog Input Module
Allen Bradley 1794SC-IF8IU 8-Channel General-Purpose Isolated Analog Input Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1794SC-IF8IU Product Origin:USA Product Dimensions:94 x 94 x 69 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

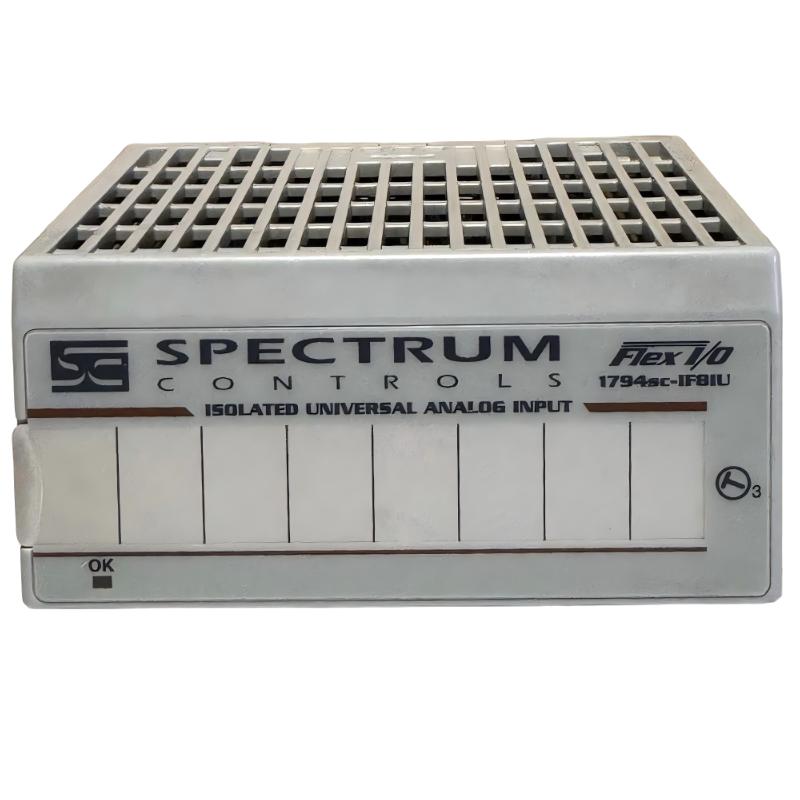

The Allen-Bradley / Spectrum Controls 1794SC-IF8IU is a high-flexibility industrial analog input module designed for Flex I/O platforms. It provides 8 fully isolated channels capable of handling a wide range of analog signal types, including voltage, current, thermocouples, and RTDs.
Its universal input design allows each channel to be independently configured, reducing the need for multiple specialized modules. This makes it ideal for complex industrial environments where different types of sensors are used in the same system.
The module is widely used in process industries, energy systems, and manufacturing automation where reliable, noise-resistant analog signal acquisition is critical.
Technical Specifications
Parameter
Specification
Product Model
1794SC-IF8IU
Product Type
Universal Isolated Analog Input Module
System Platform
Flex I/O
Number of Channels
8
Input Types
Voltage, current, thermocouple, RTD/resistance
Isolation
Channel-to-channel isolated
Resolution
High-resolution analog conversion
Configuration
Independent per channel
Application
Industrial data acquisition
Installation
Flex I/O modular system
Dimensions
94 × 94 × 69 mm
Weight
0.3 kg (0.66 lb)
Industrial Applications
The 1794SC-IF8IU is an 8-channel universal isolated analog input module designed for Flex I/O systems. It is used in industrial automation where multiple types of analog signals must be collected with high accuracy and strong electrical isolation.
Typical applications include:
Process control systems
Oil & gas monitoring systems
Power generation instrumentation
Chemical and petrochemical plants
Temperature and pressure monitoring systems
Machine condition monitoring
Mixed-signal industrial data acquisition
Distributed remote I/O systems
Product Advantages
8 fully isolated analog input channels
Supports multiple signal types in one module
Accepts voltage, current, thermocouple, and RTD inputs
High electrical isolation between channels
Flexible configuration per channel
High-resolution measurement capability
Strong noise immunity for industrial environments
Reduces need for multiple dedicated analog modules
Technical FAQs
1. What is the main function of this module?
It collects and converts multiple types of analog signals into PLC-readable data.
2. How many input channels does it have?
It has 8 isolated analog input channels.
3. What signal types does it support?
It supports voltage, current, thermocouples, and RTD/resistance inputs.
4. Why is isolation important?
Isolation improves signal accuracy and protects against electrical noise and faults.
5. What industries use this module?
Oil & gas, power generation, chemical processing, and manufacturing.
6. Is it suitable for mixed signal applications?
Yes, each channel can be configured independently for different signal types.
7. Does it reduce system cost?
Yes, it replaces multiple dedicated analog input modules with one universal module.
8. What is its role in a control system?
It acts as a data acquisition interface between field sensors and the PLC.
9. Is it used in distributed systems?
Yes, it is commonly used in remote Flex I/O installations.
10. Why is flexibility important?
Because it allows multiple sensor types to be integrated into a single module.
