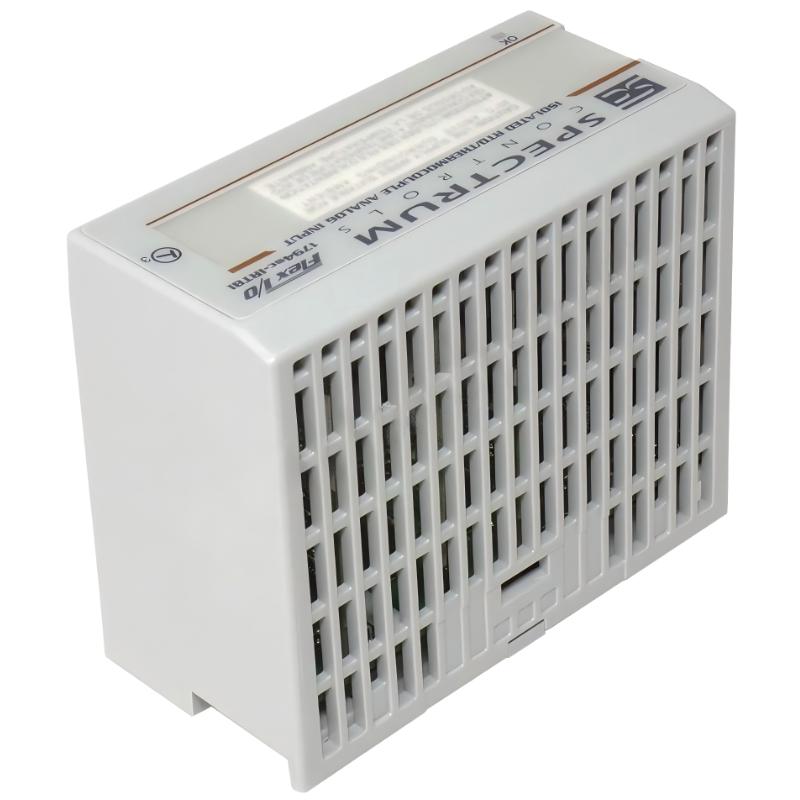

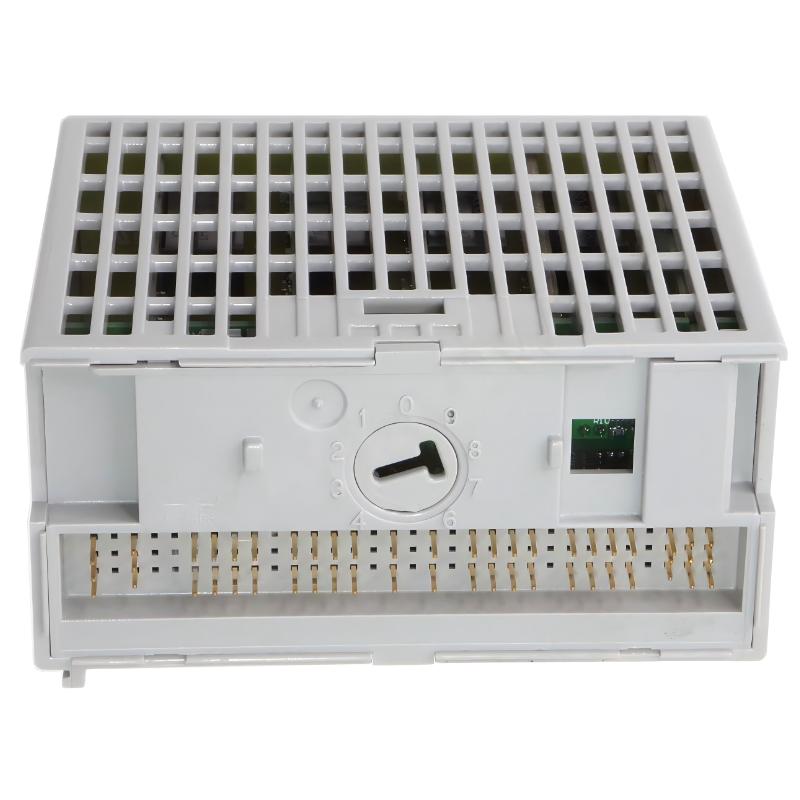

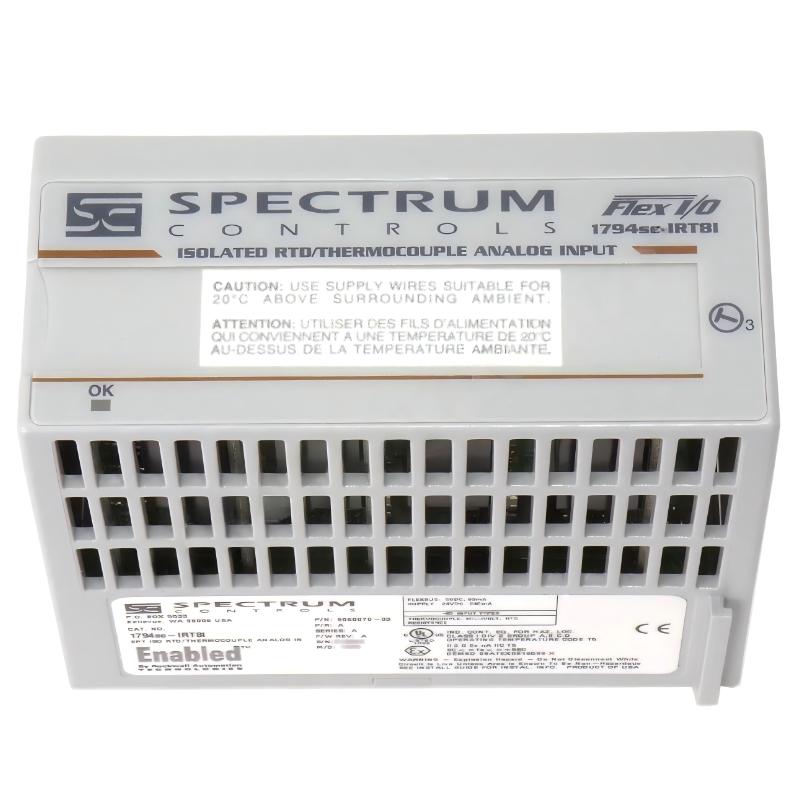

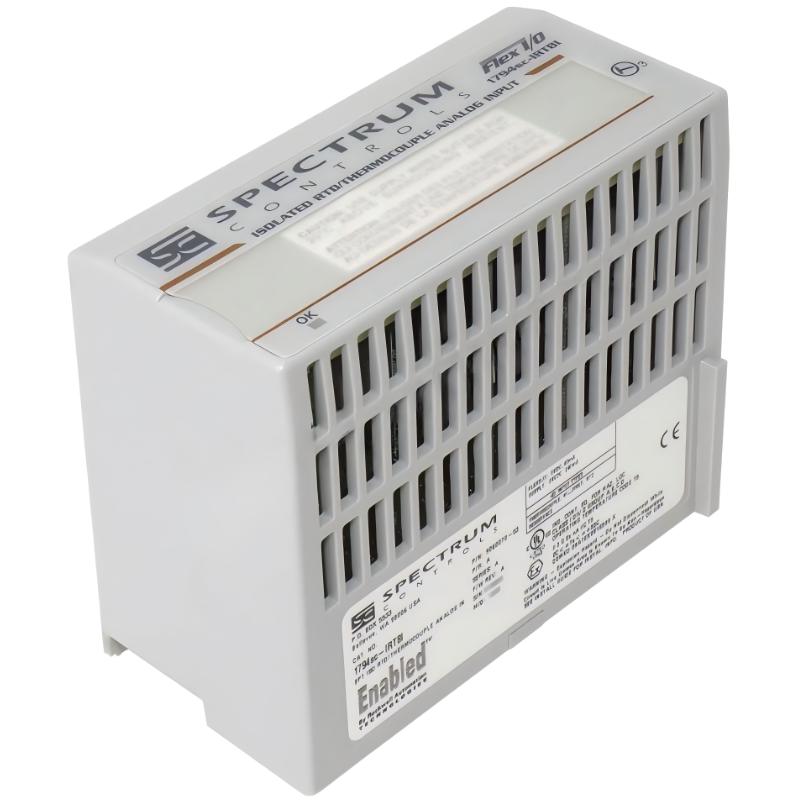

Allen Bradley 1794SC-IRT8I 8-Channel General-Purpose Isolated Analog Input Module

Industrial Applications

The 1794SC-IRT8I is an 8-channel fully isolated universal analog input module designed for Flex I/O systems. It is used in industrial environments where multiple types of temperature and resistance signals must be measured with high accuracy and strong electrical isolation.

Typical applications include:

• Industrial temperature monitoring systems
• Oil & gas process instrumentation
• Power plant condition monitoring
• Chemical and petrochemical processing
• Machine health and diagnostics systems
• Multi-sensor data acquisition systems
• Distributed control and monitoring systems
• High-noise industrial environments requiring isolation

Product Advantages

• 8 fully isolated input channels
• Supports multiple signal types (thermocouple, RTD, resistance)
• High noise immunity for harsh environments
• Flexible channel configuration
• Suitable for mixed-sensor applications
• Improves signal accuracy in industrial conditions
• Reduces need for multiple dedicated modules
• Designed for distributed Flex I/O systems

Technical FAQs

1. What is the main function of this module?

It collects and converts multiple analog signals into PLC-readable data.

2. How many channels does it have?

It has 8 isolated analog input channels.

3. What signal types does it support?

It supports thermocouples, RTDs, and resistance inputs depending on configuration.

4. Why is isolation important?

Isolation reduces electrical noise and protects against ground loops and interference.

5. What industries use this module?

Oil & gas, power generation, chemical processing, manufacturing, and utilities.

6. Is it suitable for mixed sensor systems?

Yes, each channel can be configured independently for different input types.

7. What is its main advantage over standard analog modules?

It combines multi-signal capability with channel isolation for higher reliability.

8. Can it be used in harsh environments?

Yes, it is designed for industrial environments with high electrical noise.

9. What system does it belong to?

It is part of the Allen-Bradley Flex I/O distributed I/O platform.

10. Why is flexibility important here?

Because it allows multiple sensor types to be integrated into one module.
