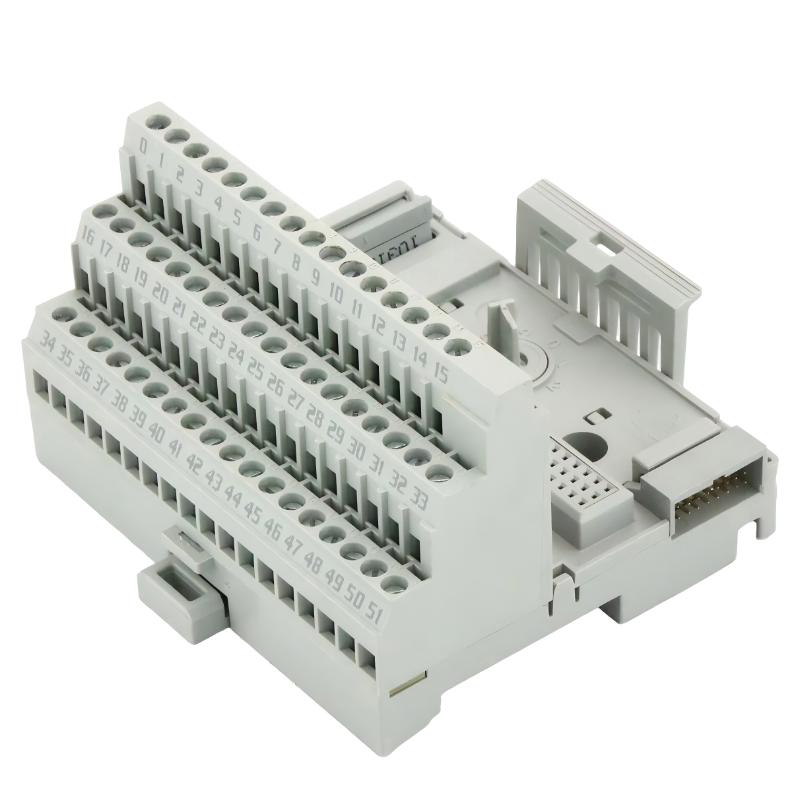

Allen Bradley 1794-TB3G Flex I/O Tterminal Base Unit
Allen Bradley 1794-TB3G Flex I/O Tterminal Base Unit
0.0
Points
Brand:Allen Bradley PLC Item No.:1794-TB3G Product Origin:USA Product Dimensions:94 x 94 x 69 mm Product Weight:0.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 1794-TB3G Flex I/O Terminal Base Unit is a grounded screw-clamp docking interface used in Flex I/O distributed control systems. It serves as the physical and electrical connection point between field wiring and I/O modules.
By separating wiring from the I/O module itself, the system allows fast replacement of modules without disturbing field wiring. This reduces downtime and simplifies maintenance in industrial environments.
The 1794-TB3G is commonly used in applications requiring reliable grounding, modular expansion, and flexible I/O configurations in distributed automation systems.
Technical Specifications
Parameter
Specification
Product Model
1794-TB3G
Product Type
Flex I/O Terminal Base Unit
Brand
Allen-Bradley
System Platform
Flex I/O
Terminal Type
Grounded screw-clamp
Function
Wiring and backplane interface
Module Compatibility
Digital / analog Flex I/O modules
Mounting Type
DIN rail
Application
Distributed industrial automation
Dimensions
94 × 94 × 69 mm
Weight
0.2 kg (0.44 lb)
Industrial Applications
The Allen-Bradley 1794-TB3G is a Flex I/O grounded screw-clamp terminal base unit used as the wiring and docking interface for Flex I/O modules in distributed industrial automation systems. It provides the electrical connection between field wiring and I/O modules, enabling modular and flexible system design.
Typical applications include:
PLC-based distributed I/O systems
Manufacturing automation systems
Process control applications
Conveyor and material handling systems
Packaging and assembly machinery
Remote I/O stations
Machine control systems
Industrial panel wiring systems
Product Advantages
Grounded terminal base design for improved electrical safety
Supports Flex I/O digital, analog, and specialty modules
Modular plug-in structure for easy maintenance
Enables fast module replacement without rewiring
Reduces control cabinet wiring complexity
DIN rail mounting for flexible installation
Stable backplane and field wiring interface
Suitable for distributed automation architectures
Technical FAQs
1. What is the main function of this unit?
It provides the wiring and electrical interface between Flex I/O modules and field devices.
2. Does it process signals?
No, it only provides electrical connection and routing.
3. What system is it used in?
It is part of the Allen-Bradley Flex I/O distributed I/O platform.
4. What does “G” in TB3G mean?
It indicates a grounded version with improved electrical grounding design.
5. Can modules be replaced without rewiring?
Yes, field wiring remains on the base during module replacement.
6. What types of modules are supported?
Digital, analog, relay, and specialty Flex I/O modules.
7. How is it installed?
It mounts on a DIN rail as part of a modular assembly.
8. Why is a terminal base important?
It provides structured wiring termination and system connectivity.
9. What industries use it?
Manufacturing, oil & gas, automotive, packaging, and process industries.
10. Is it reusable?
Yes, the base remains installed while modules are swapped.
