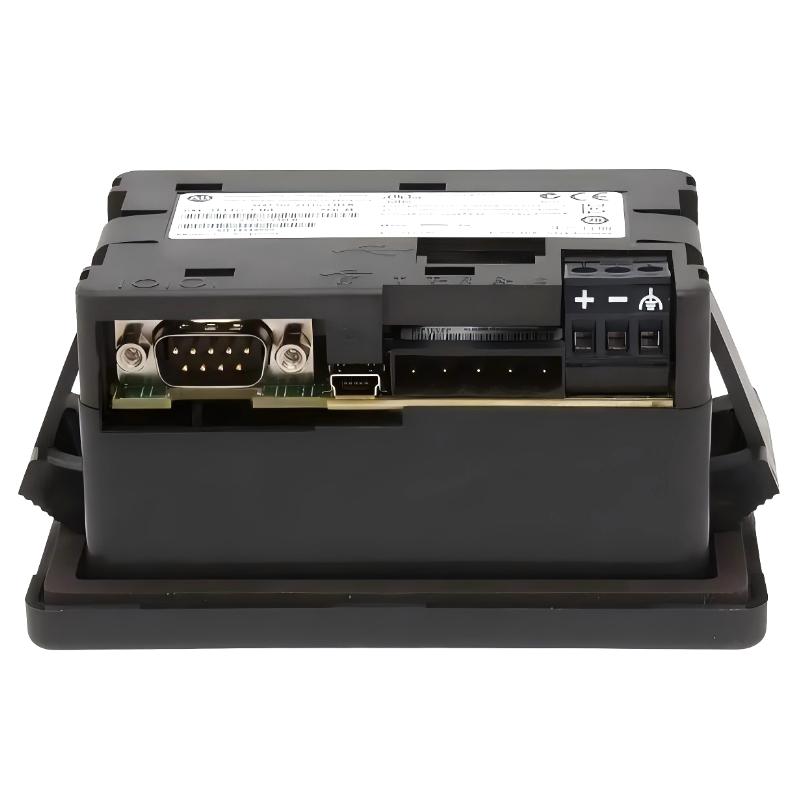

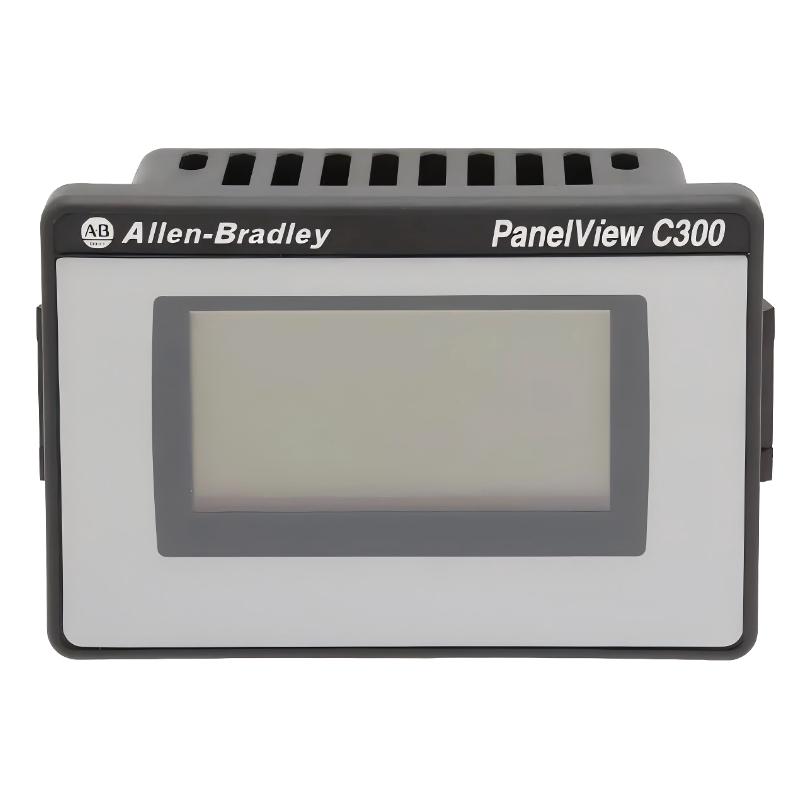

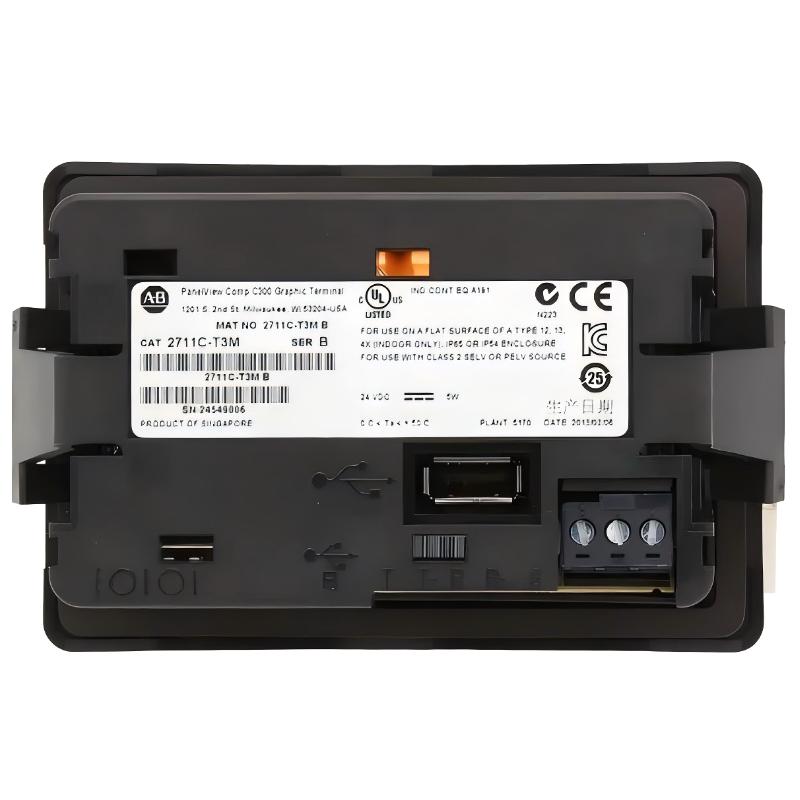

Allen Bradley 2711C-T3M Operator Interface Terminal
Allen Bradley 2711C-T3M Operator Interface Terminal
0.0
Points
Brand:Allen Bradley PLC Item No.:Allen Bradley 2711C-T3M Product Origin:USA Product Dimensions:105 × 105 × 55 mm Product Weight:0.6 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 2711C-T3M PanelView Component terminal is a compact touchscreen Human Machine Interface (HMI) developed for small-scale industrial automation systems requiring reliable operator interaction, intuitive process monitoring, and simplified machine control. Designed for OEM equipment manufacturers and compact automation environments, this terminal combines efficient functionality with a space-saving industrial design.
Featuring a responsive touchscreen interface and monochrome display, the 2711C-T3M delivers user-friendly machine visualization while maintaining dependable performance in demanding factory conditions. Its support for multiple serial communication protocols enables seamless integration with MicroLogix, CompactLogix, and other industrial control systems.
As part of the PanelView Component family, this HMI offers a practical balance of affordability, reliability, and operational simplicity for machine-level automation applications.
Technical Specifications
Specification
Details
Manufacturer
Allen Bradley (Rockwell Automation)
Product Family
PanelView Component
Catalog Number
2711C-T3M
Module Type
Operator Interface Terminal / HMI
Display Type
3-inch Monochrome LCD Touchscreen
Display Resolution
128 × 64 pixels
Input Interface
Analog Resistive Touchscreen
Communication Ports
RS-232, RS-485
Supported Protocols
DF1, DH-485, Modbus RTU
Input Voltage
18–30V DC
Power Consumption
Approx. 10 W
Programming Software
Component Designer
Memory Type
Internal Flash Memory
Mounting Type
Panel Mount
Front Panel Rating
NEMA 4X / IP65
Operating Temperature
0°C to 50°C
Storage Temperature
-20°C to 70°C
Dimensions
Approx. 105 × 105 × 55 mm
Weight
Approx. 0.4–0.6 kg
Recommended Related Models
Model
Description
2711C-K3M
Keypad version of PanelView Component
2711C-T6M
6-inch touchscreen HMI
2711C-T10C
Advanced color touchscreen model
2711P-T7C4D8
PanelView Plus 700 HMI
2711P-T10C4D8
PanelView Plus 1000 Terminal
1761-L32AWA
MicroLogix PLC Controller
1766-L32BXB
MicroLogix 1400 PLC
1734-AENTR
POINT I/O Ethernet Adapter
Popular Allen Bradley Automation Models
Model
Product Category
1756-L81E
ControlLogix CPU Module
1769-L24ER-QB1B
CompactLogix Controller
5069-IB16
Digital Input Module
1769-IF8
Analog Input Module
20G11NC072JA0NNNNN
PowerFlex 755 AC Drive
1606-XLE240E
Industrial Power Supply
1794-IE8
FLEX I/O Analog Module
2711R-T4T
PanelView 800 HMI
Industrial Applications
The Allen Bradley 2711C-T3M is widely used in compact automation systems requiring reliable touchscreen control and real-time process monitoring.
Typical applications include:
Conveyor automation systems
Packaging machinery
HVAC control panels
Pump and fan systems
OEM machine interfaces
Food processing equipment
Water treatment systems
Material handling machines
Small assembly stations
Standalone industrial equipment
Its compact dimensions and flexible serial communication capability make it ideal for installations with limited cabinet space and straightforward machine control requirements.
Key Advantages
Compact Touchscreen Design
The small footprint allows installation in tight control panels while still providing intuitive operator interaction.
User-Friendly Interface
The touchscreen interface simplifies machine operation, process monitoring, and parameter adjustment.
Flexible Communication Support
Compatibility with DF1, DH-485, and Modbus RTU protocols enables integration with a wide range of industrial control systems.
Industrial Protection Rating
The NEMA 4X/IP65-rated front panel offers protection against dust, moisture, and harsh industrial environments.
Simplified Configuration
Programming with Component Designer reduces development time and simplifies application deployment.
Reliable Long-Term Operation
Built for industrial durability, the PanelView Component series delivers stable performance in continuous-duty applications.
Technical FAQs
1. What is the Allen Bradley 2711C-T3M used for?
It is a compact touchscreen HMI terminal used for industrial machine control and process visualization.
2. What display size does the terminal feature?
It includes a 3-inch monochrome LCD touchscreen display.
3. Does the 2711C-T3M use physical keys?
No. This model uses a touchscreen-only operator interface.
4. Which communication protocols are supported?
It supports DF1, DH-485, and Modbus RTU serial communication protocols.
5. What voltage does the terminal require?
The unit operates on 18–30V DC power input.
6. Which software is used for programming?
Allen Bradley Component Designer software is used for configuration and application development.
7. Is the touchscreen suitable for industrial environments?
Yes. The front panel is rated NEMA 4X/IP65 for industrial protection.
8. Which PLCs commonly integrate with this terminal?
It is commonly connected to MicroLogix and CompactLogix controllers.
9. Can it be used in OEM machinery?
Yes. Its compact design and efficient operation make it highly suitable for OEM applications.
10. Why is the 2711C-T3M popular in small automation systems?
It offers a practical combination of compact size, touchscreen usability, industrial durability, and cost-effective HMI functionality.
