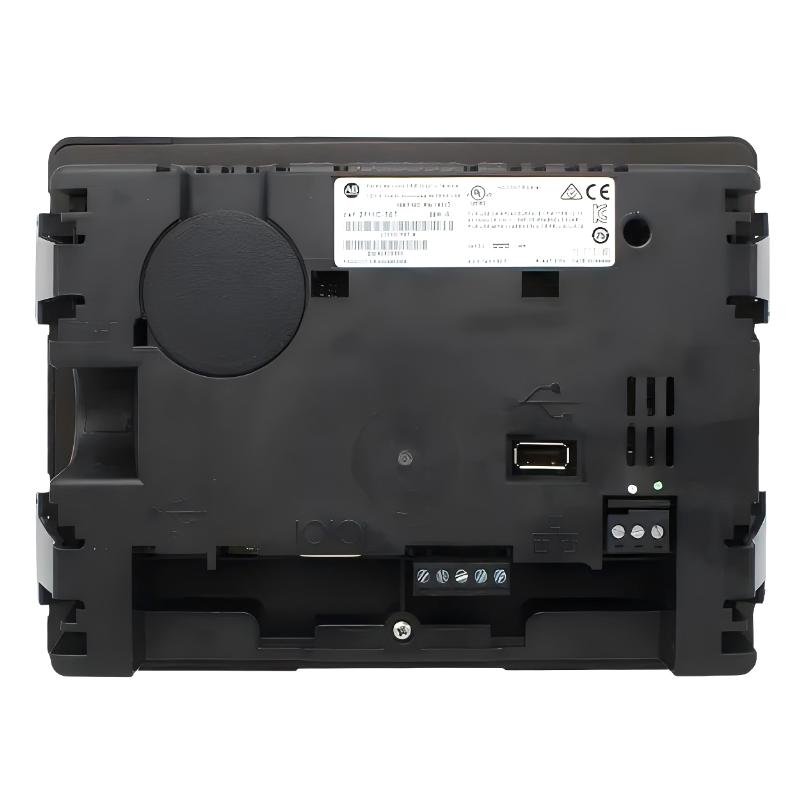

Allen Bradley 2711C-T6T Operator Interface Terminal
Allen Bradley 2711C-T6T Operator Interface Terminal
0.0
Points
Brand:Allen Bradley PLC Item No.:Allen Bradley 2711C-T6T Product Origin:USA Product Dimensions:209 × 154 × 57 mm Product Weight:0.74 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

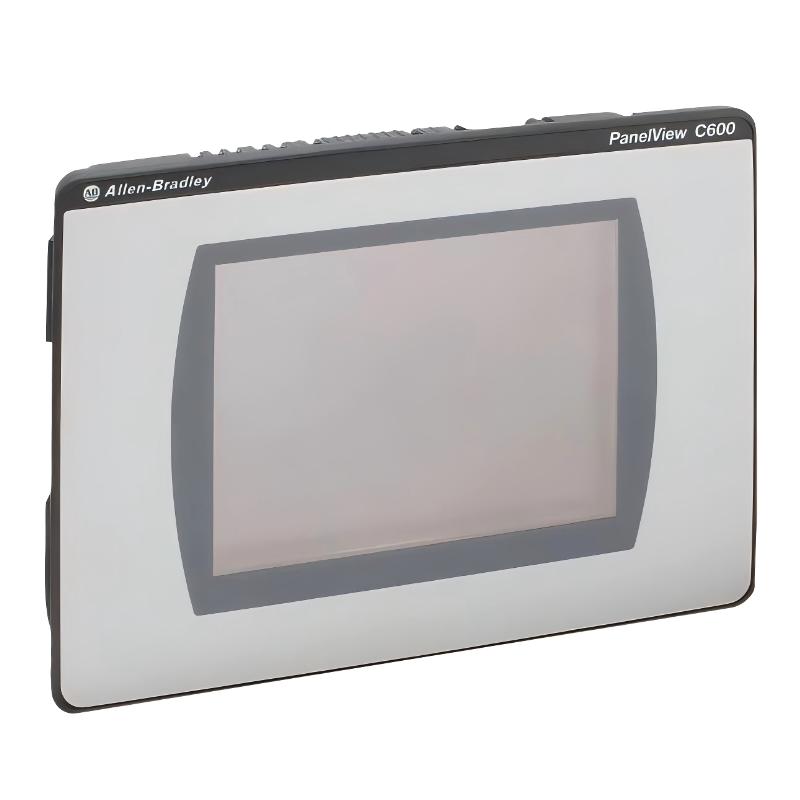

The Allen Bradley 2711C-T6T PanelView Component C600 terminal is a compact industrial Human Machine Interface (HMI) developed to provide reliable operator control, real-time monitoring, and simplified machine interaction for small and mid-sized automation systems. Designed for OEM equipment, standalone machines, and compact process applications, this touchscreen terminal delivers dependable performance with flexible communication capability.

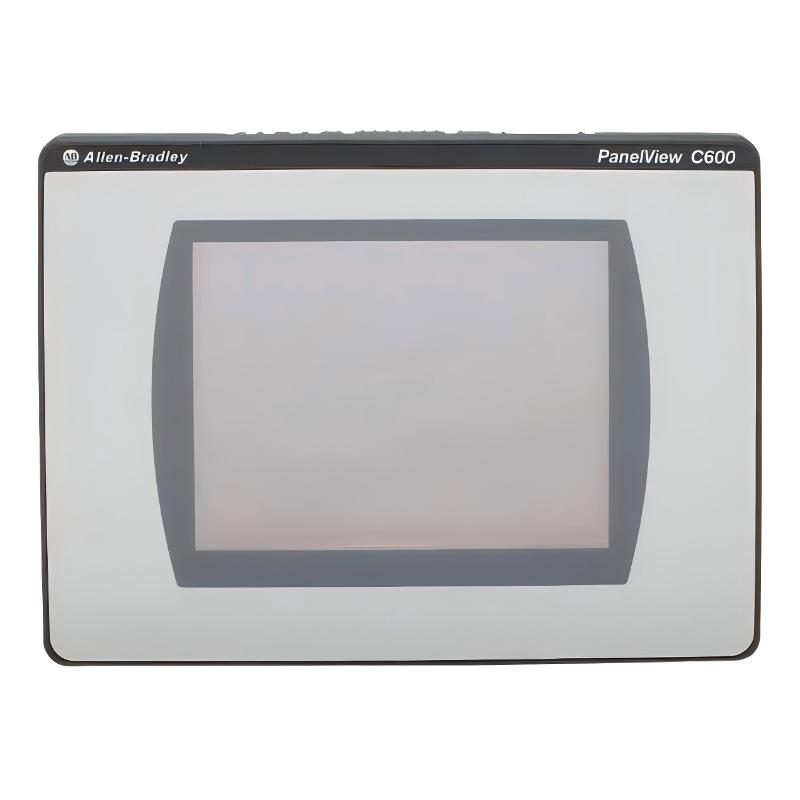

Equipped with a 5.7-inch color touchscreen display, the 2711C-T6T offers clear process visualization and intuitive navigation, helping operators improve productivity and reduce machine downtime. Its integrated Ethernet and serial communication ports make it highly adaptable for integration with MicroLogix, SLC, and CompactLogix control systems.
As part of the PanelView Component family, this HMI combines industrial durability, easy configuration, and cost-effective scalability, making it a practical solution for modern machine automation environments.
Technical Specifications
Specification
Details
Manufacturer
Allen Bradley (Rockwell Automation)
Product Family
PanelView Component C600
Catalog Number
2711C-T6T
Module Type
Operator Interface Terminal / HMI
Display Size
5.7-inch Color TFT LCD
Display Resolution
320 × 240 pixels
Input Interface
Analog Resistive Touchscreen
Display Type
Color Transmissive TFT Active Matrix LCD
Communication Ports
Ethernet, RS-232, RS-485, USB
Supported Protocols
EtherNet/IP, DF1, DH-485, Modbus RTU/TCP
Input Voltage
18–30V DC
Nominal Power
24V DC
Power Consumption
Approx. 5 W
Heat Dissipation
32 BTU/hr
Backlight Life
Approx. 40,000 hours
Programming Software
PanelView Component Builder
Enclosure Rating
NEMA/UL Type 12, 13, 4X; IEC IP54/IP65
Mounting Type
Panel Mount
Operating Temperature
0°C to 50°C
Storage Temperature
-20°C to 70°C
Dimensions
Approx. 209 × 154 × 57 mm
Weight
Approx. 0.74 kg (1.48 lbs)
Recommended Related Models
Model
Description
2711C-T6C
Earlier PanelView Component C600 model
2711C-T3M
Compact monochrome touchscreen HMI
2711C-K3M
Keypad-based PanelView Component terminal
2711C-T10C
10-inch color touchscreen HMI
2711P-T7C4D8
PanelView Plus 700 terminal
2711P-T10C4D8
PanelView Plus 1000 HMI
1766-L32BXB
MicroLogix 1400 PLC
1769-L24ER-QB1B
CompactLogix Controller
Popular Allen Bradley Automation Products
Model
Product Category
1756-L81E
ControlLogix CPU Module
5069-IB16
Digital Input Module
1769-IF8
Analog Input Module
5069-OB16
Digital Output Module
1734-AENTR
POINT I/O Ethernet Adapter
20G11NC072JA0NNNNN
PowerFlex 755 AC Drive
1606-XLE240E
Industrial Power Supply
2711R-T4T
PanelView 800 HMI
Industrial Applications
The Allen Bradley 2711C-T6T is widely used in industrial automation systems that require compact touchscreen operation and reliable machine-level visualization.
Typical applications include:
Packaging machinery
Conveyor systems
Material handling equipment
HVAC automation systems
Pump and fan control
OEM machine interfaces
Food and beverage processing lines
Water treatment systems
Industrial assembly stations
Small process automation systems
Its Ethernet capability and serial communication flexibility make it highly suitable for distributed machine control architectures and retrofit automation projects.
Key Advantages
High-Visibility Color Touchscreen
The 5.7-inch TFT display provides clear process visualization and intuitive operator interaction in industrial environments.
Flexible Communication Capability

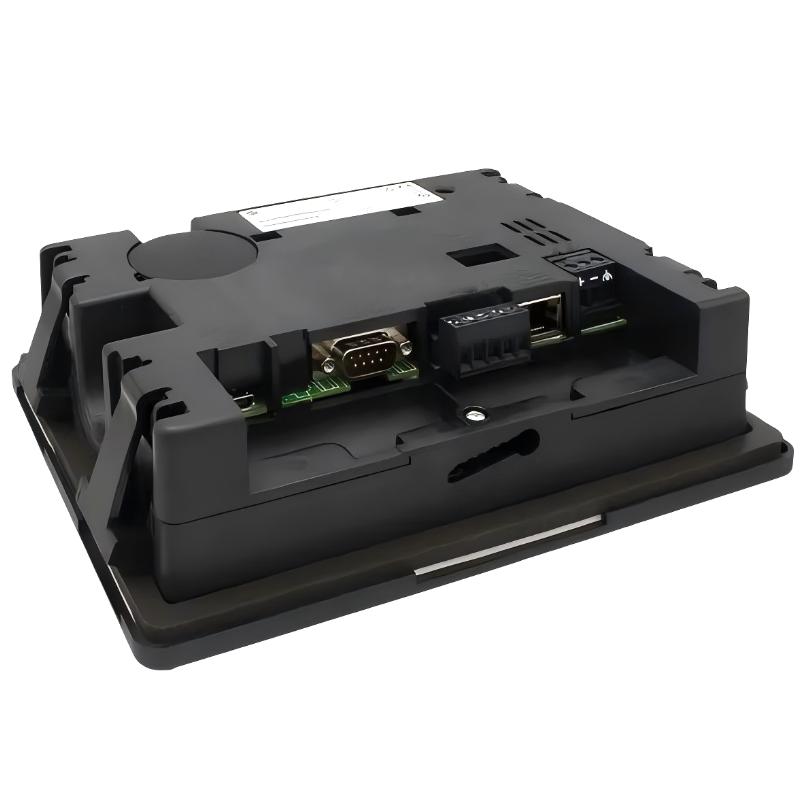

Integrated Ethernet, RS-232, and RS-485 ports allow seamless integration with Allen Bradley and third-party control systems.
Compact Industrial Design
Its slim panel-mount construction helps maximize cabinet space efficiency without compromising functionality.
Simplified Configuration Environment
Programming through PanelView Component Builder enables faster application setup and streamlined deployment.
Industrial Protection and Durability
NEMA 4X/IP65-rated front panel protection ensures reliable operation in dusty and demanding factory environments.
Reliable Long-Term Performance
Engineered for continuous industrial operation, the terminal offers stable communication and dependable machine control functionality.
Technical FAQs
1. What is the Allen Bradley 2711C-T6T used for?
It is an industrial touchscreen HMI used for machine control, monitoring, and process visualization applications.
2. What display size does the terminal feature?
It features a 5.7-inch color TFT touchscreen display with 320 × 240 resolution.
3. Does the 2711C-T6T support Ethernet communication?
Yes. It includes an integrated Ethernet communication port for industrial network connectivity.
4. Which communication protocols are supported?
The terminal supports EtherNet/IP, DF1, DH-485, Modbus RTU, and Modbus TCP protocols.
5. What voltage does the terminal require?
It operates on 18–30V DC input power with a nominal 24V DC supply.
6. What software is used for programming?
It is configured using PanelView Component Builder software.
7. Is the touchscreen suitable for industrial environments?
Yes. The front panel is rated NEMA 4X and IEC IP65 for industrial protection.
8. Which PLC systems commonly integrate with this HMI?
It commonly integrates with MicroLogix, SLC 500, and CompactLogix controllers.
9. Is the 2711C-T6T still in production?
No. The model has been discontinued but remains widely used in existing industrial systems and retrofit applications.
10. Why is the 2711C-T6T popular in compact automation systems?
It combines touchscreen usability, Ethernet connectivity, industrial durability, and compact installation flexibility in a cost-effective HMI platform.
