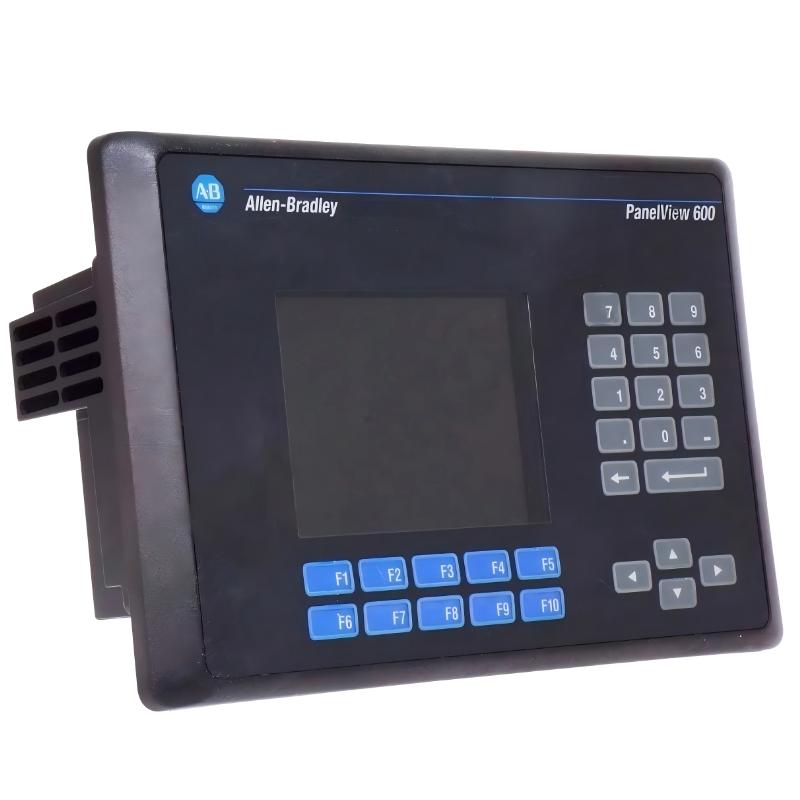

Allen Bradley 2711-K6C8 PanelView 600 Operator Interface Terminal
Allen Bradley 2711-K6C8 PanelView 600 Operator Interface Terminal
0.0
Points
Brand:Allen Bradley PLC Item No.:Allen Bradley 2711-K6C8 Product Origin:USA Product Dimensions:290 × 220 × 116 mm Product Weight:2.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 2711-K6C8 PanelView 600 is a rugged industrial Human Machine Interface (HMI) designed for dependable machine-level control, operator interaction, and process visualization in established automation systems. As part of the widely deployed PanelView Standard 600 series, this model delivers strong reliability, flexible communication options, and long-term compatibility with Allen-Bradley PLC architectures used across global manufacturing industries.
This terminal combines a color TFT display with a full keypad interface, offering operators precise control and clear visual feedback in demanding environments. It is widely used in OEM machinery, packaging systems, conveyor lines, and legacy PLC installations where stable Remote I/O or DH+ communication is required.
The 2711-K6C8 continues to be valued in retrofit and installed-base applications, providing a cost-effective way to maintain industrial uptime without redesigning entire control systems.
Technical Specifications
Specification
Details
Manufacturer
Allen Bradley (Rockwell Automation)
Product Family
PanelView 600 Standard
Catalog Number
2711-K6C8
Module Type
Operator Interface Terminal / HMI
Display Size
5.7-inch Color TFT LCD
Display Resolution
320 × 234 pixels
Display Colors
256 Colors
Input Method
Keypad Interface
Function Keys
10 programmable function keys
Communication Ports
DH+ / RS-232 (Printer/Download depending on revision)
Supported Protocols
DH+, Remote I/O (variant dependent)
Input Voltage
85–264V AC
Input Frequency
47–63 Hz
Power Consumption
Approx. 40–50 VA
Memory
Flash application memory (PanelBuilder32 runtime)
Backlight Life
~50,000 hours (typical)
Programming Software
PanelBuilder32
Mounting Type
Panel Mount
Enclosure Rating
NEMA 12/13, NEMA 4X (front), IP54/IP65
Operating Temperature
0°C to 55°C
Storage Temperature
-20°C to 70°C
Dimensions
Approx. 290 × 220 × 116 mm
Weight
Approx. 2.2–2.5 kg
Recommended Related Models
Model
Description
2711-K6C10
PanelView 600 keypad color HMI
2711-B6C10
Touch + keypad PanelView 600
2711-T6C10
Touchscreen PanelView 600
2711-K5A5
PanelView 550 DH+ keypad terminal
2711P-T7C4D8
PanelView Plus 700 modern HMI
2711P-T10C4D8
PanelView Plus 1000 HMI
1747-L553
SLC 5/05 PLC Controller
1756-L81E
ControlLogix CPU Module
Popular Allen Bradley Automation Products
Model
Product Category
1769-L24ER-QB1B
CompactLogix Controller
5069-IB16
Digital Input Module
1769-IF8
Analog Input Module
1734-AENTR
POINT I/O Ethernet Adapter
20G11NC072JA0NNNNN
PowerFlex 755 Drive
1606-XLE240E
Industrial Power Supply
1794-IE8
FLEX I/O Analog Module
2711R-T4T
PanelView 800 HMI
Industrial Applications
The Allen Bradley 2711-K6C8 is widely used in industrial automation systems requiring stable operator interaction and dependable communication with legacy Allen-Bradley controllers.
Typical applications include:
Packaging and labeling machines
Conveyor automation systems
Material handling equipment
Automotive production lines
Food and beverage processing
Water and wastewater treatment systems
HVAC control panels
Pump and motor control stations
OEM machinery interfaces
Retrofit legacy automation upgrades
Its flexible communication architecture makes it suitable for both Remote I/O and DH+ based industrial networks depending on system configuration.
Key Advantages
Color Display for Enhanced Visibility
The 5.7-inch TFT screen provides clear visualization of alarms, machine status, and process parameters in real time.
Rugged Keypad Interface Design
Physical function keys ensure reliable operation in environments with vibration, dust, or operator protective equipment.
Flexible Legacy Communication Support
Compatible with DH+ and Remote I/O architectures for seamless integration into established Allen-Bradley systems.
Industrial-Grade Durability
Designed for continuous operation in harsh factory environments with electrical noise resistance and mechanical robustness.
Efficient Retrofit Solution
Ideal for extending the lifecycle of existing automation systems without requiring full HMI replacement.
Proven PanelView Stability
Part of a widely installed platform known for long-term reliability in industrial production environments.
Technical FAQs
1. What is the Allen Bradley 2711-K6C8 used for?
It is an industrial HMI used for machine control, monitoring, and operator interface in automation systems.
2. What display does it use?
It features a 5.7-inch color TFT display with 320 × 234 resolution.
3. Is this model touchscreen-based?
No. It uses a keypad-only operator interface.
4. Which communication protocols are supported?
Depending on configuration, it supports DH+ and Remote I/O communication.
5. What power supply does it require?
It operates on 85–264V AC input power.
6. Which PLC systems is it compatible with?
It is commonly used with PLC-5, SLC 500, and other Allen-Bradley legacy controllers.
7. What software is used for programming?
It is configured using PanelBuilder32 software.
8. Is it suitable for industrial environments?
Yes. It features NEMA 4X/IP65 front protection for harsh industrial conditions.
9. Is the 2711-K6C8 still manufactured?
No. It is a discontinued product but still widely used in installed systems.
10. Why is the PanelView 600 series still popular?
Because of its proven durability, stable PLC communication, long lifecycle support, and strong legacy system compatibility.
