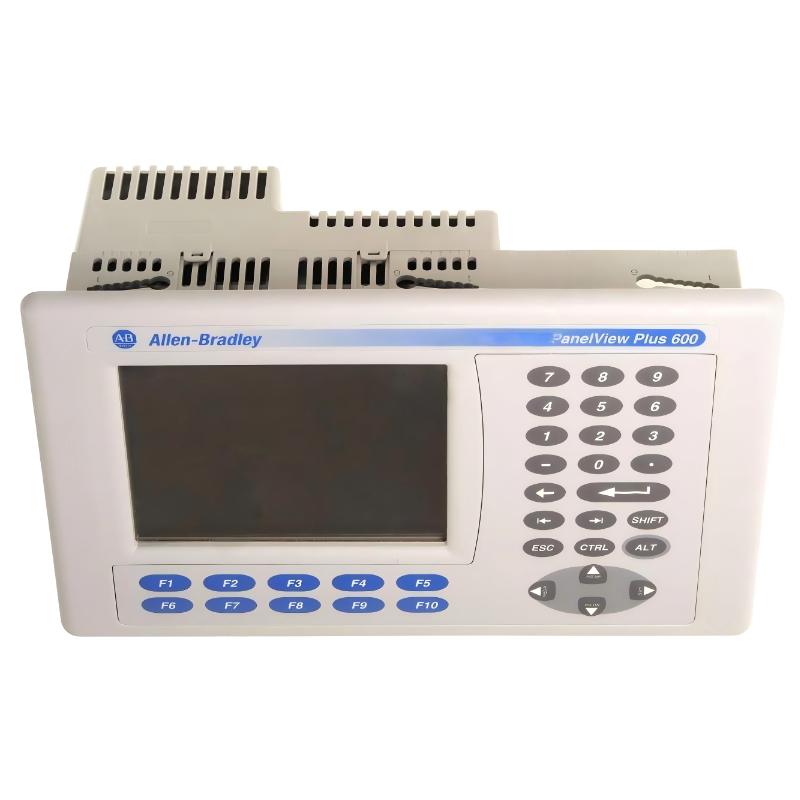

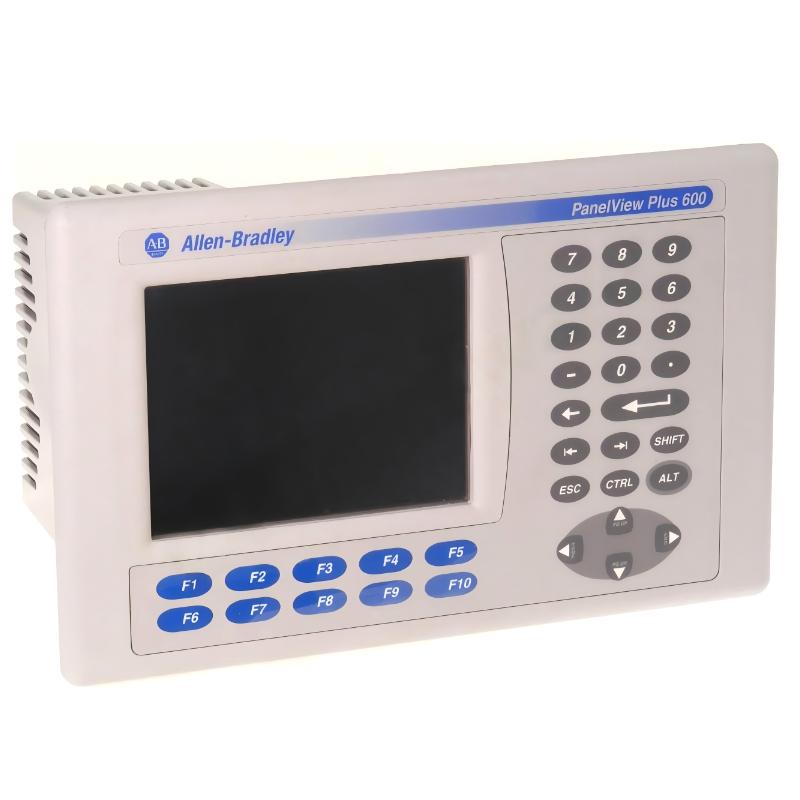

The Allen Bradley 2711P-B6C20A PanelView Plus 600 is a widely used industrial Human Machine Interface (HMI) designed for machine control, operator interaction, and real-time process visualization in automation systems. As part of the PanelView Plus 6 family, this terminal delivers a balanced combination of color graphics, keypad + touchscreen operation, and Ethernet-based communication for flexible industrial integration.
This model is commonly found in OEM machinery, packaging lines, and mid-scale manufacturing systems where stable visualization and long-term Rockwell compatibility are essential. Its dual-input design allows operators to switch between touchscreen navigation and physical function keys, improving usability in harsh or high-vibration environments.
Built on Windows CE and supporting FactoryTalk View Machine Edition, the 2711P-B6C20A remains a proven solution for legacy and active industrial automation networks, especially those using Allen-Bradley Logix and SLC-based systems.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Product Family | PanelView Plus 600 |
| Catalog Number | 2711P-B6C20A |
| Module Type | Operator Interface Terminal / HMI |
| Display Size | 5.7-inch Color TFT LCD |
| Resolution | 320 × 240 (QVGA) |
| Input Method | Touchscreen + Keypad |
| Function Keys | 10 programmable keys (F1–F10) |
| Communication Ports | Ethernet, RS-232, USB |
| Ethernet Protocols | EtherNet/IP, TCP/IP |
| Input Voltage | 85–264V AC, 50/60 Hz |
| Operating System | Windows CE 6.0 |
| Software Platform | FactoryTalk View Machine Edition |
| Memory | ~64 MB RAM / 64–128 MB Flash (typical architecture) |
| Backlight Type | CCFL (field replaceable) |
| Mounting Type | Panel Mount |
| Enclosure Rating | NEMA 4X, NEMA 12/13, IP65 (front) |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Dimensions | Approx. 167 × 266 × 98 mm |
| Weight | Approx. 0.9–1.8 kg (variant dependent) |
