The Allen Bradley 2711P-B6C20D8 PanelView Plus 600 is a rugged industrial Human Machine Interface (HMI) designed for operator-level machine control, process monitoring, and real-time visualization in automation systems. As part of the PanelView Plus 6 platform, this model combines a compact footprint with Ethernet-based communication, dual input operation, and FactoryTalk View Machine Edition integration for stable industrial performance.
This terminal is widely deployed in OEM machinery, packaging systems, and mid-scale production environments where reliable visualization and long-term Allen-Bradley ecosystem compatibility are essential. Its combination of touchscreen and keypad input improves usability in environments where operators require both fast navigation and precise control feedback.
Built on Windows CE and designed for EtherNet/IP communication, the 2711P-B6C20D8 remains a trusted solution for both modernized and legacy automation systems, especially in installed-base support applications.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Allen Bradley (Rockwell Automation) |
| Product Family | PanelView Plus 6 600 |
| Catalog Number | 2711P-B6C20D8 |
| Module Type | Operator Interface Terminal / HMI |
| Display Size | 5.7-inch Color TFT LCD |
| Resolution | 320 × 240 pixels |

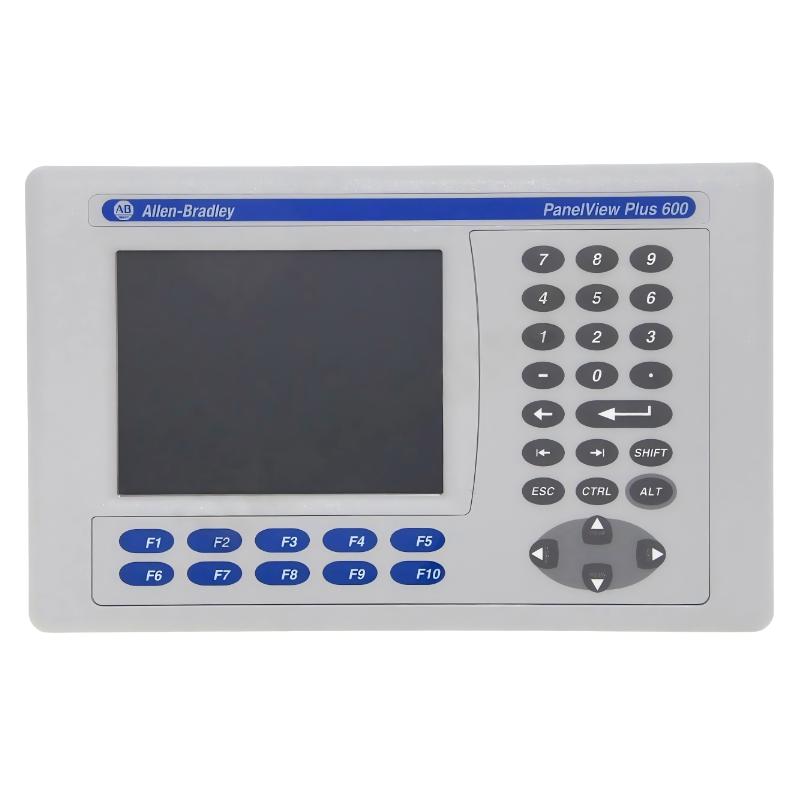

| Input Method | Touchscreen + Keypad |
| Function Keys | 10 programmable keys (F1–F10) |

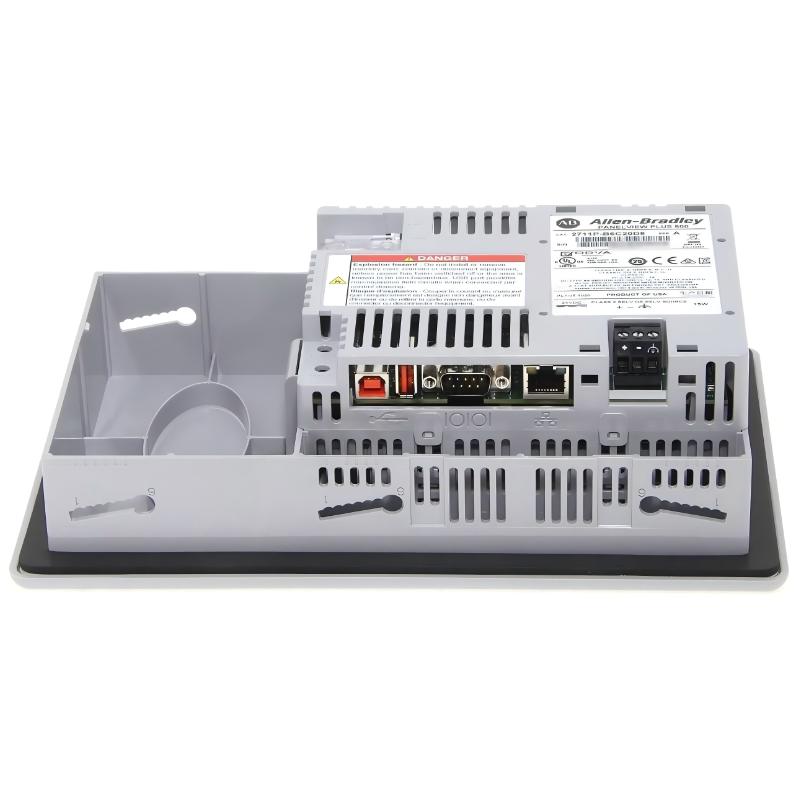

| Communication Ports | Ethernet, RS-232, USB (host + device) |
| Ethernet Protocols | EtherNet/IP, TCP/IP |
| Input Voltage | 18–30V DC (24V DC nominal) |
| Power Consumption | ~9–15 W typical (low power industrial design) |
| Operating System | Windows CE 6.0 |
| Software Platform | FactoryTalk View Machine Edition |
| Memory | ~64 MB RAM / ~64–128 MB Flash (architecture dependent) |
| Backlight Type | White LED (non-replaceable) |
| Backlight Life | ~25,000–50,000 hours (typical) |
| Mounting Type | Panel Mount |
| Enclosure Rating | NEMA 4X, IP66 front protection |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -25°C to 70°C |
| Dimensions | Approx. 167 × 266 × 68 mm |
| Weight | Approx. 0.59–0.75 kg |
Recommended Related Models
| Model | Description |
|---|---|
| 2711P-B6C20A | PanelView Plus 600 AC version |
| 2711P-T6C20D8 | Touch-only PanelView Plus 600 |
| 2711P-B6C20D | Variant with revised hardware revision |
| 2711P-B5C20D | 5.7-inch PanelView Plus 6 HMI |
| 2711P-T7C4D8 | PanelView Plus 700 modern HMI |
| 2711P-T10C4D8 | PanelView Plus 1000 HMI |
| 1756-L81E | ControlLogix CPU Module |
| 1769-L24ER-QB1B | CompactLogix Controller |
