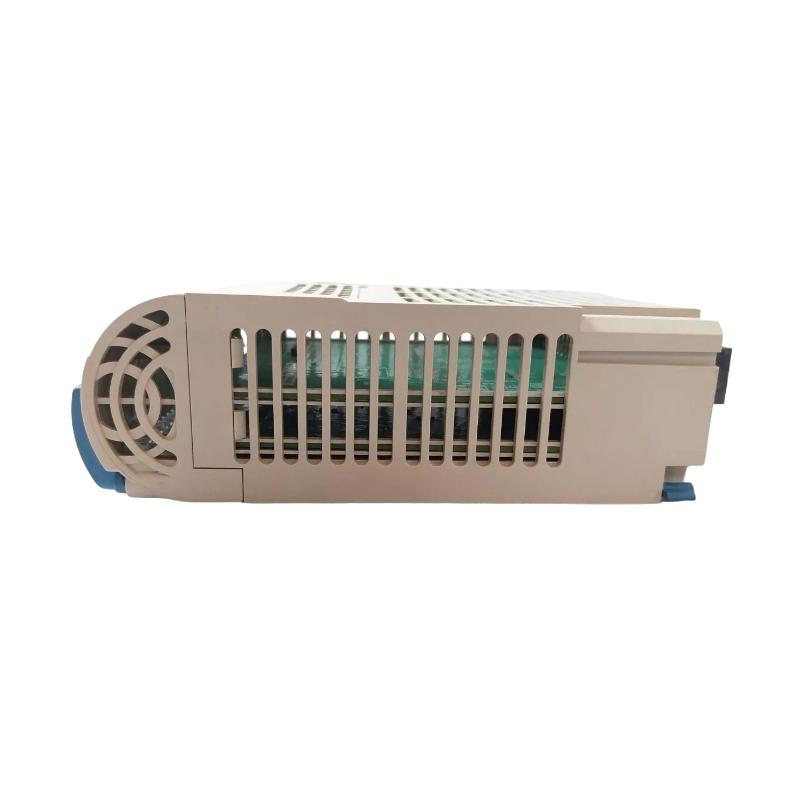

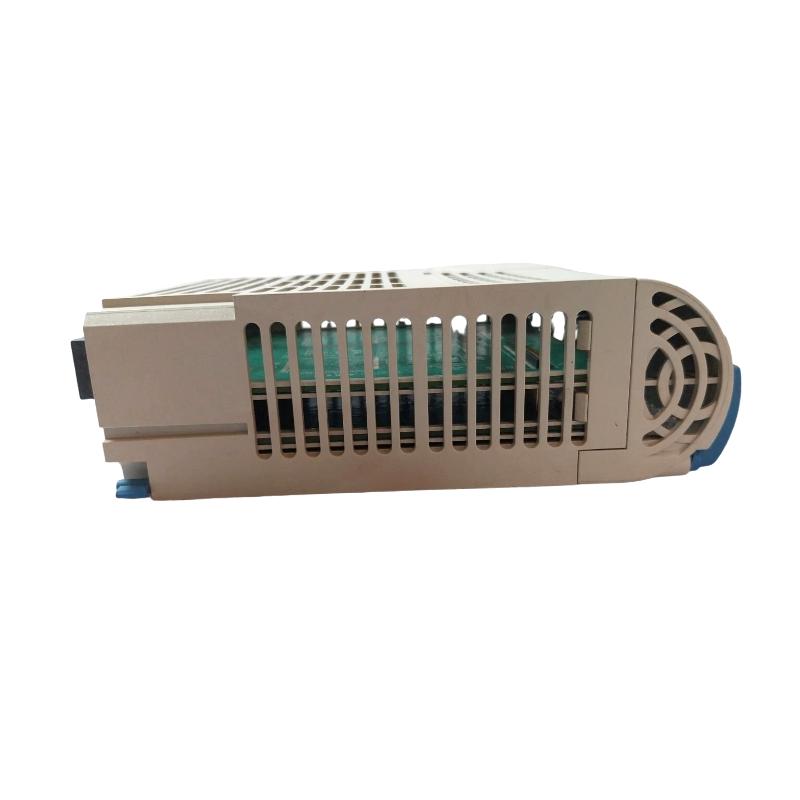

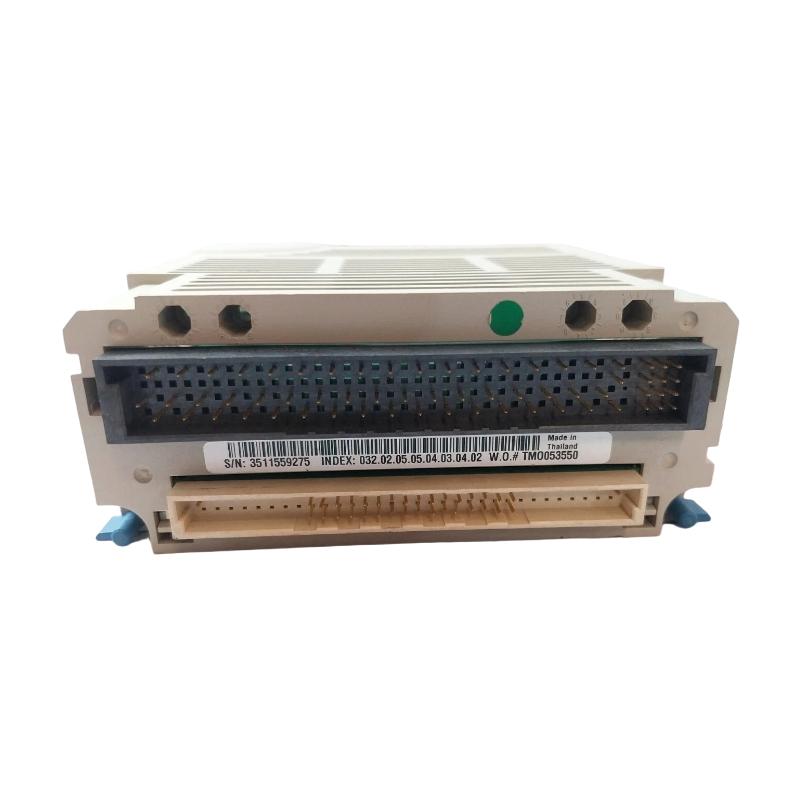

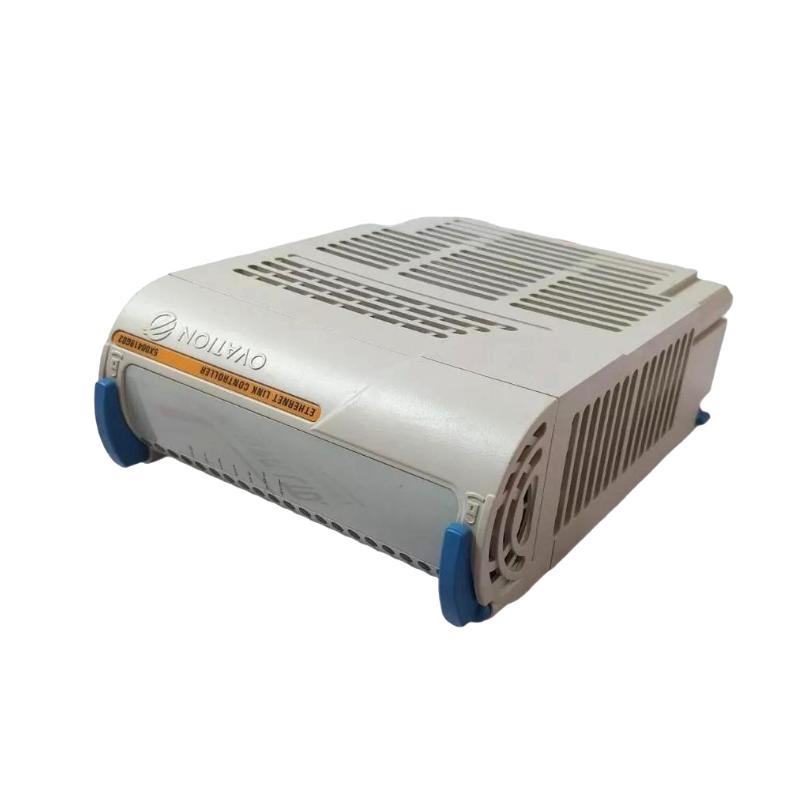

OVATION 1X00161H01 Dual-Port Fast Ethernet Network Interface Module
OVATION 1X00161H01 Dual-Port Fast Ethernet Network Interface Module
0.0
Points
Brand:Ovation DCS Item No.:OVATION 1X00161H01 Product Origin:USA Product Dimensions:120 × 20 × 180 mm Product Weight:0.35 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Ovation 1X00161H01 is an Emerson Ovation Distributed Control System (DCS) dual-port Fast Ethernet network interface module designed to deliver reliable, redundant, and high-speed communication between Ovation controllers, operator stations, and plant-level control networks.
It is widely used in power generation, water treatment, petrochemical, and heavy industrial automation systems, where deterministic network performance, fault tolerance, and continuous uptime are critical. This module enhances system resilience by supporting dual Ethernet channels for improved redundancy and communication stability within the Ovation architecture.
Controller rack or industrial workstation integration
Physical Dimensions & Weight
Parameter
Value
Dimensions (H × W × D)
approx. 120 × 20 × 180 mm
Weight
approx. 0.15–0.35 kg
Recommended Related Models
Model
Description
1X00133H01
Single-port Fast Ethernet PCI NIC
1X00061H01
Dual-homed Ethernet NIC (controller communication)
1X00415H01
Single-port network interface card
1X00093G10
Industrial Ethernet switch module
1X00095H01
Ovation plant network switch
1X00093H08
Redundant switch module
1X00097H01
System power supply module
Popular Ovation Communication Modules
Model
Function
1X00161H01
Dual-Port Fast Ethernet NIC
1X00133H01
PCI Fast Ethernet NIC
1X00061H01
Dual-homed controller NIC
1X00415H01
Single-port network interface card
1X00093G10
Ethernet switch module
1X00095H01
Industrial switch module
1X00093H08
Redundant network switch
Industrial Applications
The Ovation 1X00161H01 is deployed in mission-critical industrial environments where reliable and redundant Ethernet communication is essential for distributed control system performance.
Typical applications include:
Thermal power generation plants
Nuclear auxiliary control systems
Hydroelectric power stations
Water and wastewater treatment facilities
Petrochemical and refinery control networks
Industrial automation systems
Utility grid monitoring and SCADA systems
Distributed control system (DCS) communication backbones
It ensures stable data exchange between controllers, operator stations, and network infrastructure components.
Key Advantages
Dual-Port Redundant Communication
Provides two independent Ethernet channels for enhanced reliability and network resilience.
Industrial-Grade Network Stability
Designed for continuous operation in harsh industrial environments with high electrical noise immunity.
DCS-Native Integration
Fully compatible with Emerson Ovation control system architecture.
Low-Latency Data Transfer
Ensures fast and deterministic communication for real-time process control.
High System Availability
Supports redundant network configurations to minimize downtime risk.
Proven Utility Sector Deployment
Widely used in long-life industrial infrastructure systems.
Technical FAQs
1. What is the Ovation 1X00161H01 used for?
It is used as a dual-port Ethernet network interface module in Emerson Ovation DCS systems.
2. What is its main function?
It provides redundant Ethernet communication between controllers and plant networks.
3. What network speed does it support?
It supports 10/100 Mbps Fast Ethernet.
4. How many ports does it have?
It has two Ethernet ports for redundancy and dual-network communication.
5. Where is it installed?
Inside Ovation controller racks or industrial workstation systems.
6. What industries use it?
Power generation, utilities, petrochemical, and heavy industrial automation.
7. Does it support redundancy?
Yes, it is designed for redundant or dual-homed network configurations.
8. Is it a standalone device?
No, it is part of the Ovation DCS communication architecture.
