Brand:Ovation DCS Item No.:OVATION 3A99200G01 Product Origin:USA Product Dimensions:120 × 60 × 250 mm Product Weight:2.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

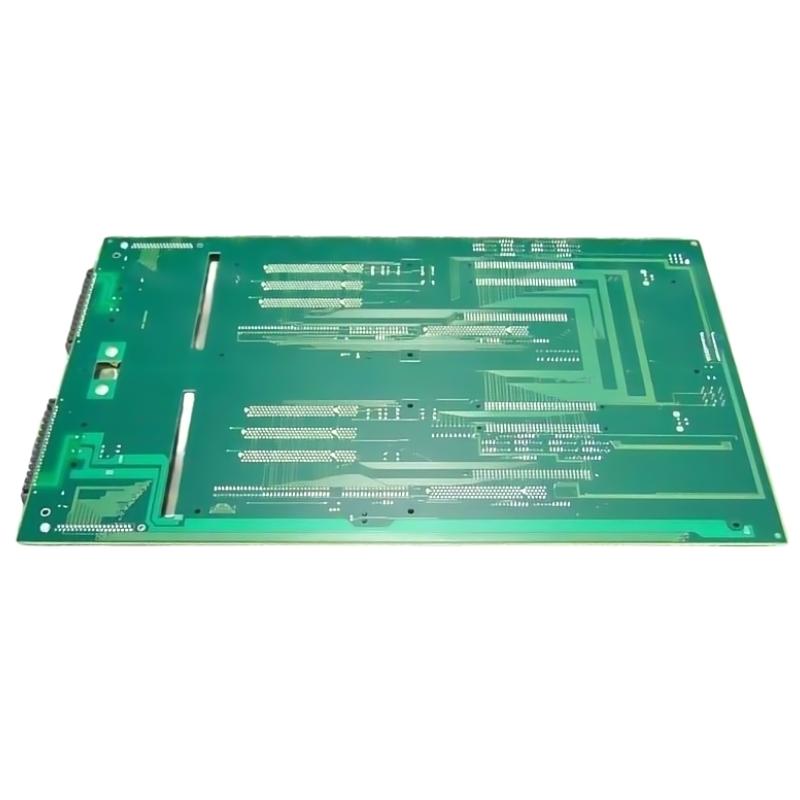

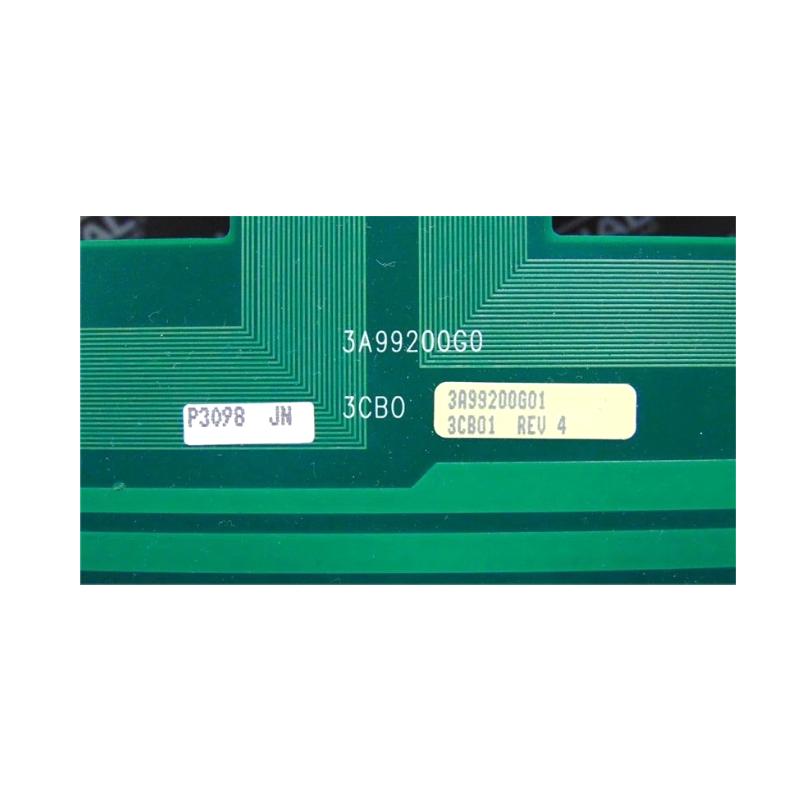

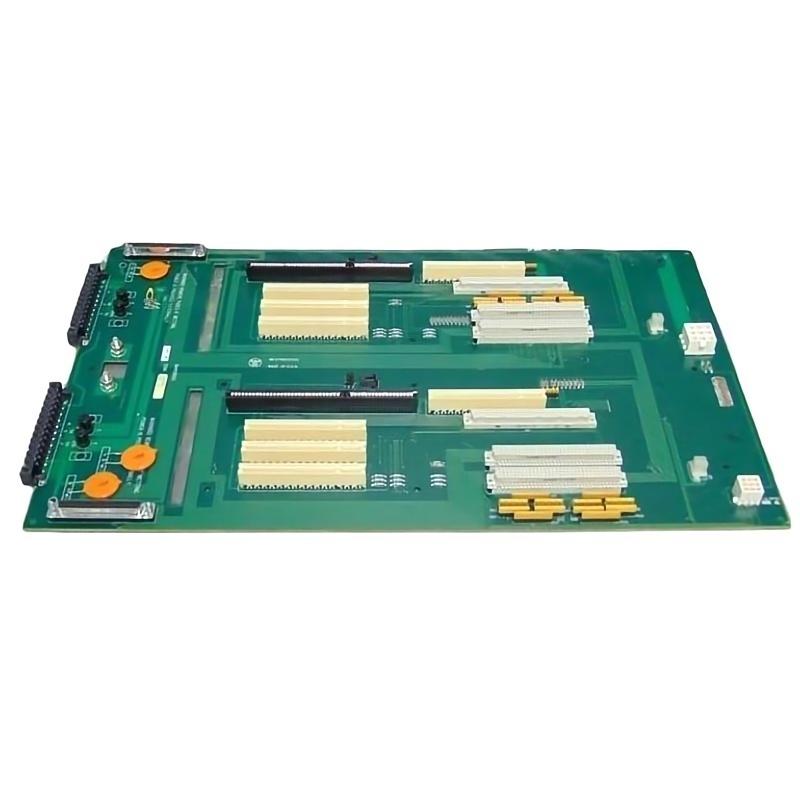

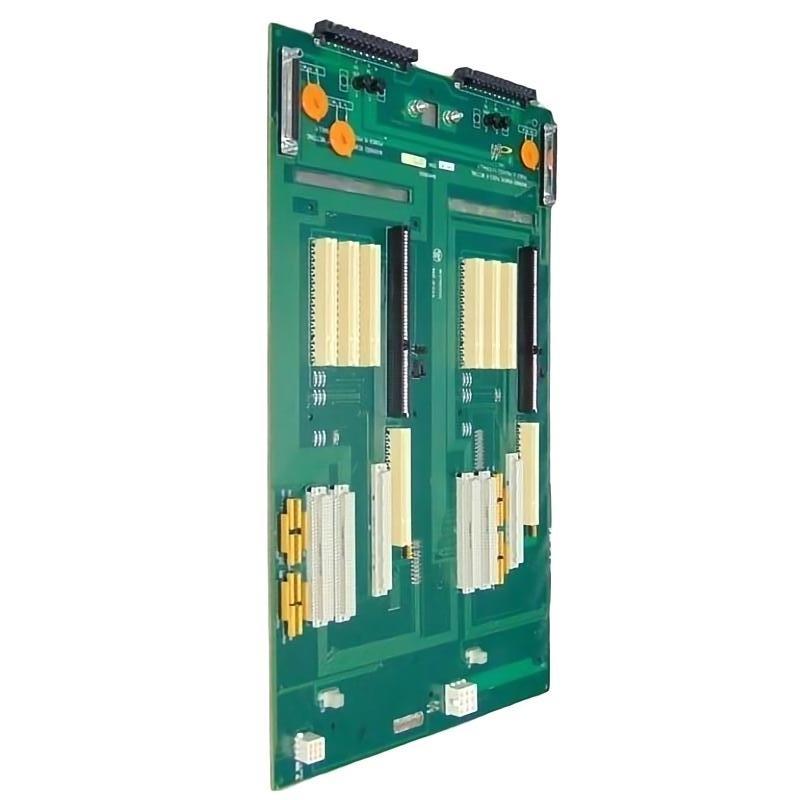

The Ovation 3A99200G01 is an Emerson Ovation Distributed Control System (DCS) PCI backplane module designed to provide the foundational hardware communication bus for Ovation system racks. It serves as a critical infrastructure component that enables data exchange, power distribution coordination, and signal routing between controller cards, I/O modules, and system interface boards.
In Ovation architectures, the backplane is the “hidden backbone” of the control system—ensuring that all modules operate as a unified, synchronized automation platform. The 3A99200G01 is typically used in controller racks or cabinet assemblies, where high-speed internal communication and deterministic system behavior are required.
Technical Specifications
Specification
Details
Manufacturer
Emerson (Ovation DCS)
Product Series
Ovation System Hardware
Part Number
3A99200G01
Module Type
PCI Backplane Module
System Role
Internal communication backbone
Function
Data bus, module interconnection, rack-level signal routing
Architecture
PCI-based Ovation system bus
Compatibility
Ovation controller racks and I/O chassis systems
Redundancy Support
Supported in redundant system configurations
Installation
Integrated within Ovation cabinet/rack chassis
Physical Dimensions & Weight
Parameter
Value
Dimensions (H × W × D)
approx. 120 × 60 × 250 mm
Weight
approx. 1.5–2.5 kg
Recommended Related Models
Model
Description
3A99200G02
Alternate PCI backplane revision
3A99158G01
Local I/O interface module
3A99190G01
Remote I/O interface module
1X00093G07
System interface module
1X00093G10
Ethernet switch module
1X00095H01
Network switch module
1X00097H01
Power supply module
Popular Ovation System Backbone & Interface Modules
Model
Function
3A99200G01
PCI Backplane Module
3A99200G02
Backplane Variant
3A99158G01
Local I/O Interface
3A99190G01
Remote I/O Interface
1X00093G07
System Interface Module
1X00095H01
Ethernet Switch Module
1X00097H01
Power Supply Module
Industrial Applications
The Ovation 3A99200G01 is used in high-availability distributed control environments where stable internal system communication is essential for coordinated plant operation.
Typical applications include:
Thermal power generation plants
Nuclear control and auxiliary systems
Hydroelectric automation systems
Water and wastewater treatment facilities
Petrochemical and refinery control systems
Industrial boiler and turbine control systems
Utility SCADA and grid infrastructure
Large-scale Ovation DCS control cabinets
It functions as the core communication backbone inside Ovation racks, ensuring synchronized operation of all connected modules.
Key Advantages
Core System Communication Backbone
Provides the high-speed internal data bus required for Ovation module coordination.
High System Stability
Ensures deterministic communication across all controller and I/O modules.
Modular Rack Integration
Designed specifically for Ovation cabinet and chassis architectures.
Supports Redundant Configurations
Enables fault-tolerant system designs for critical industrial applications.
Industrial-Grade Reliability
Built for continuous operation in harsh electrical and thermal environments.
Long Lifecycle Deployment
Suitable for utility-grade infrastructure with extended operational lifetimes.
Technical FAQs
1. What is the Ovation 3A99200G01 used for?
It is used as a PCI backplane module providing internal communication between Ovation system components.
2. Is it a field I/O module?
No. It is a system-level infrastructure component, not a field-connected module.
3. What is its main function?
It provides the internal communication bus for Ovation controller and I/O modules.
4. What system does it belong to?
It belongs to the Emerson Ovation Distributed Control System (DCS).
5. What are its dimensions?
Approximately 120 × 60 × 250 mm (H × W × D).
6. What is its weight?
Approximately 1.5–2.5 kg.
7. Where is it installed?
Inside Ovation control racks or system cabinet assemblies.
8. What industries use it?
Power generation, utilities, petrochemical, and heavy industrial automation.
9. Does it support redundancy?
Yes, depending on system architecture configuration.
10. Why is it important in Ovation systems?
Because it forms the core internal communication backbone that allows all modules to function as a unified control system.
