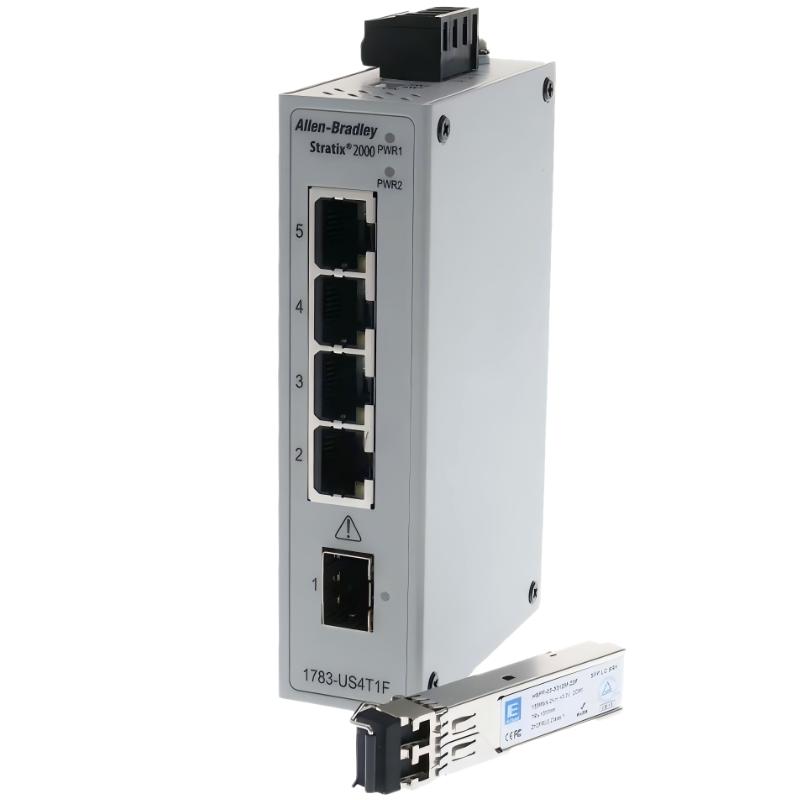

Allen Bradley 1783-US4T1F/B Stratix 2000 Unmanaged Ethernet Switch

Applications

• Small industrial control networks
Used in compact automation systems where simple Ethernet connectivity is required without configuration overhead.

• OEM machine-level communication
Ideal for embedding into machines where plug-and-play networking between PLCs, drives, and sensors is sufficient.

• Basic factory floor device interconnection
Supports straightforward communication between HMIs, controllers, and I/O devices in small production cells.

• Retrofit of legacy unmanaged networks
Commonly used to replace older or non-industrial switches in low-complexity industrial environments.

• Distributed equipment connections
Enables simple Ethernet distribution for isolated machine islands or sub-systems.

• Light industrial automation systems
Suitable for applications where deterministic switching and advanced management are not required.

Key Advantages

• True plug-and-play operation
No configuration required, allowing immediate deployment in small industrial networks.

• Compact industrial design

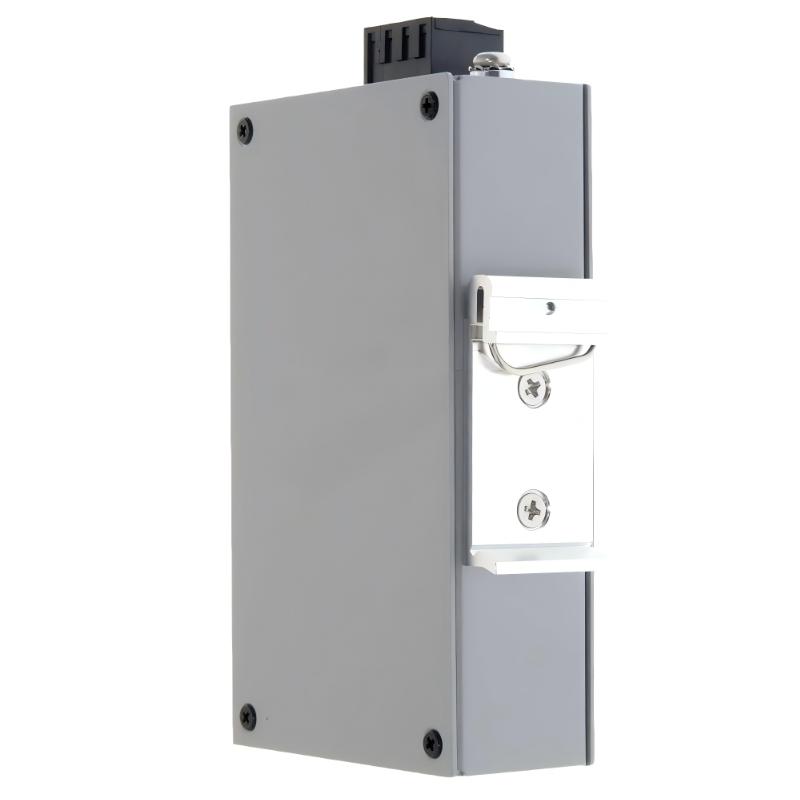

Space-saving form factor optimized for DIN-rail mounting inside control cabinets.

• Reliable Ethernet connectivity
Provides stable 10/100 Mbps communication for essential industrial devices.

• Industrial temperature tolerance
Built to operate reliably in typical factory environments with electrical noise exposure.

• Low maintenance architecture
Unmanaged design eliminates ongoing configuration and network management complexity.

• Cost-efficient networking solution
Reduces overall system cost for basic industrial Ethernet deployments.

Technical FAQs

1. Does the 1783-US4T1F/B require configuration before use?
No, it operates as a plug-and-play unmanaged switch.

2. How many ports does it support?

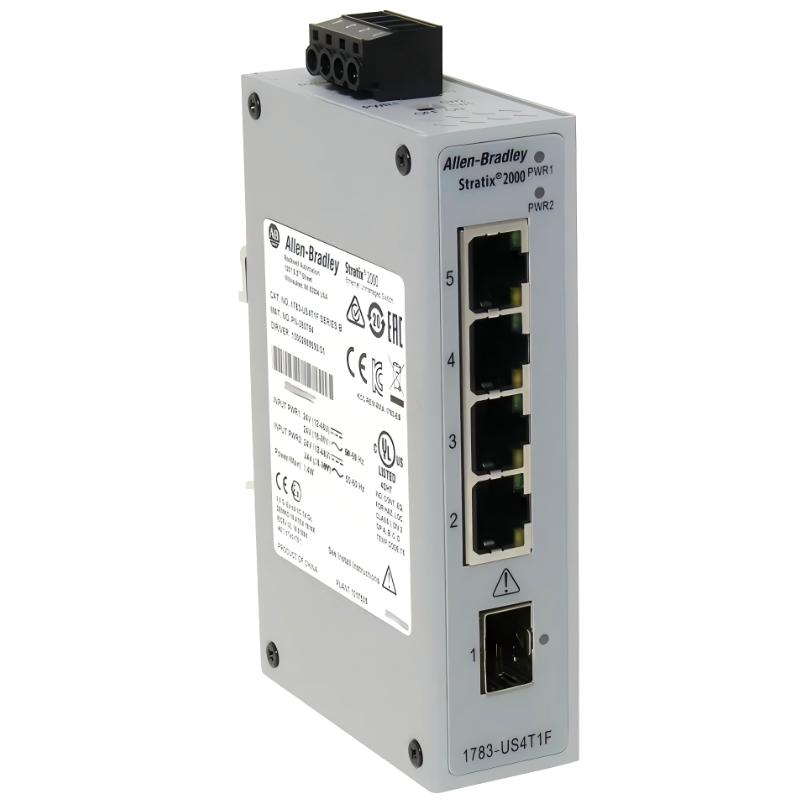

It supports 5 ports: 4 copper Ethernet ports and 1 fiber port.

3. Does it support VLAN or network segmentation?
No, unmanaged models do not support VLAN configuration.

4. Can it be used in industrial automation systems?
Yes, it is designed specifically for small industrial Ethernet applications.

5. Does it support diagnostics or monitoring features?
No advanced diagnostics are available due to its unmanaged design.

6. Is it compatible with EtherNet/IP devices?
Yes, it supports standard industrial Ethernet communication including EtherNet/IP.

7. Can it be used in control cabinets?
Yes, it is DIN-rail mountable for cabinet installation.

8. Does it support redundancy protocols?
No, redundancy features are not included in unmanaged switches.

9. What is the fiber capability of this model?
It includes 1 multimode fiber port for extended communication distance.

10. Is it suitable for large industrial networks?
It is best suited for small-scale or localized network segments.
